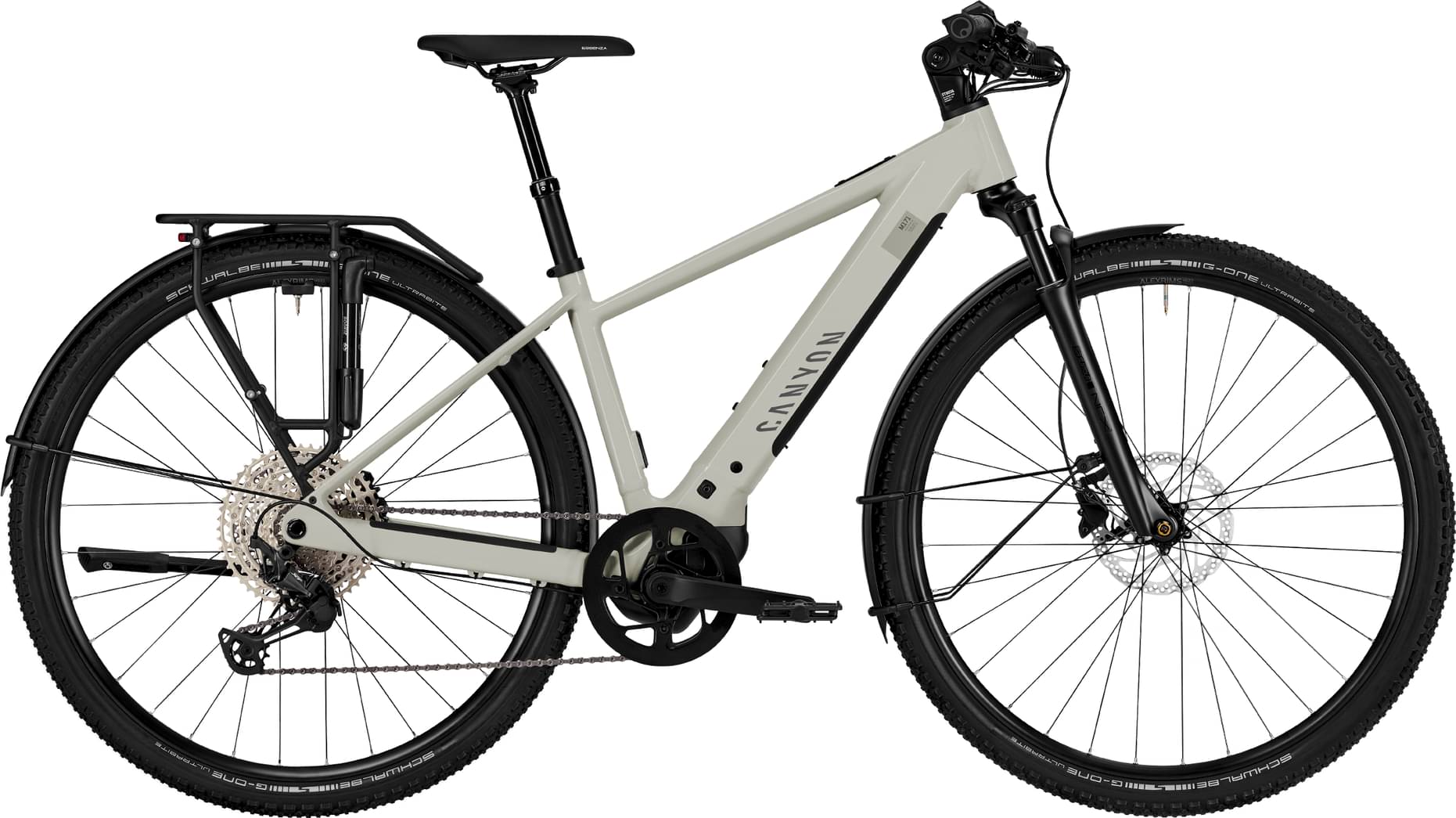

Canyon Pathlite:ON 6 mid-step 2024
2024 E-bike
Estimate price |
3,489$
Weight | 21.06 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch CompactTube 400Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON, A tough, feature-packed aluminium e-touring bike frame with a touring riding position., Axle dimension: 12x142 mm, Material: Aluminium (AL), Weight: 2.60 kg

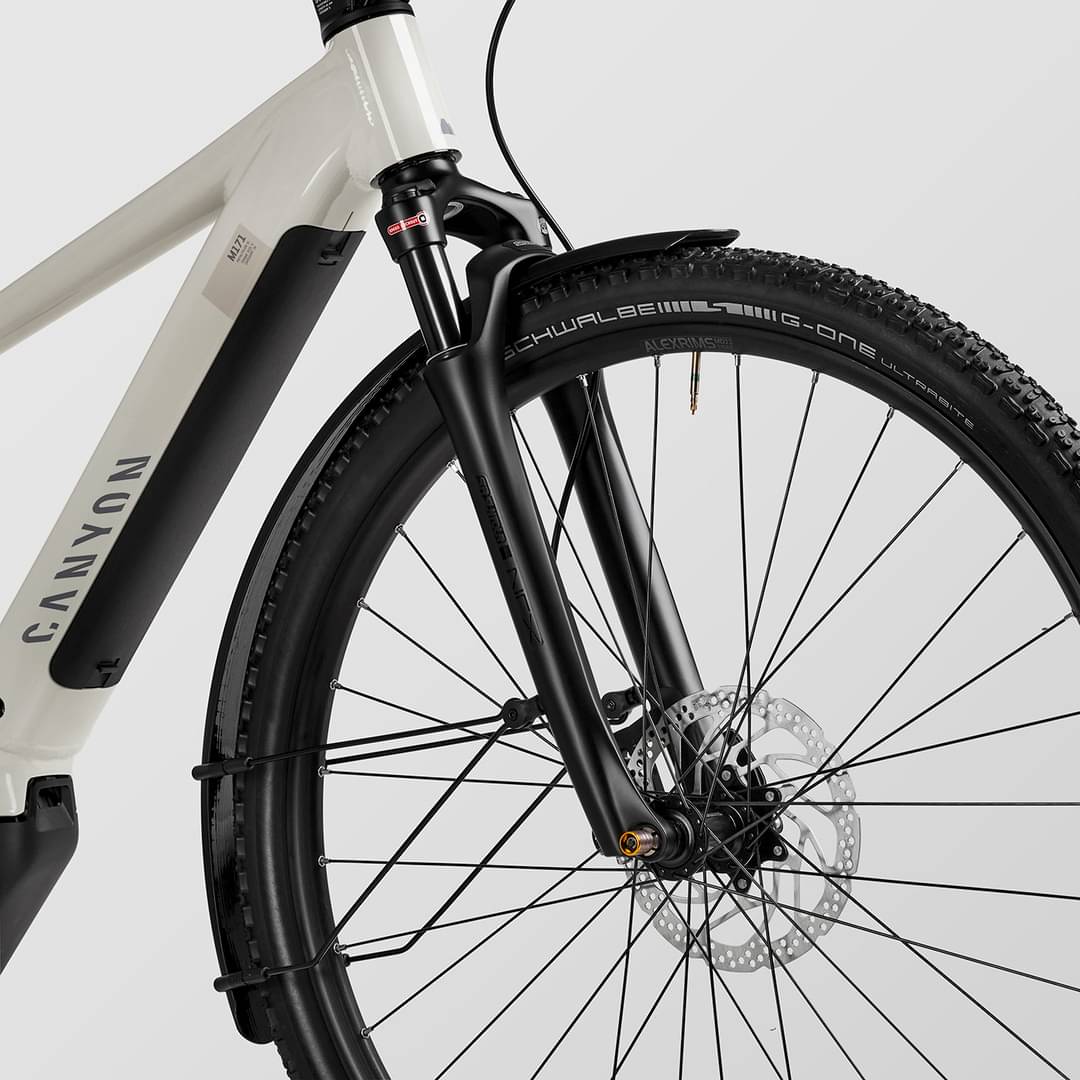

Suspension Fork
SR Suntour NCX-D Air, Axle dimension: 12x100 mm, Stanchion Diameter: 30 mm, Travel: 63 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.00 kg
Drivetrain

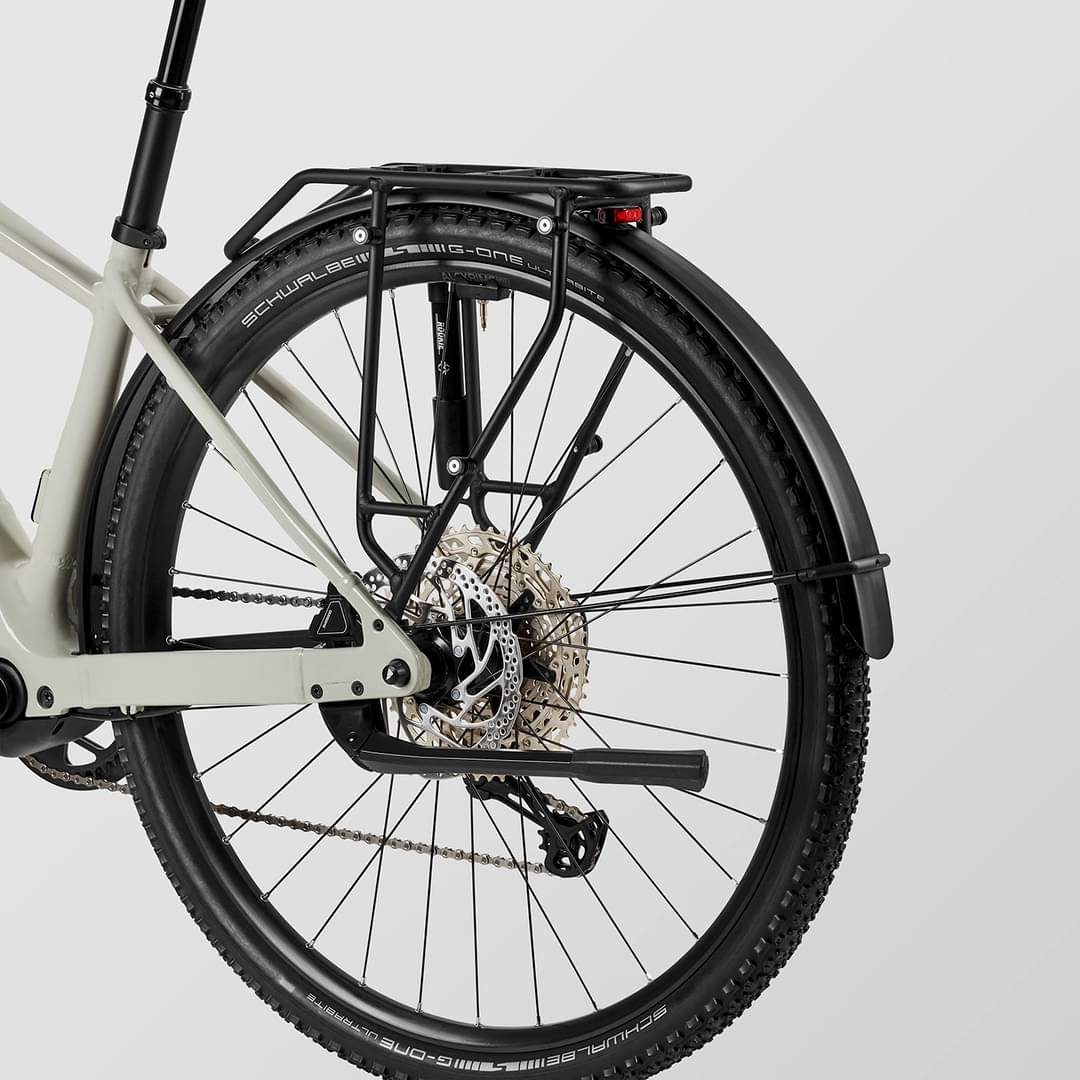

Rear Derailleur
Shimano Deore XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M6100 12s, Weight: 139 g
Cassette
Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S
Crank
FSA CK-220, Number of chainrings: 1
Chain
Shimano CN-M6100
Wheels
Rims
Alexrims MD23 / Shimano TC500 15x100, Rotor mount: Center Lock | Alexrims MD23 / Shimano TC500 12x142, Rotor mount: Center Lock
Tires
Schwalbe G-ONE ULTRABITE 50-622 Performance Line, Width: 2", Weight: 665 g
Brakes

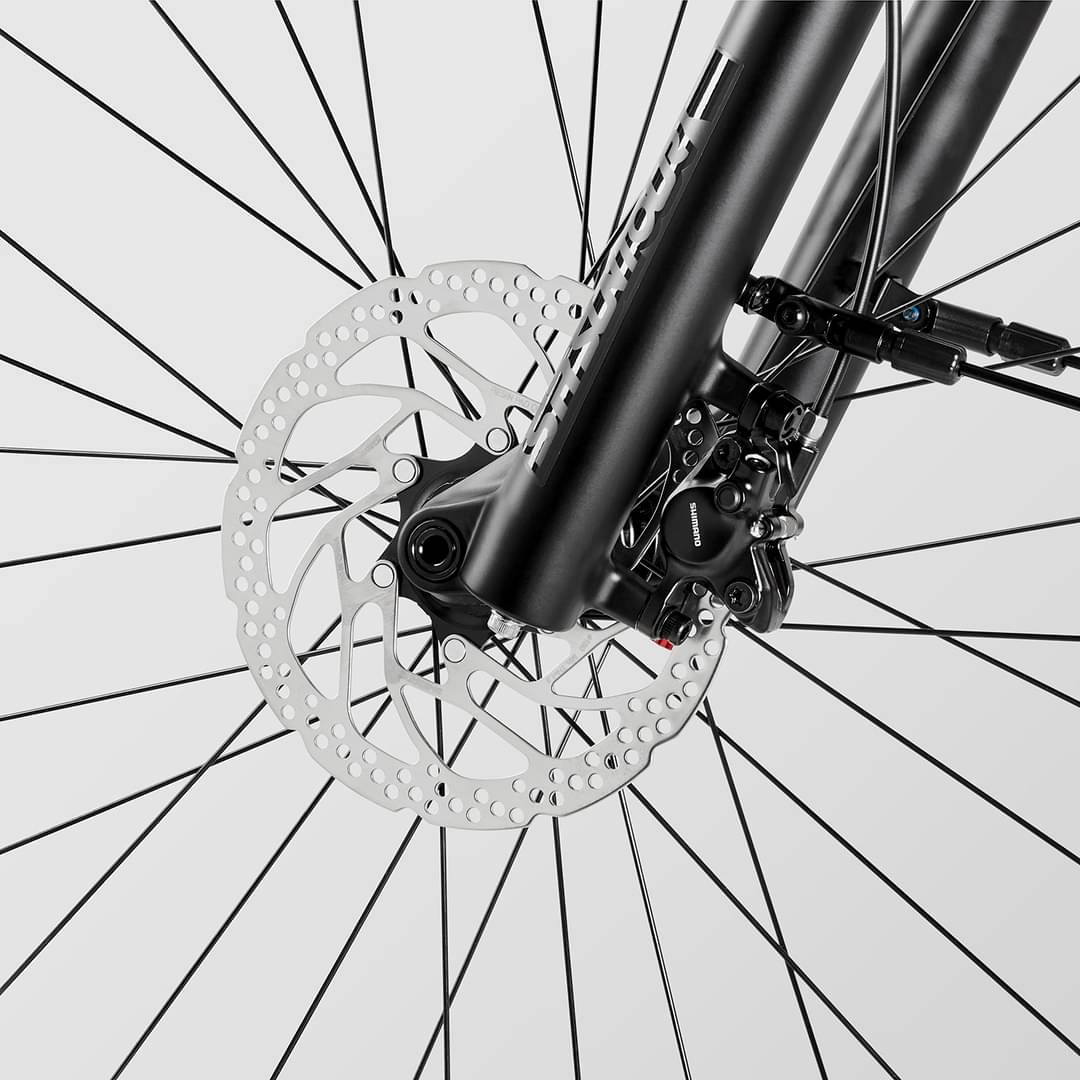

Brakes
Shimano MT200, Number of pistons: 2 | Shimano MT200 / UR300?, Number of pistons: 2
Cockpit
Stem

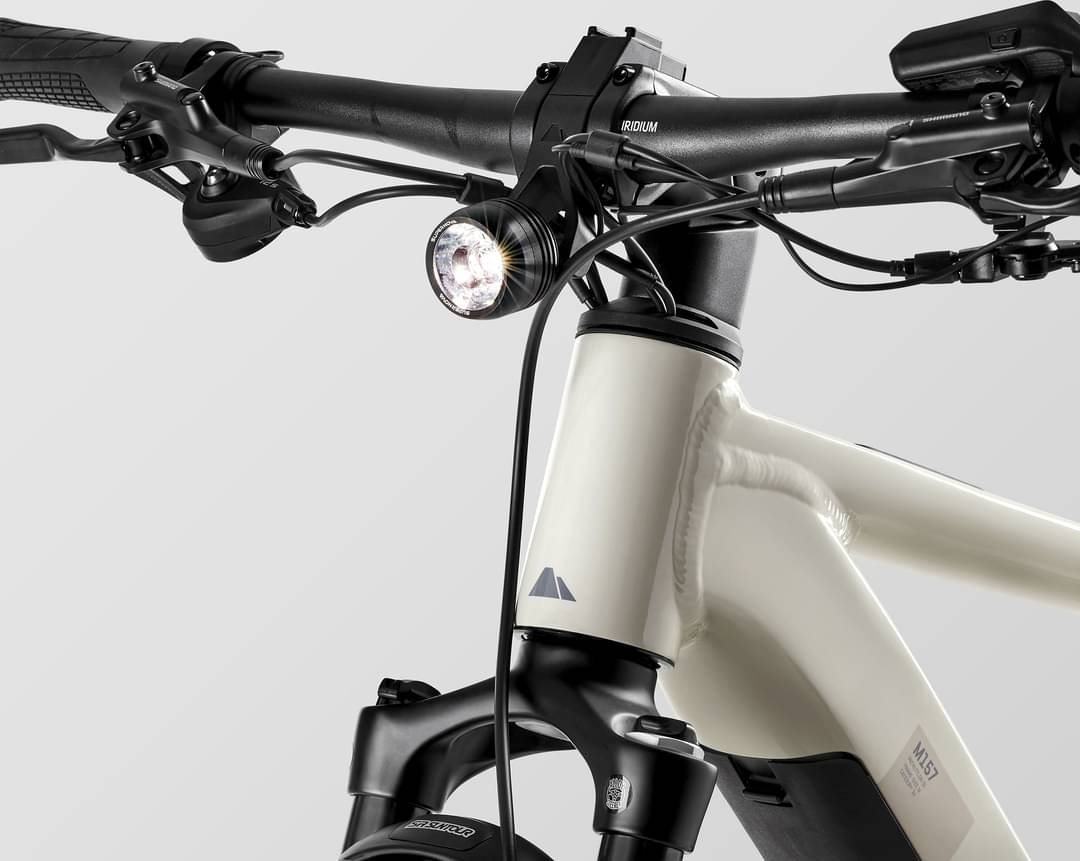

Canyon ST0036 Adjustable, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza, Weight: 288 g
Seatpost
Iridium Suspension Dropper Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 518 g
Motor & Battery

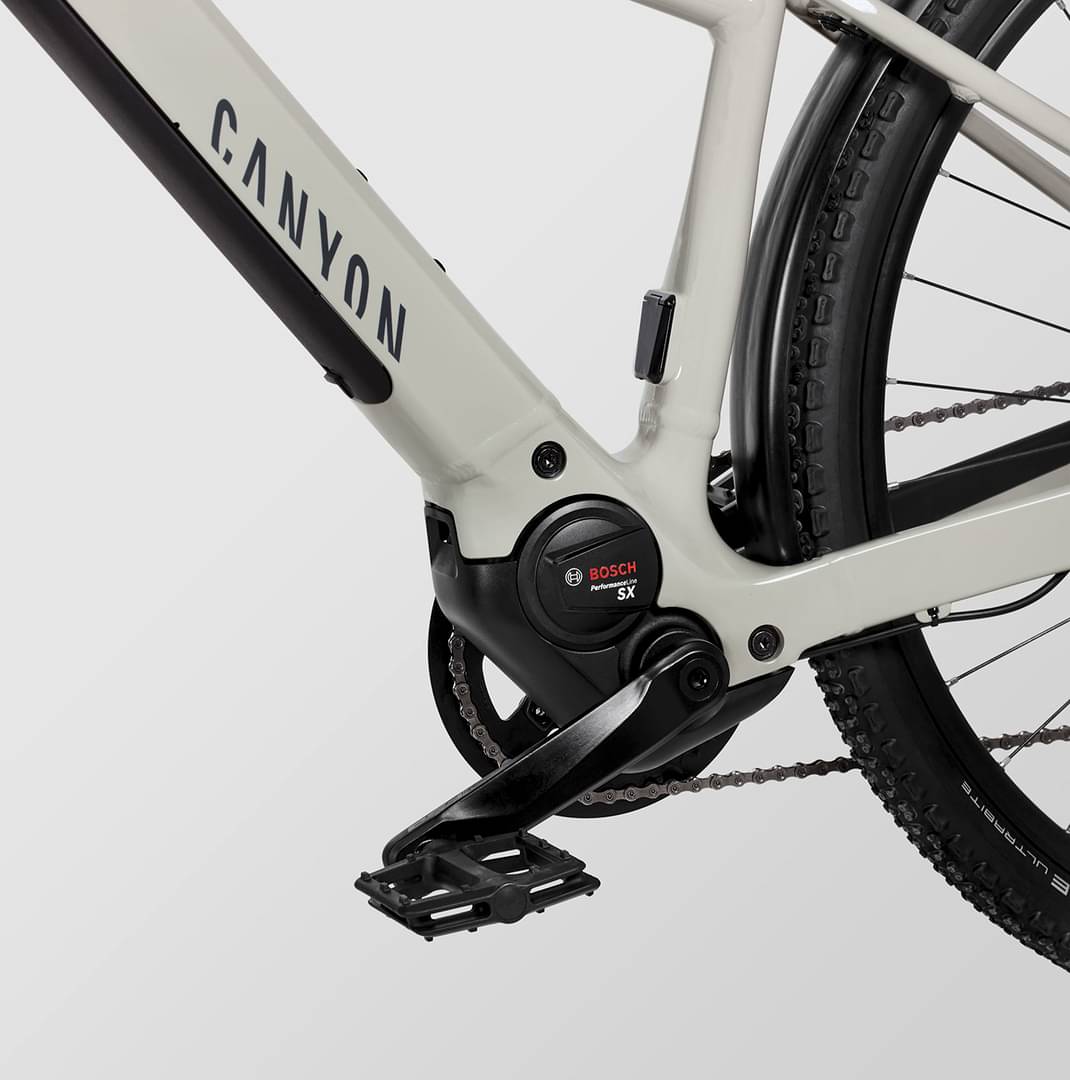

Motor
Bosch Performance Line SX
Battery
Bosch CompactTube 400Wh
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.521 mm | 1.432 mm | 1.442 mm |
| Front Center | 640 mm | 676 mm | 717 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 84 mm | 80 mm | 80 mm |
| Stack | 581 mm | 597 mm | 639 mm |
| Reach | 382 mm | 417 mm | 443 mm |
| Top Tube Length | 551 mm | 591 mm | 629 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 415 mm | 460 mm | 500 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 115 mm | 160 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1076 mm | 1112 mm | 1154 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 698 mm | 706 mm | 717 mm |
| Front Travel | 63 mm | 63 mm | 63 mm |
| Wheels | 700 | 700 | 700 |
| Rider Max Height | 171 cm | 181 cm | cm |
