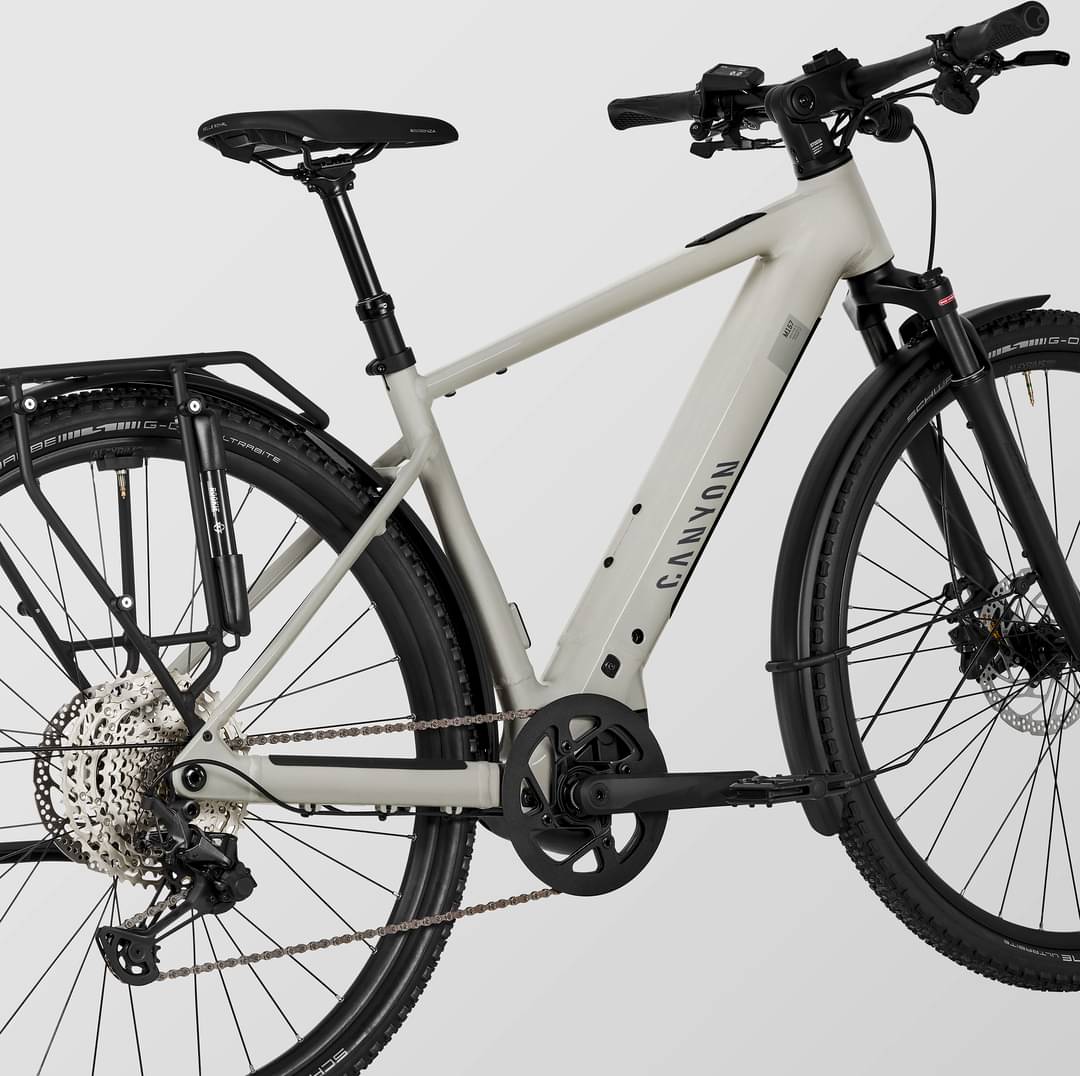

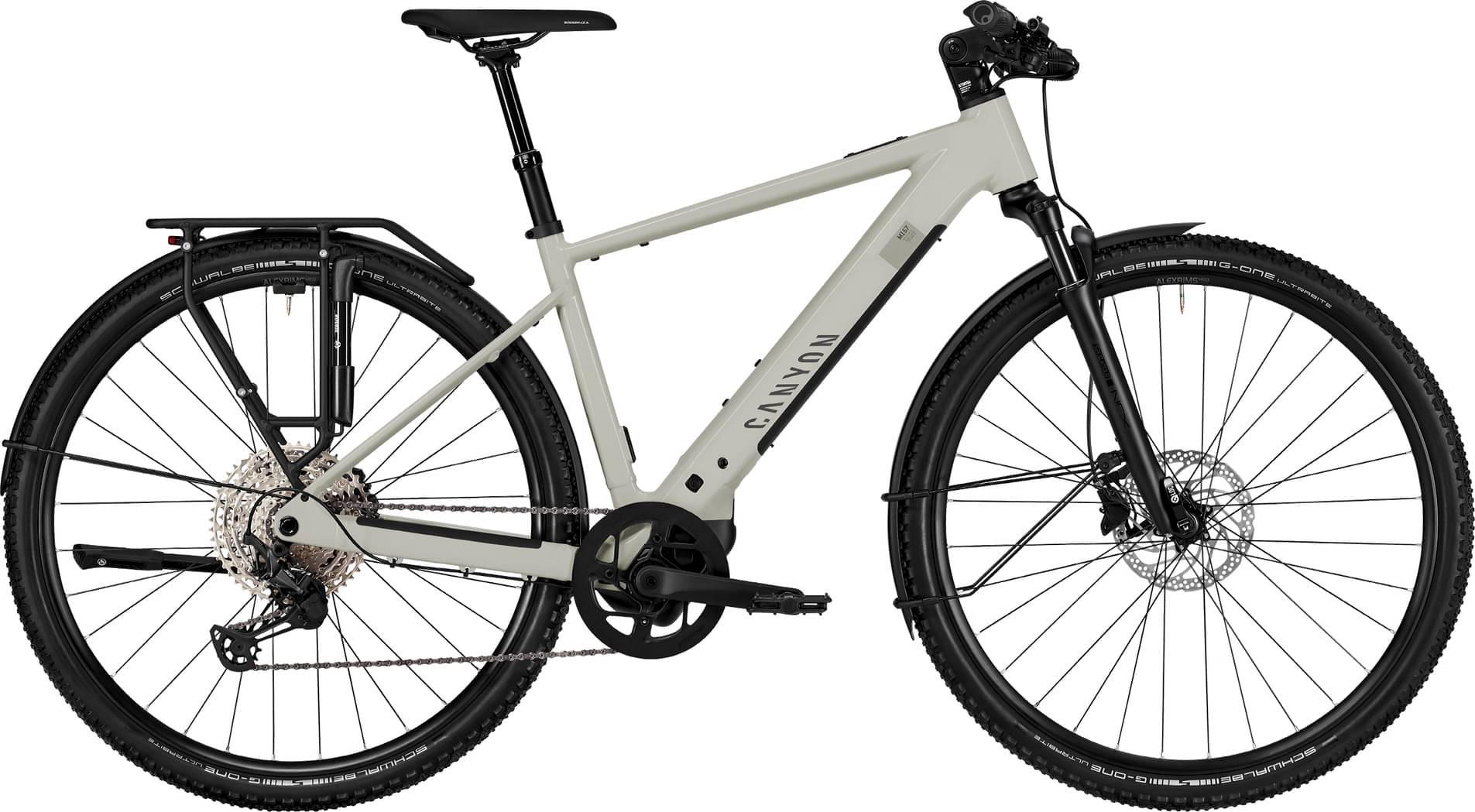

Canyon Pathlite:ON SL 6 2024
2024 E-bike
Estimate price |
3,489$
Weight | 21.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch CompactTube 400Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON, A tough, feature-packed aluminium e-touring bike frame with a touring riding position., Axle dimension: 12x142 mm, Material: Aluminium (AL), Weight: 2.75 kg
Suspension Fork
SR Suntour NCX-D Air, Axle dimension: 12x100 mm, Stanchion Diameter: 30 mm, Travel: 63 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.00 kg
Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M6100 12s, Weight: 139 g
Cassette
Shimano Deore M6100, Number of sprockets: 12 | Shimano CS-M6100 Deore 12-speed Cassette 10-51
Crank
FSA CK-220, Number of chainrings: 1
Chain
Shimano CN-M6100 | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M6100 Deore 12-speed Chain 138 Links
Wheels
Rims
Alexrims MD23 | Promax DR851, Axle dimension: 15X100 mm, Rotor mount: Center Lock, Rim height: 19 mm, Rim material: Aluminium, Weight: 530 g | Alexrims MD23 | Promax DR851 S12, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 19 mm, Rim material: Aluminium, Weight: 530 g
Tires
Schwalbe G-ONE ULTRABITE 50-622 Performance Line, Width: 2", Weight: 665 g
Brakes
Brakes
Shimano MT200, Number of pistons: 2 | Shimano MT200 / UR300?, Number of pistons: 2
Cockpit
Stem

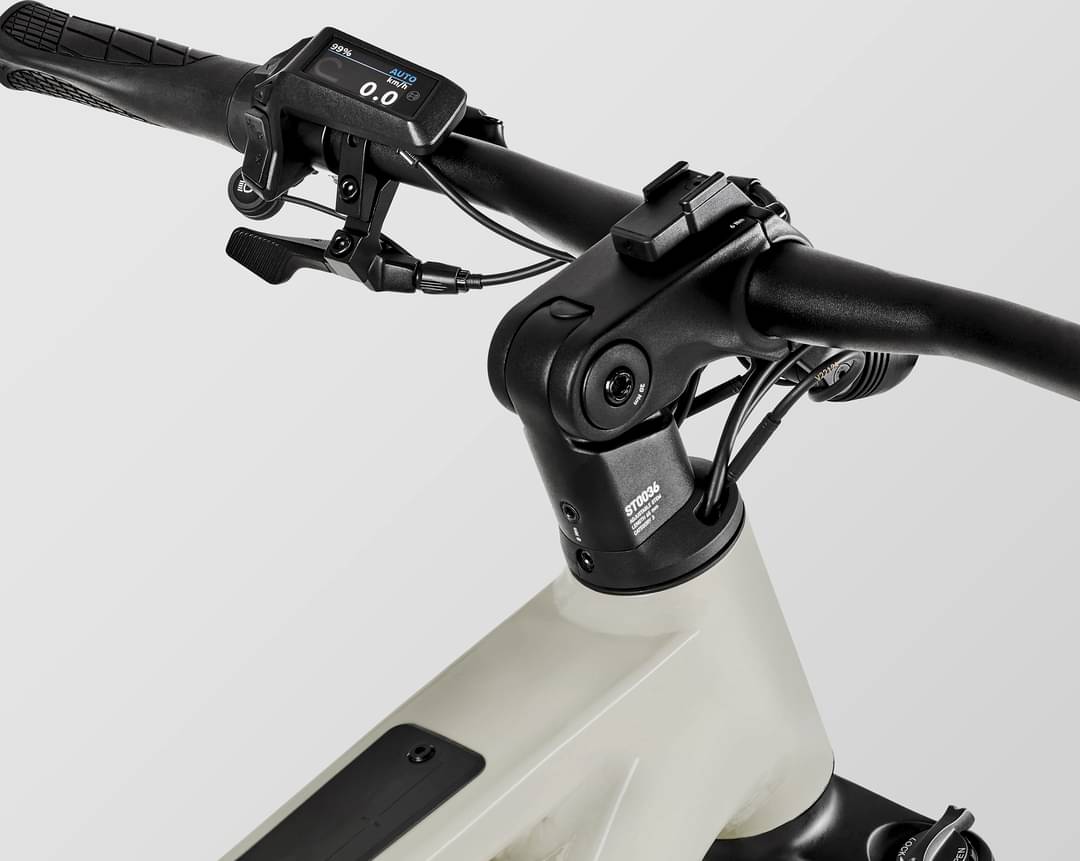

Canyon ST0036 Adjustable, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza, Weight: 288 g
Seatpost
Iridium Suspension Dropper Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 518 g
Motor & Battery
Motor

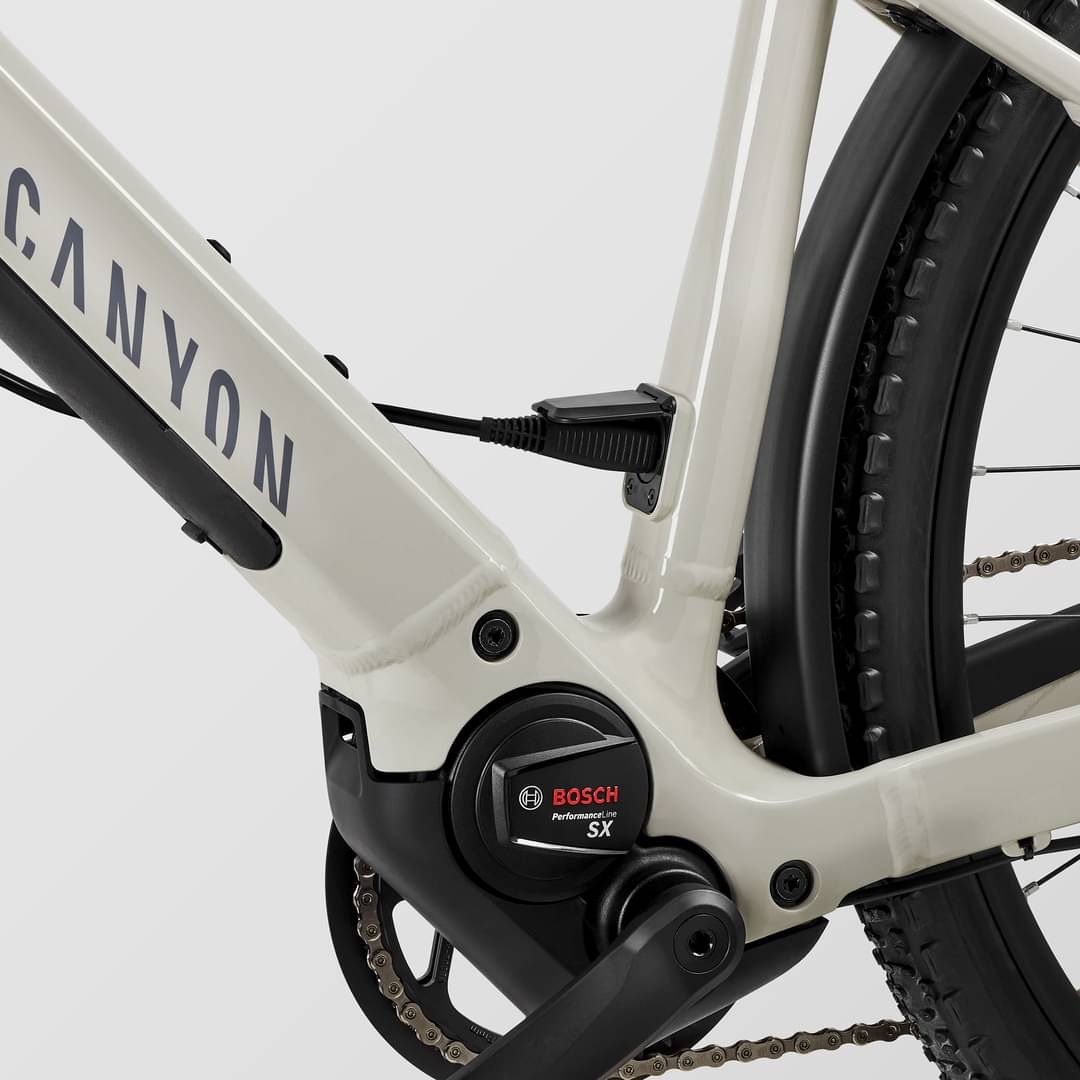

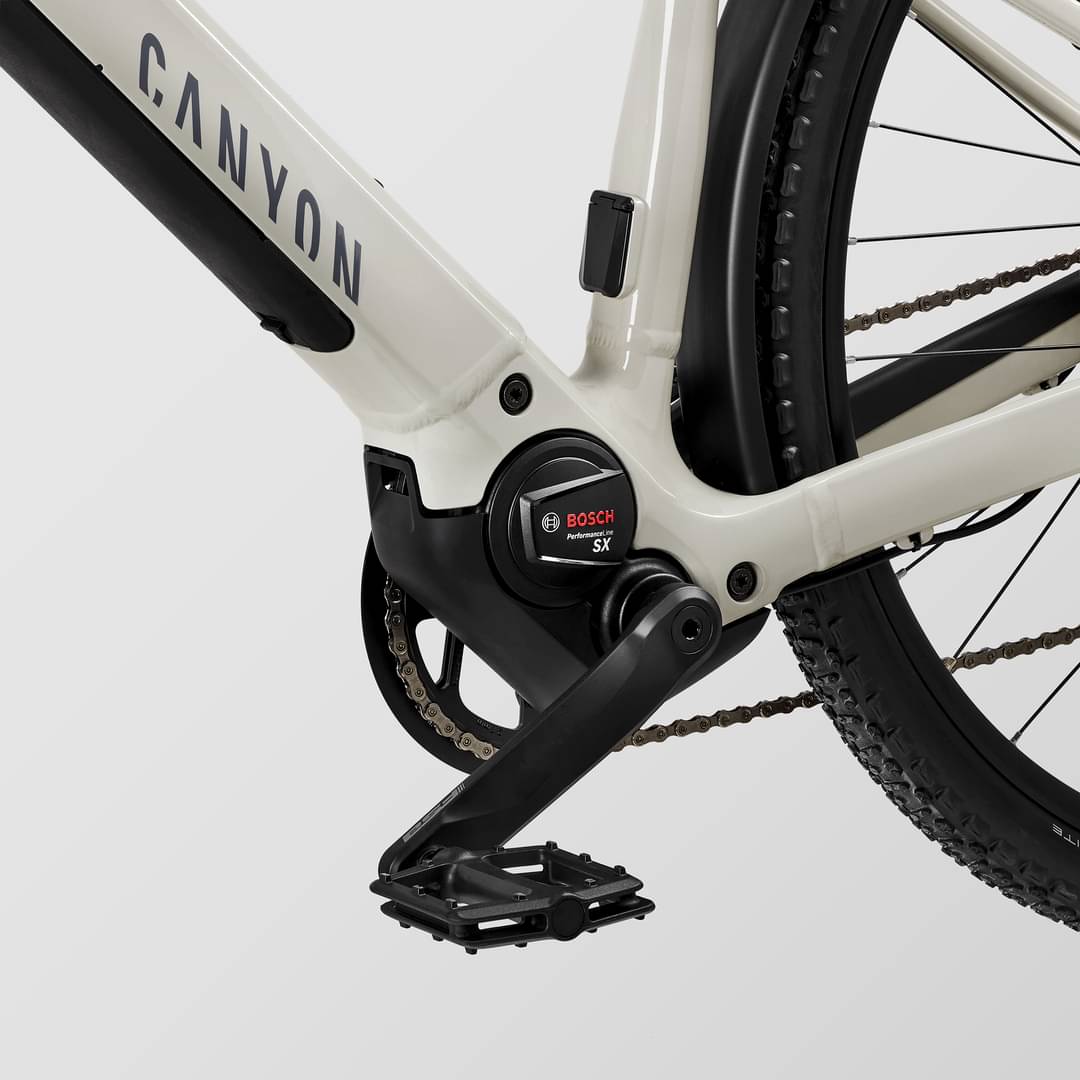

Bosch Performance Line SX
Battery
Bosch CompactTube 400Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.432 mm | 1.442 mm | 1.445 mm |
| Front Center | 676 mm | 717 mm | 749 mm |
| Rake | 50 mm | 50 mm | 51 mm |
| Trail | 80 mm | 80 mm | 76 mm |
| Stack | 597 mm | 639 mm | 675 mm |
| Reach | 417 mm | 443 mm | 467 mm |
| Top Tube Length | 591 mm | 629 mm | 664 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 460 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° |
| Head Tube Length | 115 mm | 160 mm | 196 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1112 mm | 1154 mm | 1186 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 792 mm | 848 mm | 900 mm |
| Front Travel | 63 mm | 63 mm | 63 mm |
| Wheels | 700 | 700 | 700 |
| Rider Max Height | 181 cm | 191 cm | cm |
