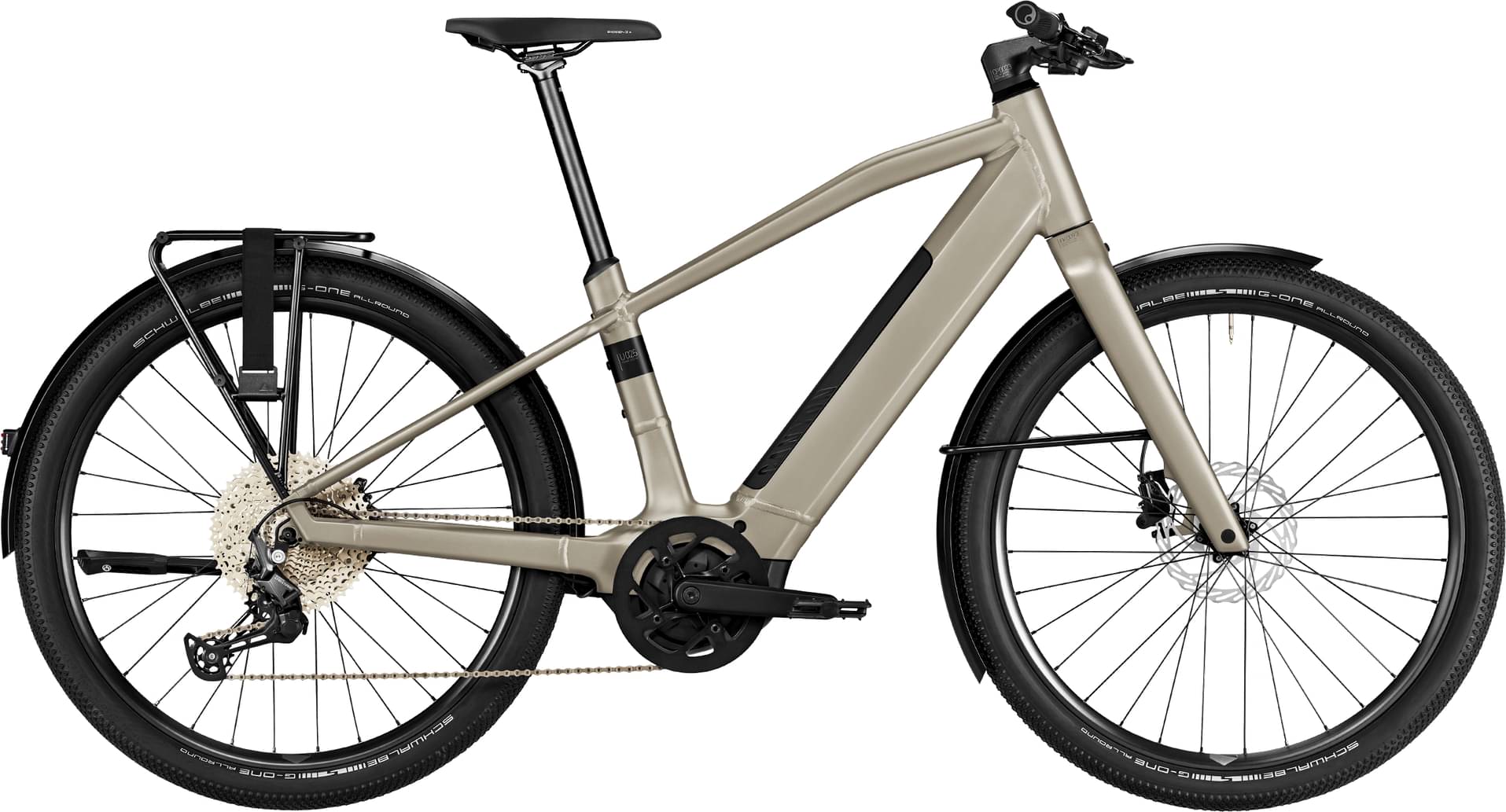

Canyon Precede:ON 5 2024
2024 E-bike
Estimate price |
3,299$
Weight | 23.85 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -

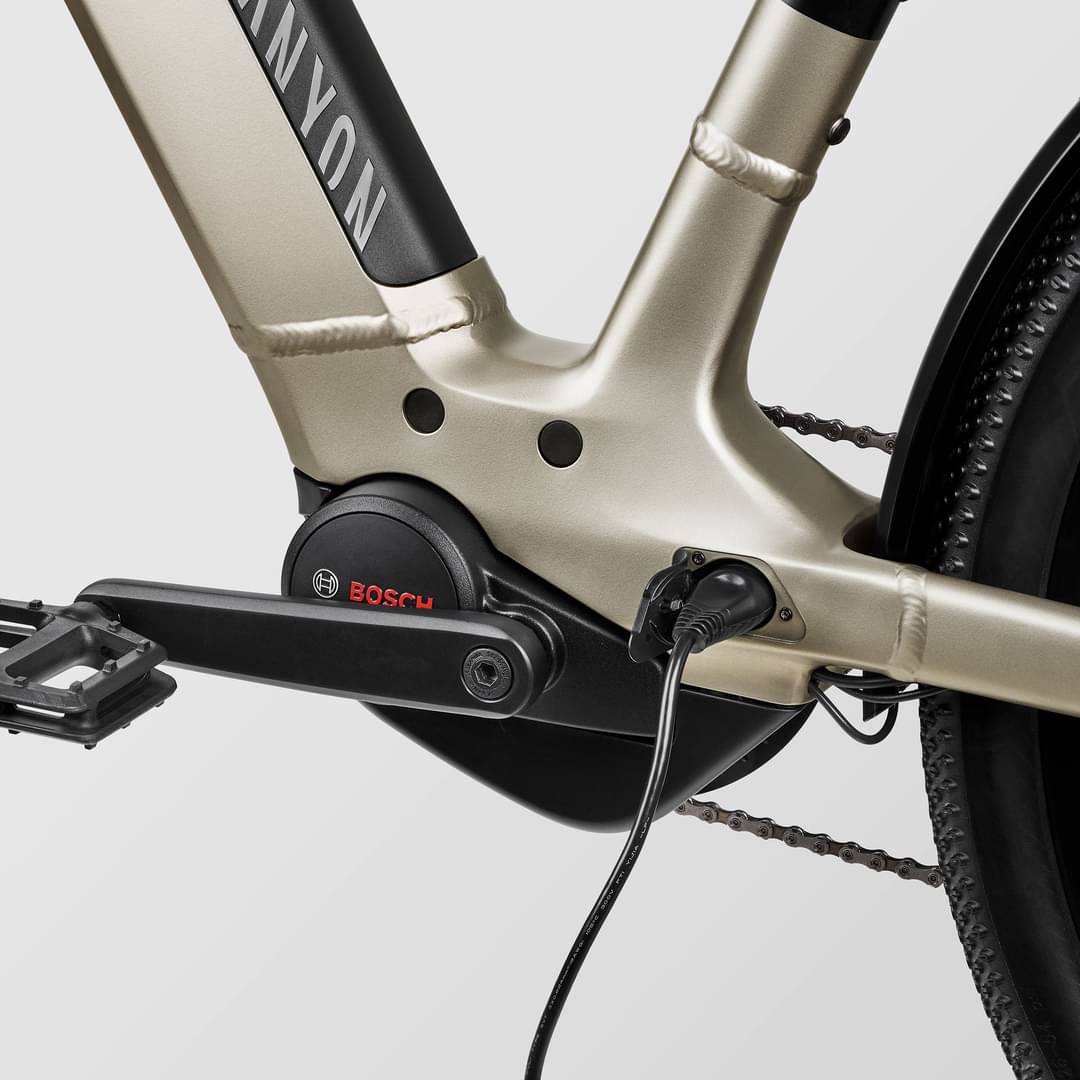

Motor Bosch 250W 63Nm mid-drive -
Battery Bosch Powertube 500Wh BBP286 vertical -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Precede:ON, Robust, feature-packed aluminium e-urban bike frame with comfortable riding position., Axle dimension: 10X135 mm, Material: Aluminium (AL)
Suspension Fork
Canyon FK0093 Disc, Robust, sleek carbon fork., Fork steer tube diameter: 1 1/8", Material: Carbon (CF), Weight: 0.88 lbs

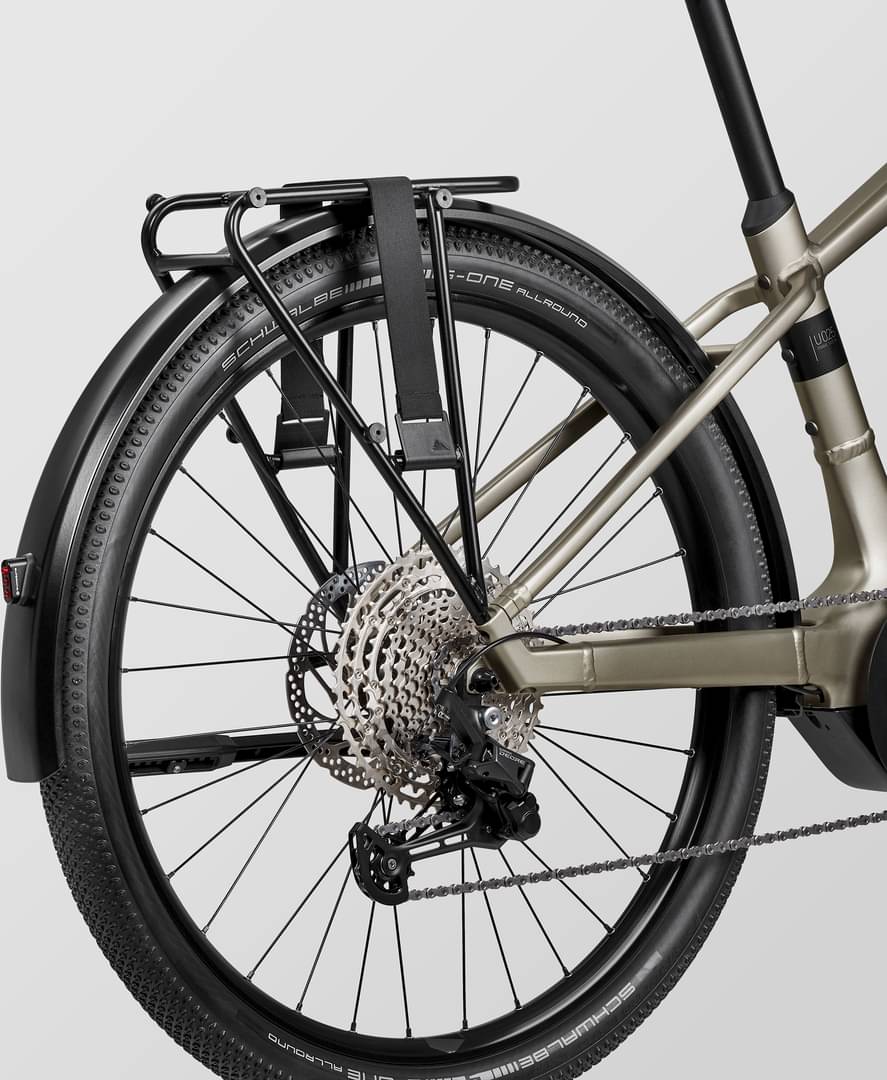

Drivetrain
Rear Derailleur
Shimano Deore M5100 11s, Cage length: long, Weight: 0.78 lbs
Shift Levers
Shimano Deore M5100 11s, Weight: 0.30 lbs
Cassette
Shimano Deore M5100 11s 11-51, Number of sprockets: 11
Crank
Miranda Delta, Number of chainrings: 1
Chain
Shimano CN-HG601 11s
Wheels

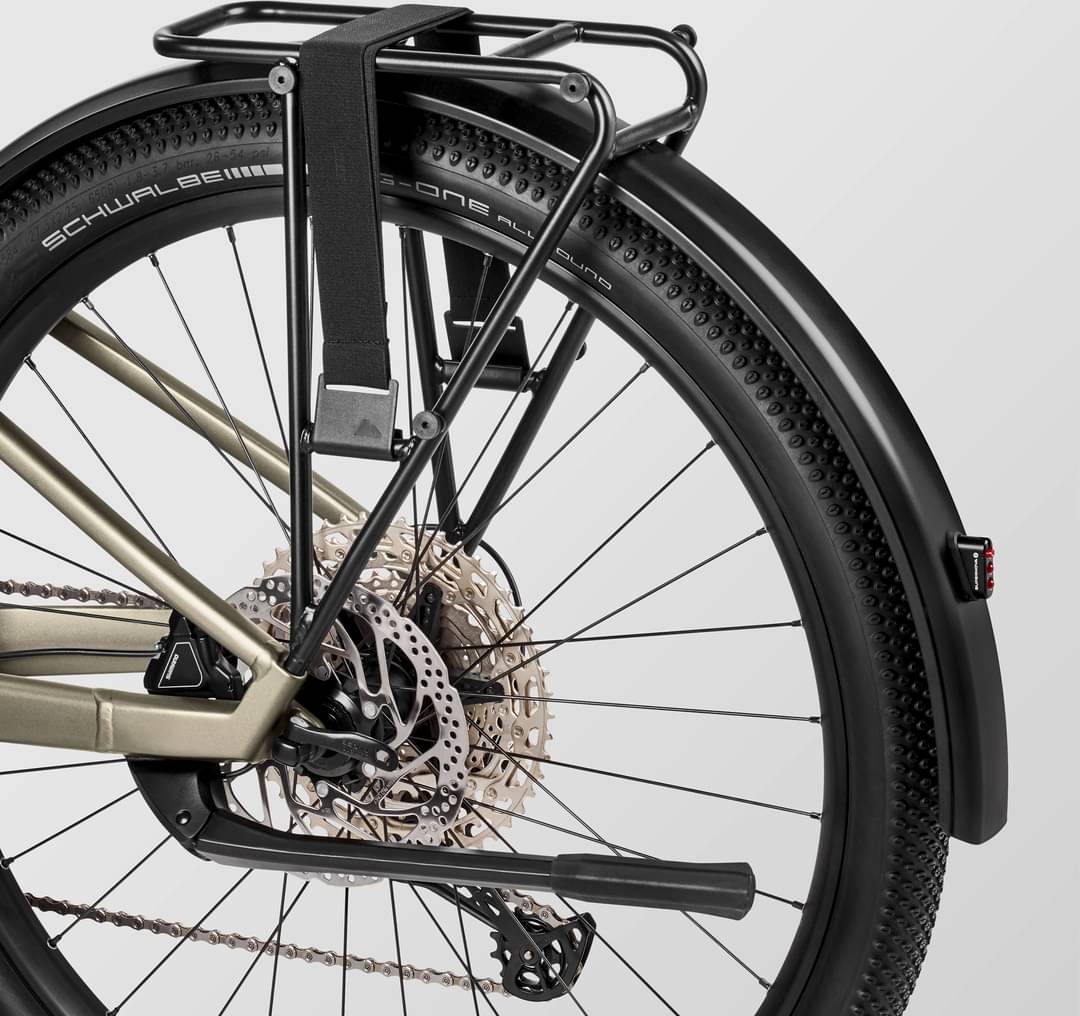

Tires

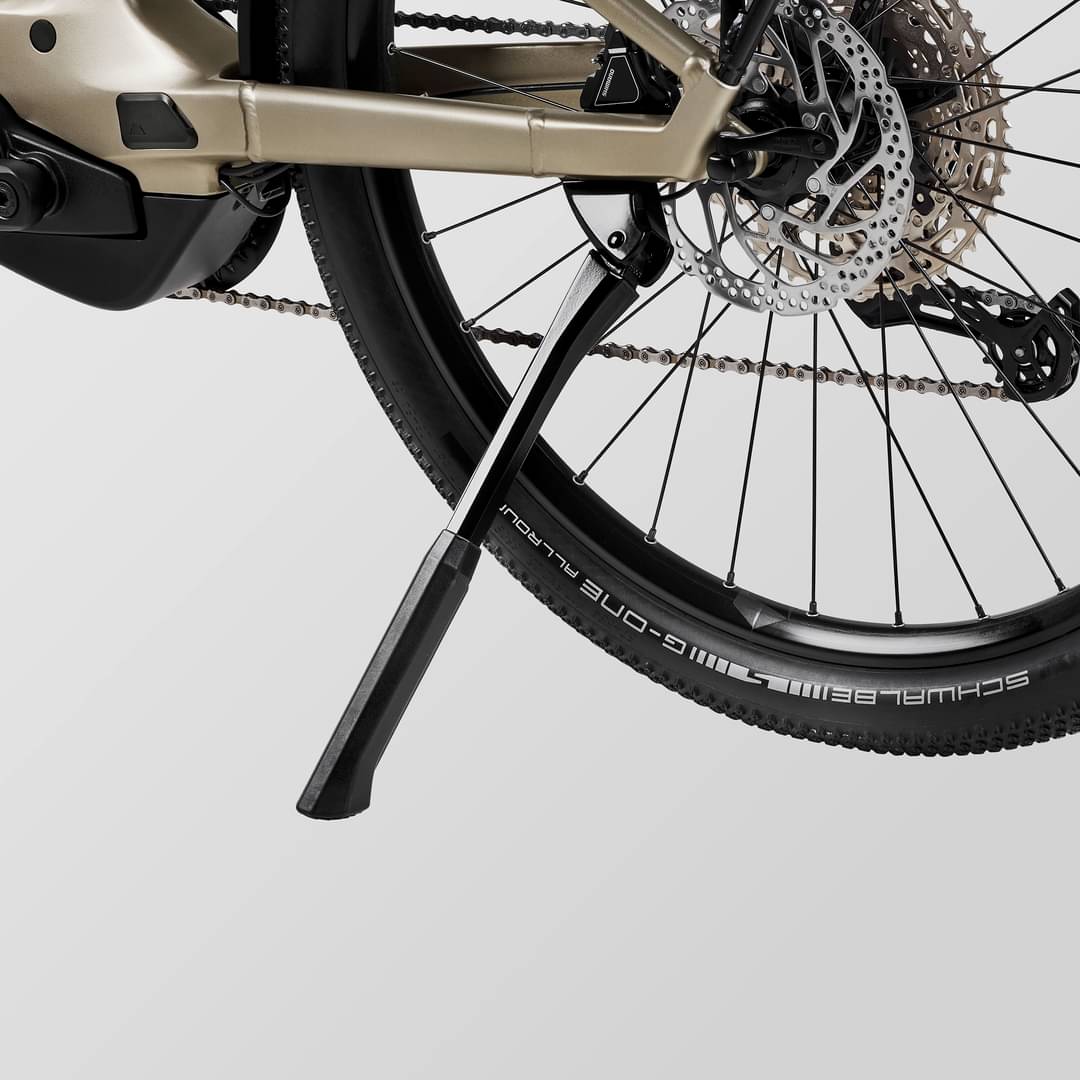

Schwalbe G-One Allround 57mm, Width: 2.25", Weight: 1.10 lbs

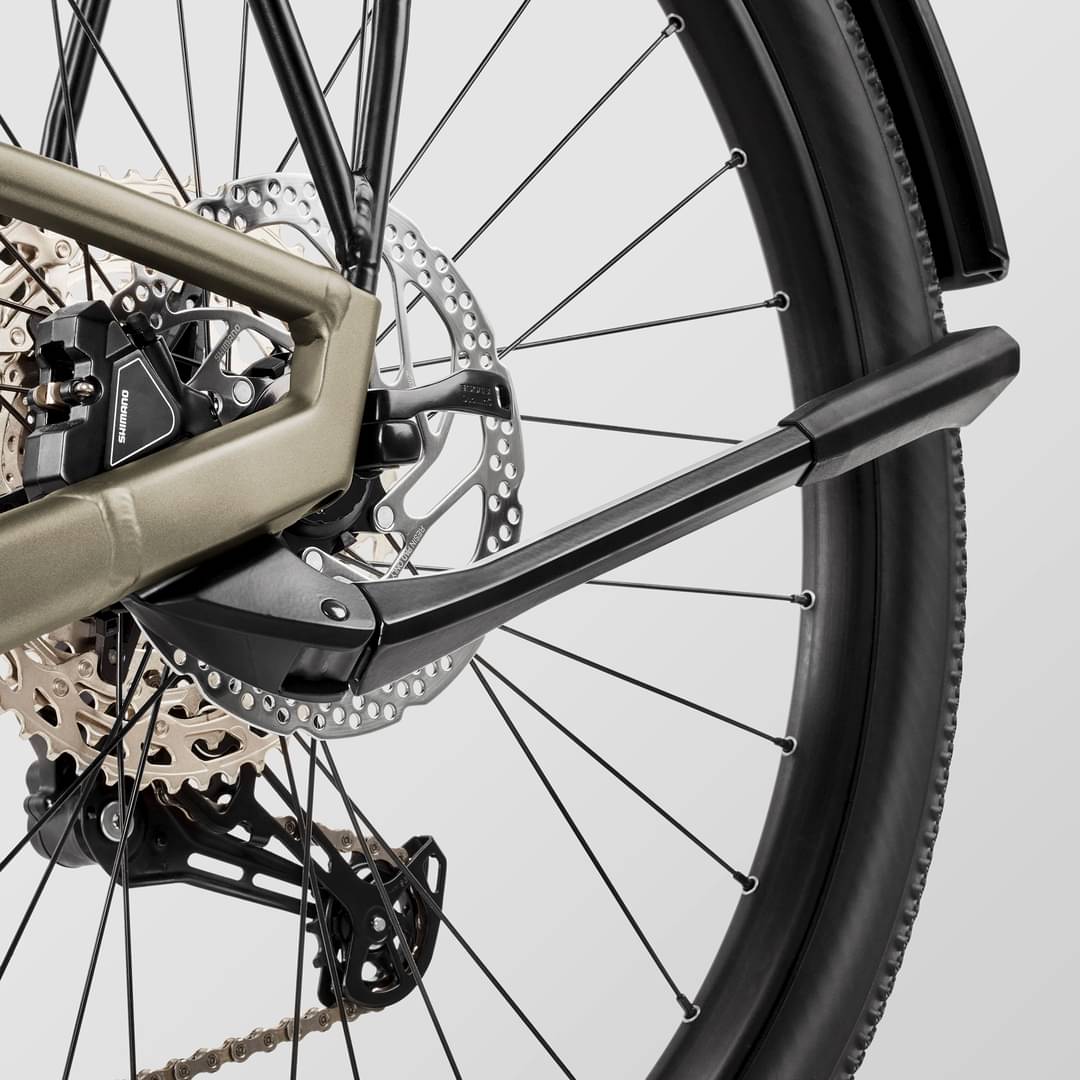

Brakes
Brakes
Shimano MT200 | Shimano MT200 / UR300?

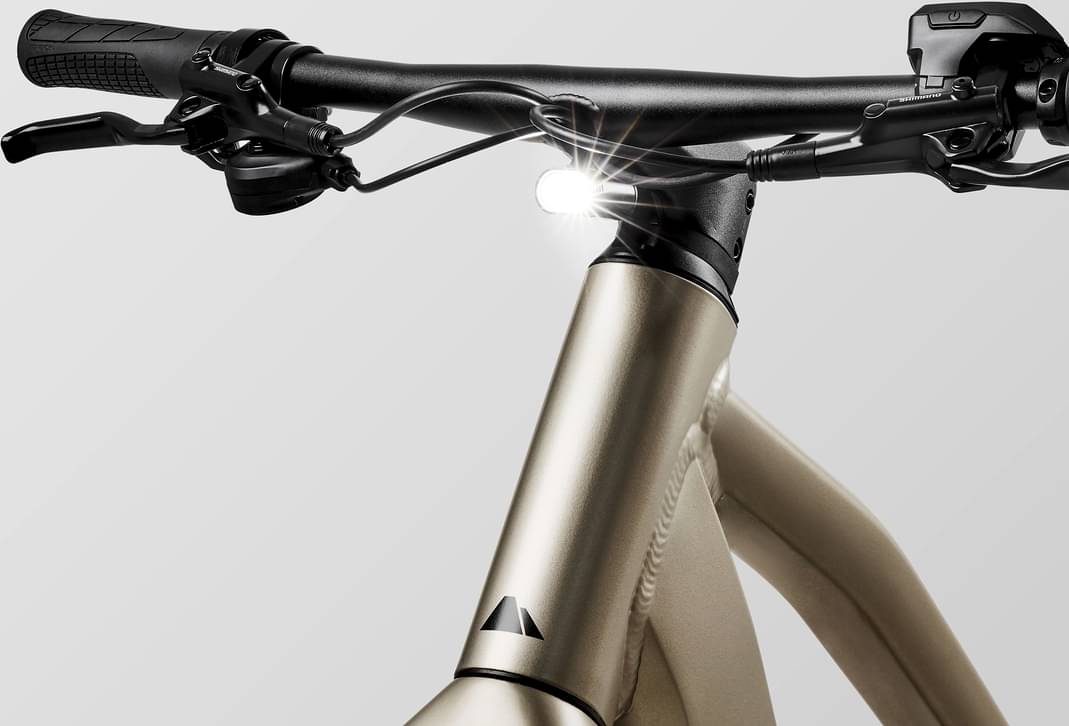

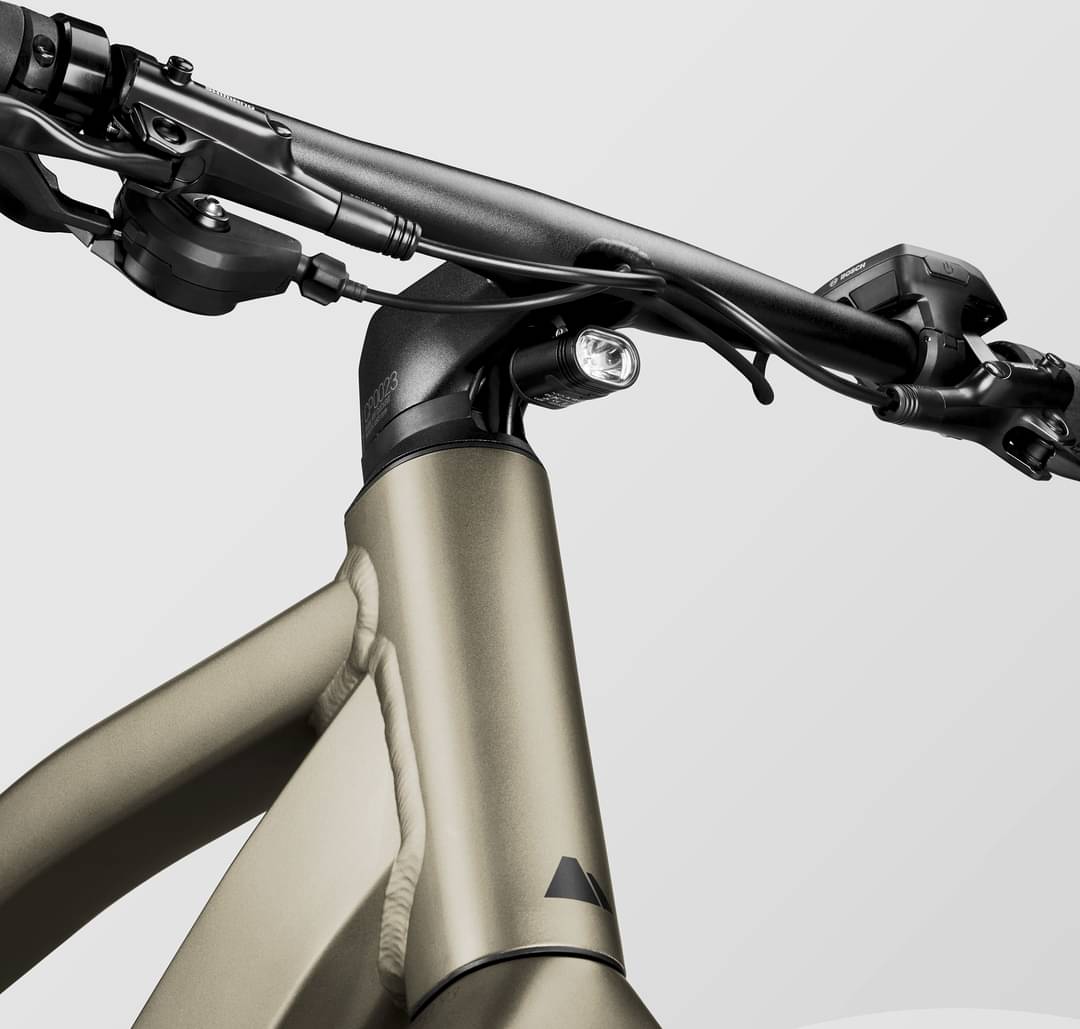

Cockpit
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza, Gender: Unisex, Weight: 0.02 lbs
Seatpost
Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 0.62 lbs

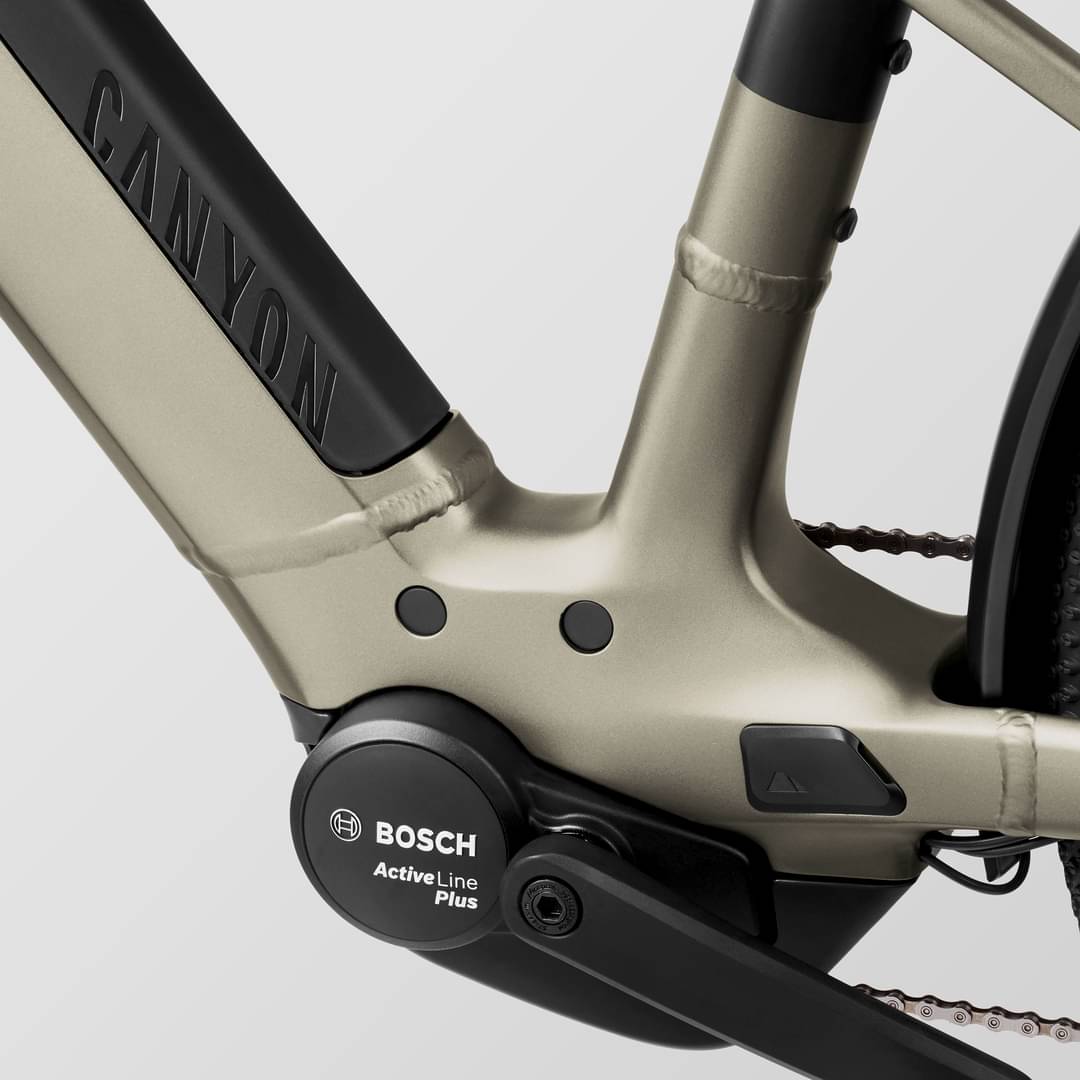

Motor & Battery
Motor
Bosch Performance Line Sport 28mph
Battery
Bosch Powertube 500Wh BBP286 vertical
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.522 mm | 1.546 mm | 1.561 mm |
| Front Center | 679 mm | 719 mm | 762 mm |
| Rake | 42 mm | 43 mm | 42 mm |
| Trail | 85 mm | 84 mm | 85 mm |
| Stack | 627 mm | 671 mm | 718 mm |
| Reach | 412 mm | 434 mm | 460 mm |
| Top Tube Length | 589 mm | 626 mm | 666 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 482 mm | 535 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 182 mm | 229 mm | 280 mm |
| Chainstay Length | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1174 mm | 1214 mm | 1258 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 784 mm | 802 mm | 832 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 181 cm | 191 cm | cm |
