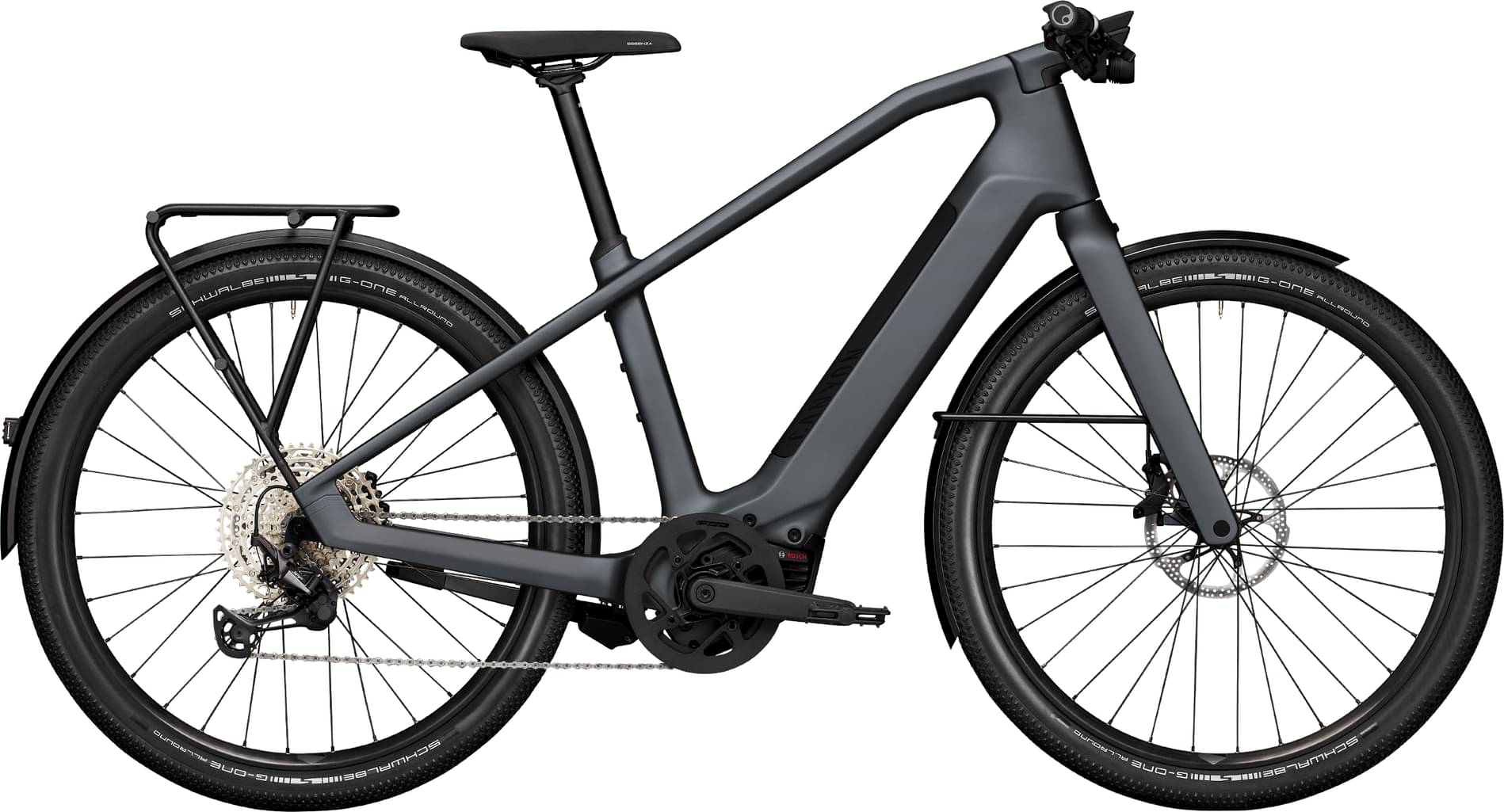

Canyon Precede:ON CF 8 2024
2024 E-bike
Estimate price |
3,999$
Weight | 21.06 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

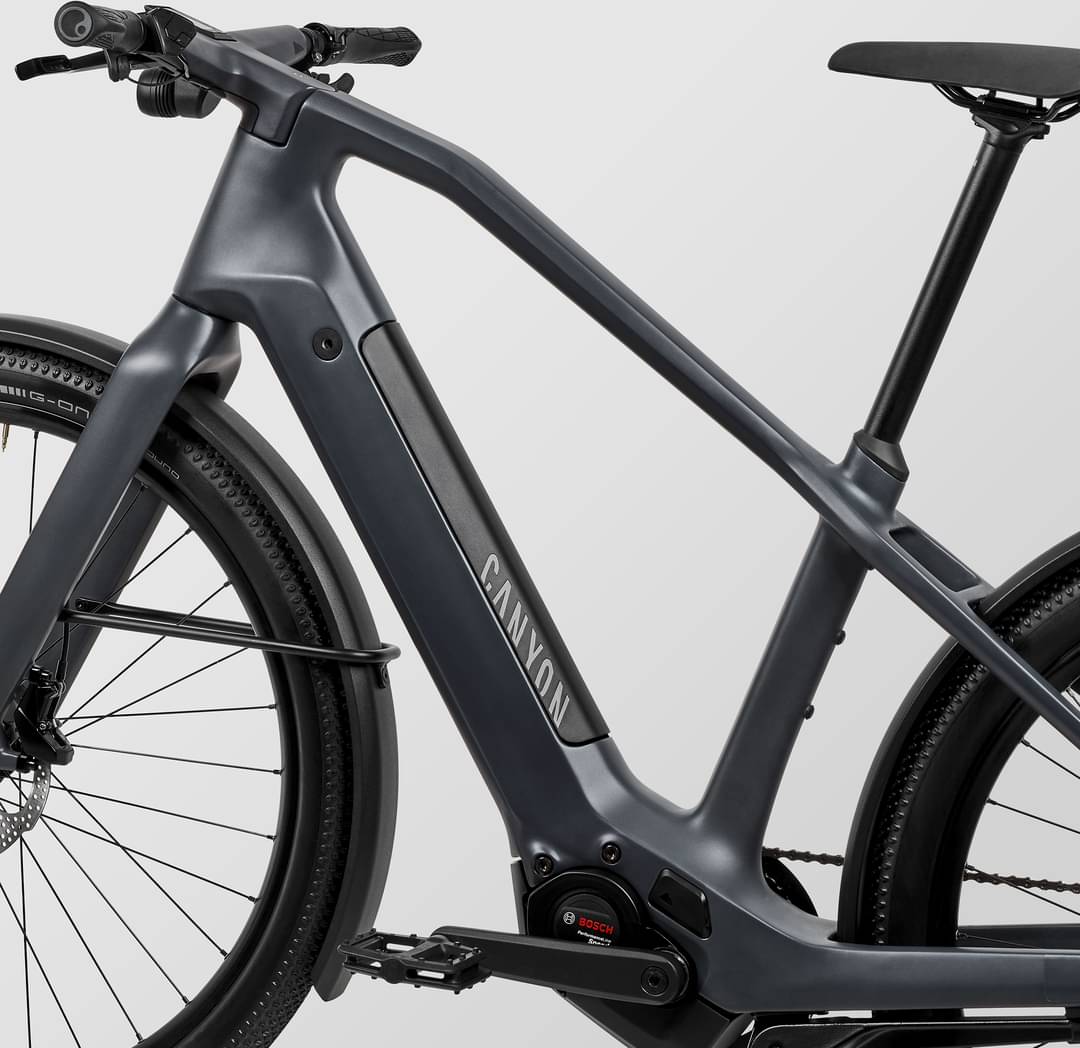

Frame Carbon -
Groupset XT, Deore -
Suspension Rigid -

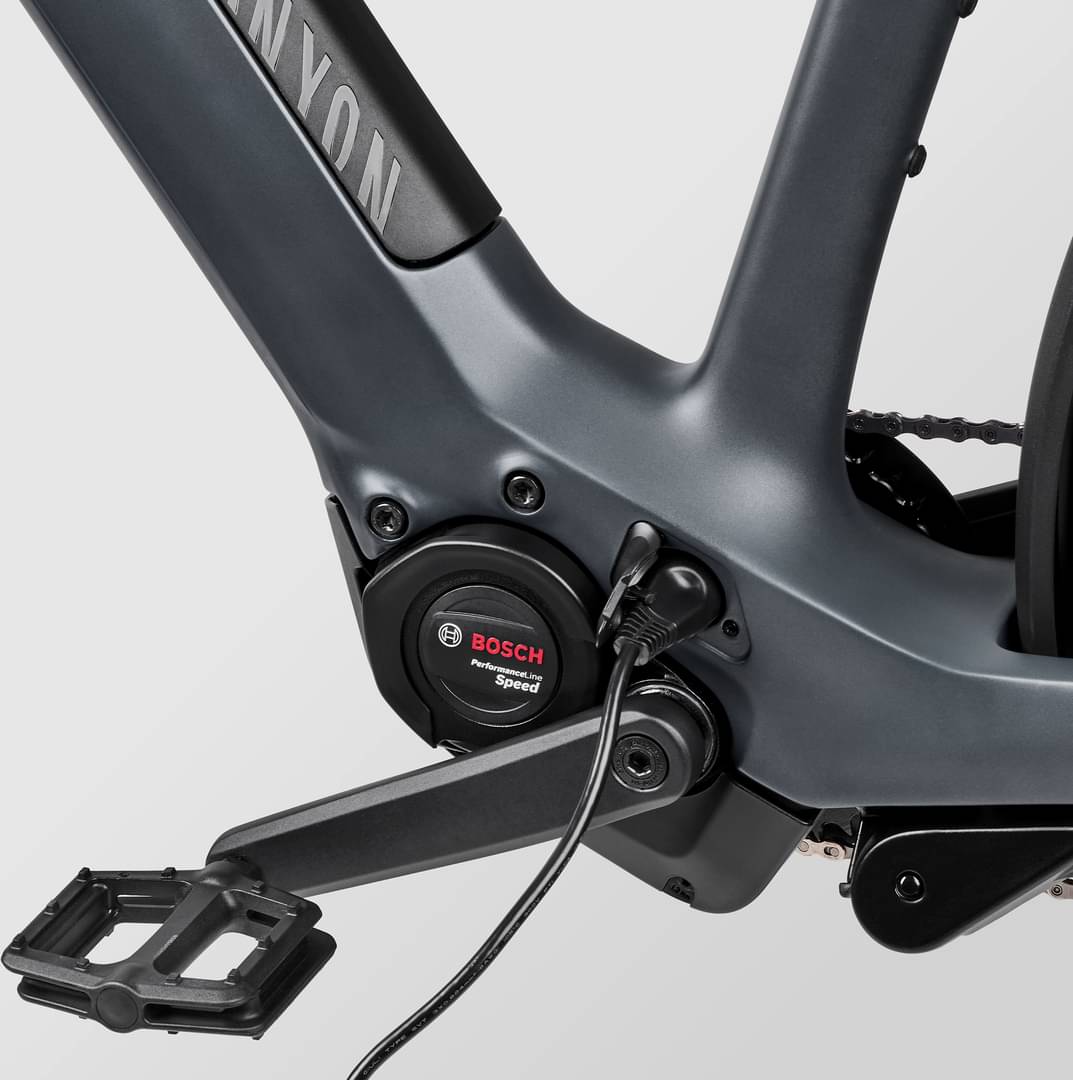

Motor Bosch 600W 63Nm mid-drive -
Battery Bosch Powertube 500Wh BBP286 vertical -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Precede:ON CF, Material: Carbon (CF), Weight: 3.97 lbs
Suspension Fork
Canyon FK0052 Disc, Fork steer tube diameter: 1 1/8", Material: Carbon (CF), Weight: 1.32 lbs
Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 0.63 lbs
Shift Levers
Shimano Deore M6100 12s, Weight: 0.31 lbs
Cassette
Shimano Deore M6100, Number of sprockets: 12
Crank
Miranda Delta
Chain
Shimano CN-M6100
Wheels
Tires
Schwalbe G-One Allround 57mm, Width: 30mm
Brakes
Brakes
Canyon GP0164 brakes integrated by TRP

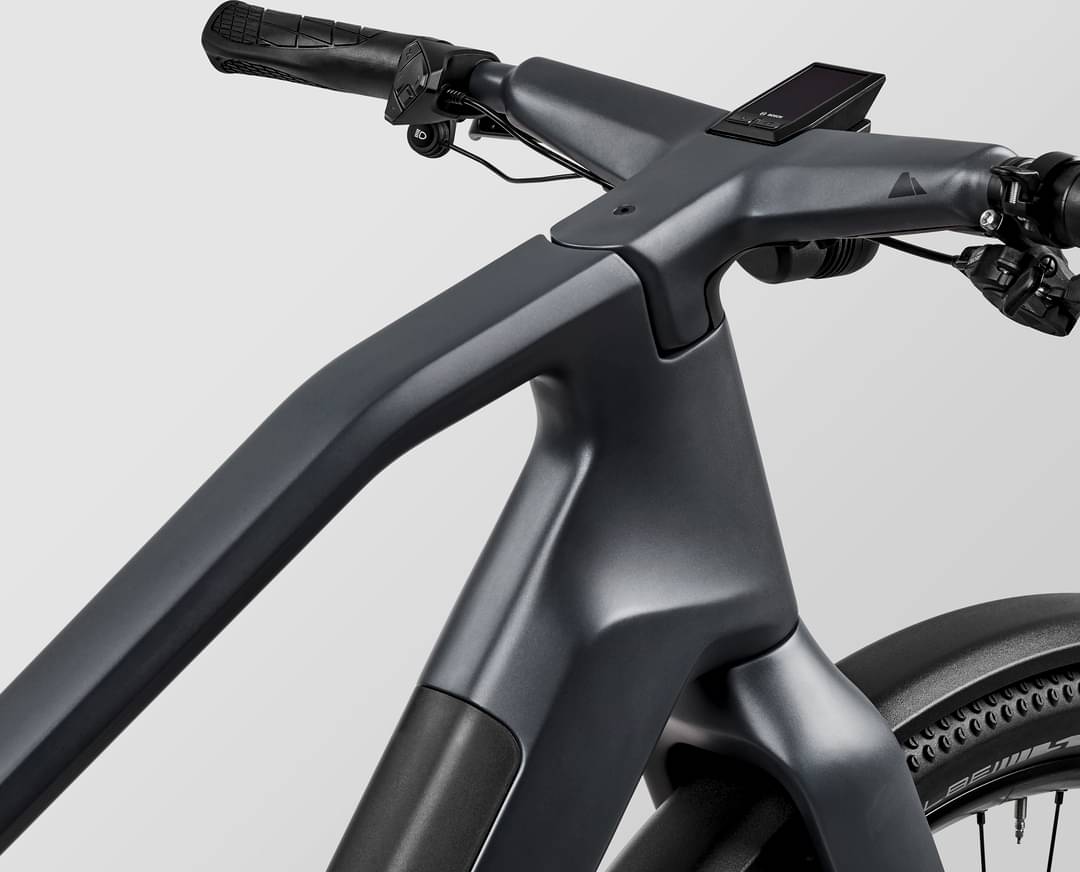

Cockpit
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza, Gender: Unisex, Weight: 0.02 lbs
Seatpost
Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 0.62 lbs
Motor & Battery
Motor
Bosch Performance Line Speed 28mph
Battery
Bosch Powertube 500Wh BBP286 vertical
Charger
Bosch Standard 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.516 mm | 1.533 mm |
| Front Center | 635 mm | 671 mm | 712 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 63 mm | 63 mm | 63 mm |
| Stack | 614 mm | 658 mm | 705 mm |
| Reach | 412 mm | 434 mm | 460 mm |
| Top Tube Length | 585 mm | 622 mm | 662 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 485 mm | 535 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 148 mm | 194 mm | 243 mm |
| Chainstay Length | 499 mm | 499 mm | 499 mm |
| Wheelbase | 1122 mm | 1159 mm | 1200 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm |
| Standover Height | 785 mm | 808 mm | 848 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 181 cm | 191 cm | cm |
