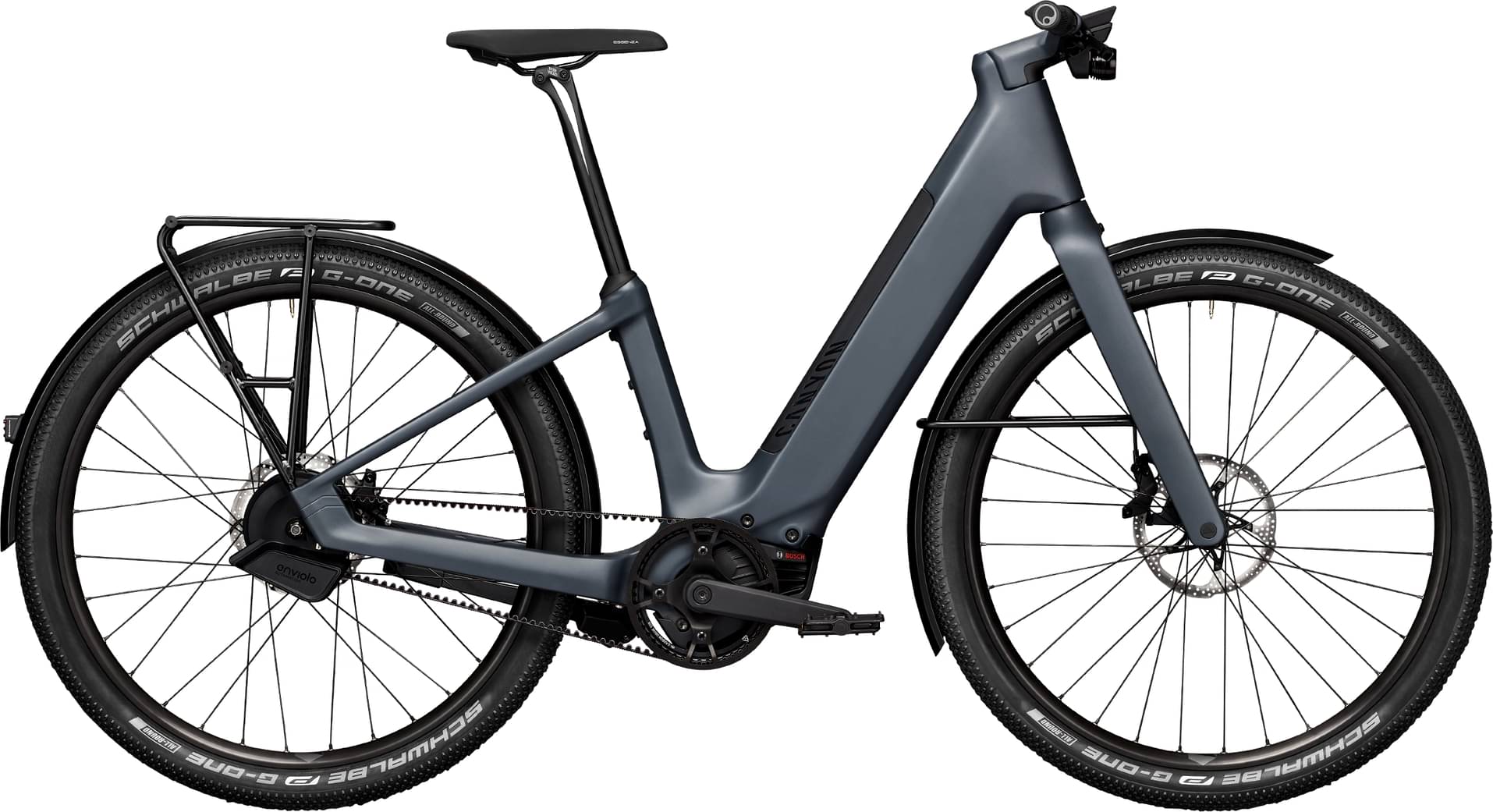

Canyon Precede:ON CF 9 step-through 2024
2024 E-bike
Estimate price |
5,734$
Weight | 23.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Suspension Rigid -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 171cm
MD
169cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Precede:ON CF, Elegant, sleek carbon urban e-bike frame with maximum feature integration and packed with functional features., Material: Carbon (CF), Weight: 1.80 kg
Suspension Fork
Canyon FK0052 Disc, Stylish, elegant, light carbon fork., Fork steer tube diameter: 1 1/8", Material: Carbon (CF), Weight: 365 g
Drivetrain
Cassette
Gates CDX 24T, Number of sprockets: 1, Range: 24
Crank
Miranda Delta
Chain
Gates CDX Belt
Wheels
Rims
Alexrims MD25 | Shimano MT400, Axle dimension: 15X100 mm, Rotor mount: Center Lock, Rim height: 20 mm, Rim material: Aluminium, Weight: 882 g | Alexrims MD25 | Enviolo CA Automatiq, Rotor mount: IS 6-bolt, Weight: 3.17 kg
Tires
Schwalbe G-One Allround 57mm, Width: 2.25", Weight: 500 g
Brakes
Brakes
Canyon GP0164 brakes integrated by TRP | CANYON GP0164 brakes integrated by TRP

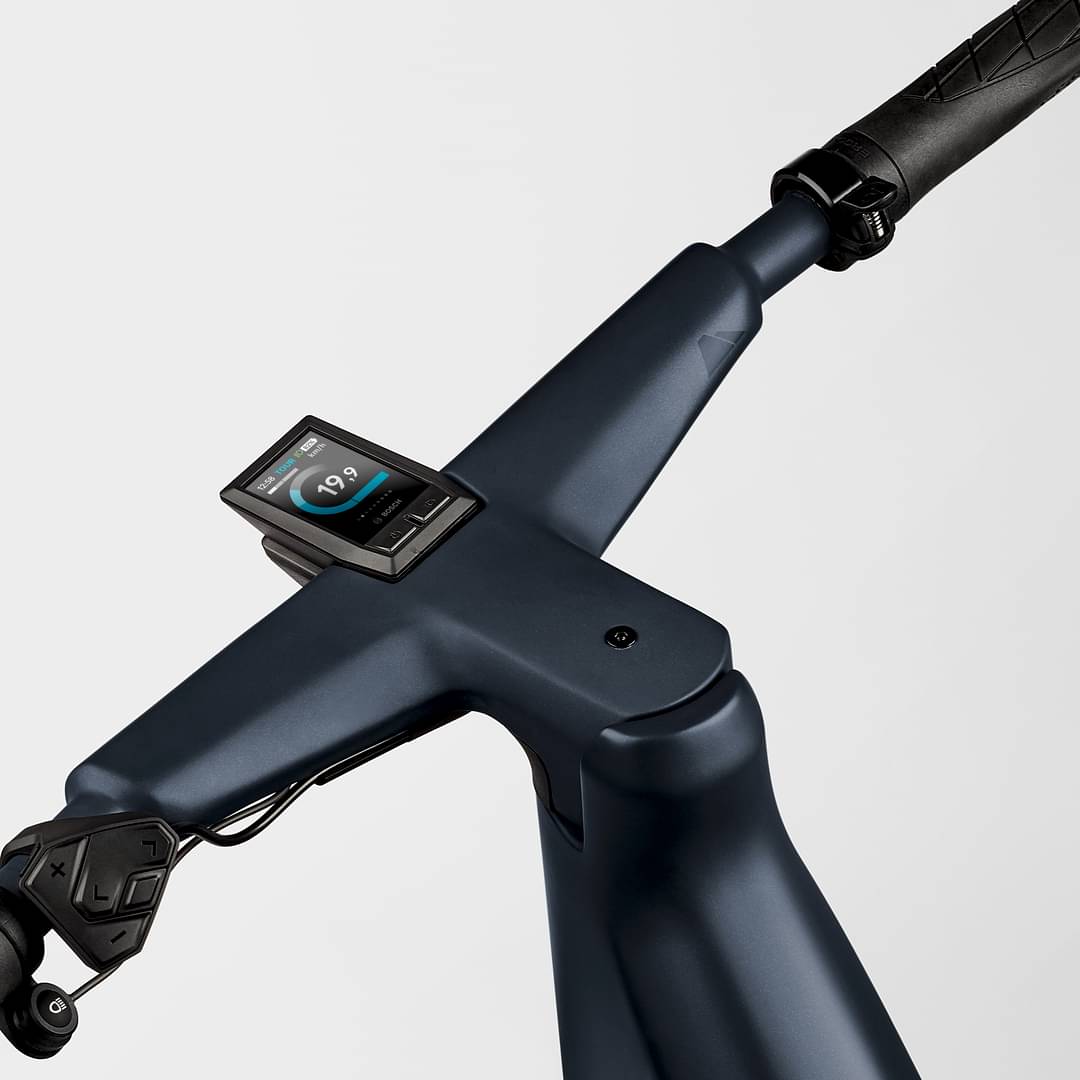

Cockpit
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza, Gender: Unisex, Weight: 10 g

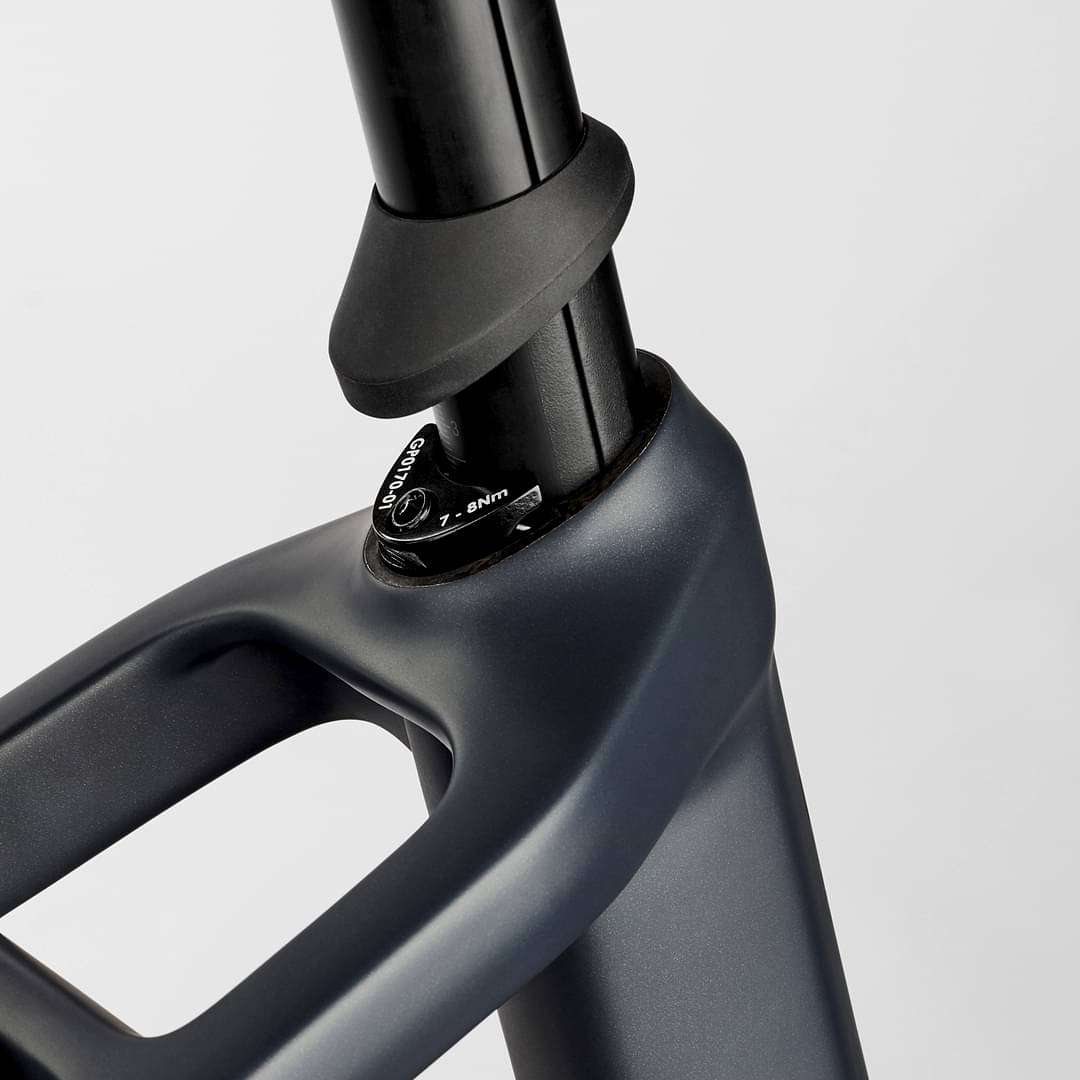

Seatpost
Canyon S25 VCLS 2.0 CF, Material: Carbon, Setback: -2 mm / 10 mm, Technology: VCLS 2.0 | Fliphead, Weight: 235 g
Motor & Battery

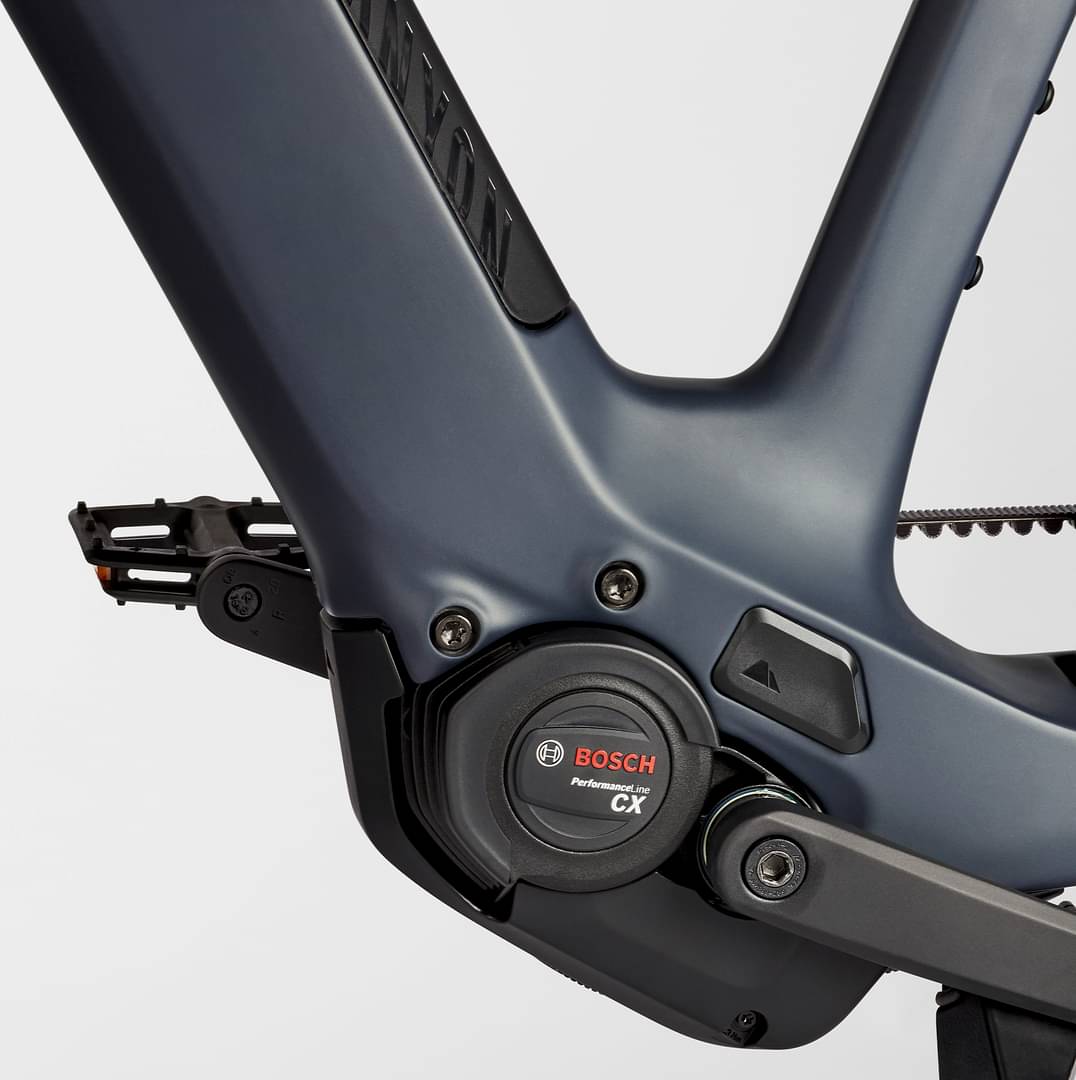

Motor
Bosch Performance Line CX
Battery
Bosch PowerTube
Charger
Bosch Compact 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.621 mm | 1.585 mm | 1.557 mm | 1.516 mm |
| Front Center | 613 mm | 621 mm | 635 mm | 671 mm |
| Rake | 43 mm | 43 mm | 42 mm | 42 mm |
| Trail | 71 mm | 65 mm | 63 mm | 63 mm |
| Stack | 608 mm | 618 mm | 632 mm | 658 mm |
| Reach | 375 mm | 390 mm | 406 mm | 434 mm |
| Top Tube Length | 547 mm | 565 mm | 585 mm | 622 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 485 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 148 mm | 154 mm | 167 mm | 194 mm |
| Chainstay Length | 499 mm | 499 mm | 499 mm | 499 mm |
| Wheelbase | 1100 mm | 1108 mm | 1122 mm | 1159 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Max Height | 161 cm | 171 cm | 181 cm | cm |
