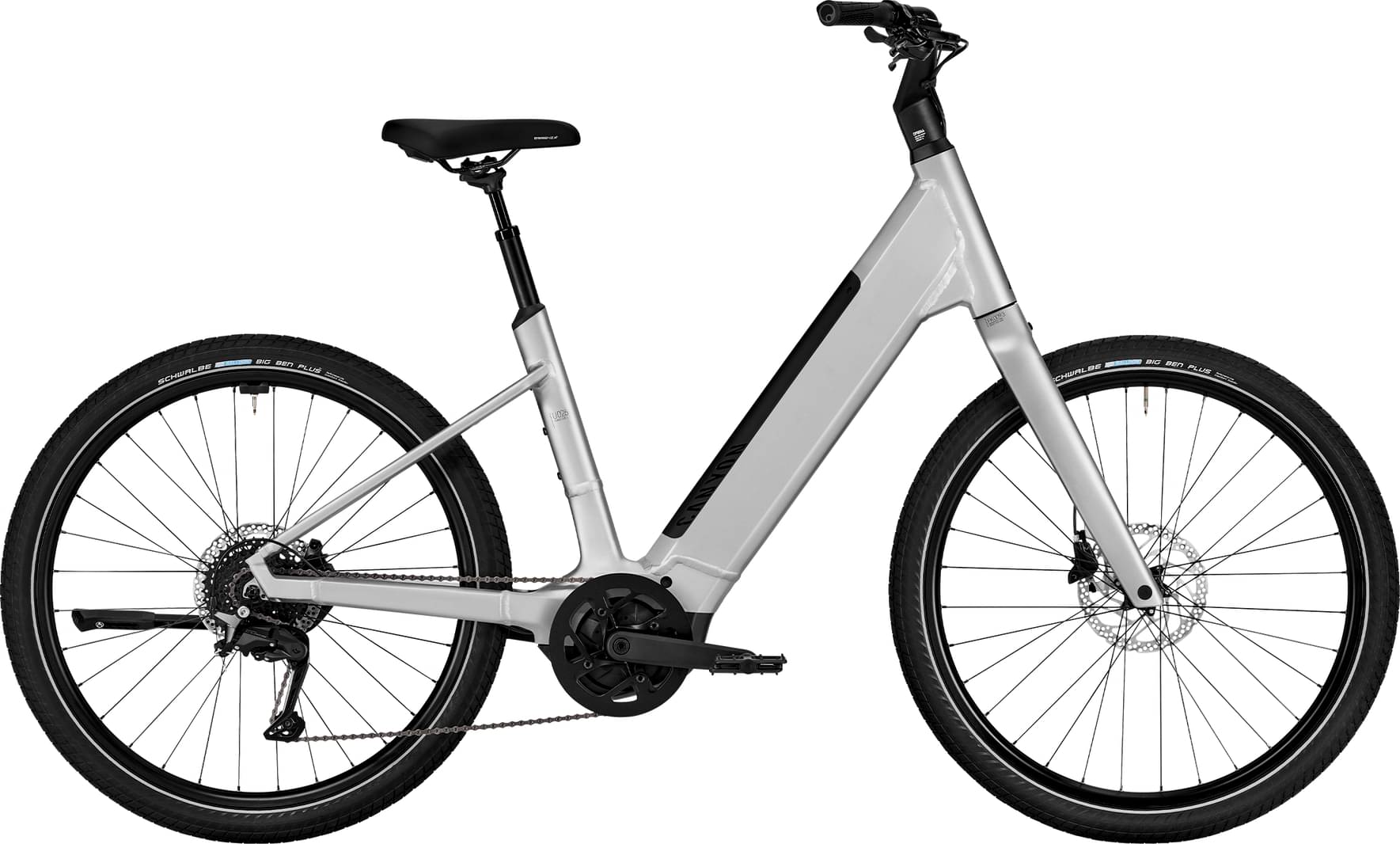

Canyon Precede:ON Comfort 4 2024
2024 E-bike
Estimate price |
3,499$
Weight | 22.68 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Motor Bosch 600W 40Nm mid-drive -
Battery Bosch PowerTube 500Wh, 500 Wh -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
Unisize
160cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
Canyon FK0093 Disc, Robust, sleek carbon fork., Weight: 0.80 lbs
Drivetrain
Rear Derailleur
Shimano CUES U3020
Shift Levers
Shimano CUES U4000
Cassette
Shimano CUES LG300, Number of sprockets: 9
Crank
Miranda Delta, Number of chainrings: 1
Chain
Shimano LG500
Pedals
VP-536 f
Wheels
Rims
Alexrims Supra-BH 27.5 / Hub Shimano MT400 15x100, Axle dimension: 15X100 mm, Rotor mount: Center Lock, Rim material: Aluminium | Alexrims Supra-BH 27.5 / Hub Shimano MT4050 9x135, Axle dimension: 9X135 mm, Rotor mount: Center Lock, Rim material: Aluminium
Tires
Schwalbe Big Ben Plus Reflex 55mm, Width: 2,15"
Brakes
Brakes
Shimano RT30, Size: 180 mm, Weight: 0.42 lbs

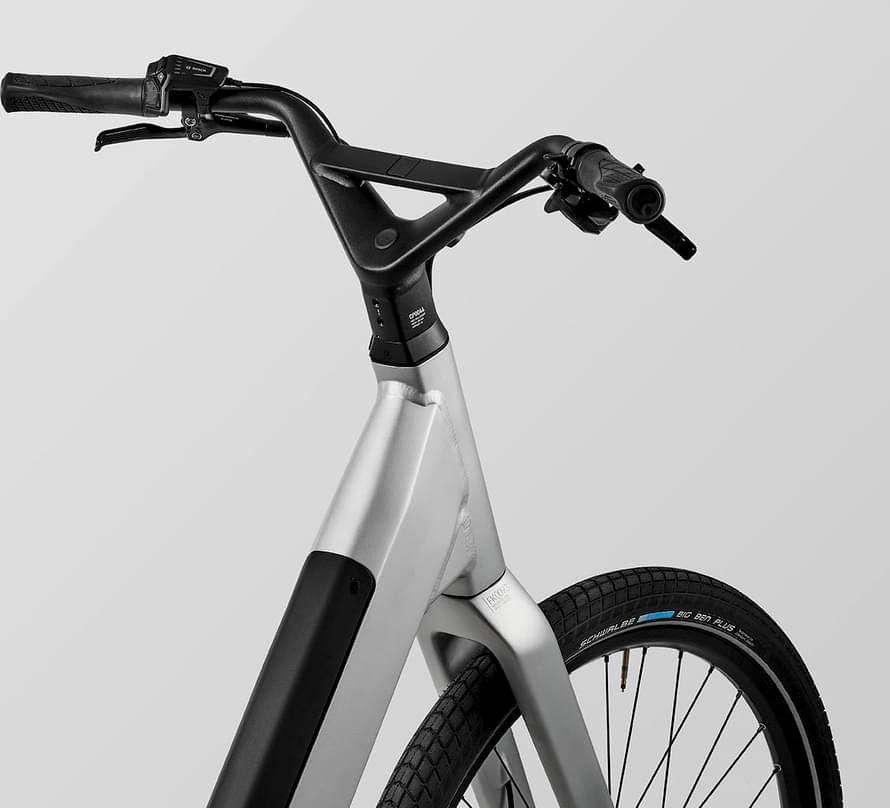

Cockpit
Grips
Ergon GA3 mini-wing
Seat

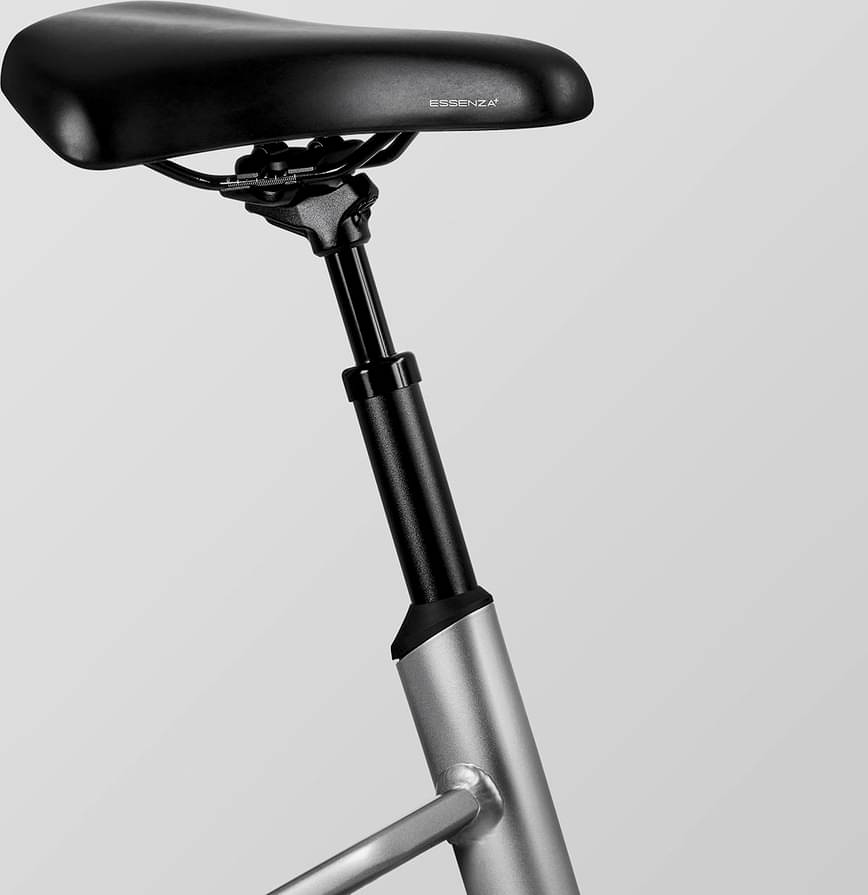

Saddle
Selle Royal Essenza+ Moderate Wide, Weight: 0.82 lbs
Seatpost
Canyon SP0067, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 1.22 lbs
Motor & Battery

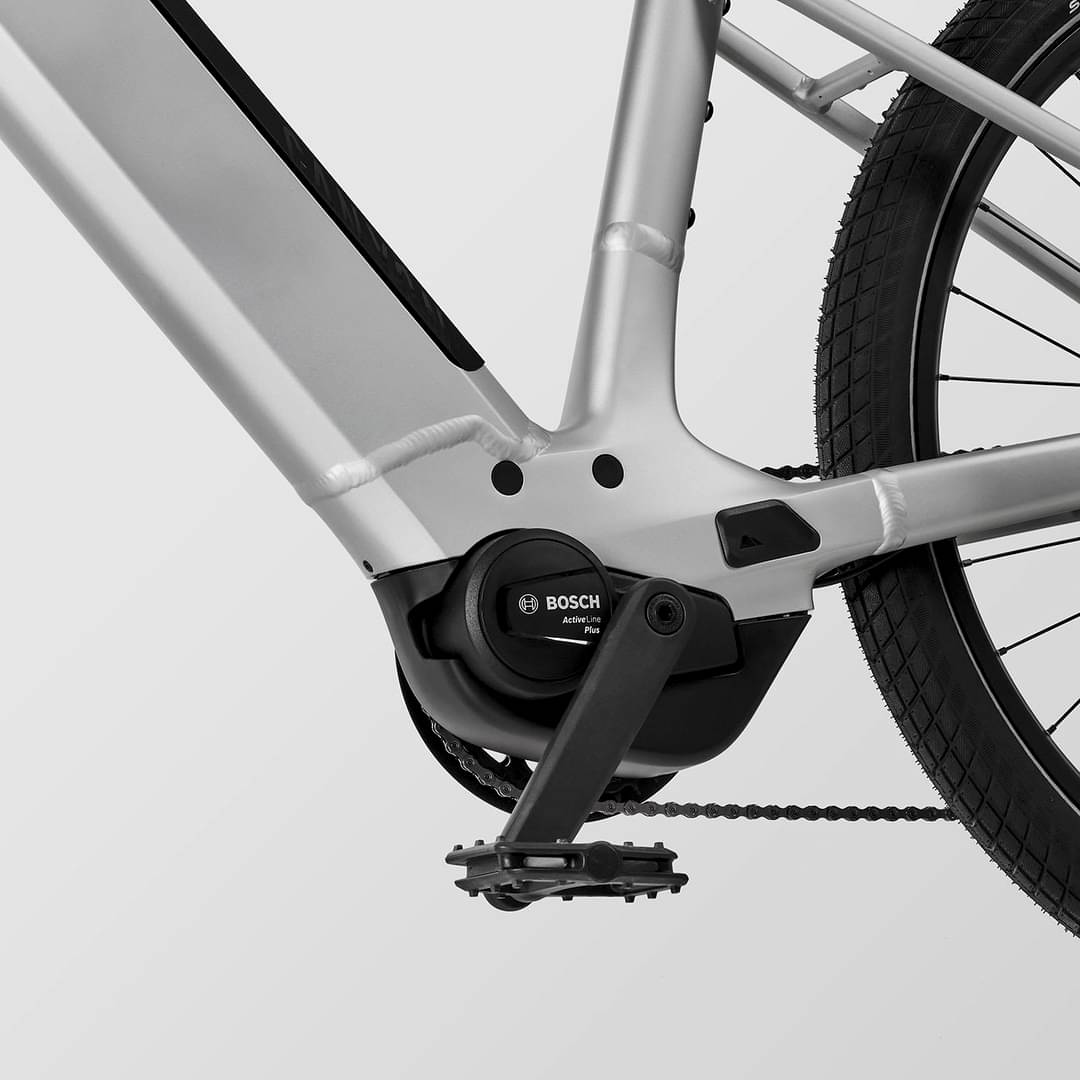

Motor
Bosch Active Line
Battery
Bosch PowerTube 500Wh, 500 Wh
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Unisize |
|---|---|
| Stack Reach Ratio | 1.543 mm |
| Front Center | 719 mm |
| Rake | 42 mm |
| Trail | 85 mm |
| Stack | 671 mm |
| Reach | 435 mm |
| Top Tube Length | 626 mm |
| Seat Tube Angle | 72.5 ° |
| Seat Tube Length | 485 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 229 mm |
| Chainstay Length | 505 mm |
| Wheelbase | 1214 mm |
| Bottom Bracket Drop | 75 mm |
| Standover Height | 450 mm |
| Wheels | 650 |
| Rider Min Height | 160 cm |
| Rider Max Height | 195 cm |
