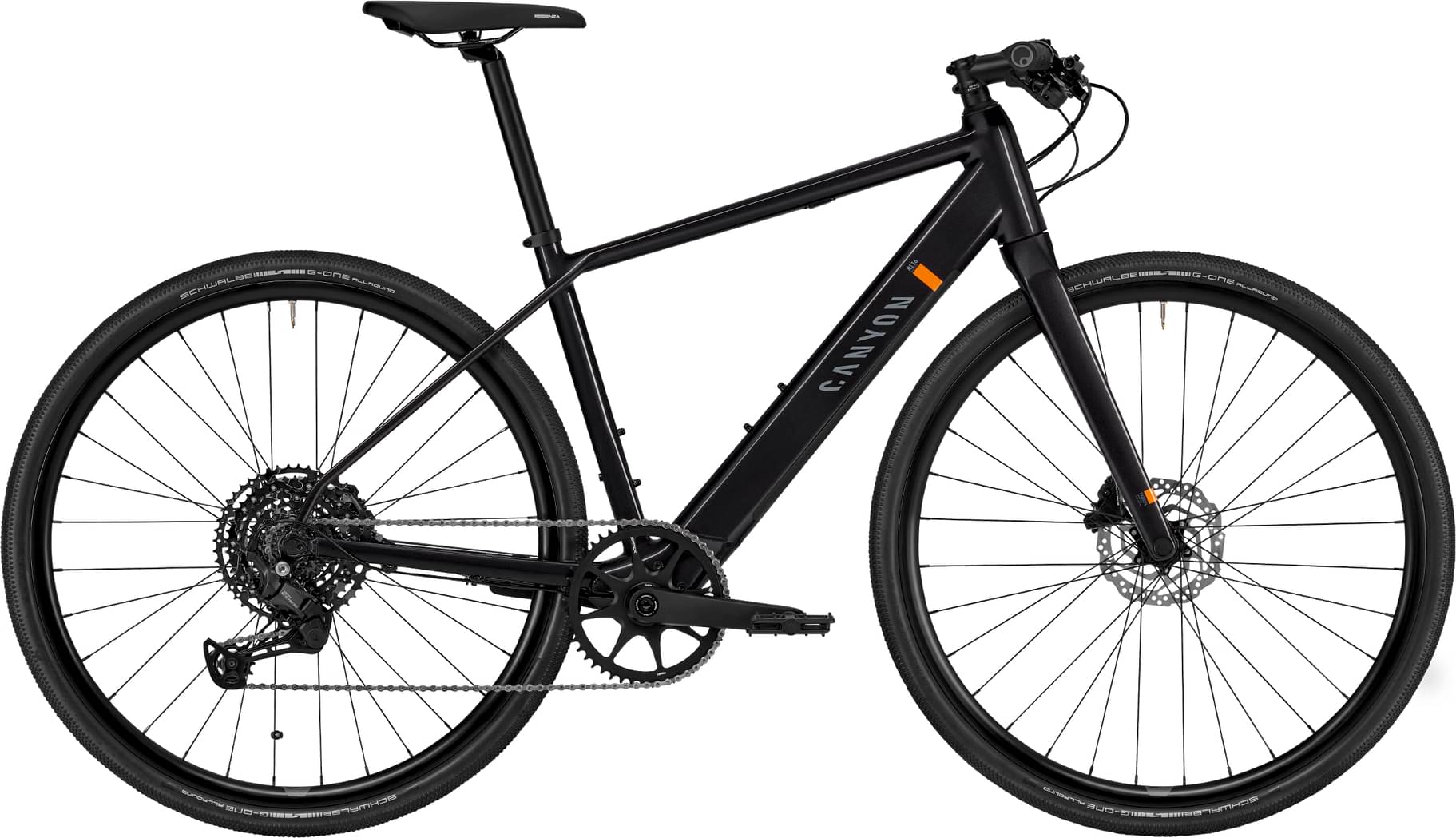

Canyon Roadlite:ONfly 5 2024
2024 E-bike
Estimate price |
3,489$
Weight | 16.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -

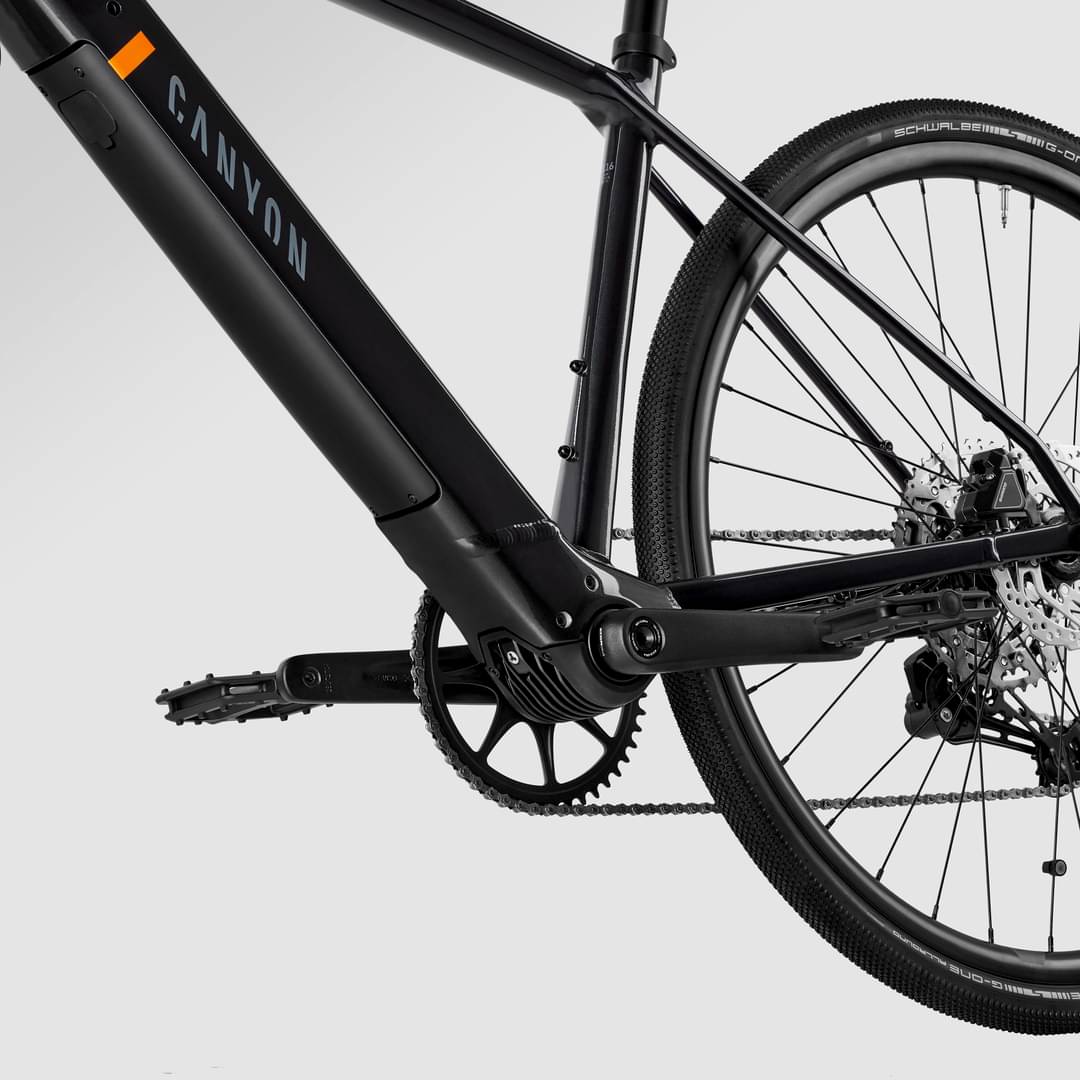

Motor Fazua 450W 60Nm mid-drive -
Battery Fazua Energy 430, 430 Wh -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 181cm
LG
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components

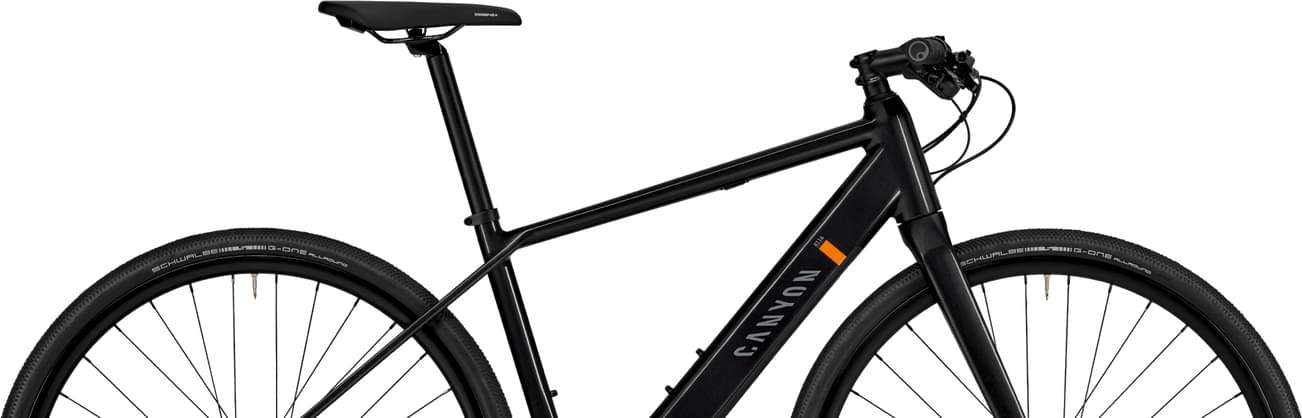

Frame
Frame
Canyon Roadlite:ON, Robust alunimium e-hybrid frame combining a minimalist design with smooth e-bike power., Axle dimension: 12x142 mm, Material: Aluminium (AL), Weight: 2,100 g
Suspension Fork
Canyon FK0074 CF DISC, Lightweight carbon fork with comfortable, vibration-damping design., Axle dimension: 15X100 mm, Fork steer tube diameter: 1 1/8", Material: Carbon (CF), Weight: 550 g

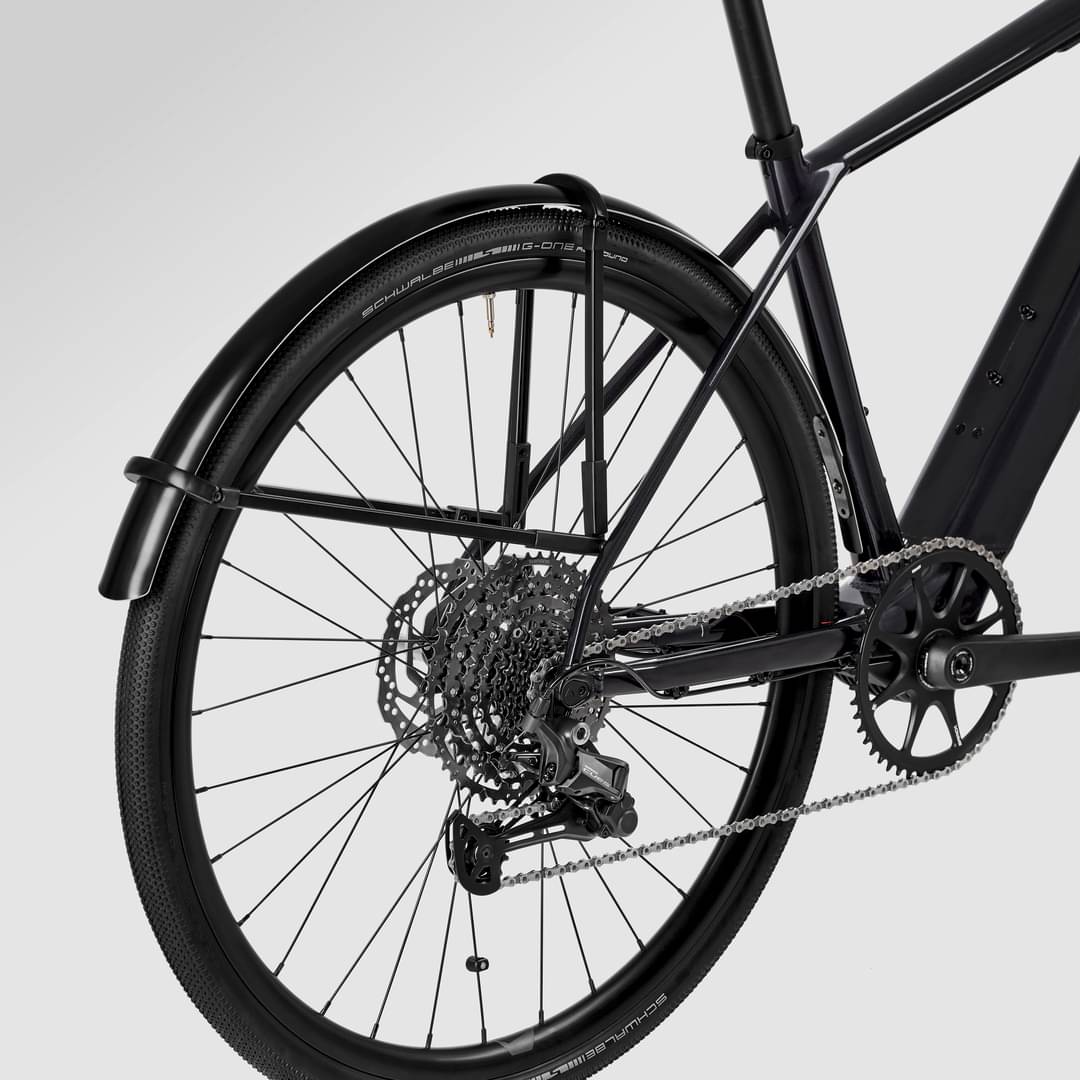

Drivetrain
Rear Derailleur
Shimano CUES U8000, Weight: 305 g
Shift Levers
Shimano Cues U6000, Weight: 140 g
Cassette
Shimano Cues LG400, Number of sprockets: 11, Range: 11-50
Crank
Samox EC37F, Number of chainrings: 1
Chain
KMC X11
Pedals
FP-803
Wheels
Rims
Alexrims GX26P | Shimano RS470, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 1,200 g | Alex Rims GX26P | Shimano TC500 front hub, Axle dimension: 15X100 mm, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 940 g
Tires
Schwalbe G-One Allround Performance Race Guard, Width: 1.5", Weight: 490 g

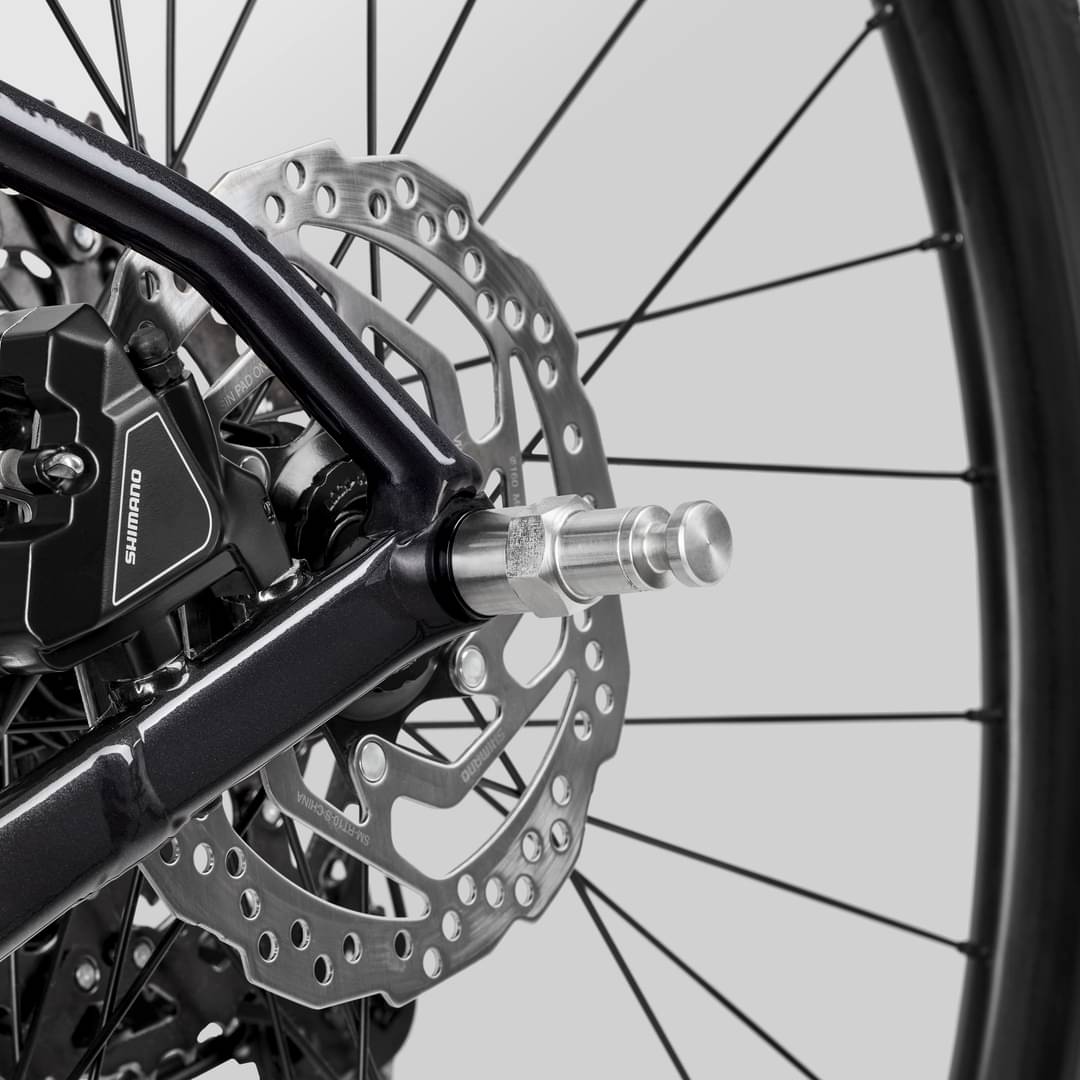

Brakes
Brakes
Shimano MT200/UR300 front brake, Number of pistons: 2 | Shimano MT200/UR300 rear brake, Number of pistons: 2

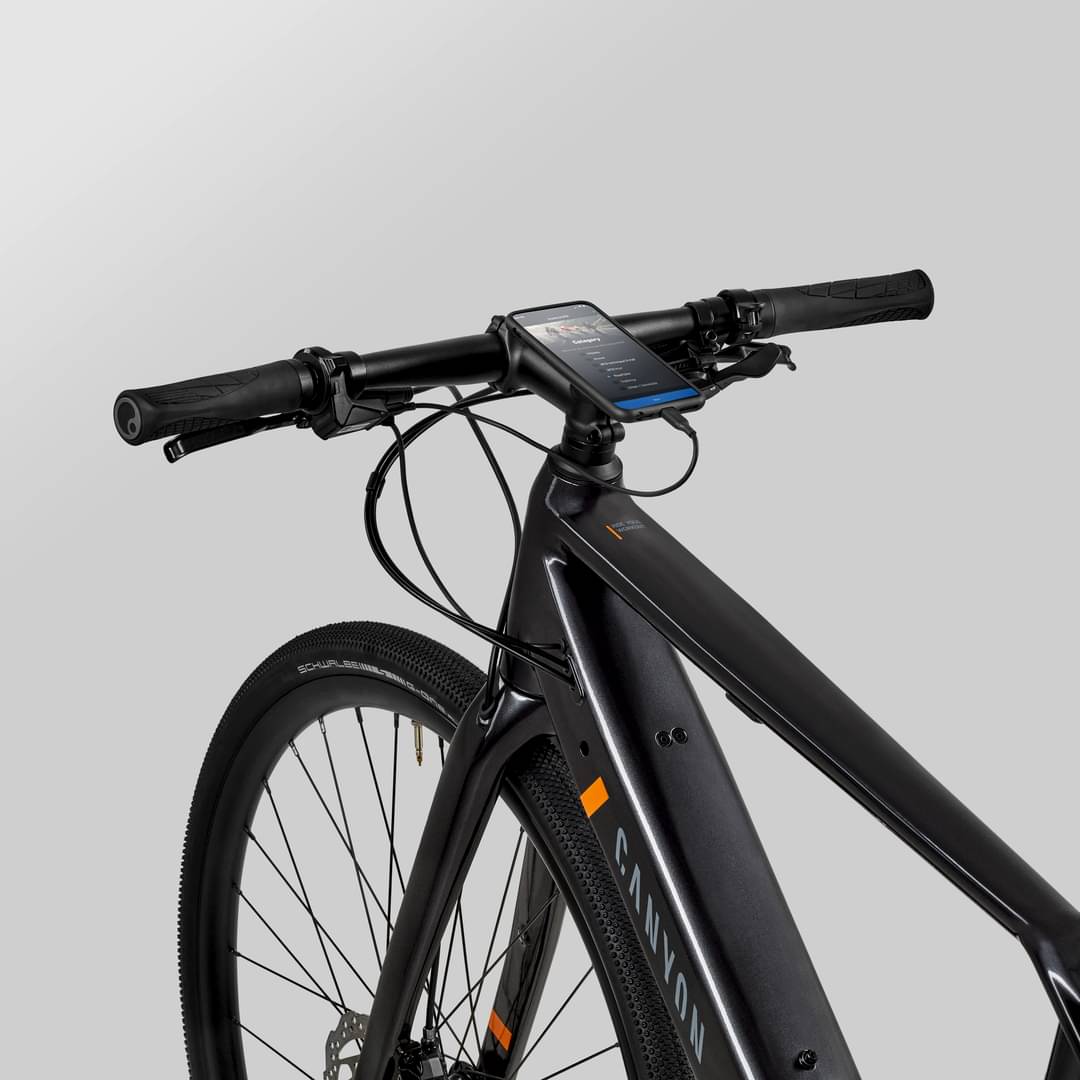

Cockpit
Stem
Iridium Stem, Fork steer tube diameter: 1 1/8", Material: Aluminium (AL)
Handlebar
Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 600 mm
Grips
Ergon GA3 mini-wing
Seat
Saddle
SR Royal Essenza, Weight: 288 g
Seatpost
SP HL C255 400 30,9, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 280 g
Motor & Battery
Motor
Fazua Ride 60 Drive Unit
Battery
Fazua Energy 430, 430 Wh
Charger
FAZUA RIDE 60 Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.486 mm | 1.491 mm | 1.508 mm | 1.502 mm |
| Front Center | 582 mm | 621 mm | 658 mm | 695 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 65 mm | 71 mm | 71 mm | 71 mm |
| Stack | 550 mm | 592 mm | 635 mm | 670 mm |
| Reach | 370 mm | 397 mm | 421 mm | 446 mm |
| Top Tube Length | 523 mm | 562 mm | 599 mm | 634 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 458 mm | 506 mm | 555 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 129 mm | 160 mm | 205 mm | 242 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1000 mm | 1035 mm | 1073 mm | 1110 mm |
| Bottom Bracket Drop | 60 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 719 mm | 773 mm | 808 mm | 844 mm |
| Wheels | 650 | 700 | 700 | 700 |
| Rider Max Height | 171 cm | 181 cm | 191 cm | cm |
