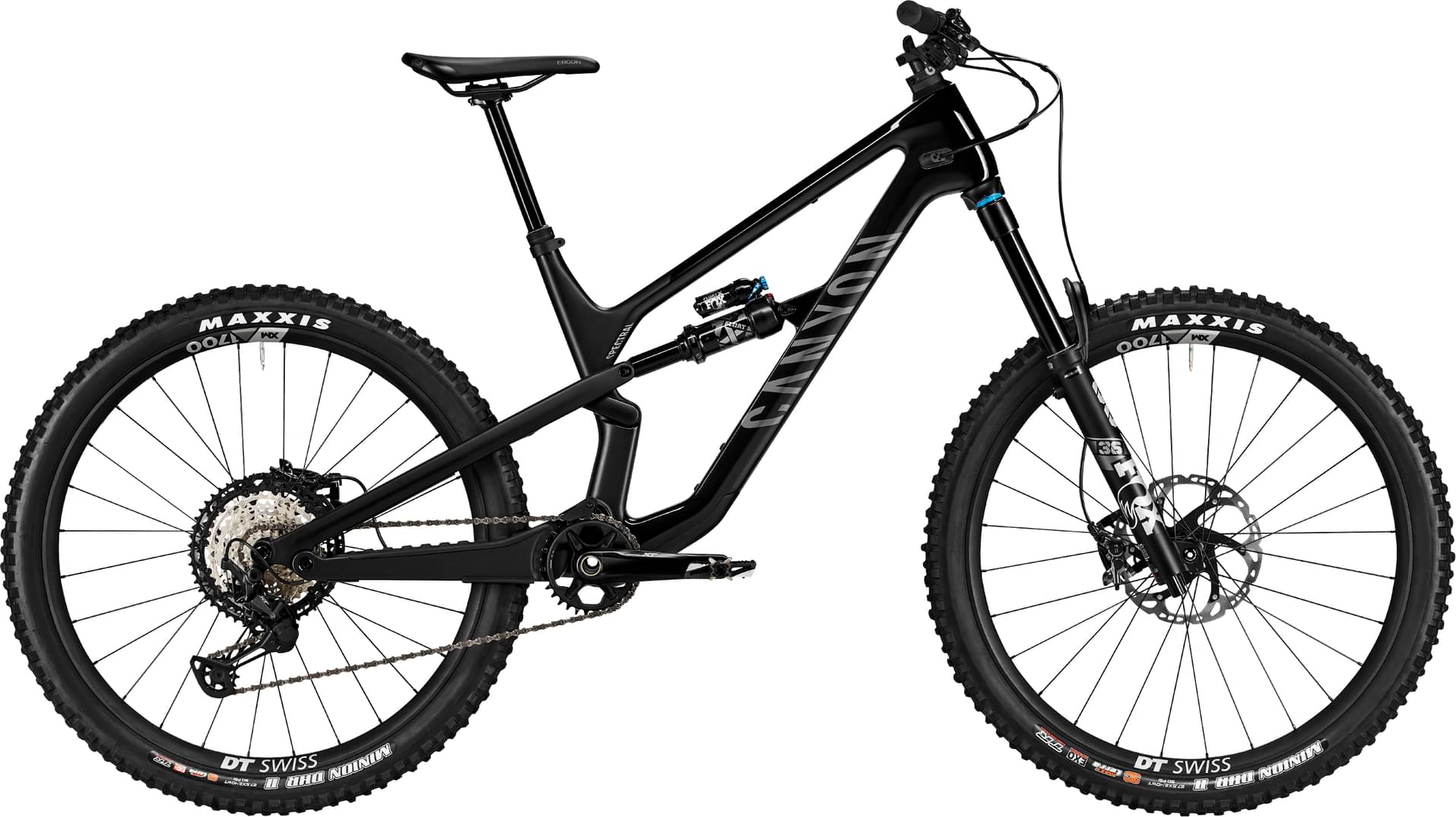

Canyon Spectral 27.5 CF 8 2024
2024 Mountain
Estimate price |
5,275$
Weight | 13.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 177cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

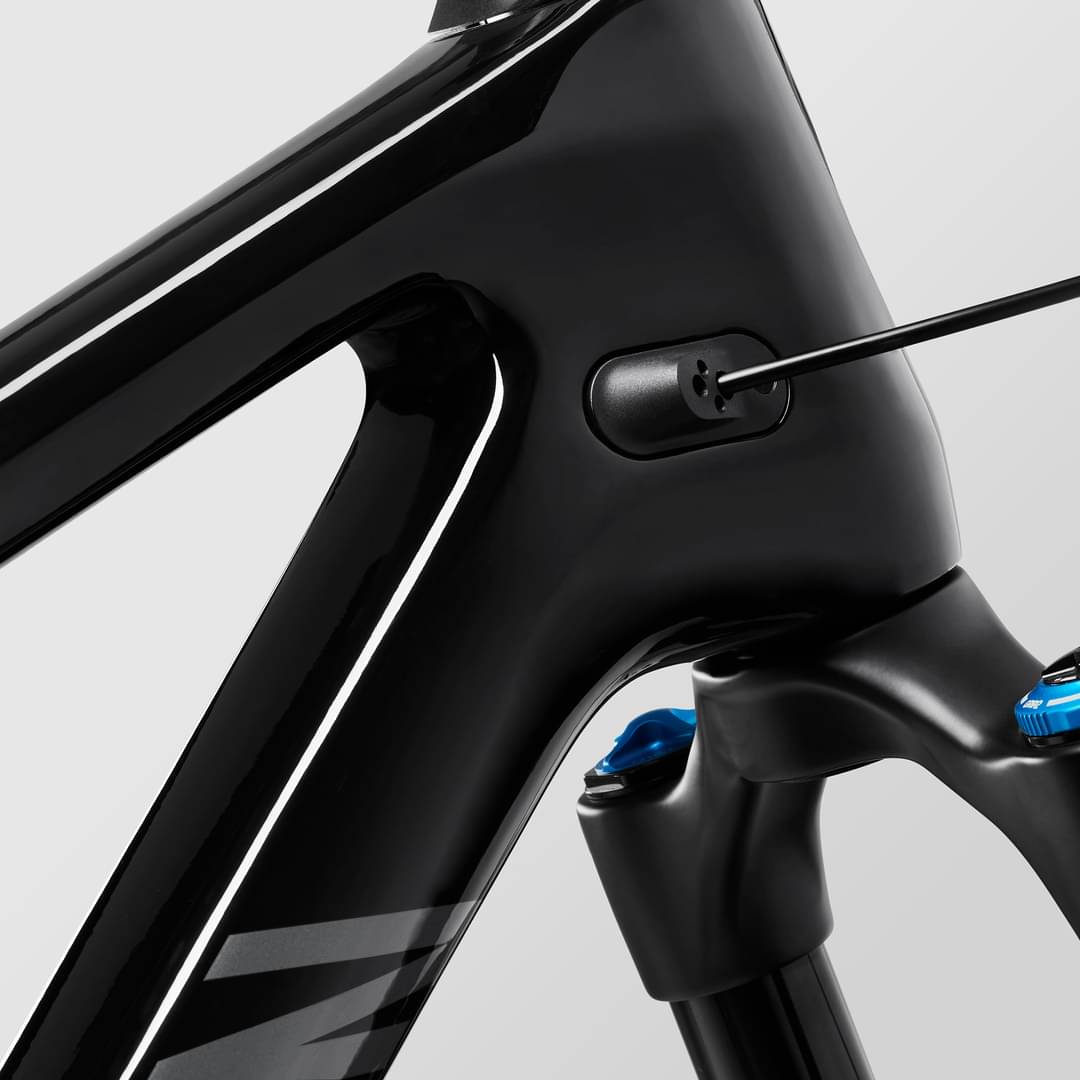

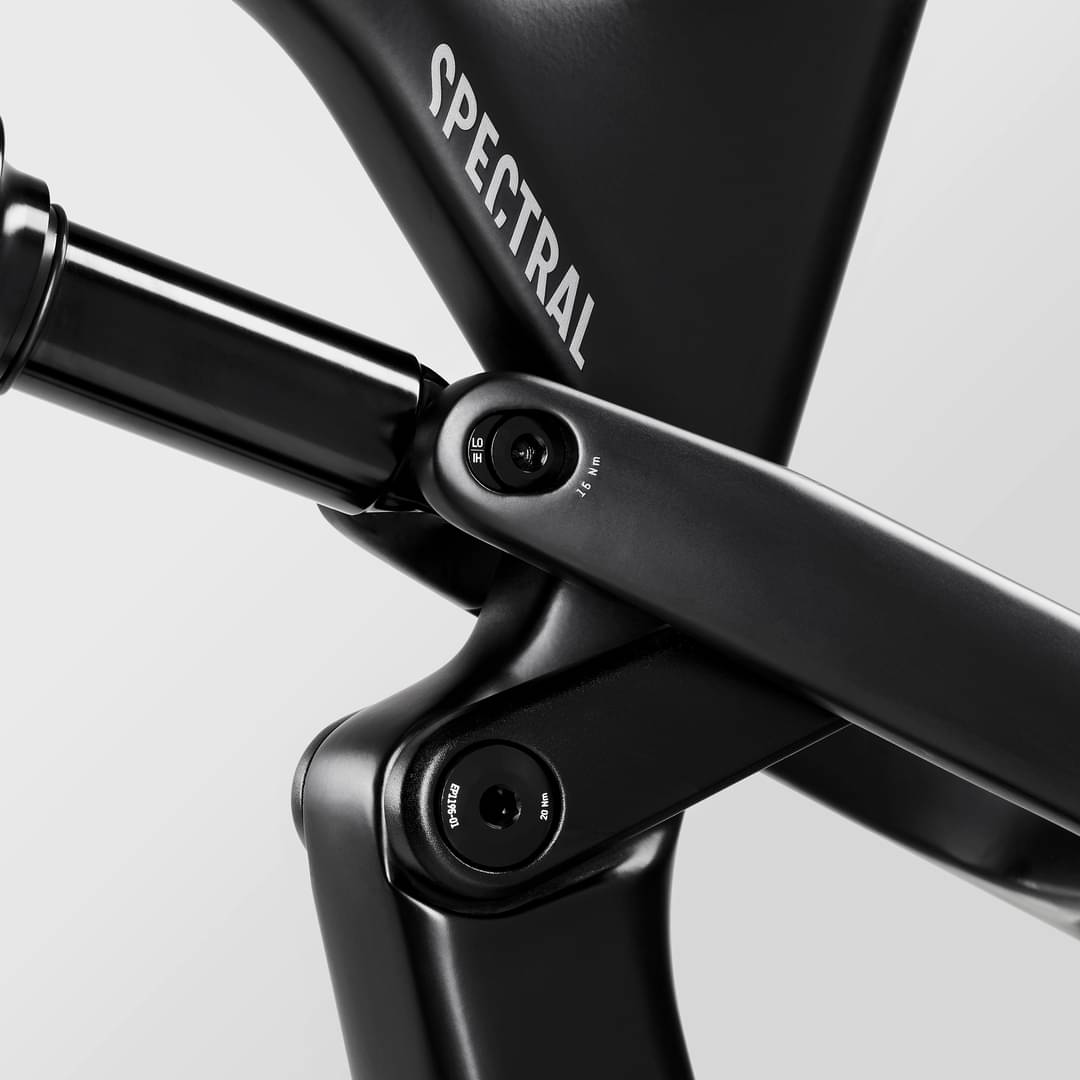

Canyon Spectral CF, Full-carbon frame with optimised stiffness-to-weight ratio. With Flip Chip system for simple geometry adjustment. Category 4., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
FOX 36 Performance Elite Grip2, Travel: 160 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.07 kg

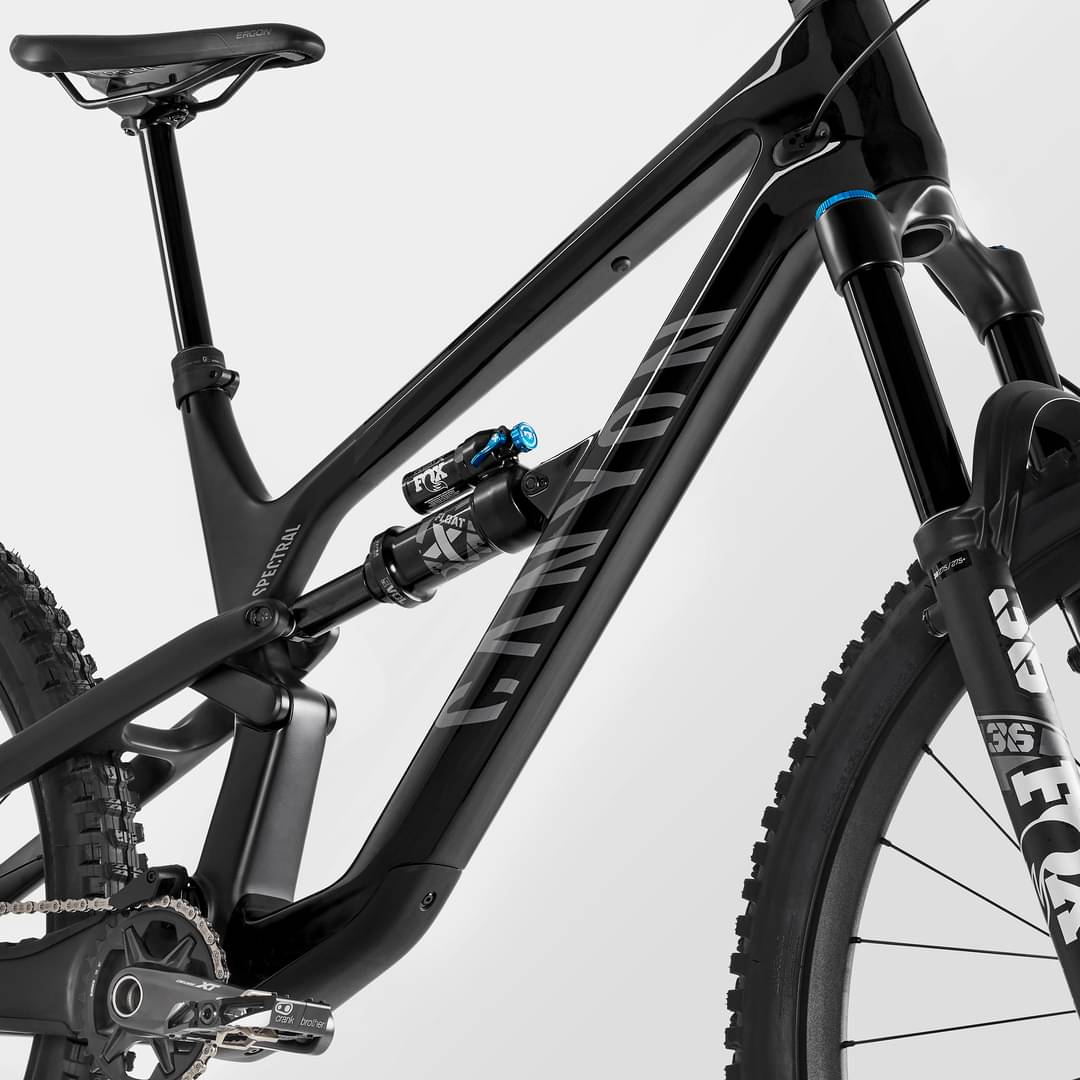

Rear Shock
FOX Float X Performance Elite
Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano DEORE XT M8100, Weight: 130 g
Cassette
Shimano Deore XT M8100, Number of sprockets: 12, Range: 10-51 12S
Crank
Shimano DEORE XT M8120, Number of chainrings: 1
Bottom Bracket
Shimano MT800, Bottom bracket standard: BSA 68/73, Weight: 100 g

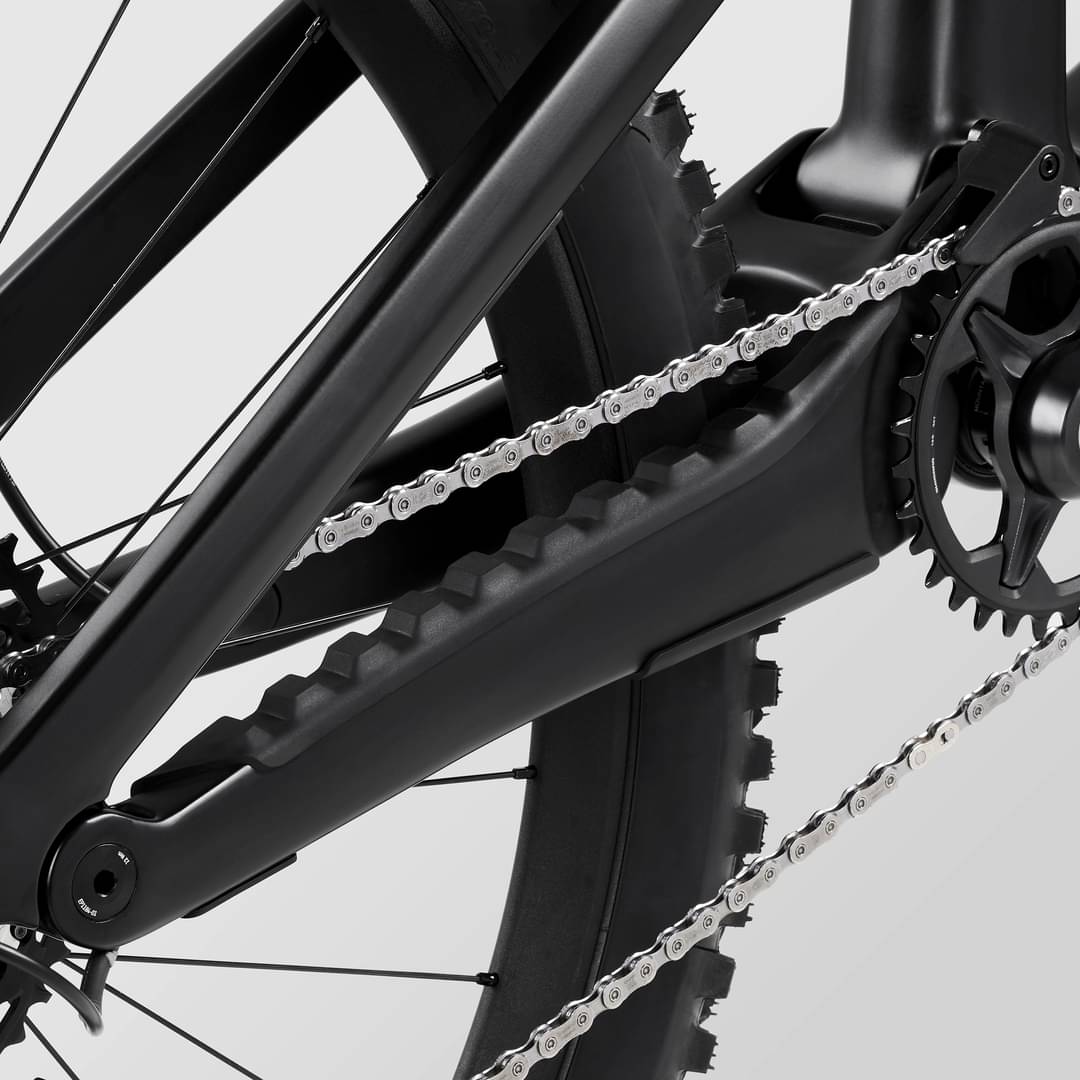

Chain
Shimano CN-M6100
Chain Guide
Canyon EP1266-01 ISCG05 Plate | Canyon GP0293-02
Pedals
None included
Wheels
Rims
DT Swiss XM1700, Rotor mount: IS 6-bolt, Weight: 837 g | DT Swiss XM170, Rotor mount: IS 6-bolt, Weight: 934 g
Tires
MAXXIS Minion DHR II 2.4'', Width: 2.4", Weight: 900 g | Maxxis Minion DHR II 3C MaxxTerra EXO+ 2,4x27,5", Wheelsize: 27.5", Weight: 1.07 kg
Brakes
Brakes
Shimano DEORE XT M8120
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm, Material: Aluminium (AL)
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5
Seat
Saddle
Ergon SM10 Enduro Comp, Gender: Unisex
Seatpost
Canyon G5, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.454 mm | 1.411 mm | 1.354 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Front Center | 732 mm | 766 mm | 795 mm |
| Rake | 42 mm | 43 mm | 42 mm |
| Trail | 123 mm | 122 mm | 123 mm |
| Stack | 596 mm | 614 mm | 623 mm |
| Reach | 410 mm | 435 mm | 460 mm |
| Top Tube Length | 553 mm | 582 mm | 610 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 395 mm | 395 mm | 430 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 125 mm | 135 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1163 mm | 1197 mm | 1226 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Standover Height | 746 mm | 751 mm | 758 mm |
| Front Travel | 160 mm | 160 mm | 160 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" |
| Rider Max Height | 168 cm | 177 cm | cm |
