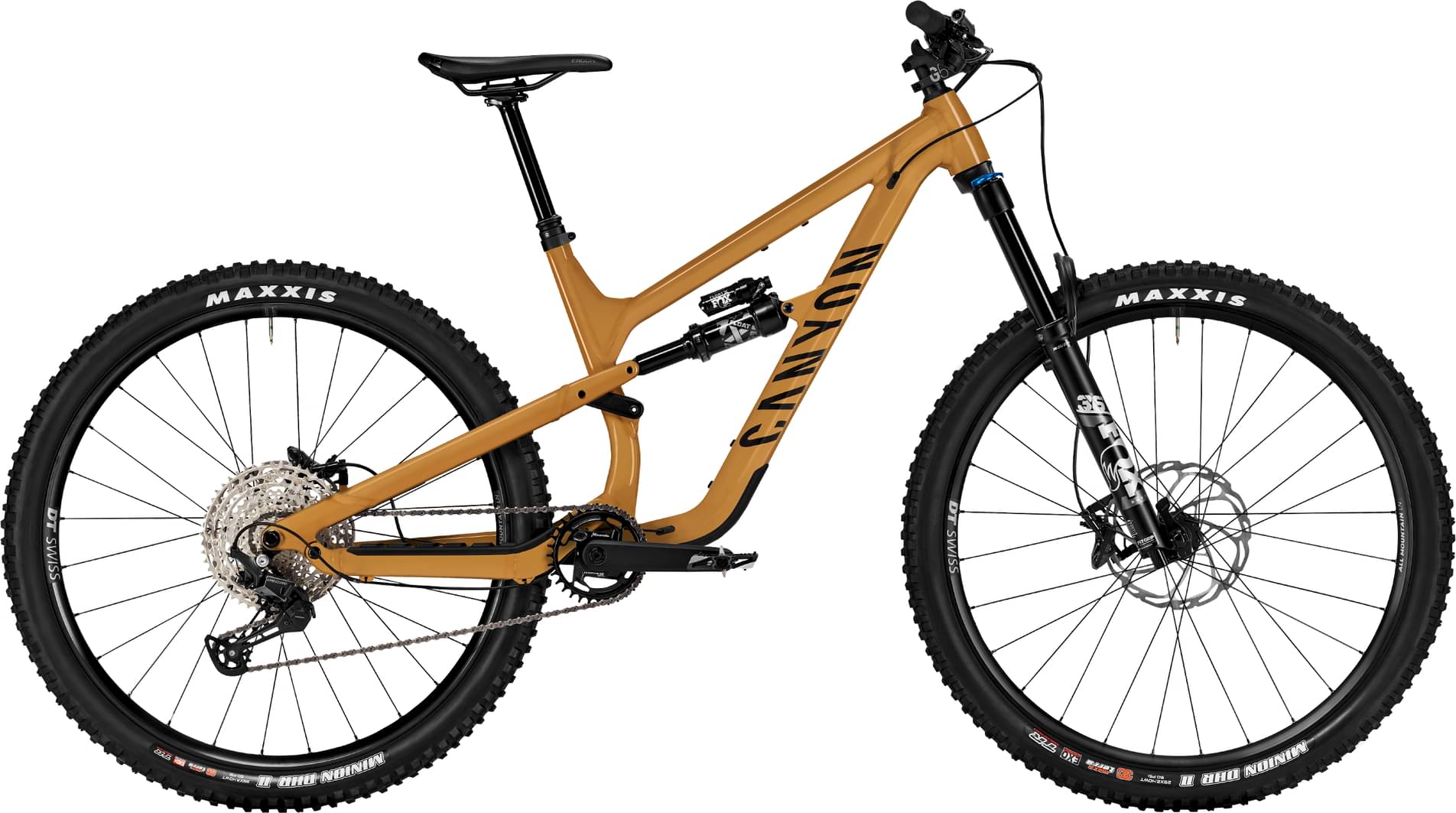

Canyon Spectral 6 2024
2024 Mountain
Estimate price |
3,096$
Weight | 16.36 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Fork Fox Rhythm Float 36
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 177cm
MD
172cm - 185cm
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral, Aluminium frame with optimised frame forms for increased stiffness and strength with thinner walls. Category 4., Axle dimension: 12x148 mm, Material: Aluminium (AL), Weight: 3.24 kg
Suspension Fork
FOX 36 Rhythm Grip, Axle dimension: 15x110 mm, Stanchion Diameter: 36 mm, Travel: 150 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 1.93 kg
Rear Shock
FOX X Performance 2-Position
Drivetrain
Rear Derailleur
Shimano Deore M6100, Cage length: long, Weight: 317 g
Shift Levers
Shimano Deore M6100, Weight: 136 g
Cassette
Shimano Deore M6100, Number of sprockets: 12 | Shimano CS-M6100 Deore 12-speed Cassette 10-51
Crank
Miranda Delta, Number of chainrings: 1
Bottom Bracket
Shimano BSA BB52, Bottom bracket standard: BSA HT2 68/73, Weight: 98 g
Chain
Shimano CN-M6100 | Shimano CN-M6100 Deore 12-speed Chain 138 Links | Shimano SM-CN910 12-speed Quick-Link Chain Connector
Pedals
None included
Wheels
Rims
DT Swiss AM LN 370, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 1.05 kg | DT Swiss LN AM, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Weight: 1.17 kg
Tires
Maxxis Minion DHR II Exo, Width: 2,4", Weight: 955 g | Maxxis Minion DHR II Exo+, Width: 2,4", Weight: 1.08 kg | Maxxis Minion DHR II EXO+ 3C MaxxTerra WT 29" x 2.4" MTB Tyre | Maxxis Minion DHR II EXO 3C MaxxGrip WT 29" x 2.4" MTB Tyre | Maxxis Minion DHR II EXO+ 3C MaxxTerra WT 27.5" x 2.4" MTB Tyre
Brakes
Brakes
Shimano Deore M6120, Number of pistons: 4
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm, Material: Aluminium (AL)
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5
Seat
Saddle
Ergon SM10 Enduro, Gender: Unisex, Weight: 245 g
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 580 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.402 mm | 1.362 mm | 1.31 mm | 1.265 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 732 mm | 765 mm | 791 mm | 820 mm | 849 mm |
| Rake | 42 mm | 42 mm | 41 mm | 41 mm | 40 mm |
| Trail | 123 mm | 123 mm | 137 mm | 137 mm | 138 mm |
| Stack | 592 mm | 610 mm | 621 mm | 630 mm | 640 mm |
| Reach | 410 mm | 435 mm | 456 mm | 481 mm | 506 mm |
| Top Tube Length | 547 mm | 576 mm | 602 mm | 630 mm | 657 mm |
| Seat Tube Angle | 77 ° | 77 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 395 mm | 395 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1164 mm | 1197 mm | 1227 mm | 1256 mm | 1285 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 752 mm | 758 mm | 761 mm | 767 mm | 771 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 168 cm | 177 cm | 185 cm | 194 cm | cm |
