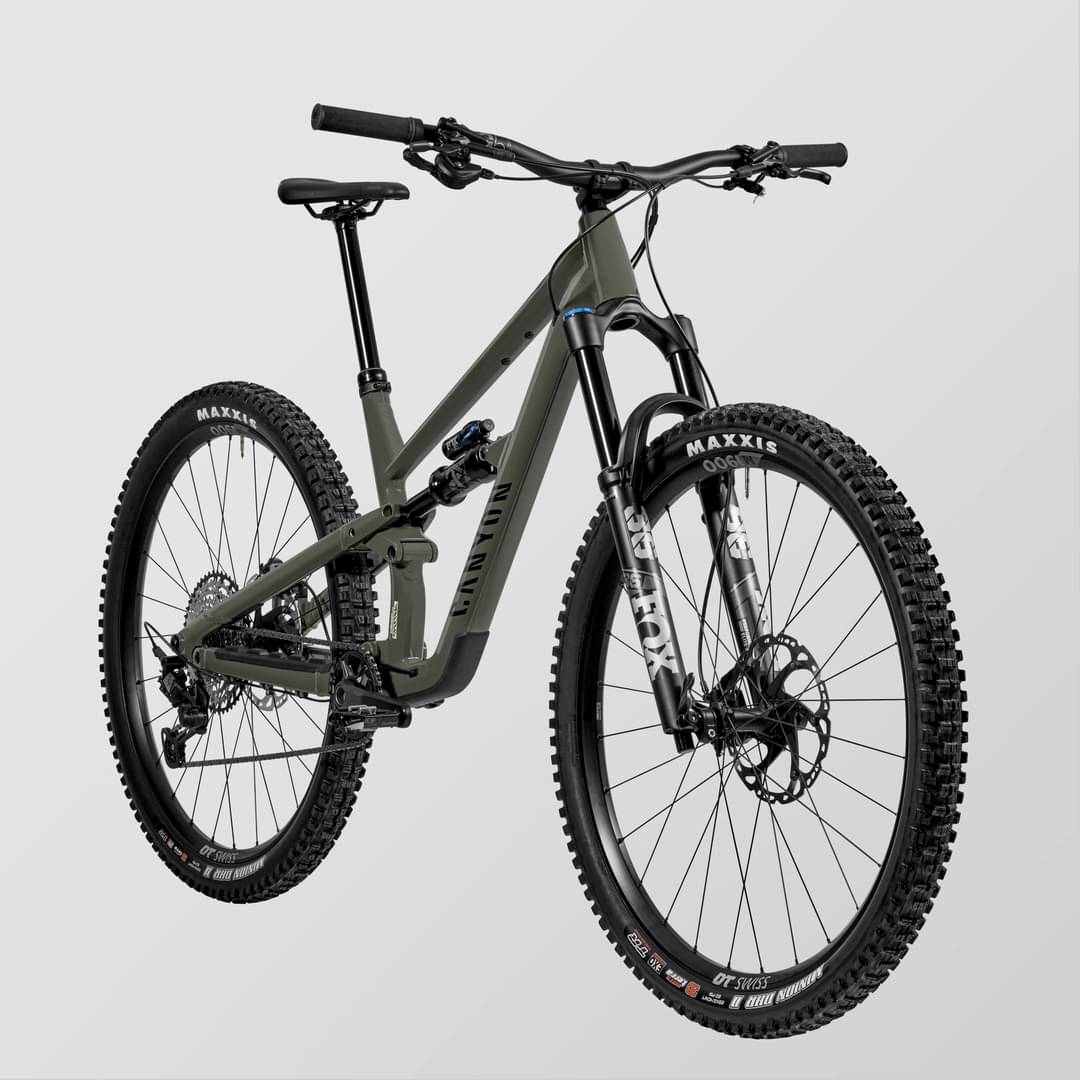

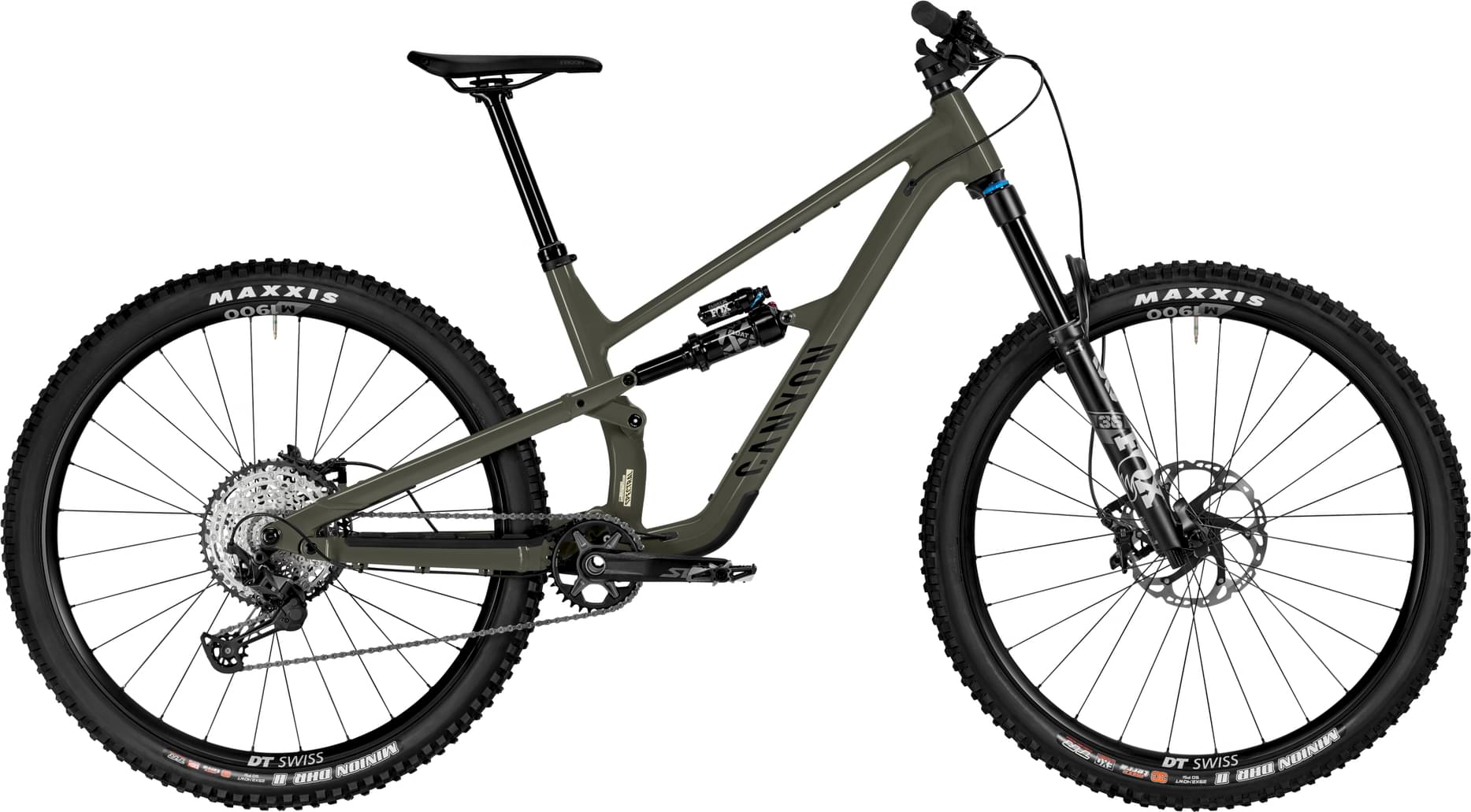

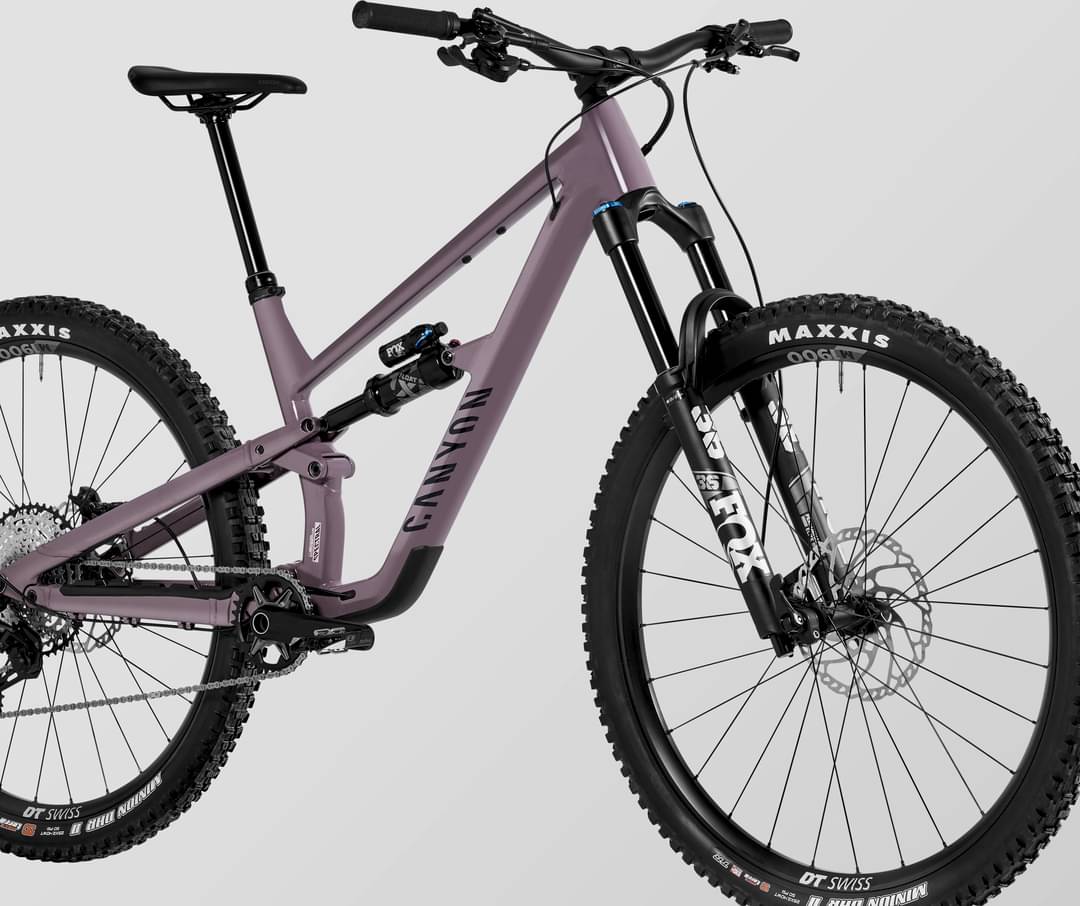

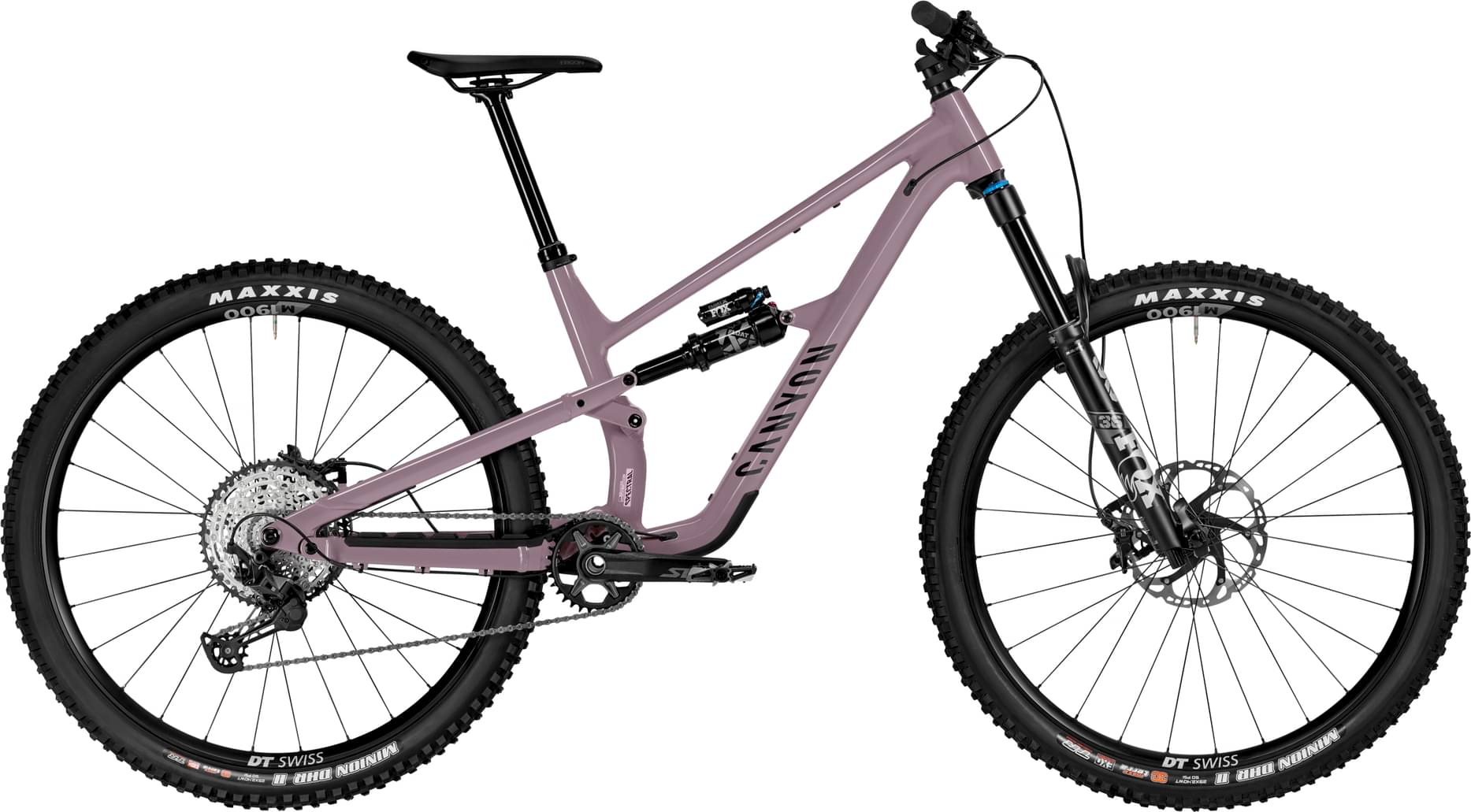

Canyon Spectral 6 2025
2025 Mountain
Estimate price |
3,489$
Weight | 15.46 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset SLX -
Suspension Full -
Brakes Shimano SLX Hydraulic Disc
Sizing
Recommended size guide.
SM
172cm - 185cm
MD
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral, Aluminium frame with optimised frame forms for increased stiffness and strength with thinner walls. Category 4., Material: Aluminium (AL), Weight: 6.94 lbs

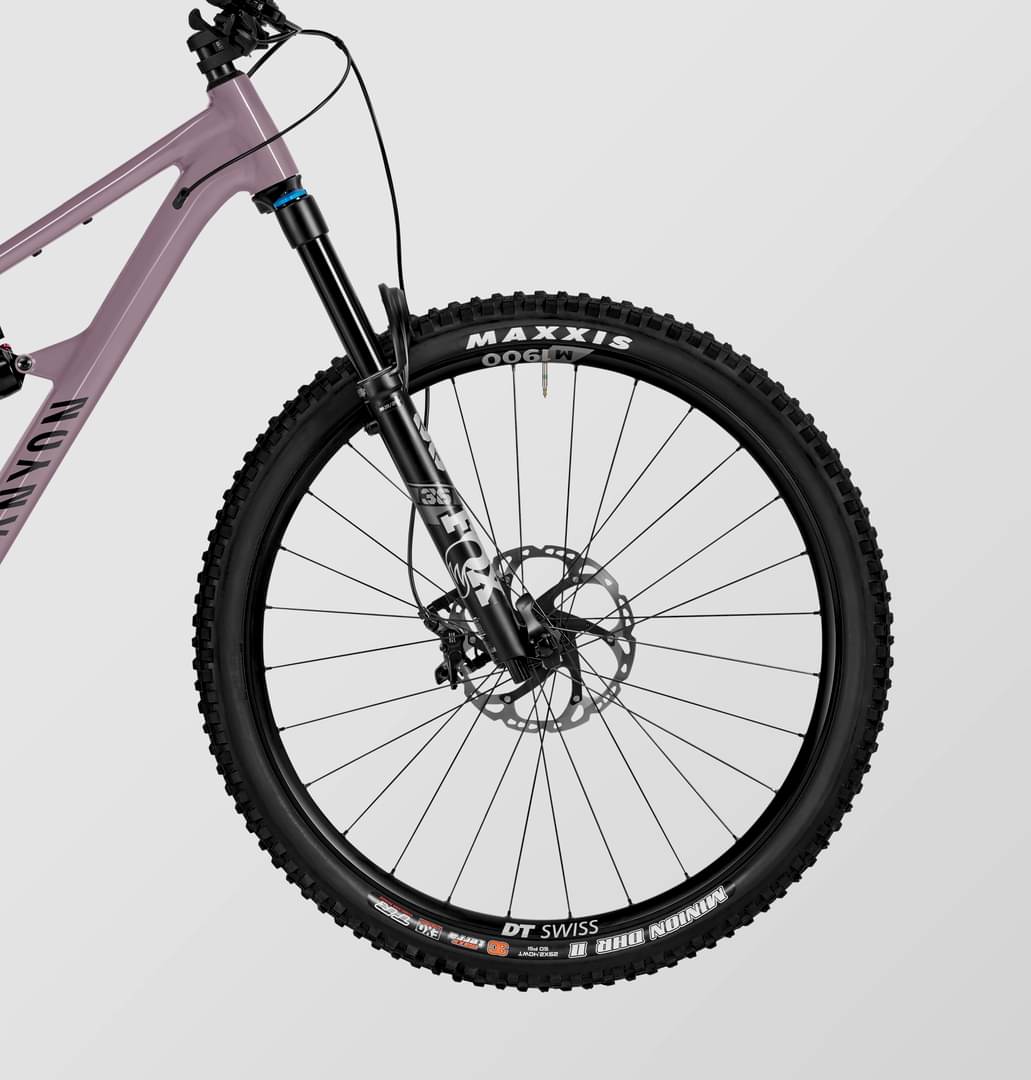

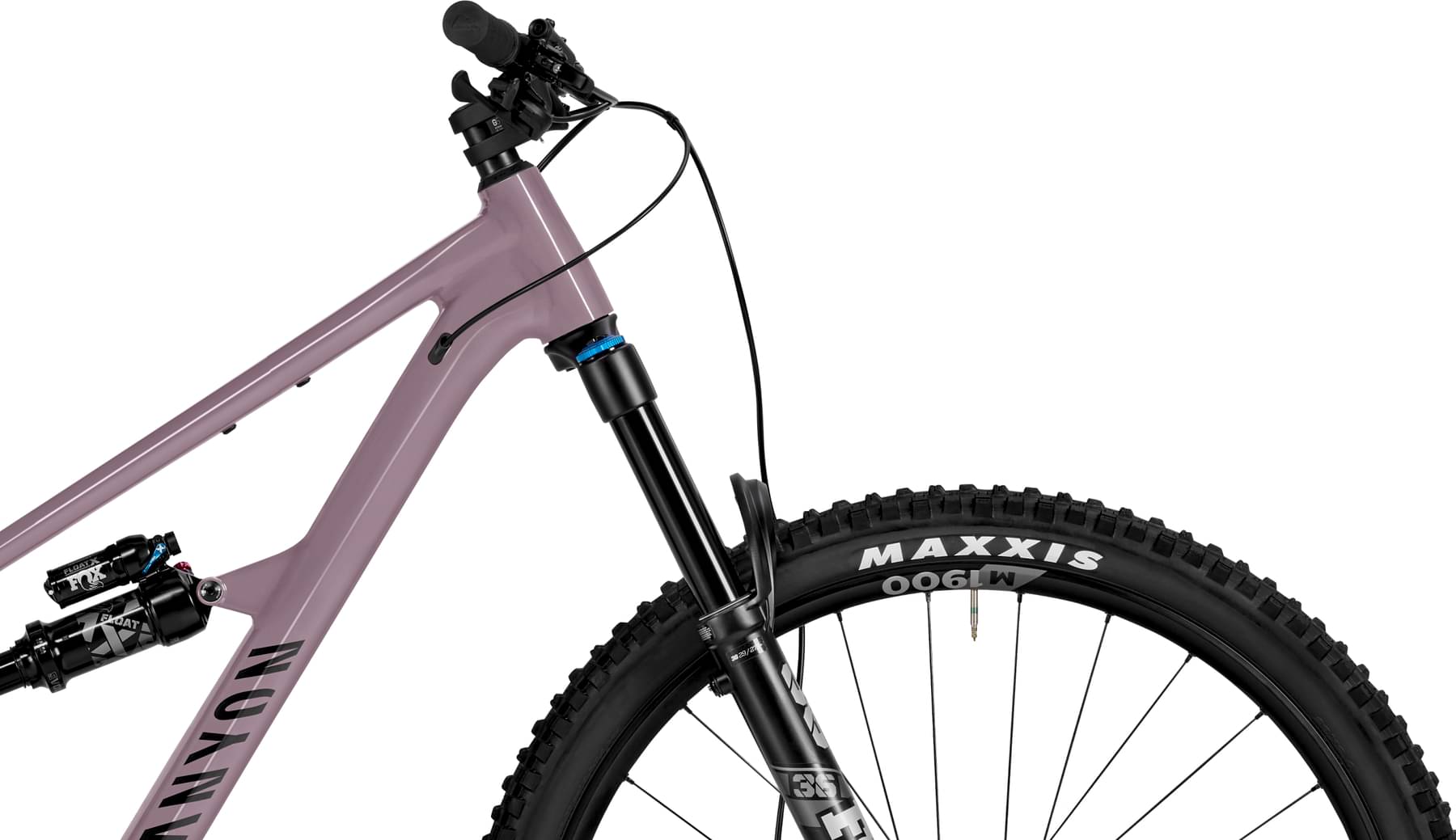

Suspension Fork
FOX 36 Performance, Stanchion Diameter: 36 mm, Travel: 150 mm, Fork steer tube diameter: 1 1/8" - 1,5"

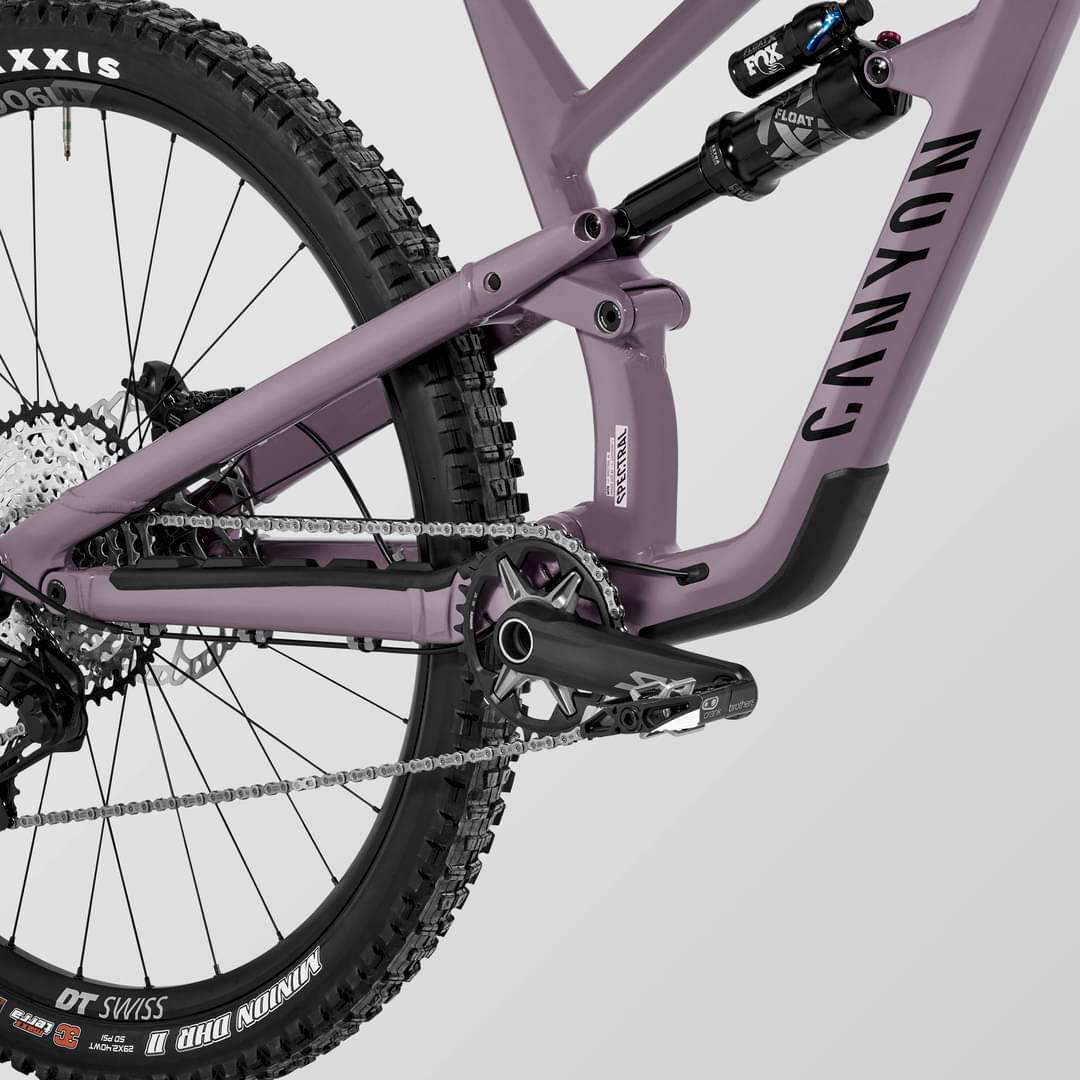

Rear Shock
FOX Float X Performance, Weight: 1.19 lbs
Drivetrain
Rear Derailleur
Shimano Deore SLX M7100, Cage length: long, Weight: 0.63 lbs
Shift Levers
Shimano Deore SLX M7100, Weight: 0.32 lbs
Cassette
Shimano Deore SLX CS-M7100, Number of sprockets: 12, Range: 10-51
Crank
Shimano Deore SLX M7120, Number of chainrings: 1
Bottom Bracket
Shimano BB-MT501, Bottom bracket standard: BSA HT2 68/73, Weight: 0.16 lbs
Chain
Shimano Deore M6100
Pedals
None included
Wheels
Rims
DT Swiss M1900, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 2.12 lbs | DT Swiss XM1900, Rotor mount: IS 6-bolt, Weight: 2.25 lbs
Tires
Maxxis Minion DHR II Exo, Width: 2,4", Weight: 2.28 lbs | Maxxis Minion DHR II Exo+, Width: 2.4", Weight: 2.21 lbs
Brakes
Brakes
Shimano Deore SLX M7120
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm, Material: Aluminium (AL)
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5
Seat

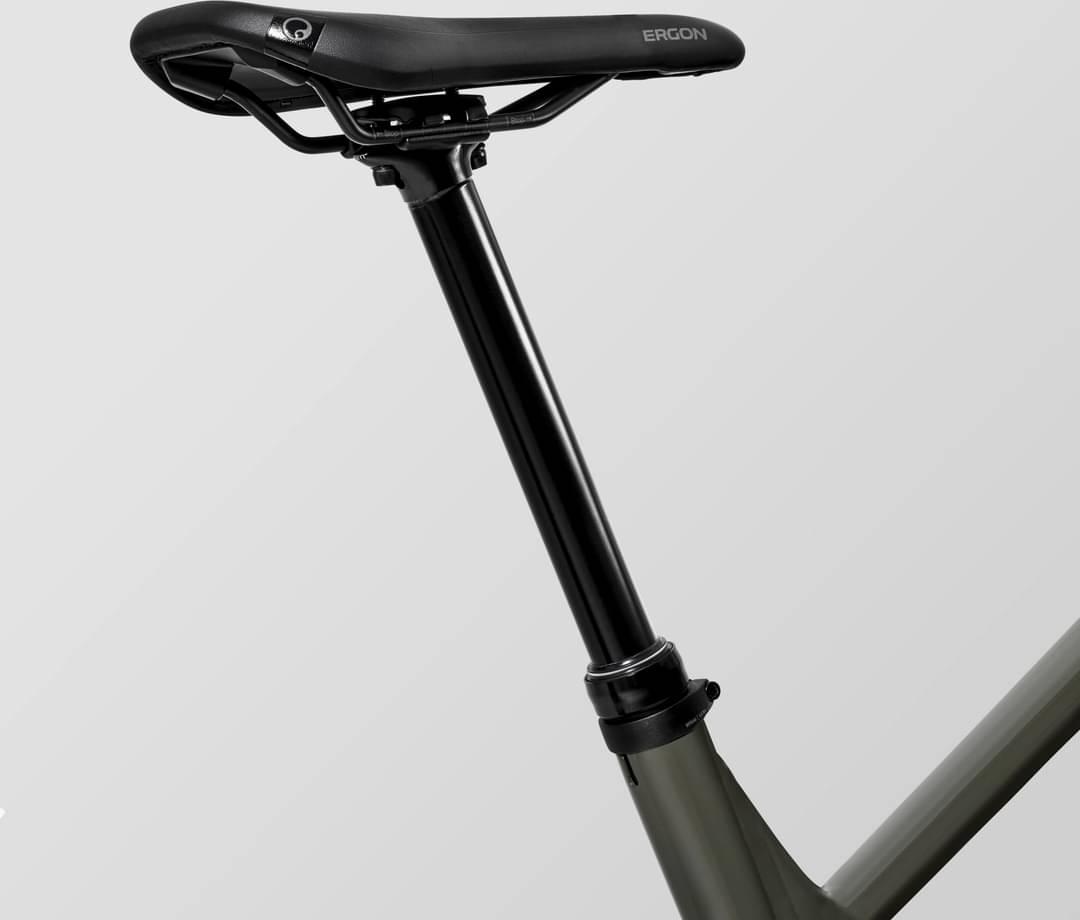

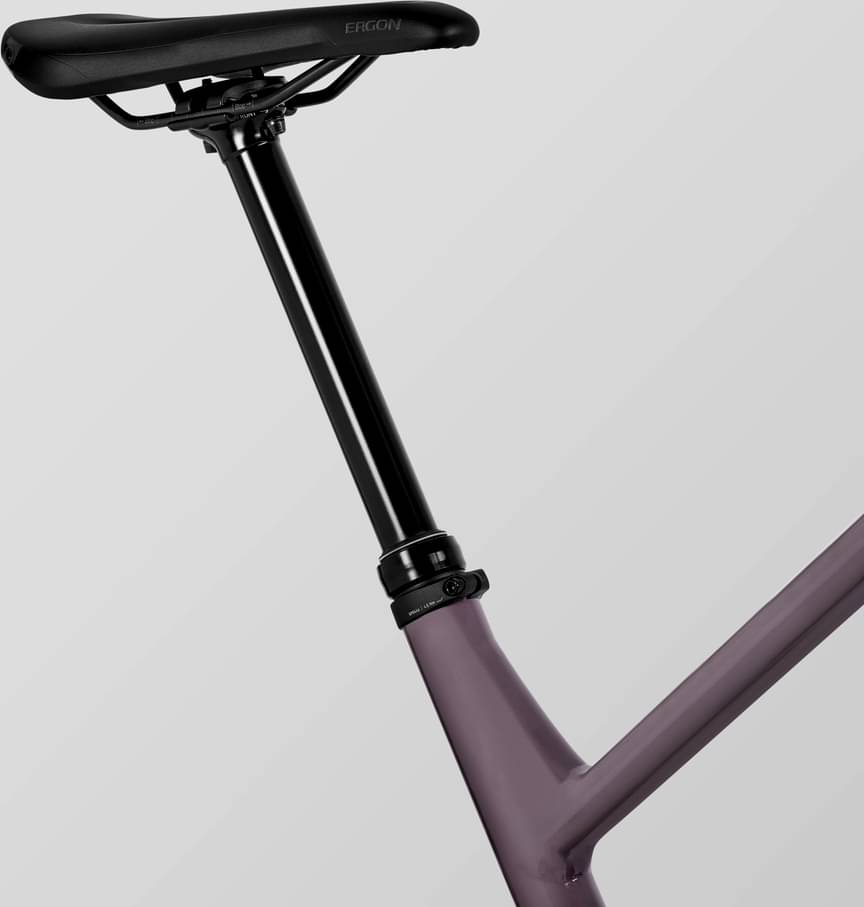

Saddle
Ergon SM10 Enduro, Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain., On certain models, this saddle may be substituted for an alternate, equivalent Selle San Marco model., Potentially affected models include:, Spectral 6 27 (Model #3184), Spectral 6 29 (Model #3185)
Seatpost
Canyon SP0081, Clamp diameter: 34,9 mm, Material: Aluminium (AL), Weight: 1.54 lbs
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.326 mm | 1.278 mm | 1.234 mm | 1.234 mm |
| Front Center | 757 mm | 816 mm | 845 mm | 874 mm | 874 mm |
| Rake | 45 mm | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 133 mm | 131 mm | 133 mm | 133 mm | 133 mm |
| Stack | 612 mm | 630 mm | 639 mm | 648 mm | 648 mm |
| Reach | 425 mm | 475 mm | 500 mm | 525 mm | 525 mm |
| Top Tube Length | 572 mm | 626 mm | 653 mm | 680 mm | 680 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 375 mm | 415 mm | 445 mm | 455 mm | 455 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 120 mm | 130 mm | 140 mm | 140 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1192 mm | 1251 mm | 1280 mm | 1309 mm | 1309 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 744 mm | 757 mm | 761 mm | 762 mm | 762 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 168 cm | 185 cm | 194 cm | cm | cm |
