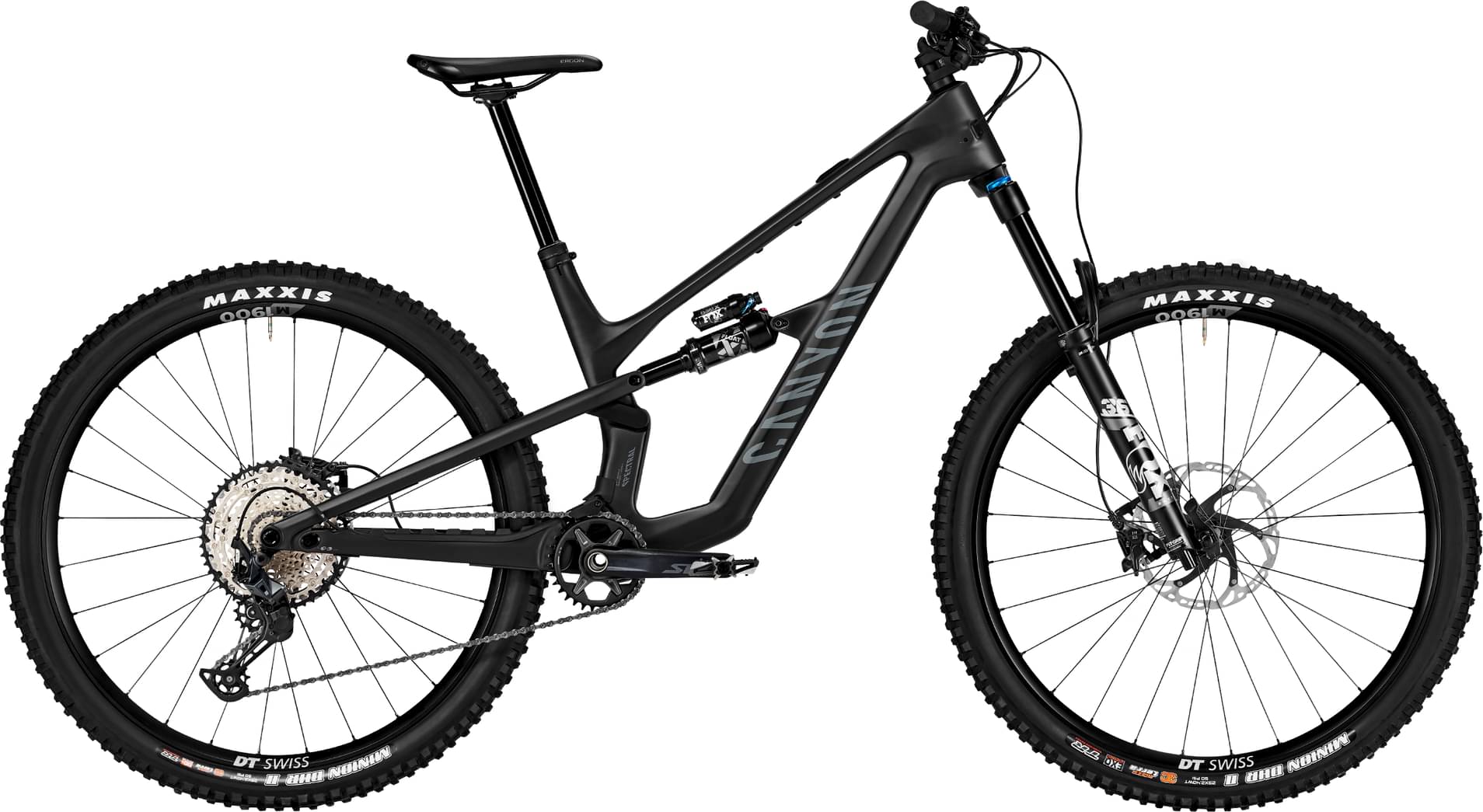

Canyon Spectral CF 7 2024
2024 Mountain
Estimate price |
3,898$
Weight | 15.36 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 36
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
163cm - 177cm
LG
172cm - 185cm
XL
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral CF, Full-carbon frame with optimised stiffness and compliance. Convertable wheelsize and geometry adjustment. Category 4 strength., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
FOX 36 Rhythm Grip, Axle dimension: 15x110 mm, Stanchion Diameter: 36 mm, Travel: 150 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 4.26 lbs
Rear Shock
FOX X Performance 2-Position, Weight: 0.55 lbs
Drivetrain
Rear Derailleur
Shimano SLX M7100, Cage length: long, Weight: 0.63 lbs
Shift Levers
Shimano SLX M7100, Weight: 0.32 lbs
Cassette
Shimano SLX M7100, Number of sprockets: 12
Crank
Shimano SLX M7120, Number of chainrings: 1
Bottom Bracket
Shimano BSA BB52, Bottom bracket standard: BSA HT2 68/73, Weight: 0.22 lbs
Chain
Shimano CN-M6100
Chain Guide
Canyon EP1266-01 ISCG05 Plate | Canyon GP0293-02
Pedals
None included
Wheels
Rims
DT Swiss M1900, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 2.12 lbs | DT SWISS M1900, Rotor mount: IS 6-bolt, Weight: 2.38 lbs
Tires
Maxxis Minion DHR II Exo, Width: 2,4", Weight: 2.11 lbs | Maxxis Minion DHR II Exo+, Width: 2,4", Weight: 2.38 lbs
Brakes
Brakes
Shimano SLX M7120, Number of pistons: 4
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm, Material: Aluminium (AL)
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5
Seat
Saddle
Ergon SM10 Enduro, Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain., On certain models, this saddle may be substituted for an alternate, equivalent Selle San Marco model., Potentially affected models include:, Spectral 6 27 (Model #3184), Spectral 6 29 (Model #3185)
Seatpost
Canyon SP0070-01, Air cartridge. Cable actuated., Travel: Dependent on frame size (see component geometry table.), Clamp diameter: 34,9 mm, Material: Aluminium (AL), Weight: 1.50 lbs
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | SM |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.326 mm | 1.278 mm | 1.234 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 786 mm | 816 mm | 845 mm | 874 mm |
| Rake | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 133 mm | 131 mm | 133 mm | 133 mm |
| Stack | 621 mm | 630 mm | 639 mm | 648 mm |
| Reach | 450 mm | 475 mm | 500 mm | 525 mm |
| Top Tube Length | 599 mm | 626 mm | 653 mm | 680 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 400 mm | 415 mm | 445 mm | 455 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1221 mm | 1251 mm | 1280 mm | 1309 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 752 mm | 747 mm | 756 mm | 762 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 172 cm | 180 cm | 189 cm |
| Rider Max Height | 177 cm | 185 cm | 194 cm | cm |
