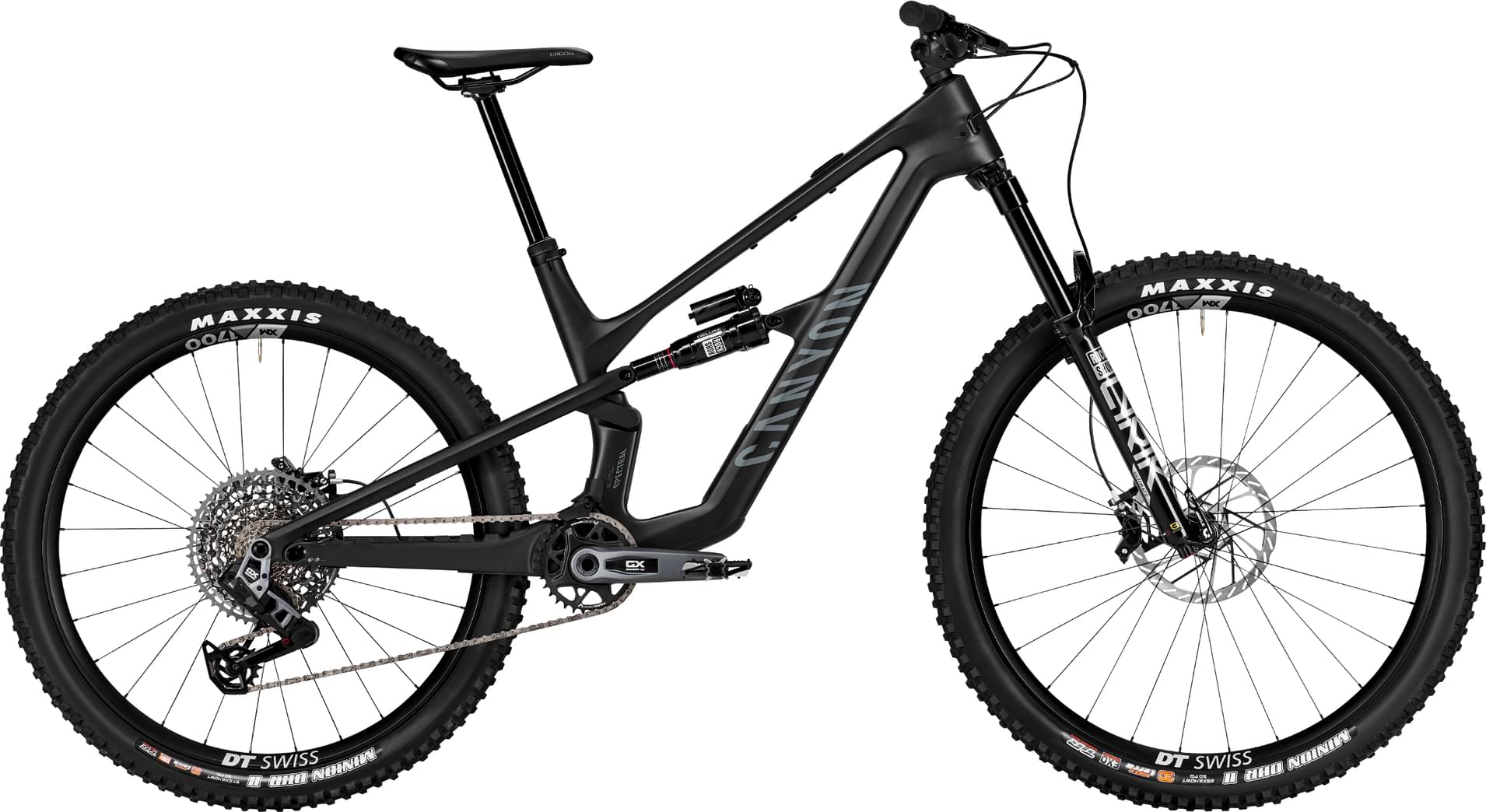

Canyon Spectral CF 9 2024
2024 Mountain
Estimate price |
5,734$
Weight | 14.94 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik Ultimate
-
Groupset GX Eagle Transmission, GX Eagle AXS -
Suspension Full -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 177cm
MD
172cm - 185cm
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral CF, Full-carbon frame with optimised stiffness and compliance. Convertable wheelsize and geometry adjustment. Category 4 strength., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
RockShox Lyrik Ultimate, Axle dimension: 15x110 mm, Stanchion Diameter: 35 mm, Travel: 150 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 2.03 kg
Rear Shock

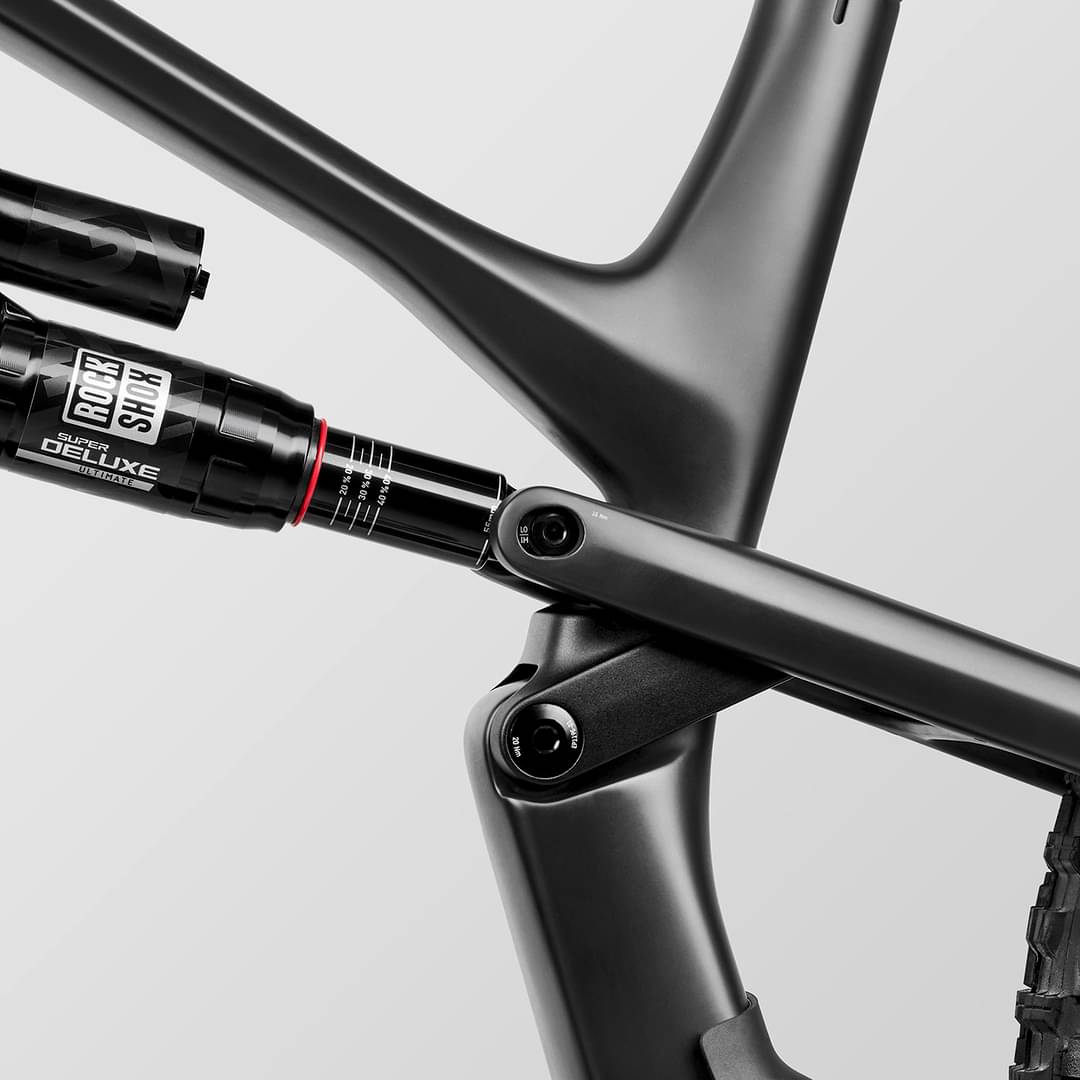

RockShox Super Deluxe Ultimate, Weight: 458 g
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS Transmission, Weight: 462 g
Shift Levers
SRAM GX Eagle AXS, Weight: 520 g
Cassette
SRAM GX Eagle Transmission Cassette 12s 10-52, Number of sprockets: 12 | SRAM XS-1275 T-Type GX 12-speed Cassette 10-52
Crank
SRAM GX Eagle, Number of chainrings: 1
Bottom Bracket
SRAM DUB BSA, Bottom bracket standard: BSA 73, Weight: 87 g
Chain
SRAM GX Eagle Transmission | SRAM Eagle Transmission PowerLock | SRAM GX T-Type 12-speed Chain 126L
Chain Guide
Canyon EP1266-01 ISCG05 Plate | Canyon GP0293-02
Pedals
None included
Wheels
Rims
DT Swiss XM1700 29", Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 903 g | DT Swiss XM 1700, Rotor mount: IS 6-bolt
Tires
Maxxis Minion DHR II Exo, Width: 2,4", Weight: 955 g | Maxxis Minion DHR II Exo+, Width: 2,4", Weight: 1.08 kg | Maxxis Minion DHR II EXO+ 3C MaxxTerra WT 29" x 2.4" MTB Tyre | Maxxis Minion DHR II EXO 3C MaxxGrip WT 29" x 2.4" MTB Tyre
Brakes
Brakes

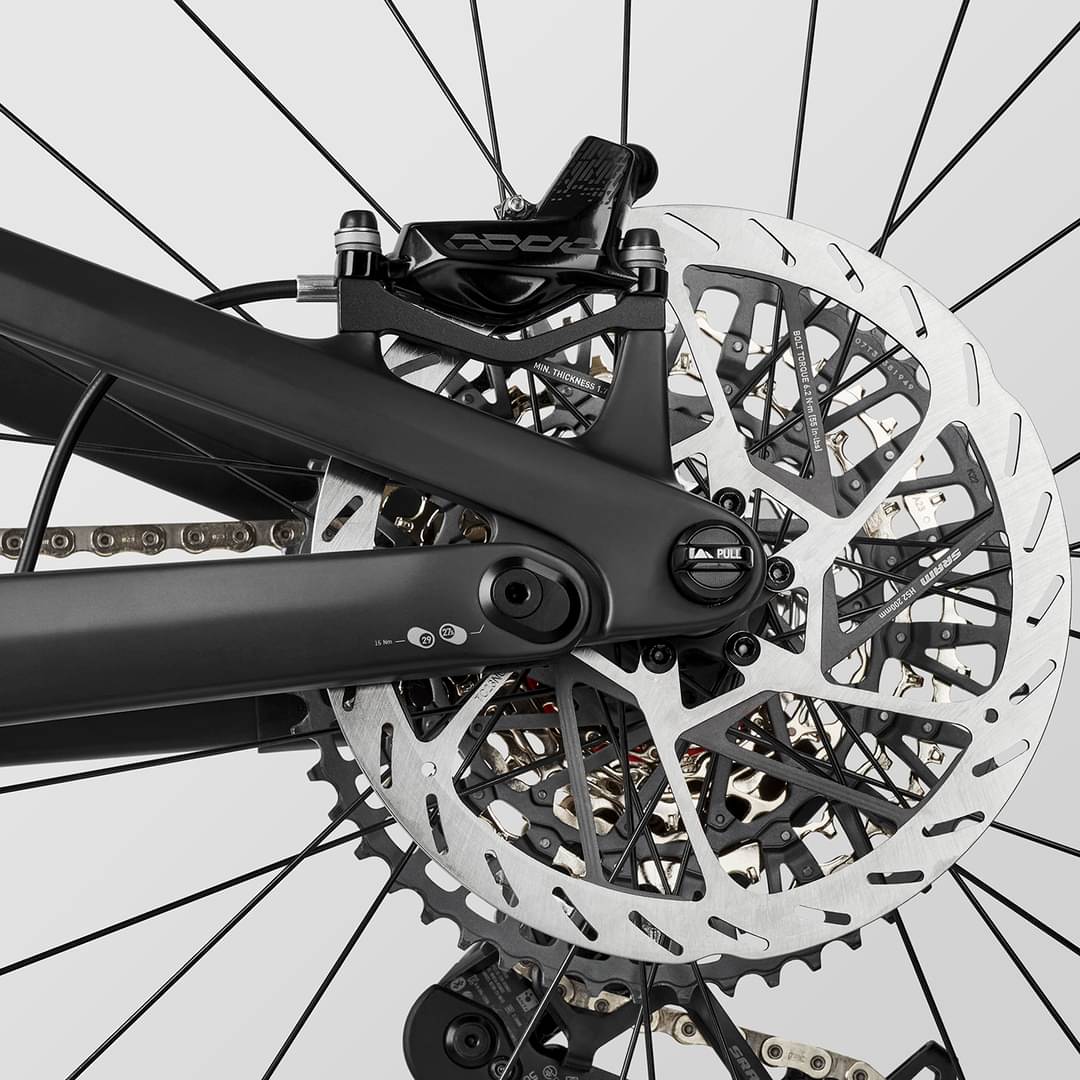

SRAM Code RSC
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm, Material: Aluminium (AL)
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5
Seat
Saddle
Ergon SM10 Enduro Comp, Gender: Unisex, Weight: 265 g
Seatpost
Canyon SP0070-01, Air cartridge. Cable actuated., Travel: Dependent on frame size (see component geometry table.), Clamp diameter: 34,9 mm, Material: Aluminium (AL), Weight: 680 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.326 mm | 1.278 mm | 1.234 mm |
| Front Center | 757 mm | 786 mm | 816 mm | 845 mm | 874 mm |
| Rake | 45 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 133 mm | 133 mm | 131 mm | 133 mm | 133 mm |
| Stack | 612 mm | 621 mm | 630 mm | 639 mm | 648 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm | 525 mm |
| Top Tube Length | 572 mm | 599 mm | 626 mm | 653 mm | 680 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 375 mm | 400 mm | 415 mm | 445 mm | 455 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1184 mm | 1213 mm | 1243 mm | 1272 mm | 1301 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 738 mm | 752 mm | 747 mm | 756 mm | 762 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 168 cm | 177 cm | 185 cm | 194 cm | cm |
