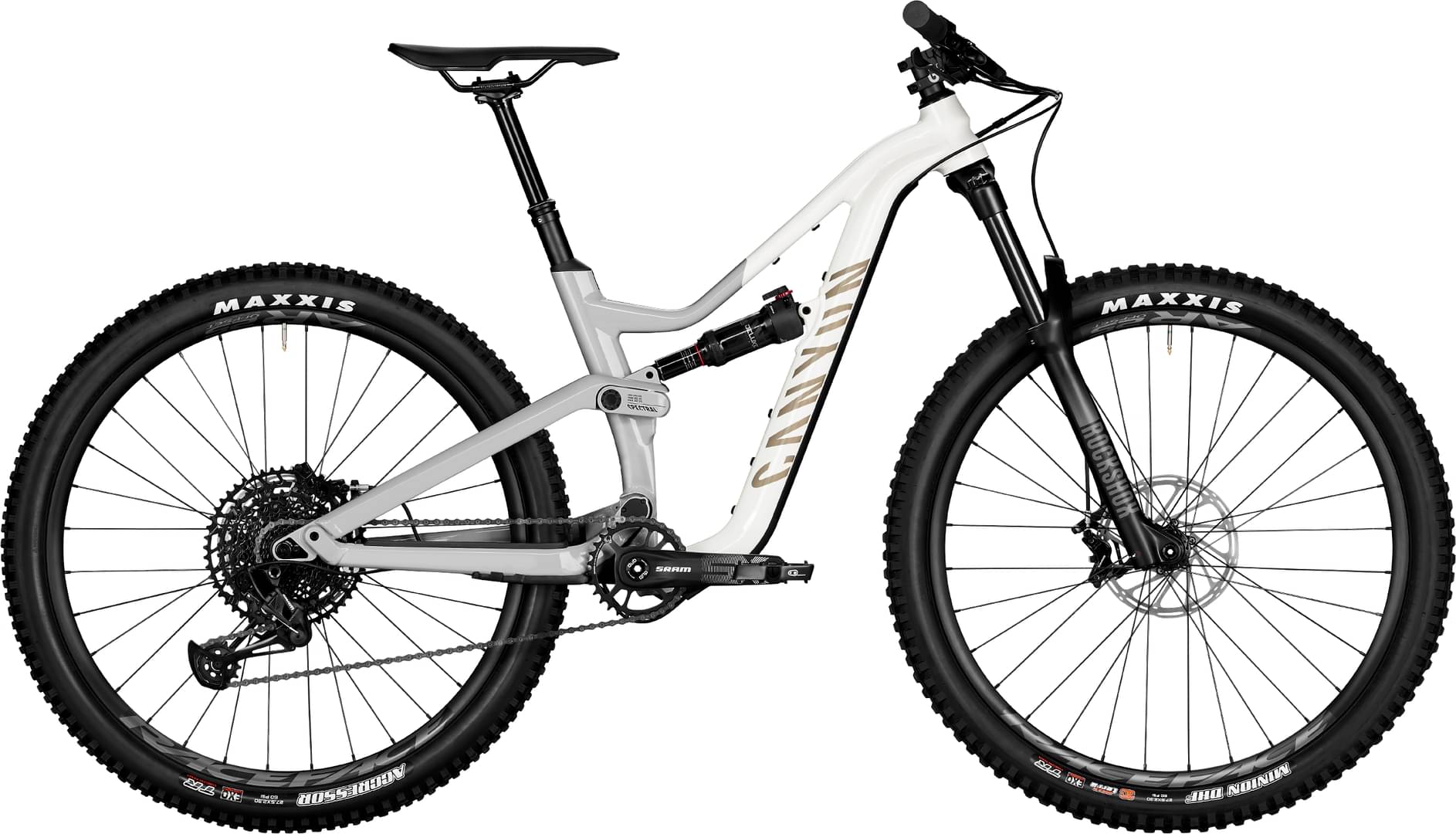

Canyon Spectral Young Hero 2024
2024 Youth
Estimate price |
1,999$
Weight | 14.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Guide T Hydraulic Disc
Sizing
Recommended size guide.
XXS
148cm - 158cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral YH, Aluminium frame in size 2XS with suspension kinematics specially tuned for smaller riders., Axle dimension: 12x148 mm, Material: Aluminium (AL), Weight: 4.08 lbs
Suspension Fork
RockShox Recon Silver RL, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 37 mm, Weight: 5.03 lbs

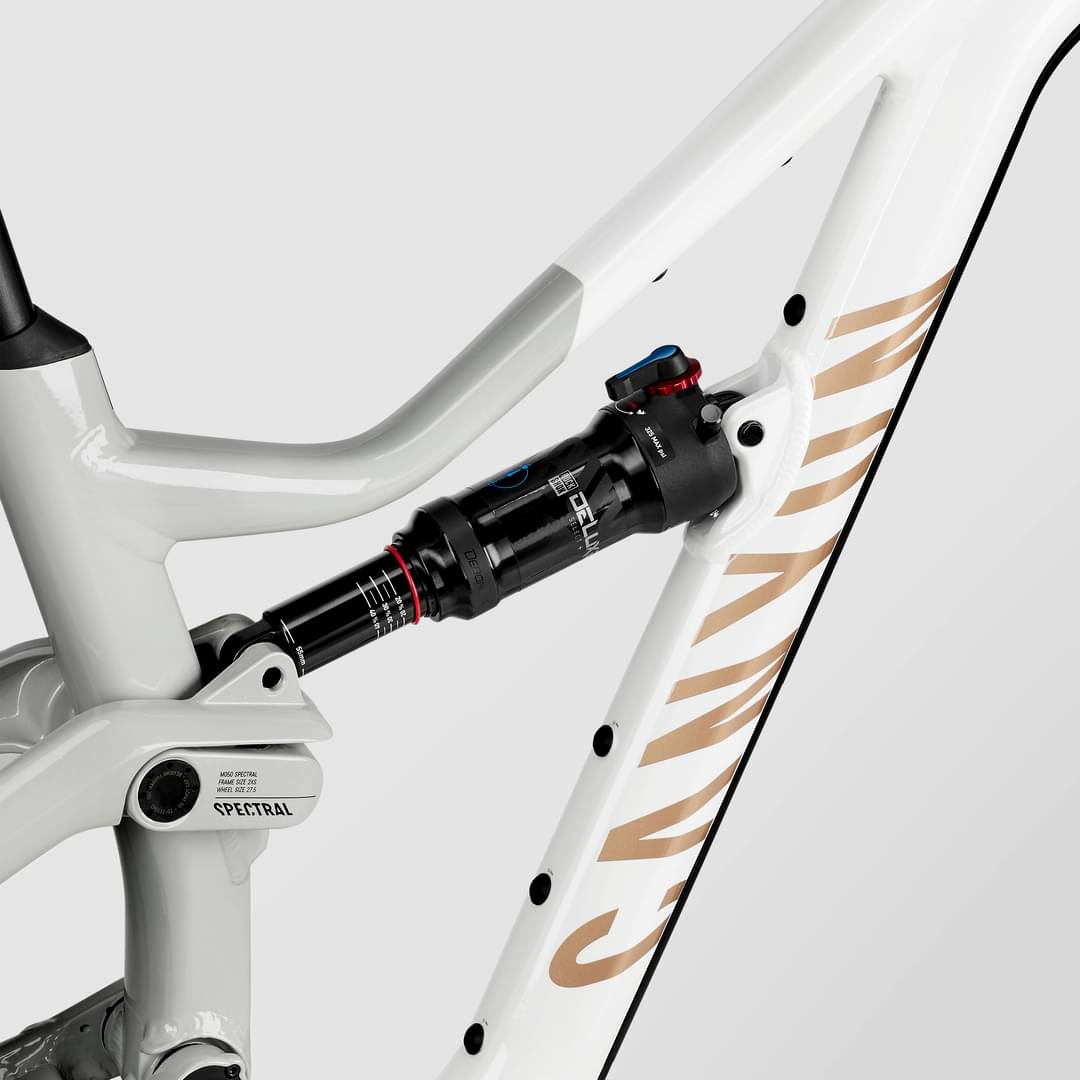

Rear Shock
RockShox Deluxe Select+, Weight: 0.79 lbs
Drivetrain
Rear Derailleur
SRAM SX Eagle, Weight: 0.90 lbs
Shift Levers
SRAM SX Eagle, Weight: 0.29 lbs
Cassette
SRAM PG-1210 Eagle, Number of sprockets: 12, Range: 11-50 12S
Crank
SRAM SX Eagle 30T, Number of chainrings: 1
Bottom Bracket
SRAM Pressfit DUB, Bottom bracket standard: PF 92, Weight: 0.17 lbs
Chain
SRAM SX Eagle
Pedals
None included
Wheels
Rims
RaceFace AR25 | Shimano MT400, Rotor mount: Center Lock | RaceFace AR25 | Shimano MT400 S11, Rotor mount: Center Lock
Tires
MAXXIS Minion DHF 27.5X2.3, Width: 2.3" | MAXXIS Aggressor 27.5X2.3, Width: 2.3"
Brakes
Brakes
SRAM Guide T
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm, Material: Aluminium (AL)
Handlebar
Canyon H15 Riserbar, Canyon H15 aluminium handlebar., Rise: 15 mm.
Grips
Canyon G5
Seat
Saddle
Canyon Sport Saddle EP1249, Gender: Unisex, Weight: 0.63 lbs
Seatpost
Iridium Dropper Post, Handlebar switch-operated dropper post., Travel: 125 mm., Seatpost diameter: 30.9 mm., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 1.14 lbs
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS |
|---|---|
| Stack Reach Ratio | 1.539 mm |
| Front Center | 665 mm |
| Rake | 42 mm |
| Stack | 574 mm |
| Reach | 373 mm |
| Top Tube Length | 538 mm |
| Seat Tube Angle | 74 ° |
| Seat Tube Length | 385 mm |
| Head Tube Angle | 66 ° |
| Head Tube Length | 88 mm |
| Chainstay Length | 430 mm |
| Wheelbase | 1094 mm |
| Bottom Bracket Drop | 23 mm |
| Standover Height | 687 mm |
| Front Travel | 140 mm |
| Rear Travel | 140 mm |
| Wheels | 27" |
| Rider Min Height | 148 cm |
| Rider Max Height | 158 cm |
