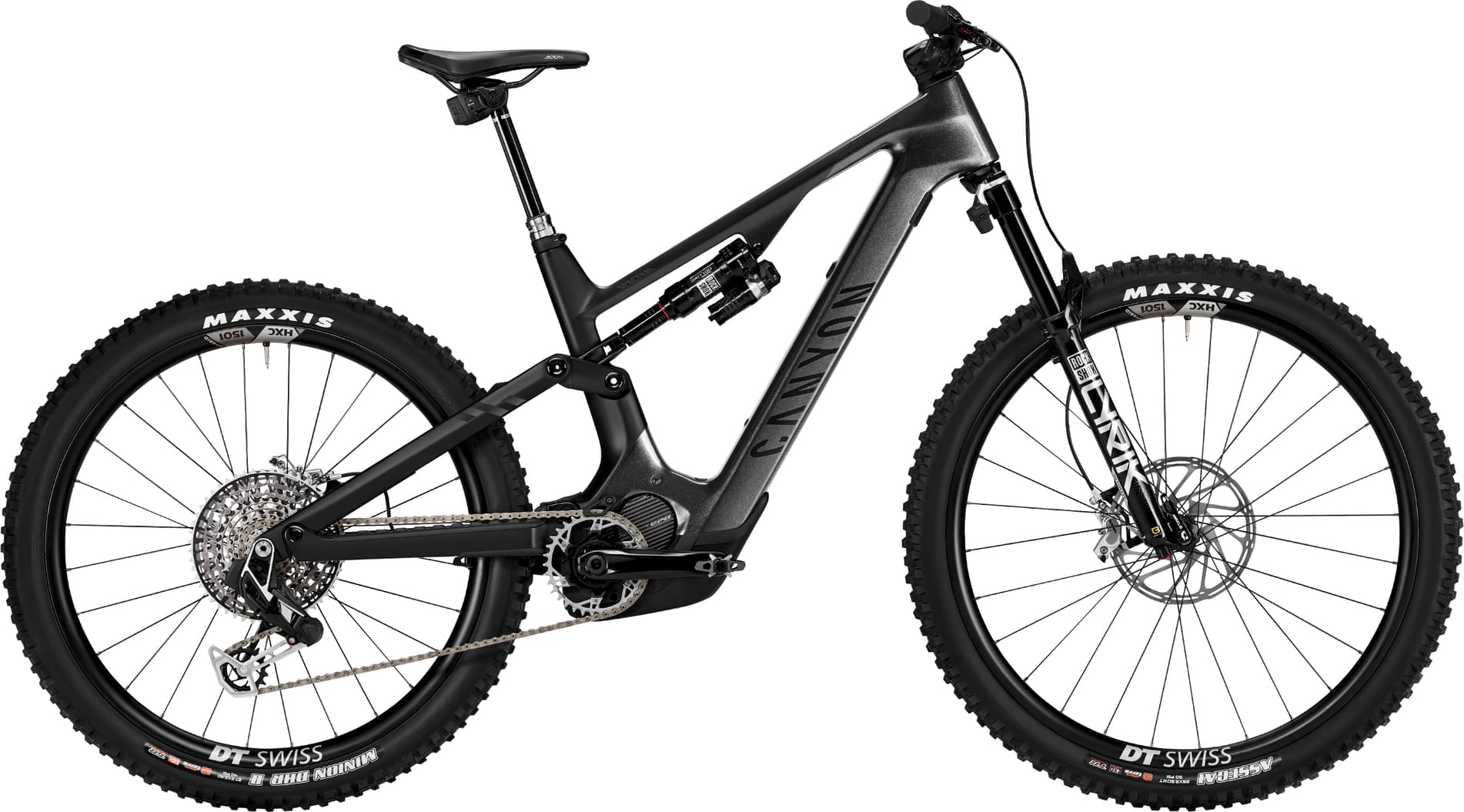

Canyon Spectral:ON CFR LTD 2024
2024 E-bike
Estimate price |
13,762$
Weight | 22.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 155mm -
Fork RockShox Lyrik Ultimate
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full, Electronic -
Motor Shimano mid-drive -
Battery SRAM Powerpack | Depending on your selected configuration. -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral:ON CFR, A progressive, playful, lightweight trail e-MTB engineered to eat up more trail in less time., Axle dimension: 12x148 mm, Material: Carbon (CFR)
Suspension Fork
RockShox Lyrik Ultimate, Axle dimension: 15x110 mm, Stanchion Diameter: 35 mm, Travel: 150 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 2.34 kg

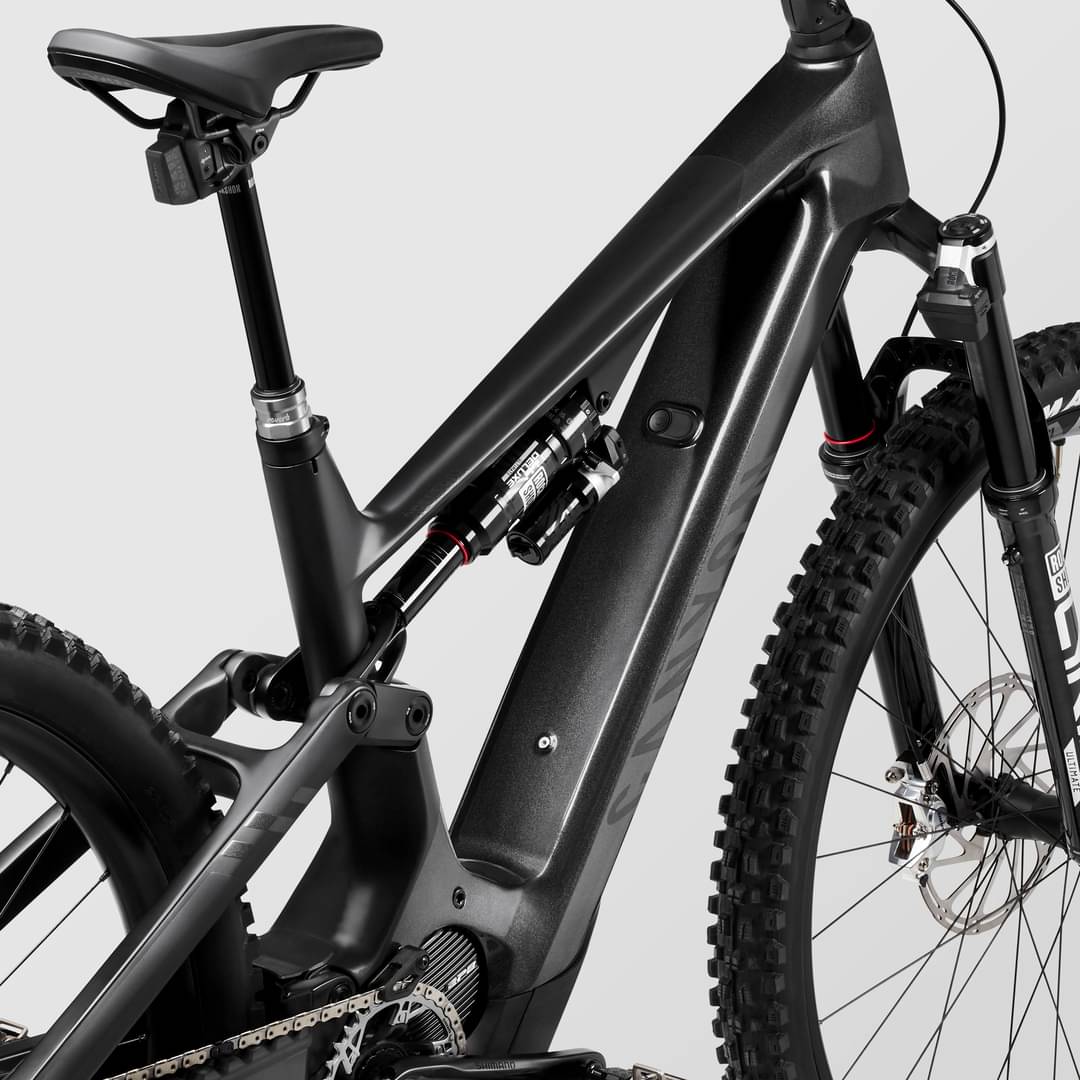

Rear Shock
RockShox Superdeluxe Ultimate Flight Attendant, Weight: 294 g
Drivetrain
Rear Derailleur
SRAM XX Eagle AXS Transmission, Weight: 450 g
Shift Levers
SRAM AXS Pod Ultimate, Weight: 130 g | SRAM AXS POD Ultimate
Cassette
SRAM XX Eagle Transmission 10-52, Number of sprockets: 12 | SRAM XS-1297 T-Type XX 12-speed Cassette
Crank
Shimano STEPS HOLLOWTECH e-MTB crank arms
Bottom Bracket
STEPS, press-fit
Chain
SRAM Eagle Transmission PowerLock | SRAM XX T-Type 12-speed Chain 126L
Chain Guide
Canyon Chainguide M091/M129
Wheels
Rims
DT Swiss HXC 1501 29", Rotor mount: Center Lock | DT Swiss HXC 1501 27,5", Rotor mount: Center Lock
Tires
Maxxis Assegai, Width: 2.5", Weight: 1.02 kg | Maxxis Minion DHR II 27,5" x 2.60 WT, Width: 2.6", Weight: 900 g | Maxxis Minion DHR II EXO+ 3C MaxxTerra WT 27.5" x 2.6" MTB Tyre | Maxxis Assegai EXO+ TR MaxxTerra WT 29" x 2.5" MTB Tyre
Brakes
Brakes
SRAM Code Ultimate Stealth
Cockpit
Grips
Canyon Lock-On
Seat
Saddle
Fizik Terra Aidon X5, Gender: Unisex, Weight: 262 g
Seatpost
RockShox Reverb AXS, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 710 g
Motor & Battery

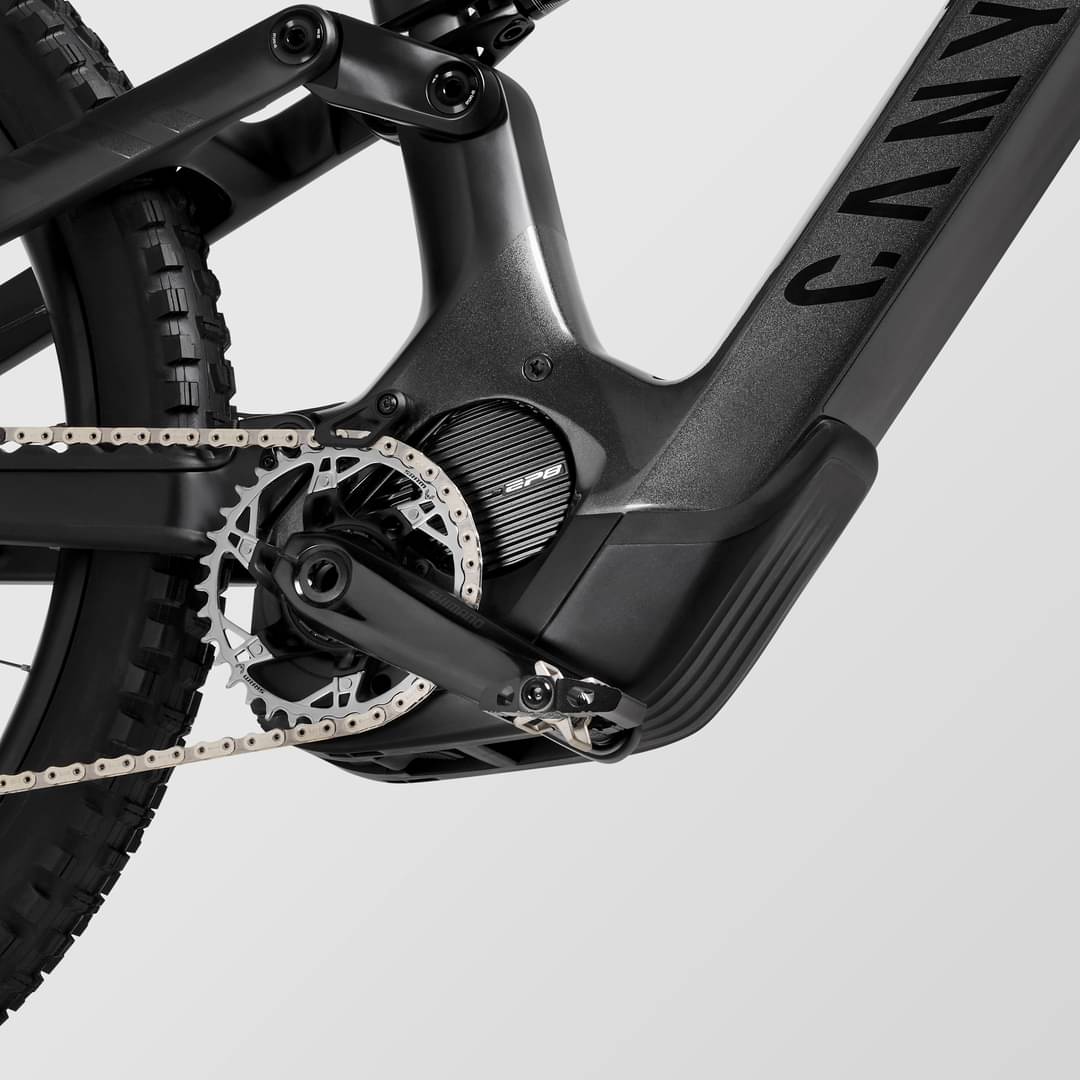

Motor
Shimano EP801

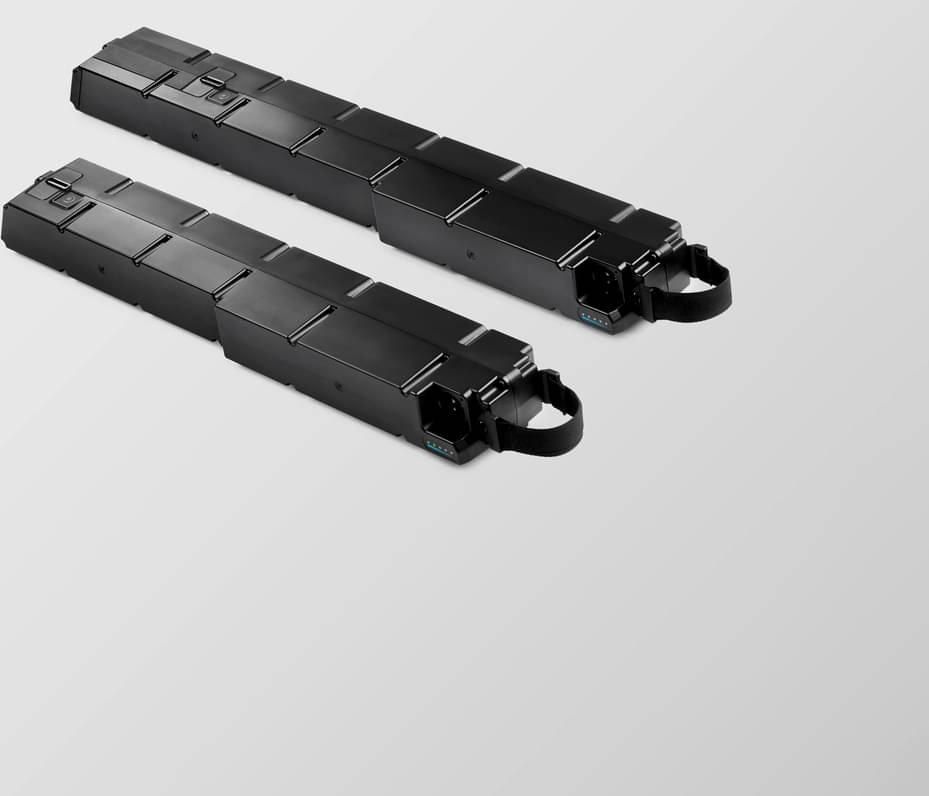

Battery
SRAM Powerpack | Depending on your selected configuration.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.457 mm | 1.398 mm | 1.344 mm | 1.296 mm |
| Front Center | 756 mm | 785 mm | 814 mm | 843 mm |
| Rake | 44 mm | 44 mm | 43 mm | 43 mm |
| Trail | 122 mm | 122 mm | 123 mm | 123 mm |
| Stack | 634 mm | 643 mm | 652 mm | 661 mm |
| Reach | 435 mm | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 589 mm | 613 mm | 637 mm | 663 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1194 mm | 1223 mm | 1252 mm | 1281 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 809 mm | 814 mm | 820 mm | 825 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Rear Travel | 155 mm | 155 mm | 155 mm | 155 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
