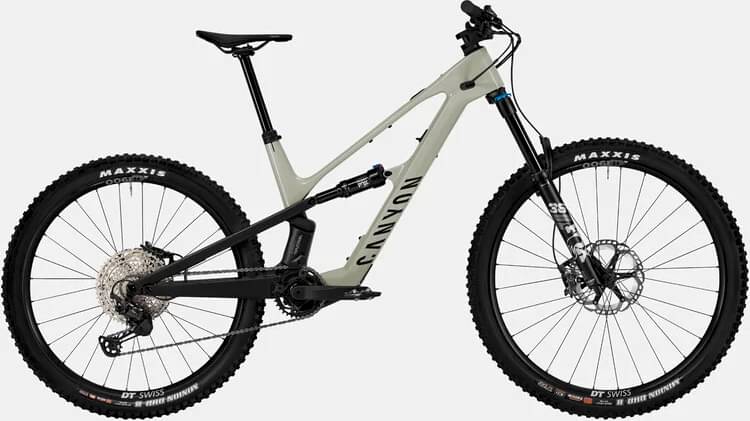

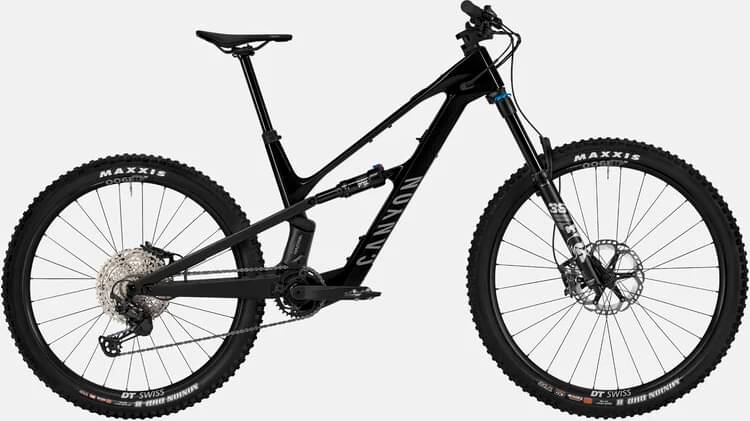

Canyon Spectral:ONfly CF 9 2024
2024 E-bike
Estimate price |
7,225$
Weight | 18.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor TQ mid-drive -
Battery TQ HPR Battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral:ON SL CF, Axle dimension: 12x148 mm, Material: Carbon (CF)

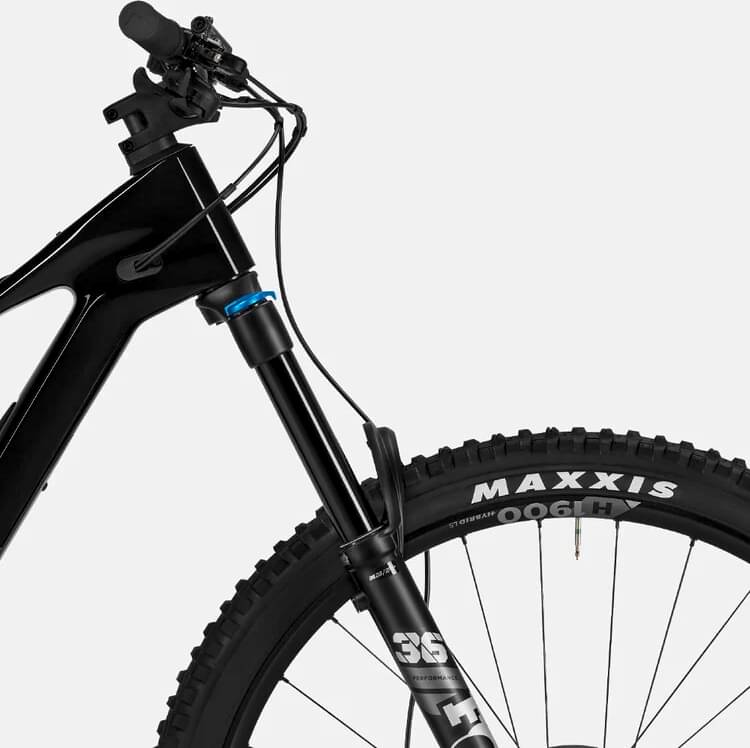

Suspension Fork
Fox 36 Performance 29 160 mm, Travel: 160 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm

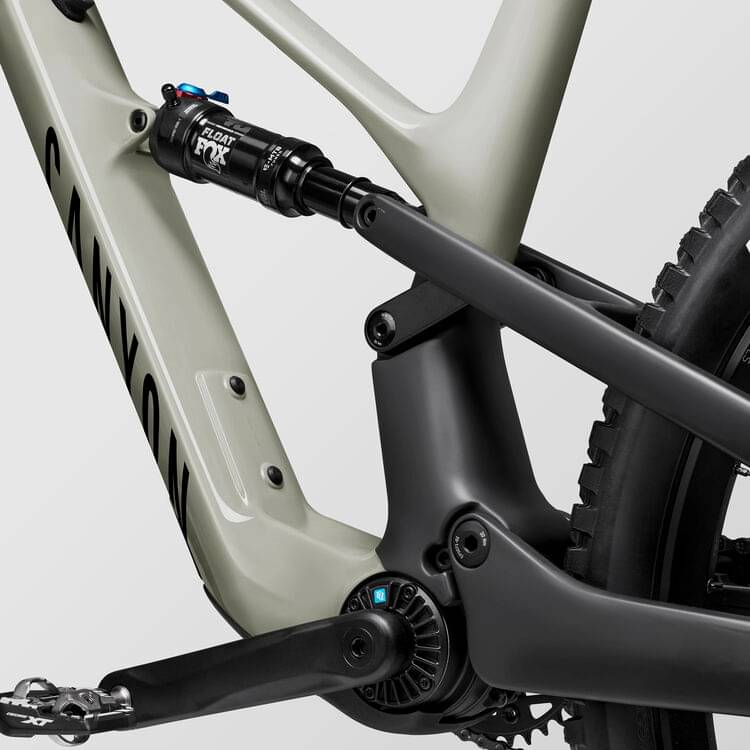

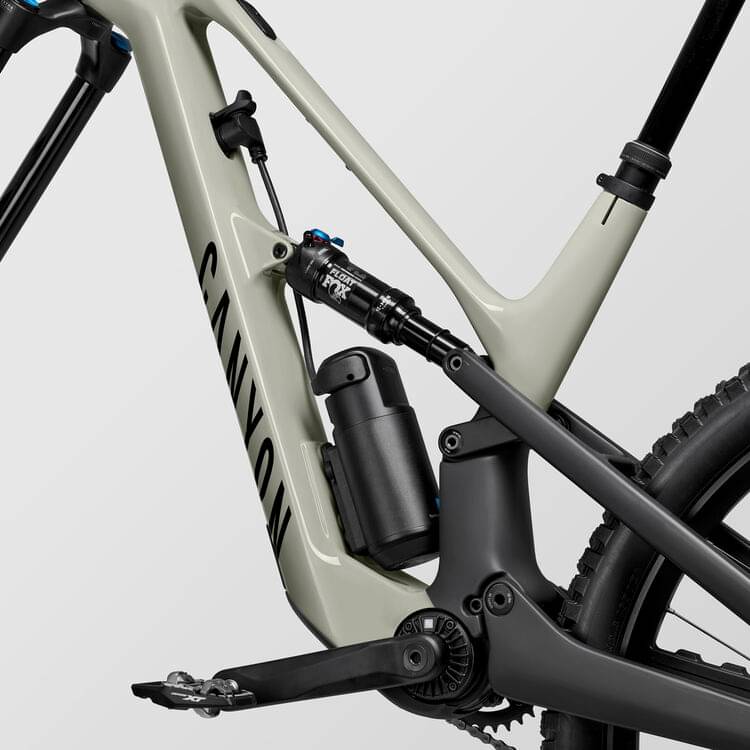

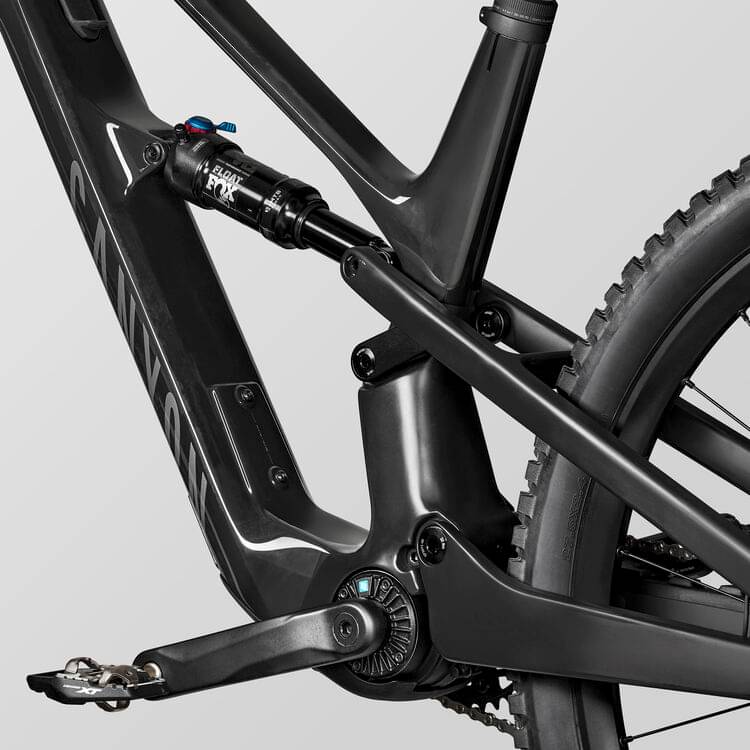

Rear Shock
Fox DPS Performance 230x60 mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano SLX M7100, Weight: 143 g
Cassette
Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S
Crank
FSA CK-745/IS Armset
Chain
Shimano M6100 12-speed, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Chain Guide
Canyon GP0480-01 Chain Guide
Wheels
Rims
DT Swiss H1900 29, Rotor mount: Center Lock | DT Swiss HX 1900 Spline LS, Rotor mount: IS 6-bolt
Tires
Maxxis Minion DHR II Exo, Width: 2,4", Weight: 218 g | Maxxis Minion DHR II 3C MaxxTerra EXO+ 2,4x27,5", Width: 2.4", Weight: 1.07 kg
Brakes
Brakes
Shimano DEORE XT M8120
Cockpit
Stem
Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm
Handlebar
Canyon:ON HB0057 Riser bar, Canyon-developed E-MTB handlebar for top control levels on the trail., Clamping diameter: 35,0 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon Lock-On
Seat
Saddle
Fizik Terra Aidon X5, Gender: Unisex, Weight: 251 g
Seatpost
Canyon SP0070-01, Air cartridge. Cable actuated., Travel: Dependent on frame size (see component geometry table.), Clamp diameter: 34,9 mm, Material: Aluminium (AL), Weight: 34 g
Motor & Battery

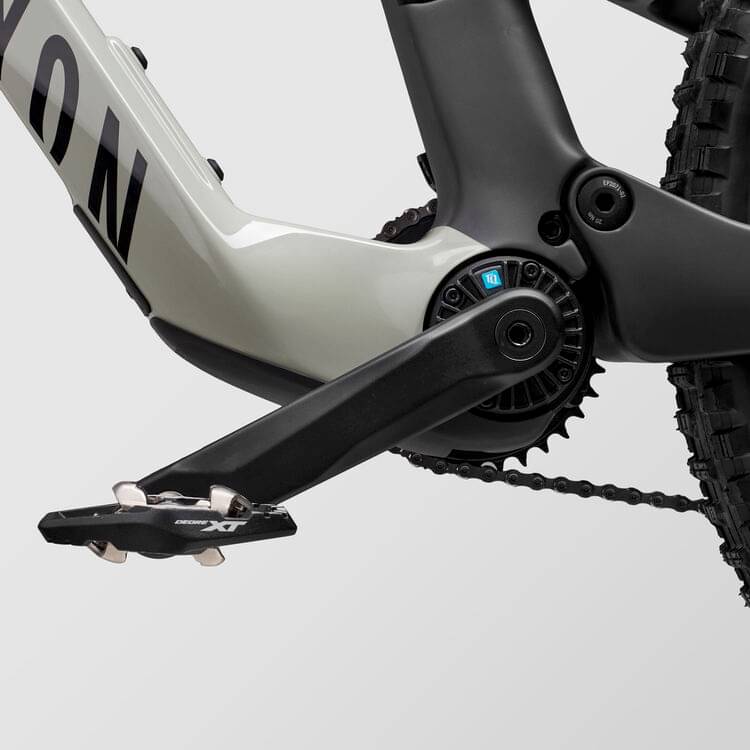

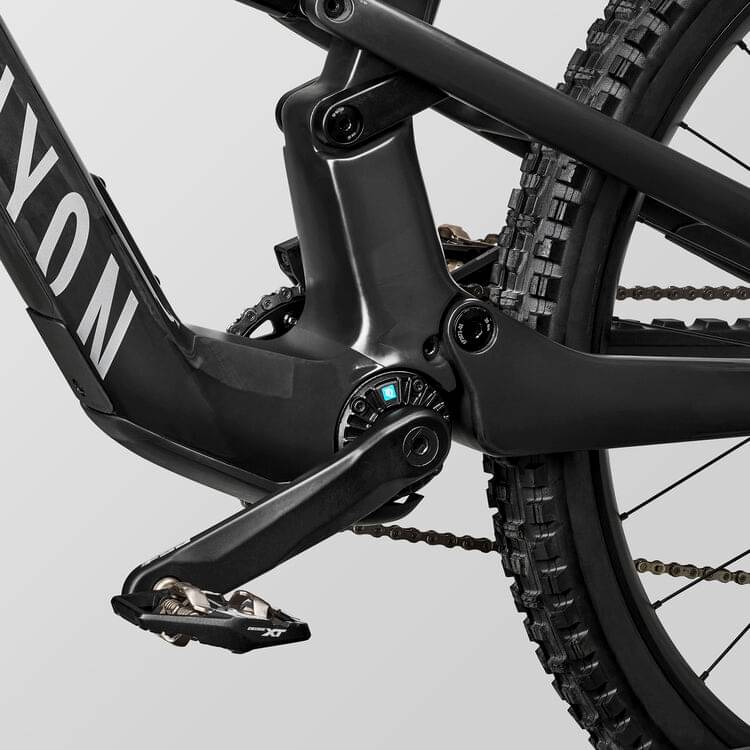

Motor
TQ HPR 50 Motor
Battery
TQ HPR Battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.393 mm | 1.338 mm | 1.289 mm | 1.244 mm |
| Front Center | 783 mm | 813 mm | 842 mm | 871 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 133 mm | 133 mm | 133 mm | 133 mm |
| Stack | 620 mm | 629 mm | 638 mm | 647 mm |
| Reach | 445 mm | 470 mm | 495 mm | 520 mm |
| Top Tube Length | 594 mm | 621 mm | 648 mm | 675 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 400 mm | 415 mm | 445 mm | 455 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1221 mm | 1251 mm | 1280 mm | 1309 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 734 mm | 739 mm | 743 mm | 747 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
