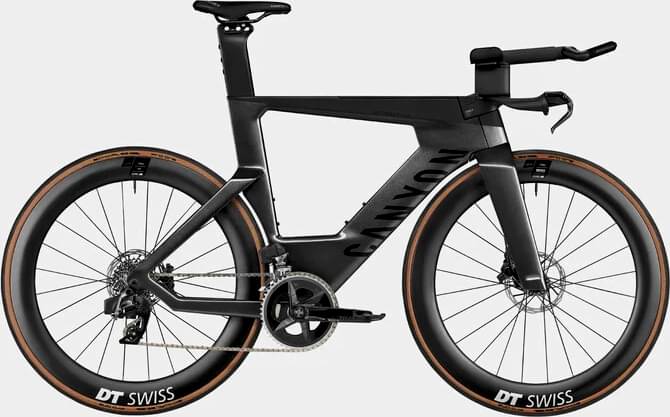

Canyon Speedmax CF SLX 7 Disc AXS 2024
2024 Road
Estimate price |
7,499$
Weight | 9.72 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS, Rival AXS -
Suspension Rigid -
Battery SRAM Powerpack -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 179cm
MD
177cm - 187cm
LG
185cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

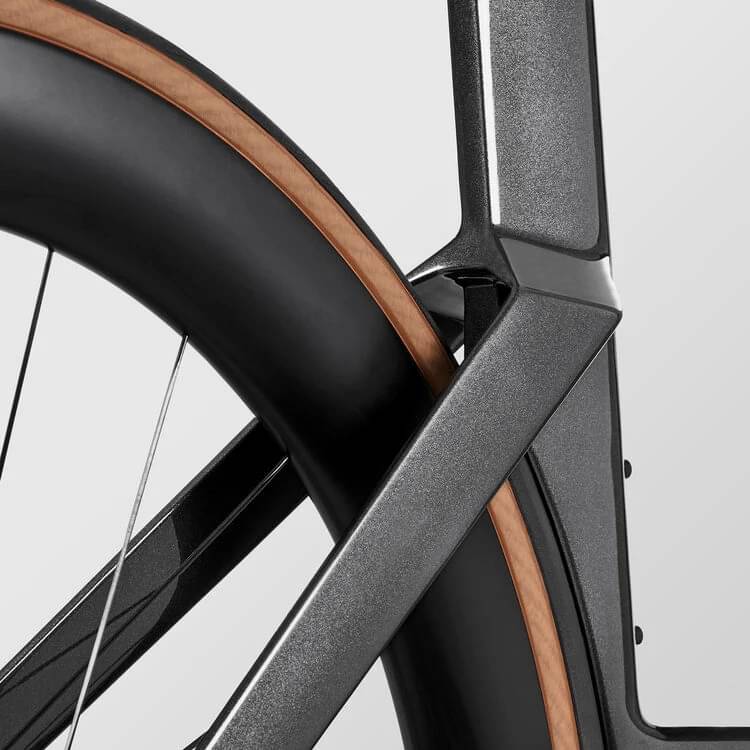

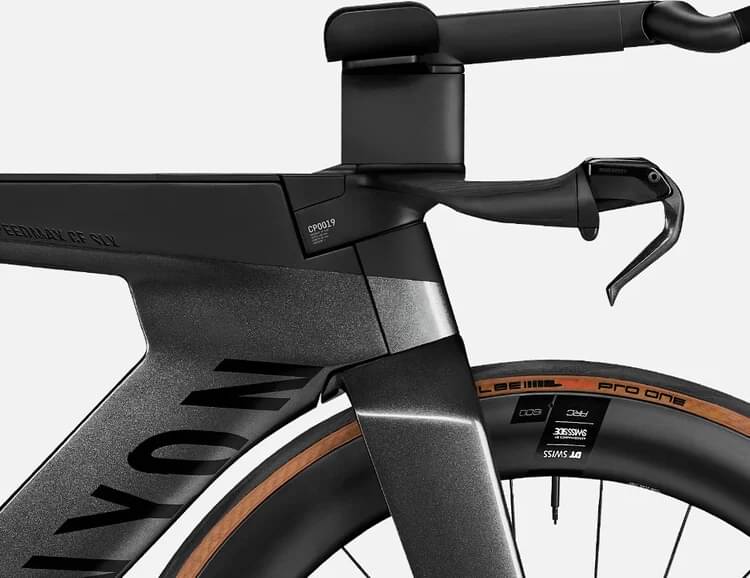

Frame
Canyon Speedmax CF SLX Disc, All-new Speedmax CF SLX frame shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard., Axle dimension: 12x142 mm, Tyre clearance: 30 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0080 CF Disc, Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x100 mm through axle, flat-mount disc standard. CT scanner tested and approved., Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/8", Tyre clearance: 30 mm, Material: Carbon (CF)
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS RD 12s, Weight: 0.75 lbs
Front Derailleur
SRAM Rival eTap AXS FD, Mounting type: braze-on, Weight: 0.49 lbs
Shift Levers
SRAM eTap Clics, Weight: 0.09 lbs
Cassette
SRAM Rival XG-1250, 12-speed, 10-30T, Number of sprockets: 12, Range: 10-30
Crank
SRAM Rival eTap AXS Powermeter, Number of chainrings: 2
Bottom Bracket
SRAM DUB Pressfit, Bottom bracket standard: PF 86,5, Weight: 0.17 lbs
Chain
SRAM Rival D1 12s
Pedals
None included
Wheels
Rims
DT Swiss ARC 1600, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 62 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 1.85 lbs | DT Swiss ARC 1600 Dicut, XDR, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 62 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 2.11 lbs
Tires
Schwalbe Pro One, 25mm, Width: 25 mm, Weight: 0.52 lbs | Schwalbe Pro One, 28mm, Width: 28 mm, Weight: 0.55 lbs
Brakes

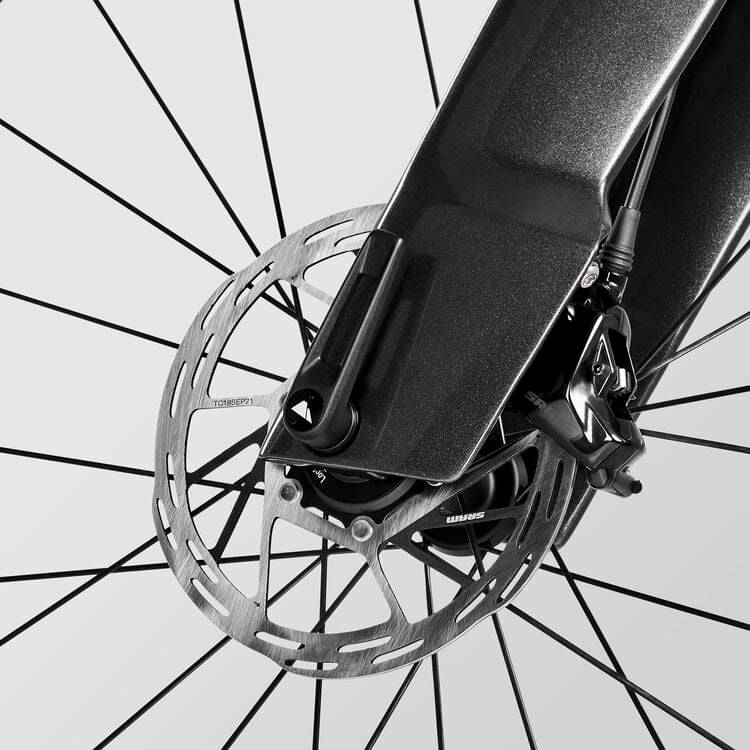

Brakes
SRAM S-900 Aero HRD, Weight: 0.69 lbs | SRAM S-900 Aero HRD, Weight: 0.74 lbs

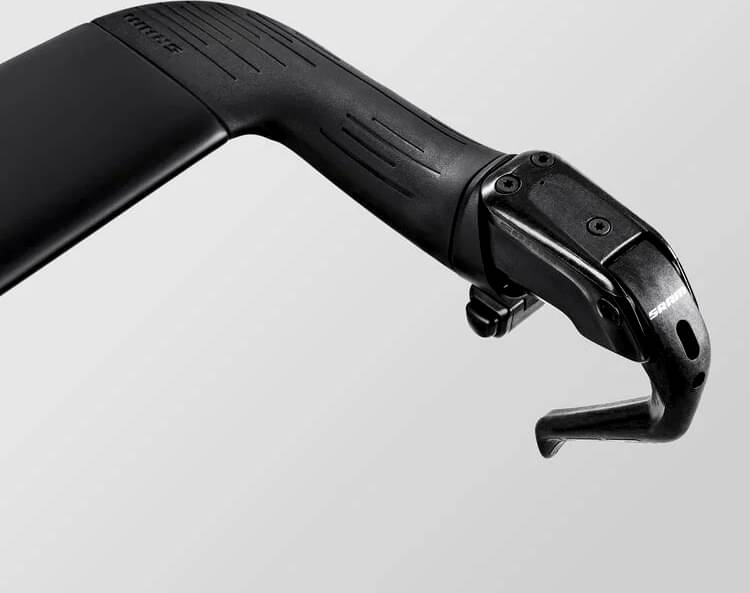

Brake Levers
SRAM S-900 Aero HRD, Weight: 0.69 lbs | SRAM S-900 Aero HRD, Weight: 0.74 lbs
Cockpit
Handlebar

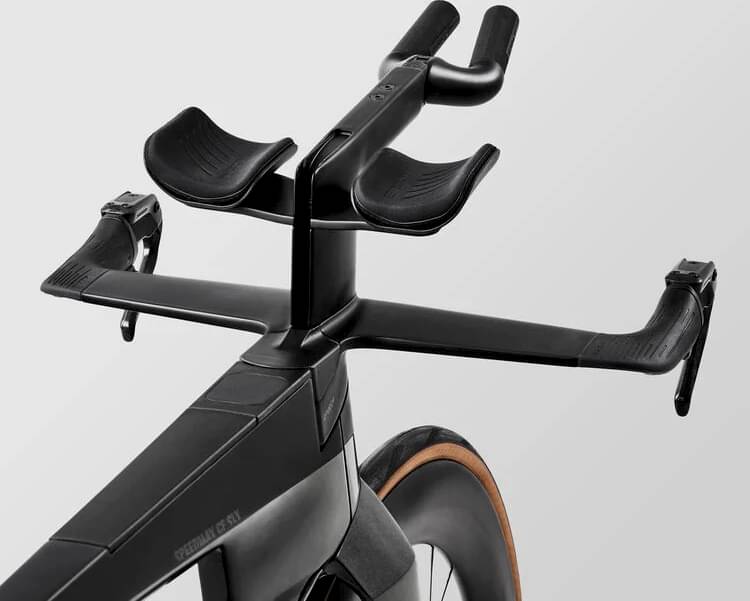

Canyon GP0226 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
Seat
Saddle
Selle Italia Watt Superflow, Gender: Unisex, Max. Rider Weight: 100 kg, Weight: 0.54 lbs
Seatpost
Canyon SP0049 Aero Seatpost, Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile., Weight: 295 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.13 mm | 1.116 mm | 1.148 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm |
| Front Center | 577 mm | 605 mm | 637 mm |
| Rake | 34 mm | 33 mm | 34 mm |
| Trail | 67 mm | 68 mm | 67 mm |
| Stack | 469 mm | 489 mm | 527 mm |
| Reach | 415 mm | 438 mm | 459 mm |
| Top Tube Length | 494 mm | 519 mm | 548 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.37 ° |
| Seat Tube Length | 531 mm | 552 mm | 592 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 62 mm | 83 mm | 123 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm |
| Wheelbase | 986 mm | 1014 mm | 1047 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm |
| Standover Height | 797 mm | 817 mm | 857 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 177 cm | 185 cm |
| Rider Max Height | 179 cm | 187 cm | 196 cm |
