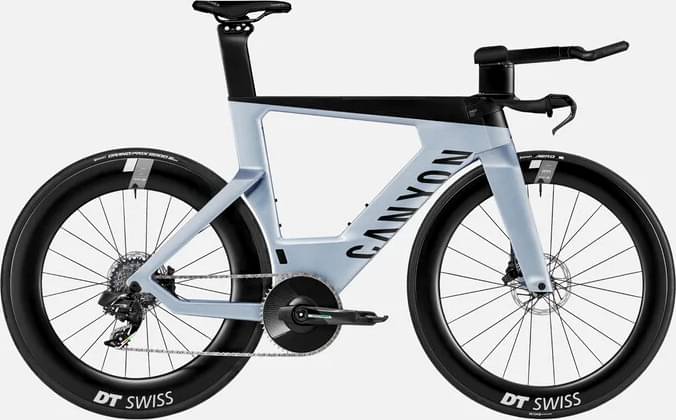

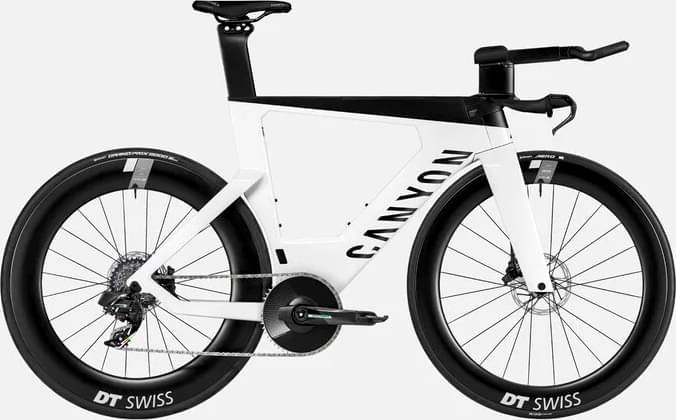

Canyon Speedmax CF SLX 8 AXS 2025
2025 Road
Estimate price |
10,236$
Weight | 9.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS, Force -
Suspension Rigid -
Battery SRAM Powerpack -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
169cm - 179cm
MD
177cm - 187cm
LG
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

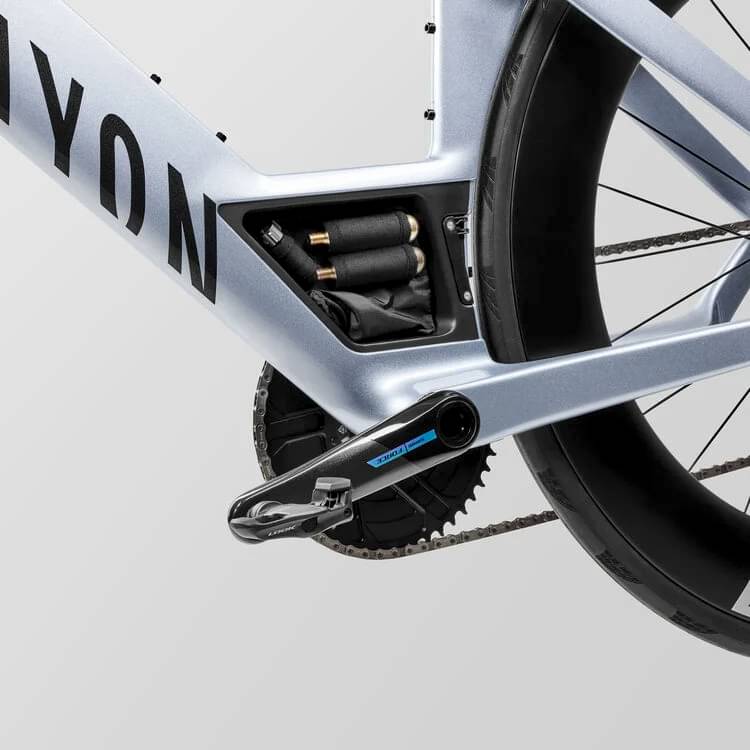

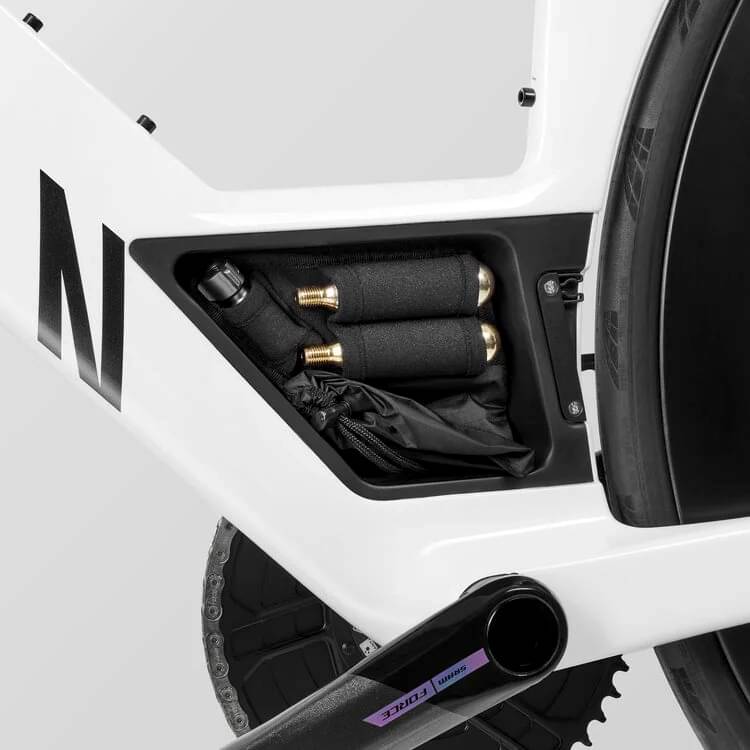

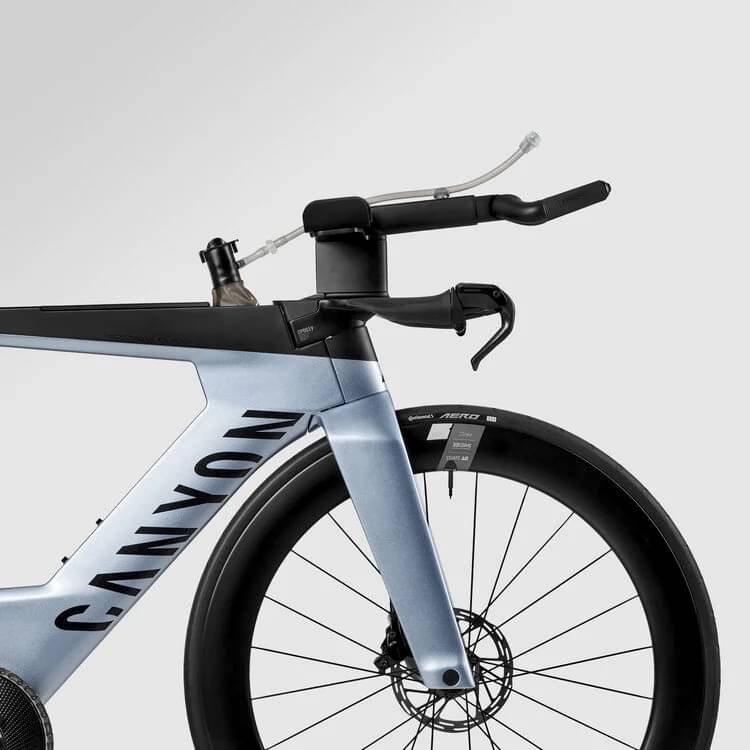

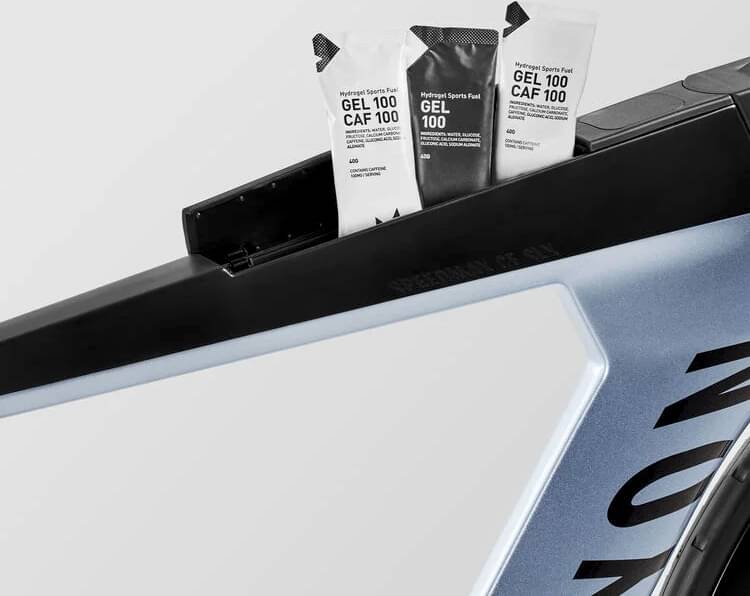

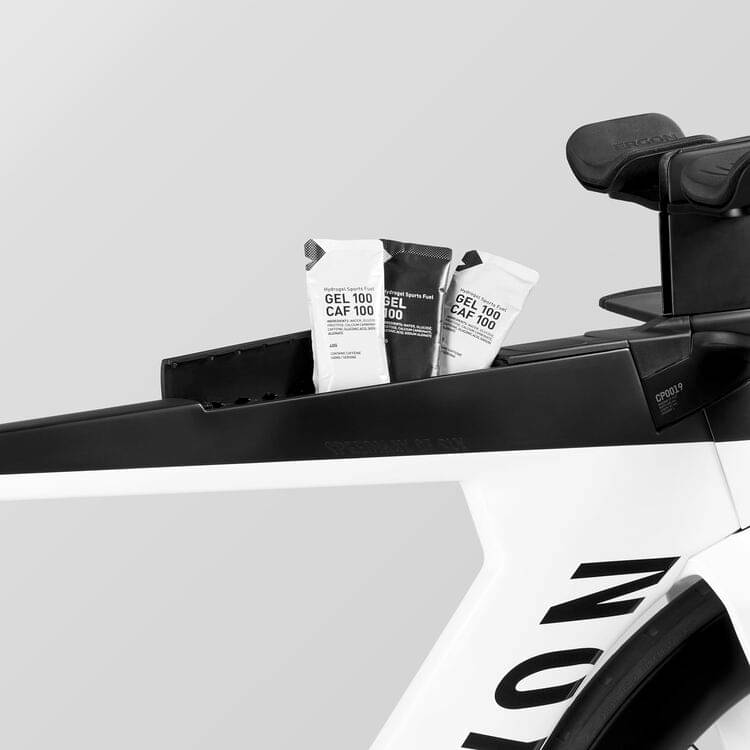

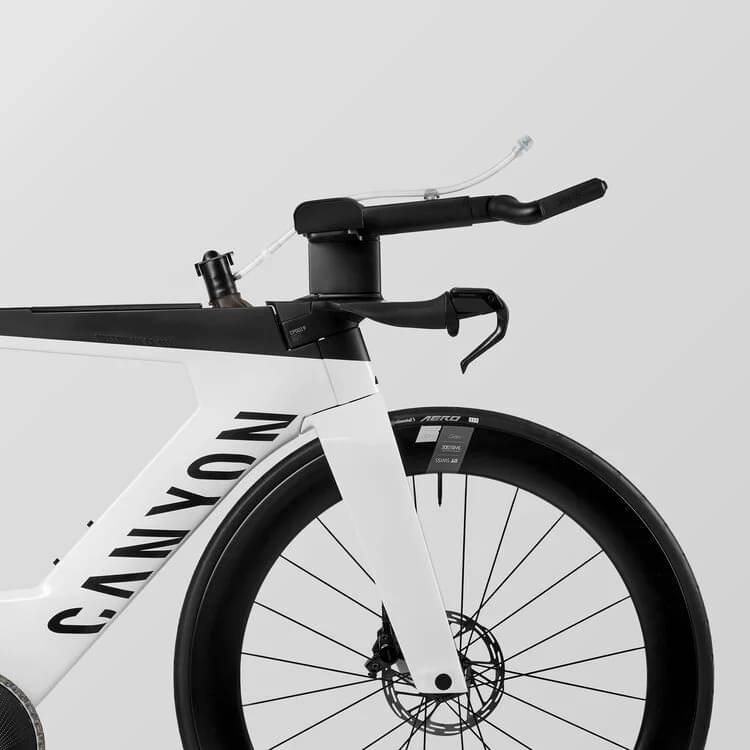

Canyon Speedmax CF SLX Disc, All-new Speedmax CF SLX frame shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard., Axle dimension: 12x142 mm, Tyre clearance: 30 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0080 CF Disc, Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x100 mm through axle, flat-mount disc standard. CT scanner tested and approved., Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/8", Tyre clearance: 30 mm, Material: Carbon (CF)
Drivetrain
Rear Derailleur
SRAM Force AXS RD 12s, Weight: 240 g
Shift Levers
SRAM eTap Clics, Weight: 39 g
Cassette
SRAM Force XG-1270 12s 10-33T, Number of sprockets: 12, Range: 10-33
Crank
SRAM Force AXS Power Meter, Number of chainrings: 1
Bottom Bracket
SRAM DUB Pressfit, Bottom bracket standard: PF 86,5, Weight: 78 g
Chain
SRAM Force D1 12s
Pedals
None included
Wheels
Rims
DT Swiss ARC 1400 Dicut, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 62 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 817 g | DT Swiss ARC 1400 Dicut, XDR, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 80 mm, Rim material: Carbon, Weight: 993 g
Tires
Continental Grand Prix 5000 S TR, 28mm, Width: 28 mm, Weight: 285 g | Continental Aero 111, Width: 26 mm, Weight: 245 g
Brakes
Brakes
SRAM S-900 Aero HRD, Weight: 311 g | SRAM S-900 Aero HRD, Weight: 337 g
Brake Levers
SRAM S-900 Aero HRD, Weight: 311 g | SRAM S-900 Aero HRD, Weight: 337 g
Cockpit
Handlebar

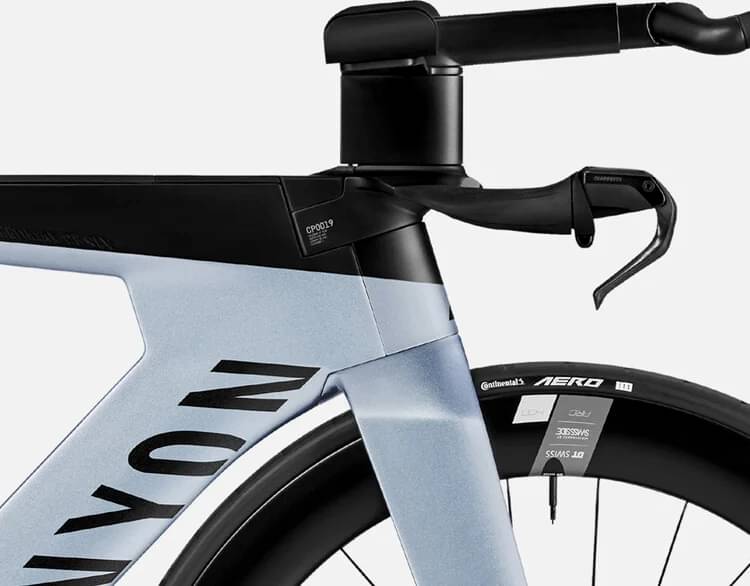

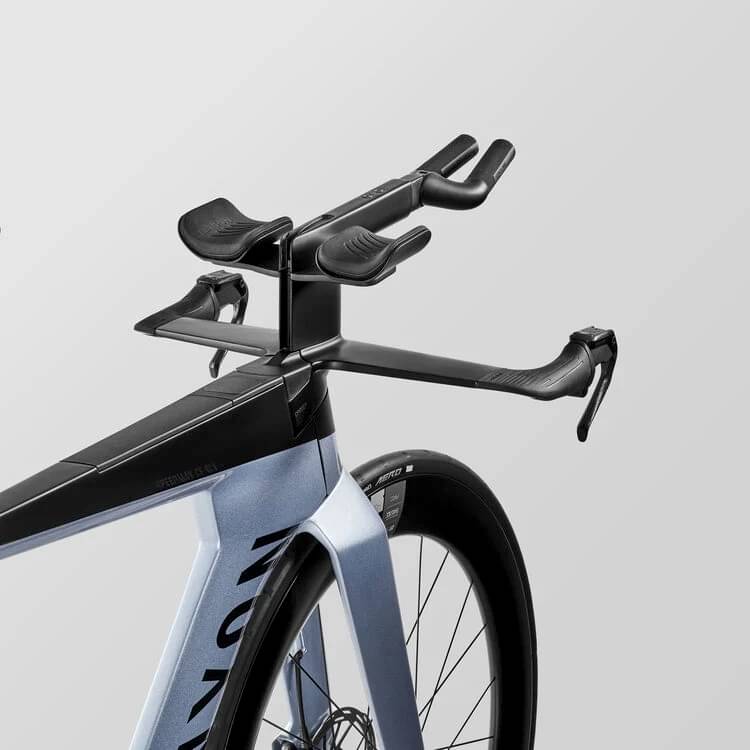

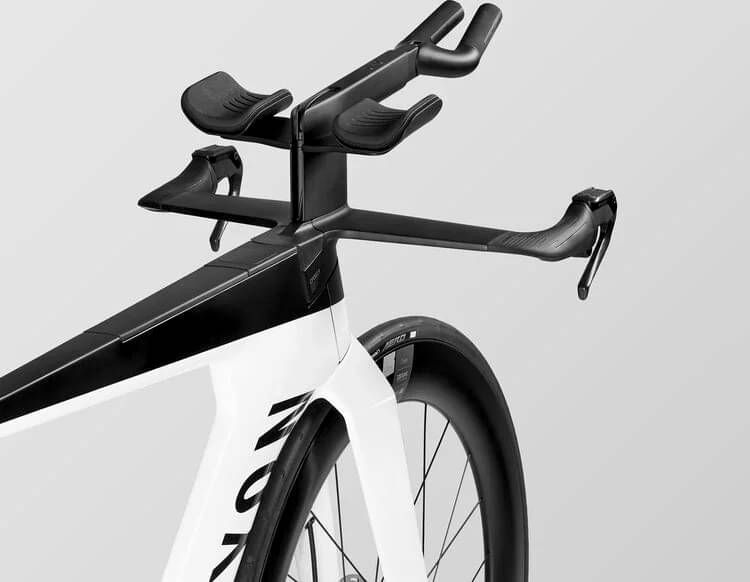

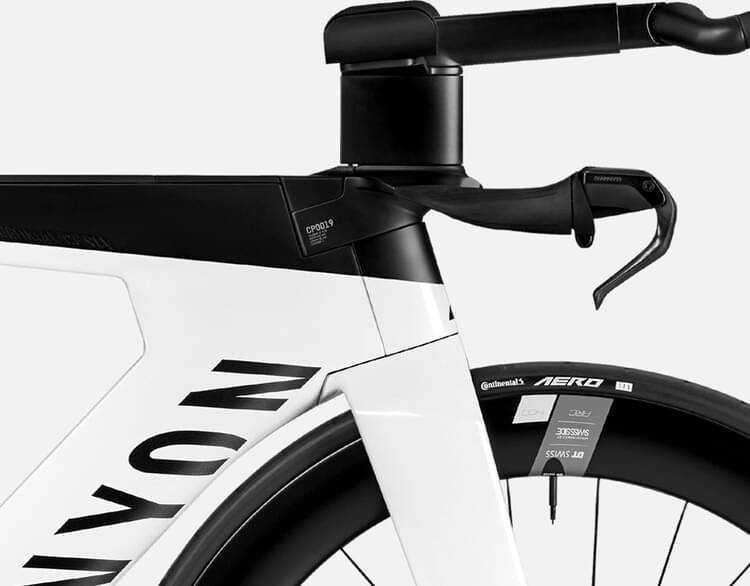

Canyon GP0226 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
Seat
Saddle
Selle Italia Watt Superflow, Gender: Unisex, Max. Rider Weight: 100 kg, Weight: 245 g
Seatpost
Canyon SP0049 Aero Seatpost, Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile., Weight: 295 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.107 mm | 1.13 mm | 1.116 mm | 1.148 mm | 1.145 mm |
| Front Center | 556 mm | 577 mm | 605 mm | 637 mm | 669 mm |
| Rake | 34 mm | 34 mm | 33 mm | 34 mm | 34 mm |
| Trail | 67 mm | 67 mm | 68 mm | 67 mm | 67 mm |
| Stack | 435 mm | 469 mm | 489 mm | 527 mm | 553 mm |
| Reach | 393 mm | 415 mm | 438 mm | 459 mm | 483 mm |
| Top Tube Length | 466 mm | 494 mm | 519 mm | 548 mm | 576 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° |
| Seat Tube Length | 488 mm | 531 mm | 552 mm | 592 mm | 616 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 64 mm | 62 mm | 83 mm | 123 mm | 150 mm |
| Chainstay Length | 410 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 960 mm | 986 mm | 1014 mm | 1047 mm | 1079 mm |
| Bottom Bracket Drop | 52 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 759 mm | 797 mm | 817 mm | 857 mm | 881 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 |
| Rider Max Height | 171 cm | 179 cm | 187 cm | 197 cm | cm |
