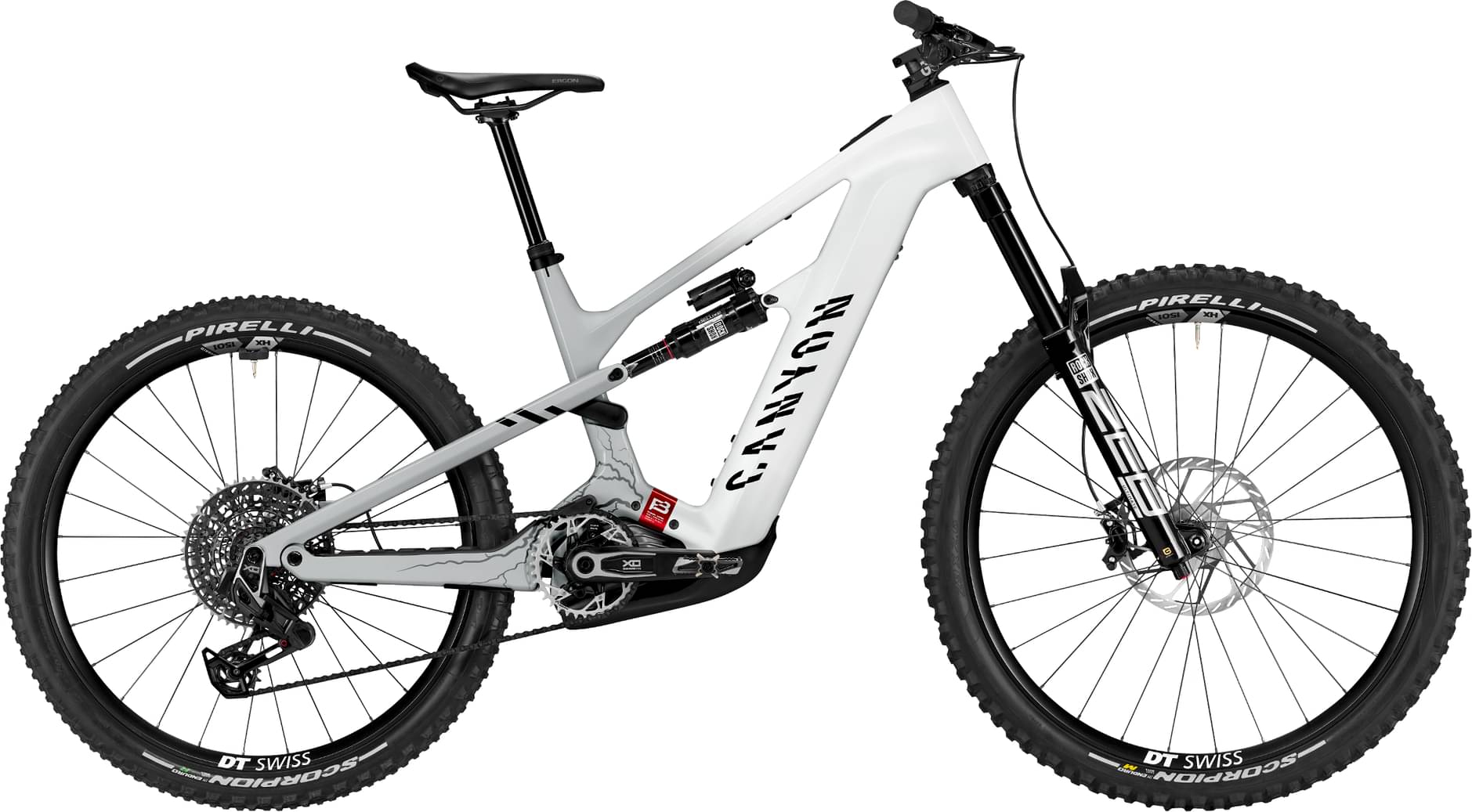

Canyon Strive:ON CFR LTD 2024
2024 E-bike
Estimate price |
7,999$
Weight | 23.11 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox ZEB Ultimate
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625Wh | SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
172cm - 185cm
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components

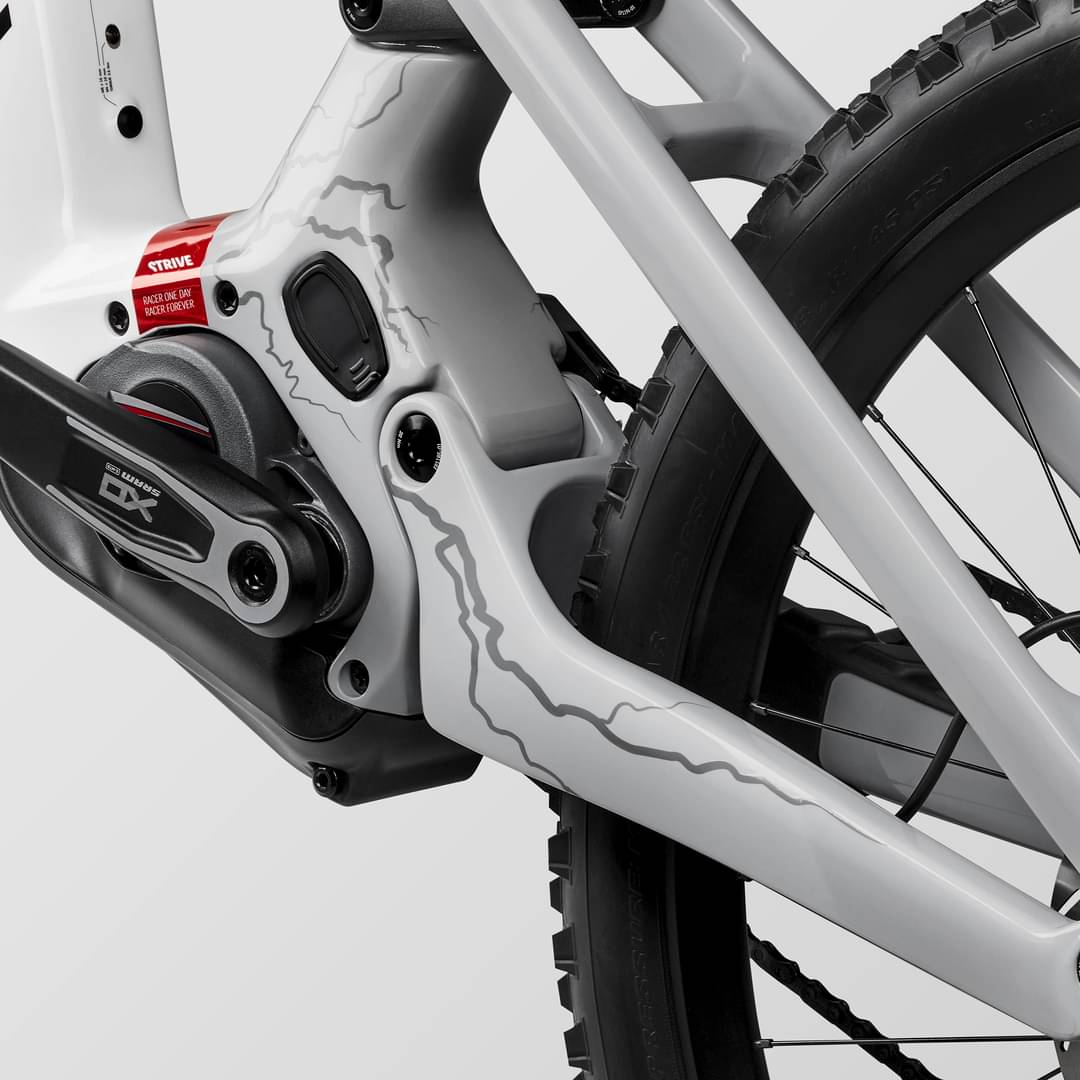

Frame
Frame
Canyon Strive:ON, Carbon e-enduro frame engineered to compete at the highest level of pro racing, meeting our rigorous 4e testing standards. With discreetly integrated battery and motor., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
RockShox Zeb Ultimate RC2, Axle dimension: 15x110 mm, Stanchion Diameter: 38 mm, Travel: 170 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 5.29 lbs

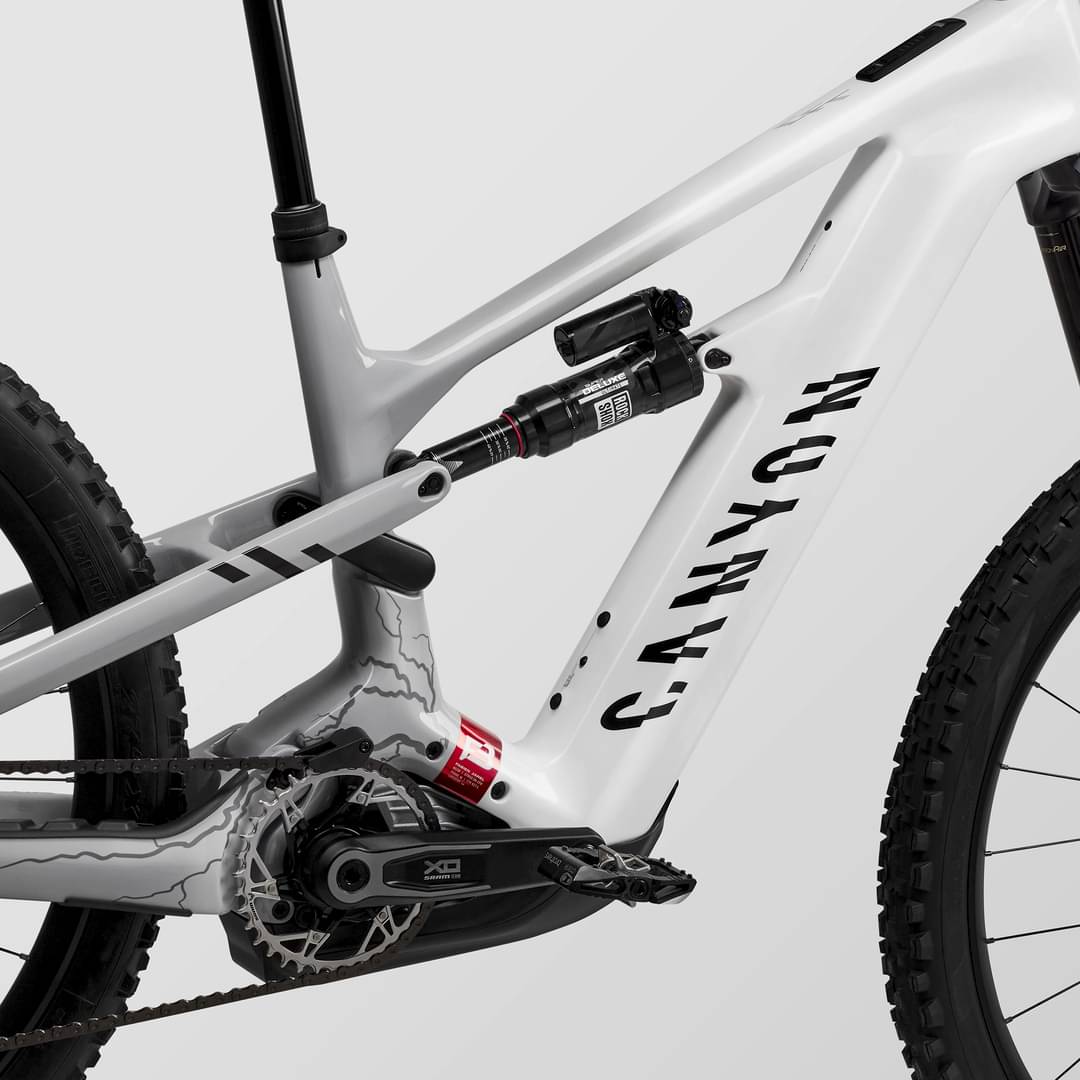

Rear Shock
RockShox Super Deluxe Ultimate RC2T, Weight: 0.65 lbs
Drivetrain
Rear Derailleur
SRAM X0 Eagle AXS Transmission, Weight: 0.80 lbs
Shift Levers
SRAM AXS Pod Ultimate, Weight: 0.29 lbs
Cassette
SRAM X0 Eagle XS 1295, Number of sprockets: 12
Crank
SRAM EMTB X0 Eagle Transmission
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM XO T-Type
Chain Guide
Canyon GP0437-01 Chainguide
Wheels
Rims
DT Swiss HX1501 15x110, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Inner width: 30 mm, Rim material: Aluminium, Weight: 2.09 lbs | DT Swiss HX1501 12x148, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Free hub: Shimano, Hub Technology: Spline, Inner width: 30 mm, Rim material: Aluminium, Weight: 2.30 lbs
Tires
Pirelli Scorpion Enduro M | Pirelli Scorpion Enduro R
Brakes
Brakes
SRAM Code RSC | SRAM Matchmaker Clamp
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm, Material: Aluminium (AL)
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5
Seat
Saddle
ERGON SM10 EMTB, Weight: 0.66 lbs
Seatpost
Canyon G5, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Motor & Battery

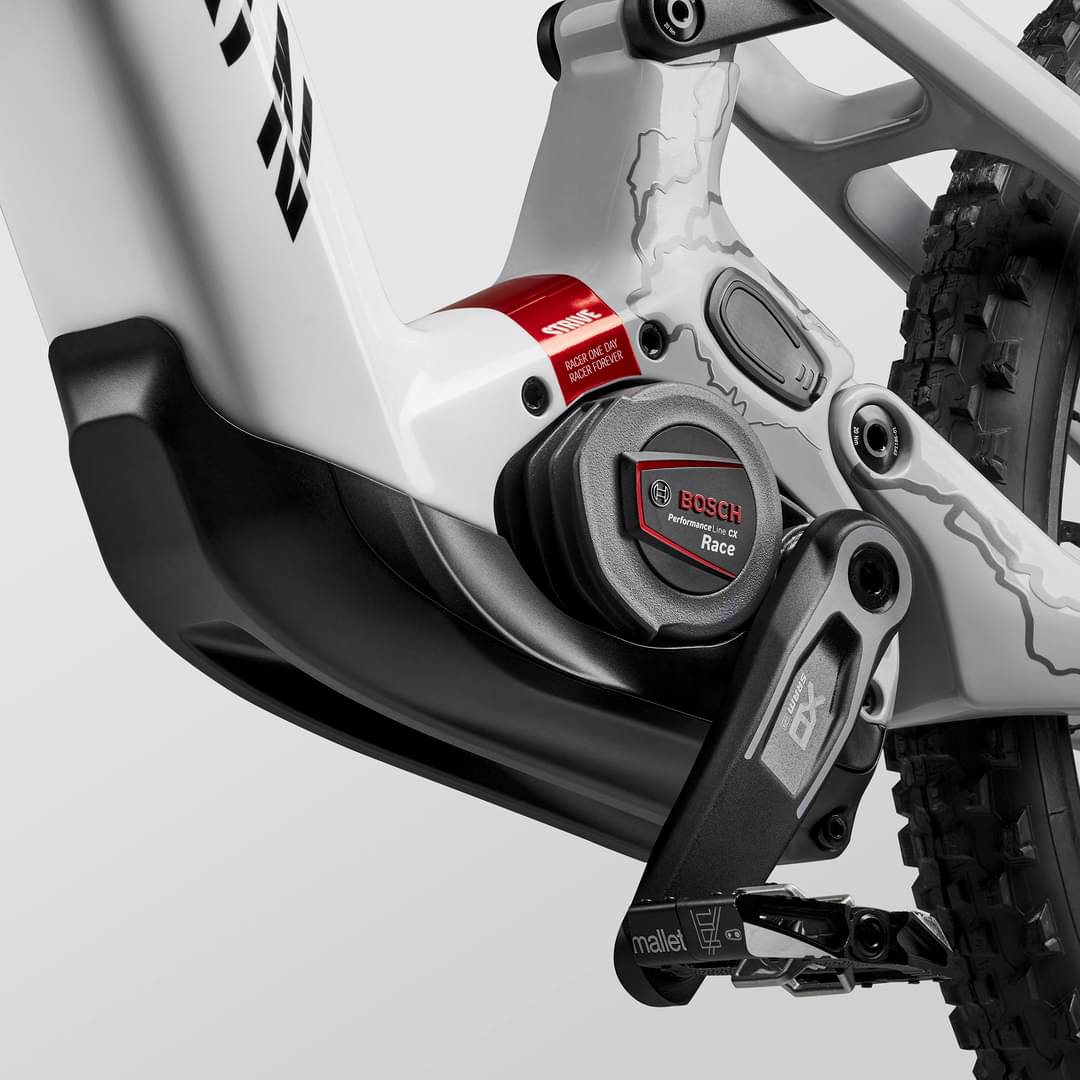

Motor
Bosch Performance Line CX Race

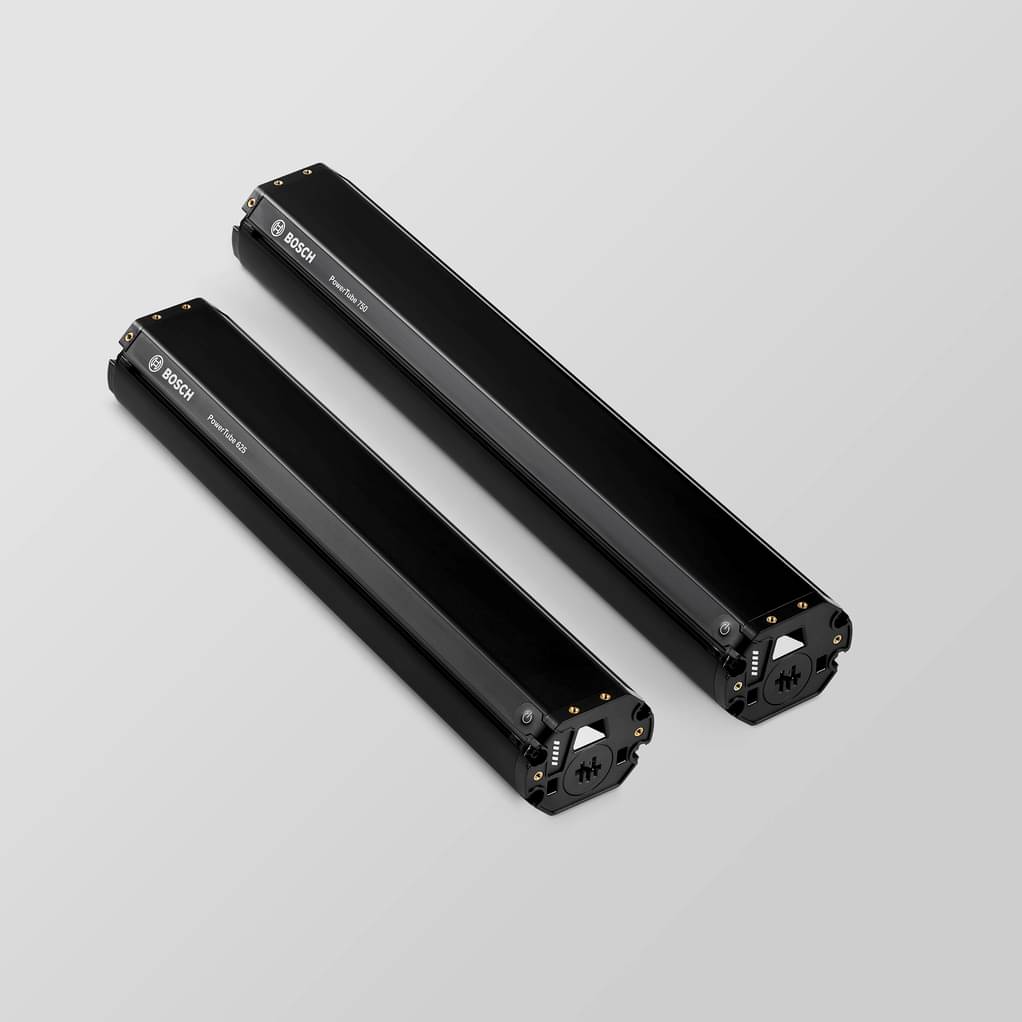

Battery
Bosch PowerTube 625Wh | SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.341 mm | 1.292 mm | 1.257 mm |
| Front Center | 801 mm | 830 mm | 860 mm | 892 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm |
| Trail | 136 mm | 138 mm | 136 mm | 136 mm |
| Stack | 628 mm | 637 mm | 646 mm | 660 mm |
| Reach | 450 mm | 475 mm | 500 mm | 525 mm |
| Top Tube Length | 584 mm | 610 mm | 637 mm | 665 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 395 mm | 420 mm | 435 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1245 mm | 1274 mm | 1304 mm | 1336 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 772 mm | 777 mm | 782 mm | 788 mm |
| Front Travel | 170 mm | 170 mm | 170 mm | 170 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 177 cm | 185 cm | 194 cm | cm |
