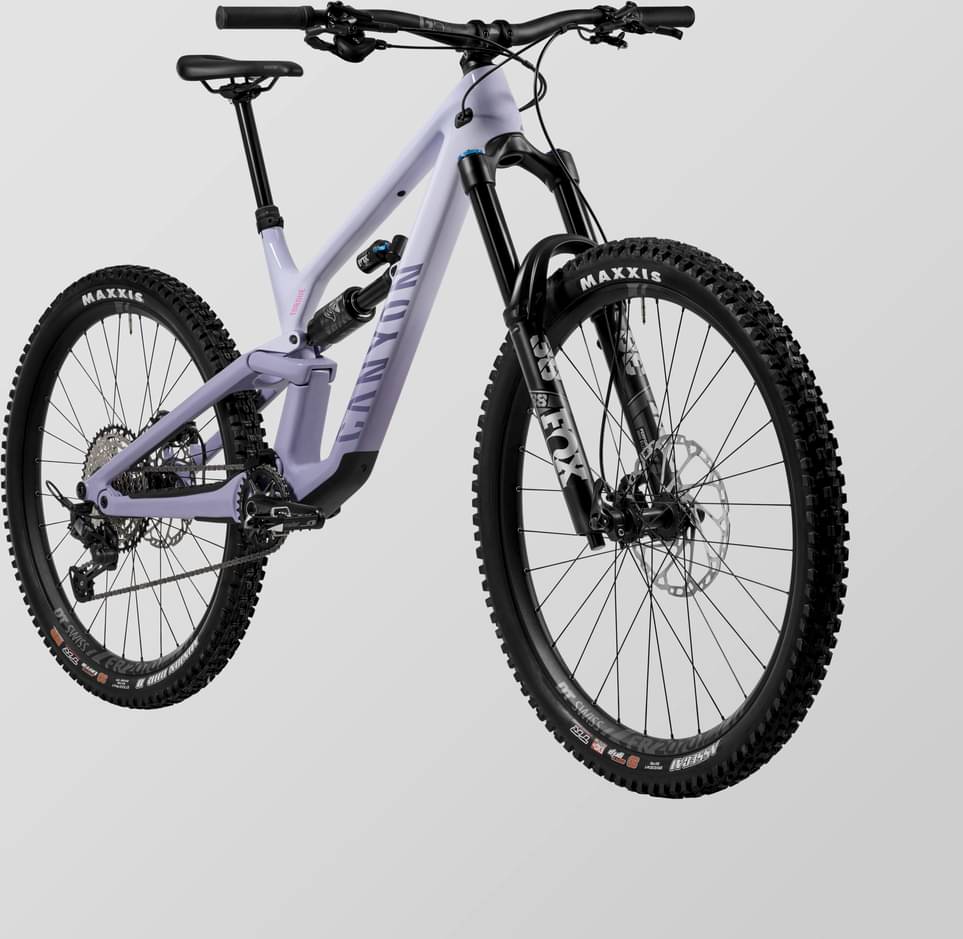

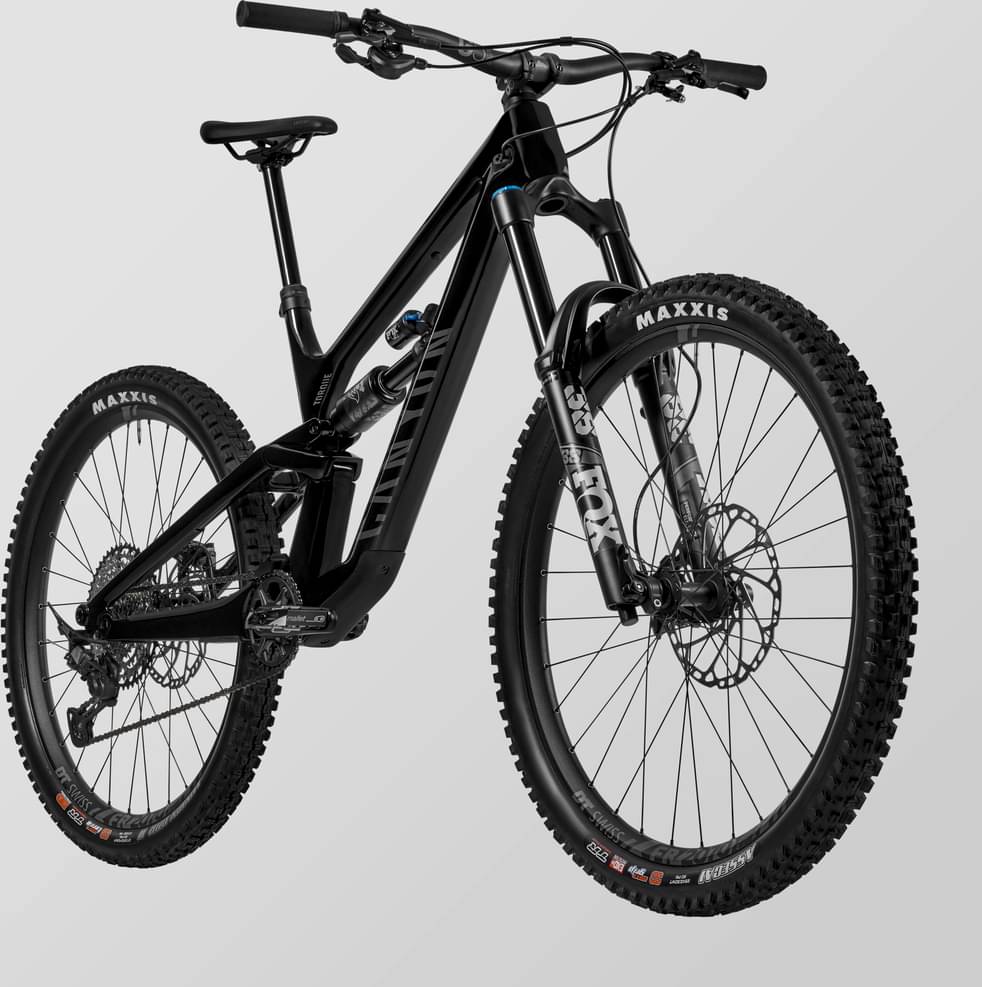

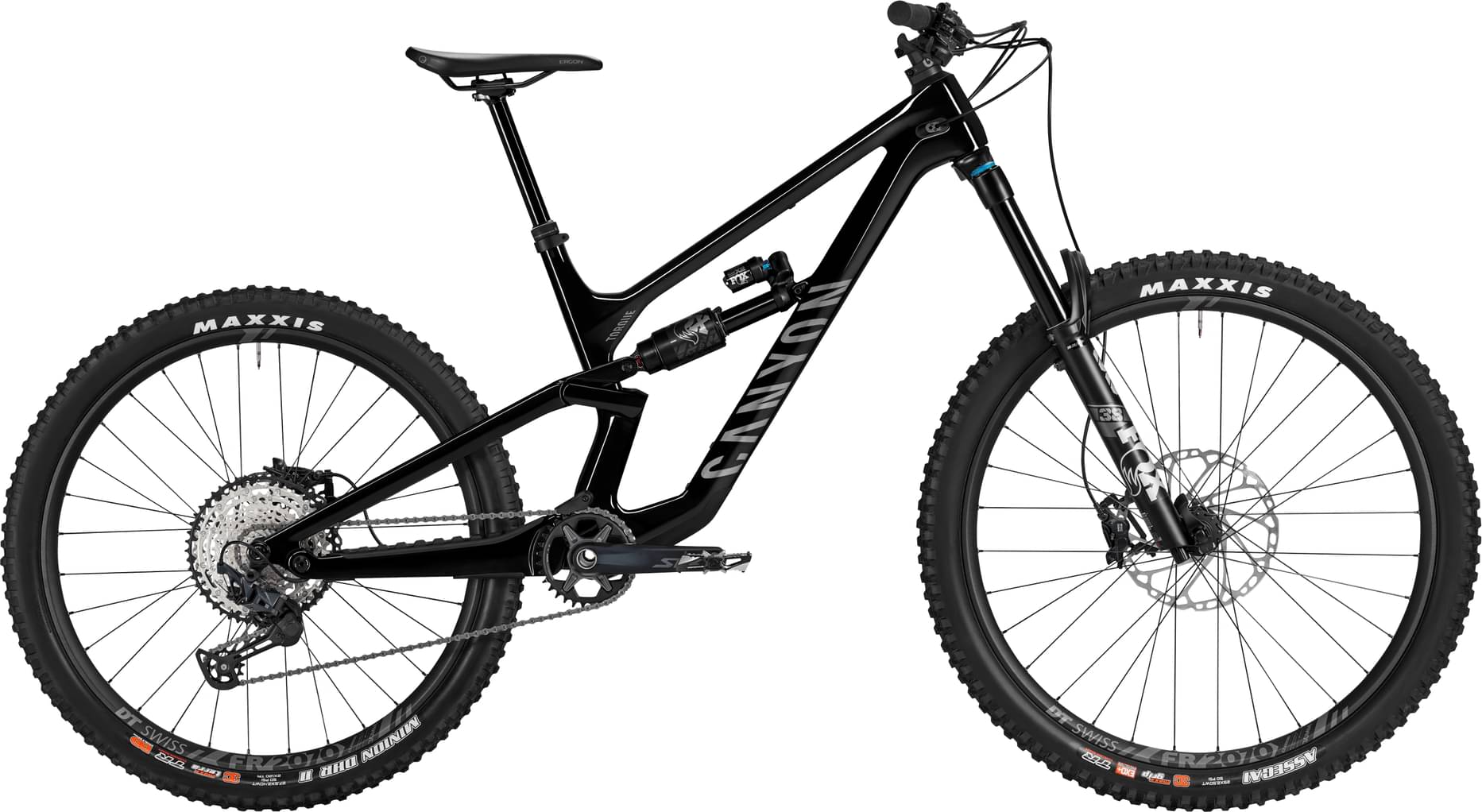

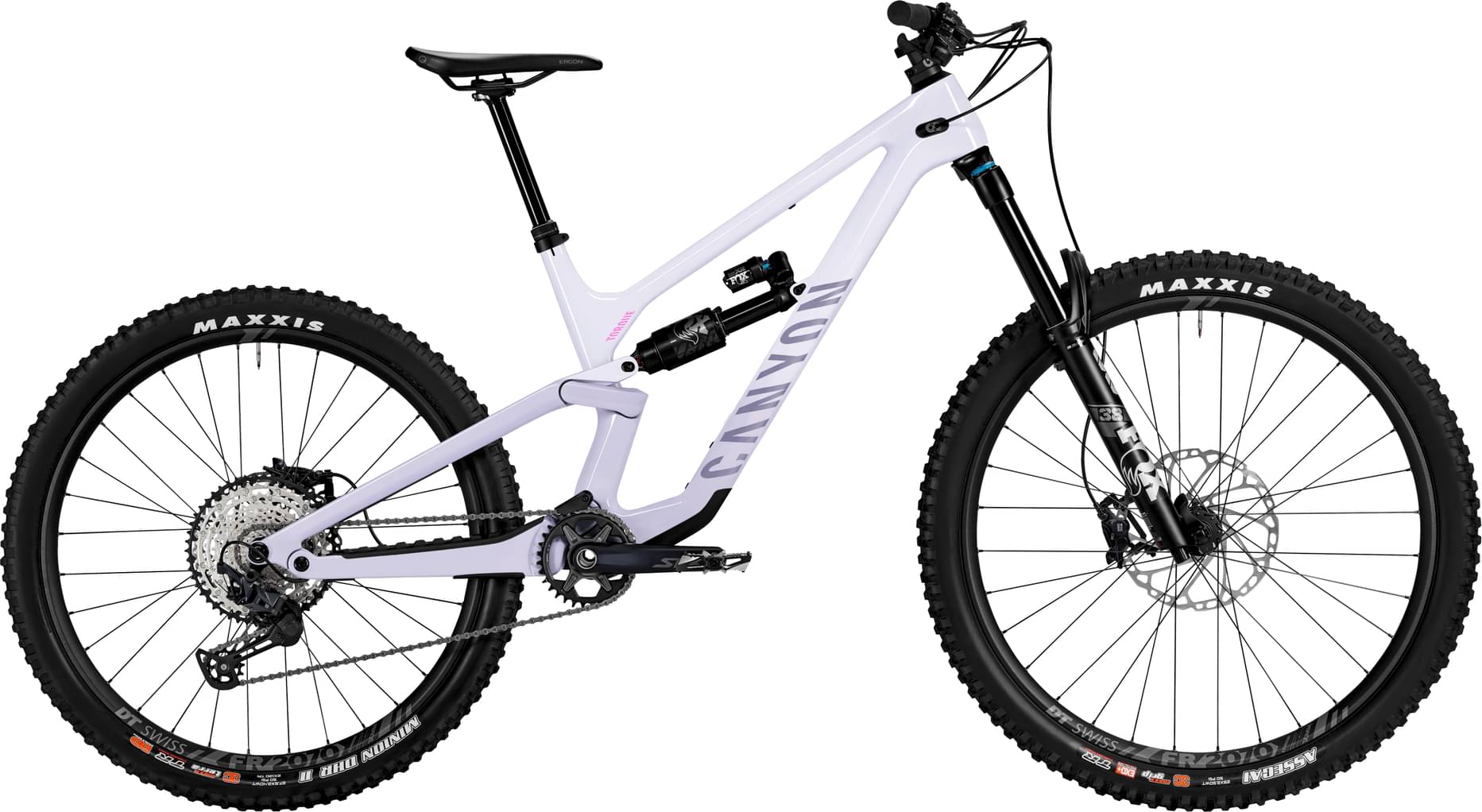

Canyon Torque CF 8 2025
2025 Mountain
Estimate price |
5,001$
Weight | 15.84 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 175mm -
Fork Fox Performance Elite Float 38
-
Groupset SLX -
Suspension Full -
Brakes Shimano SLX Hydraulic Disc
Sizing
Recommended size guide.
MD
172cm - 185cm
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components

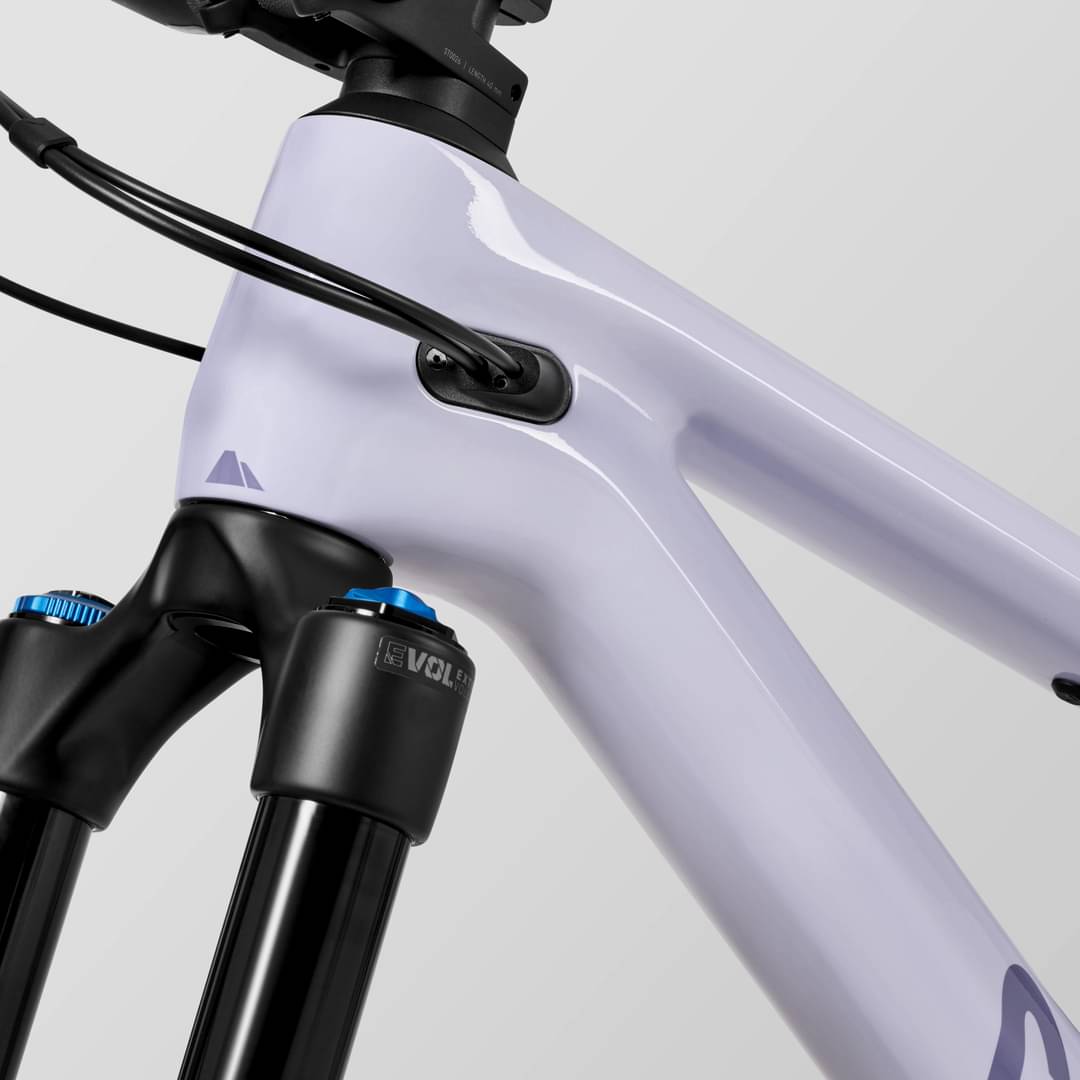

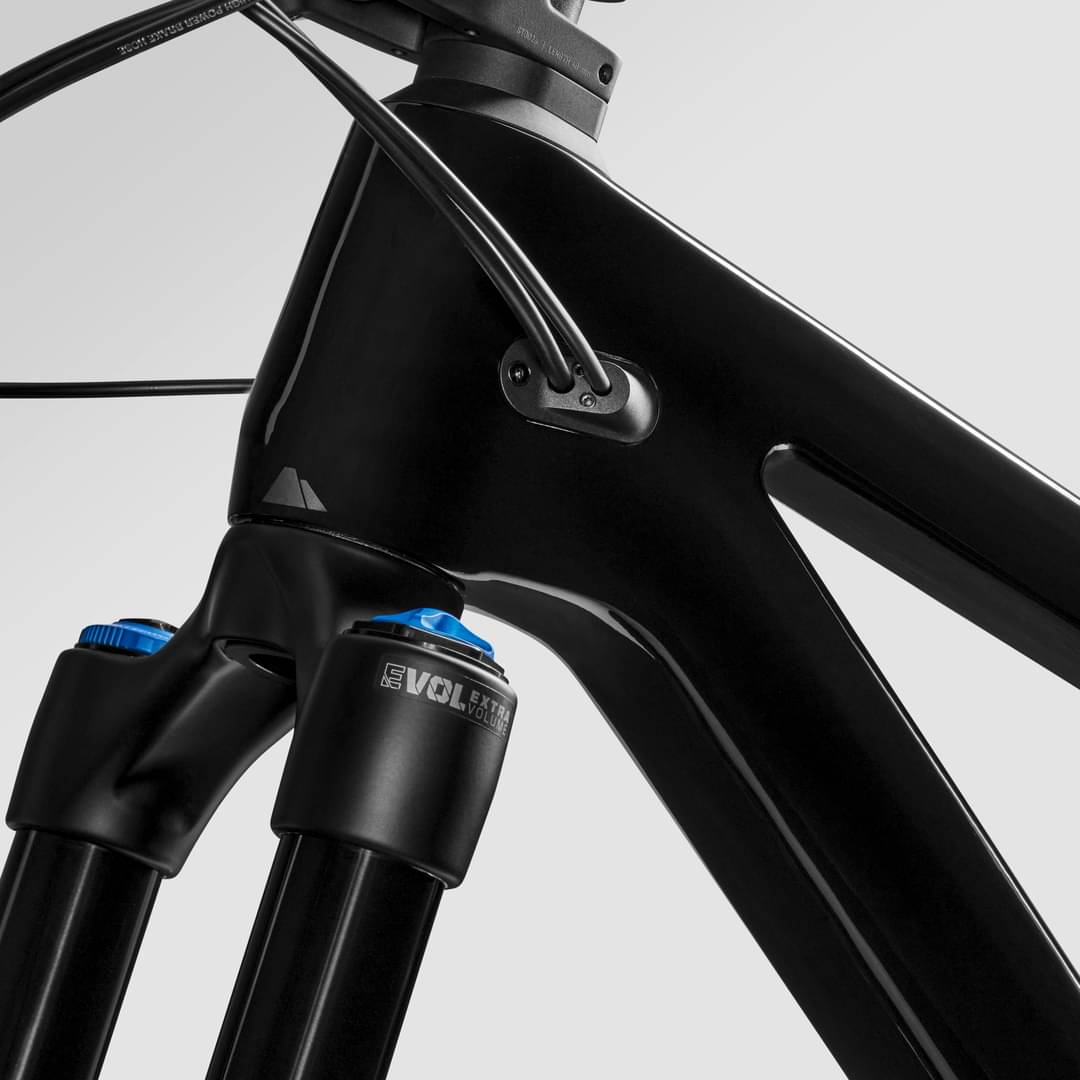

Frame
Frame
Canyon Torque CF, Extra-robust carbon mullet frame. Developed for bike park riding and the toughest trails. Category: 5., Axle dimension: 12x148 mm, Material: Carbon (CF), Weight: 1,620 g

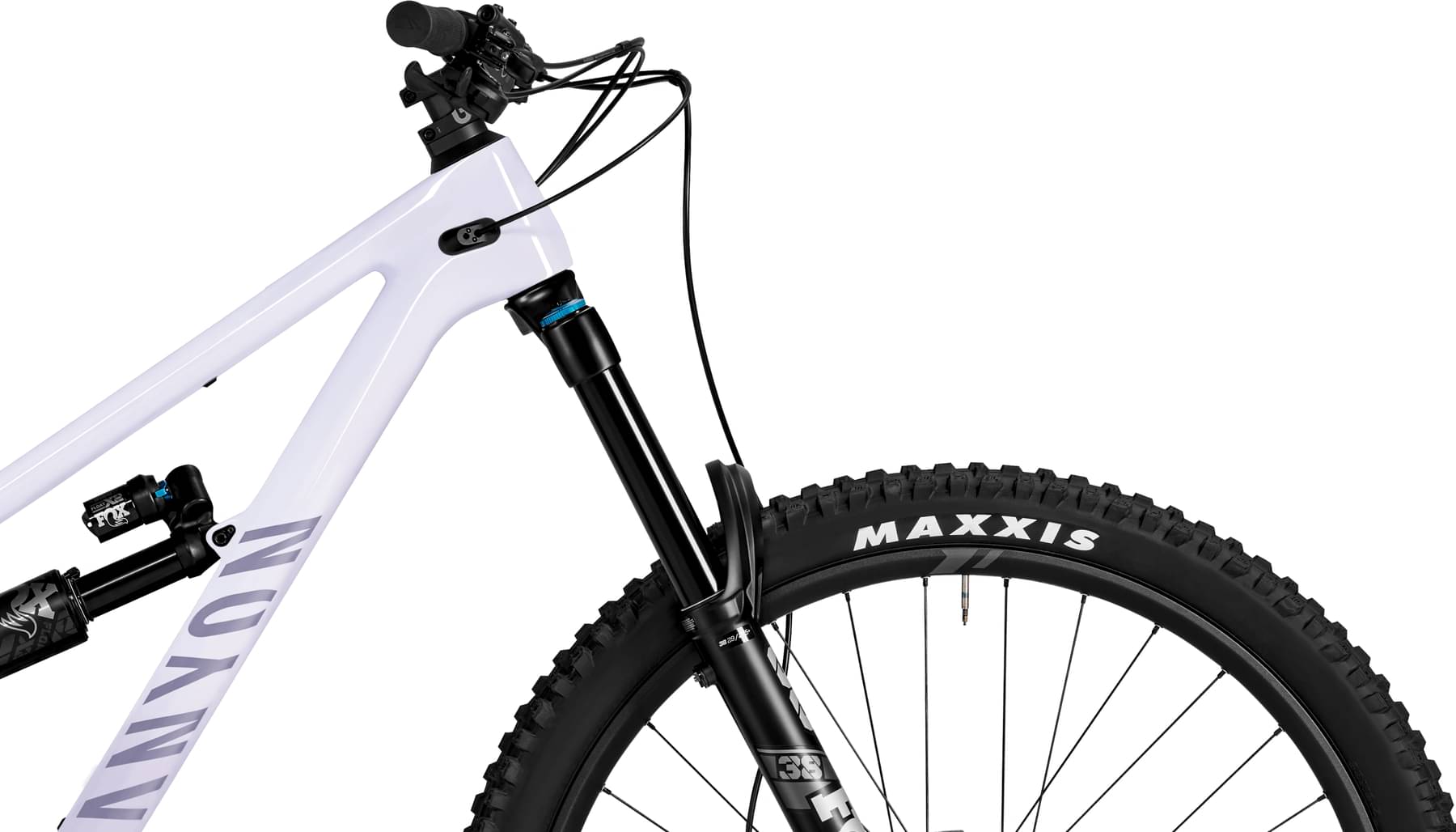

Suspension Fork
FOX 38 Performance Elite Series, Axle dimension: 15x110 mm, Stanchion Diameter: 38 mm, Travel: 170 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 2,290 g

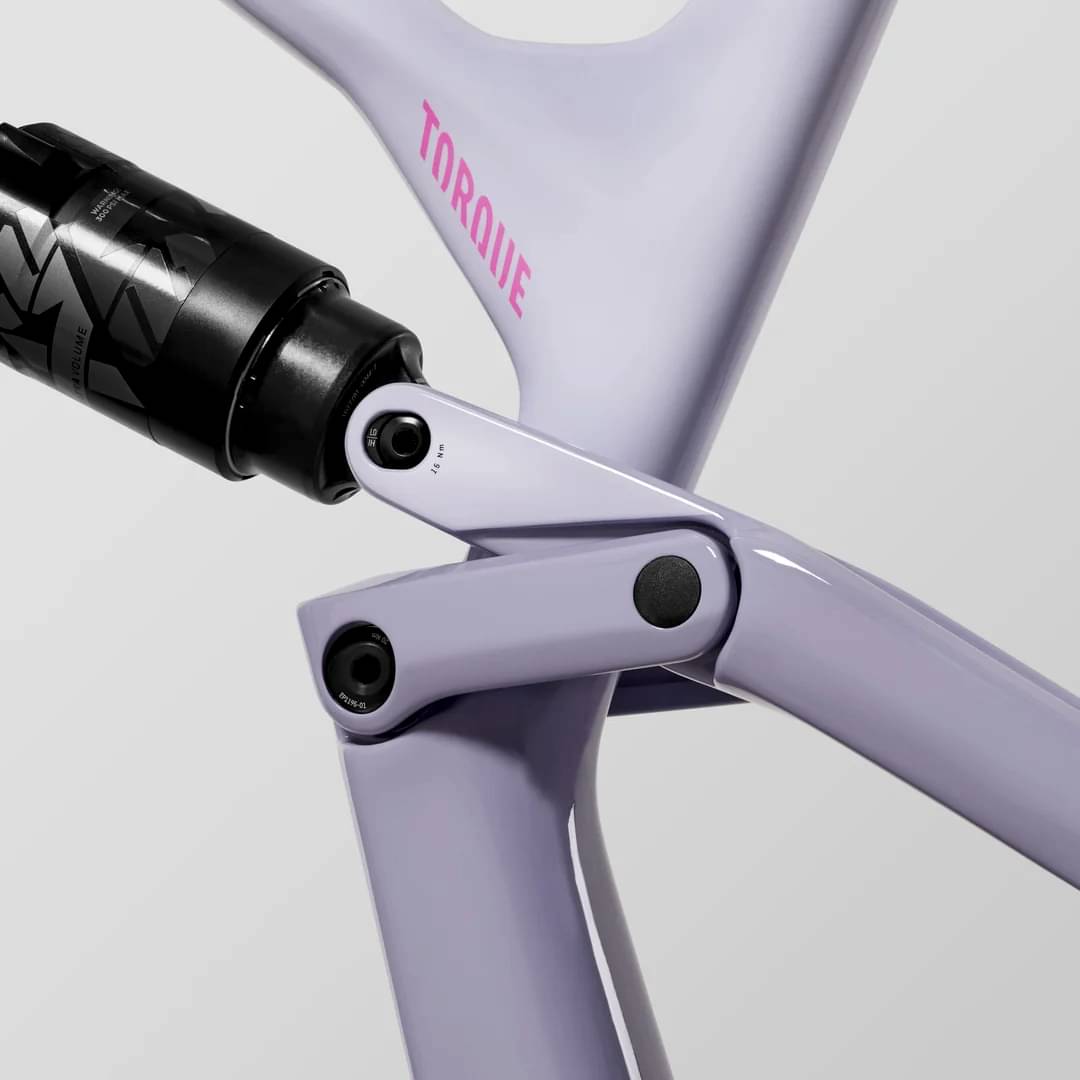

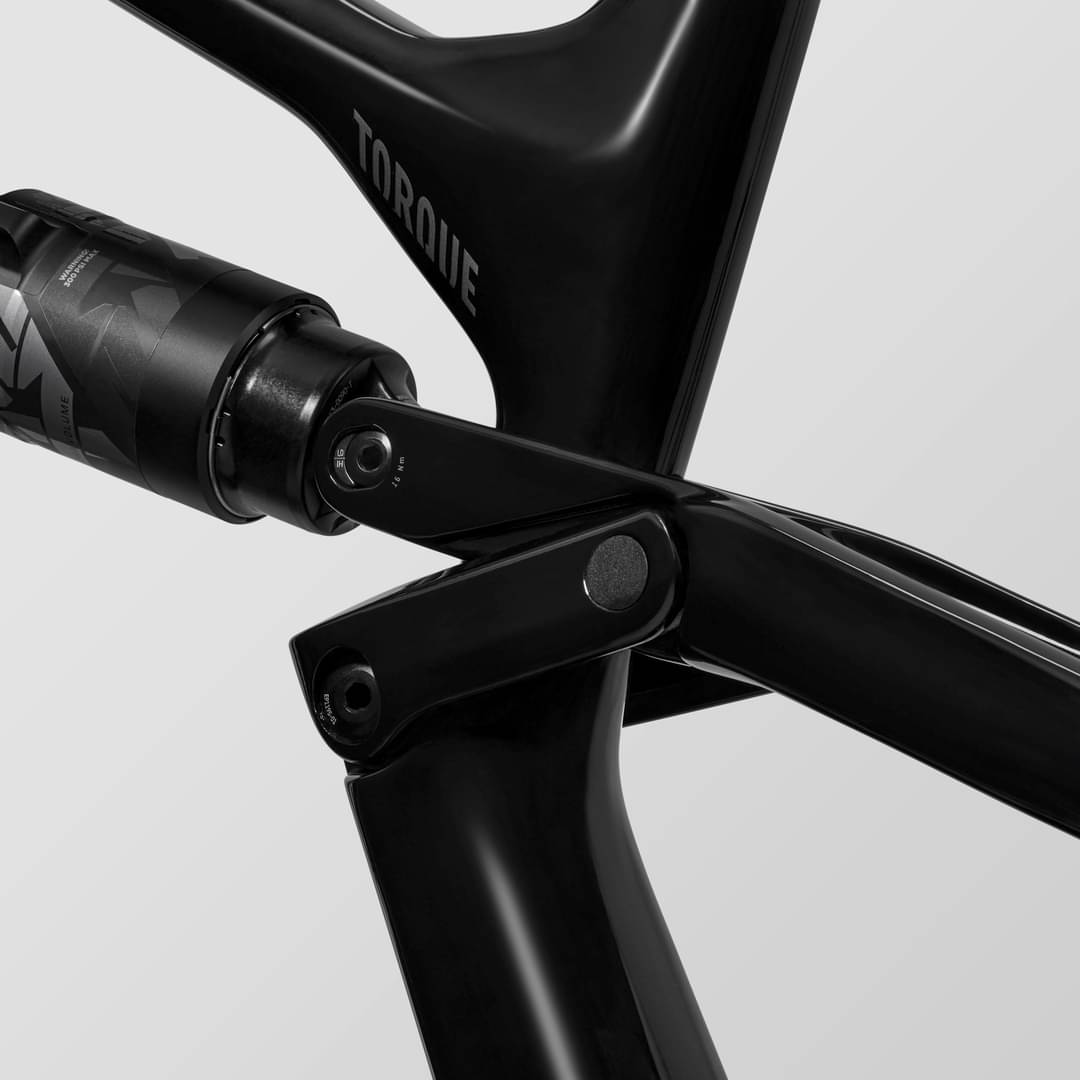

Rear Shock
FOX X2 Performance Elite

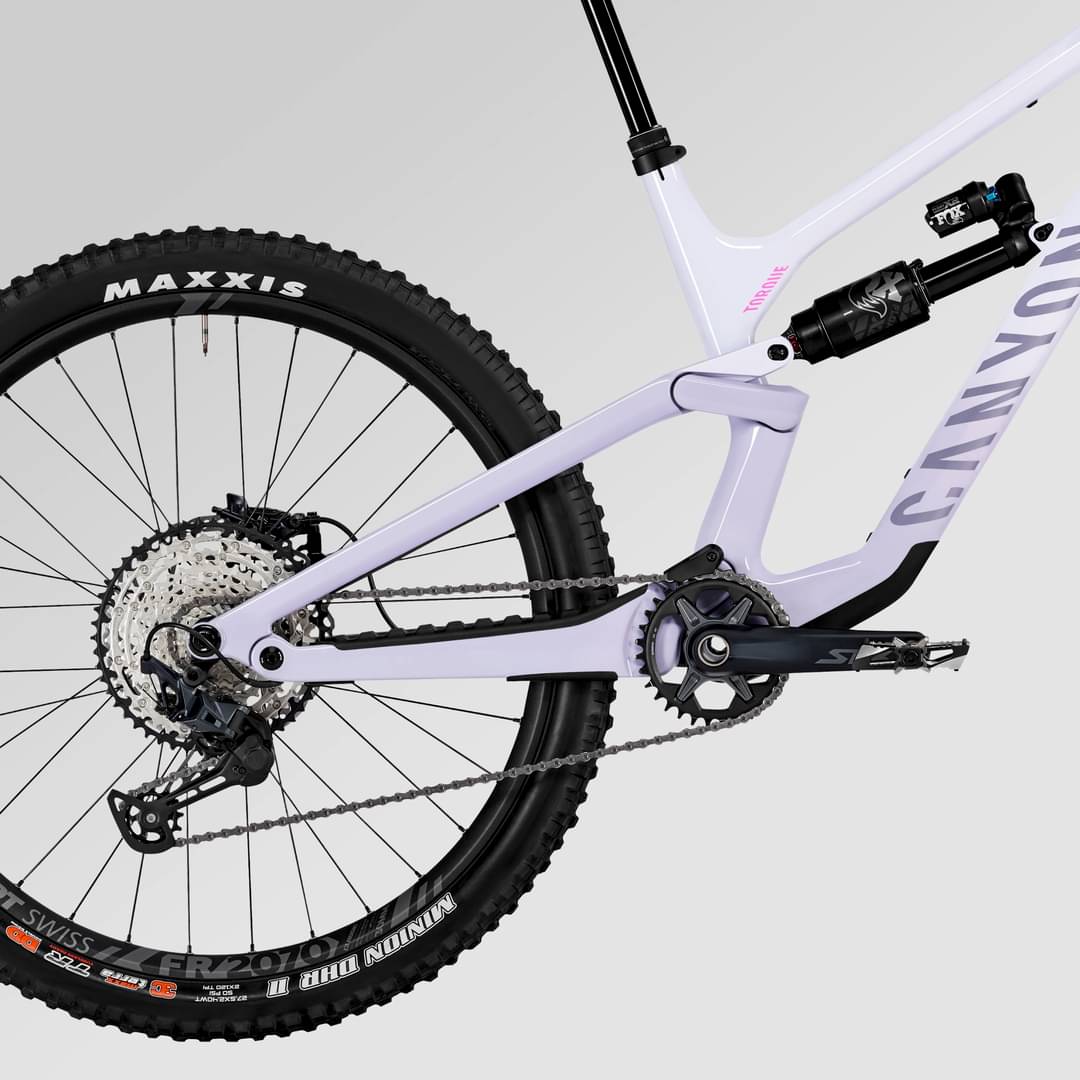

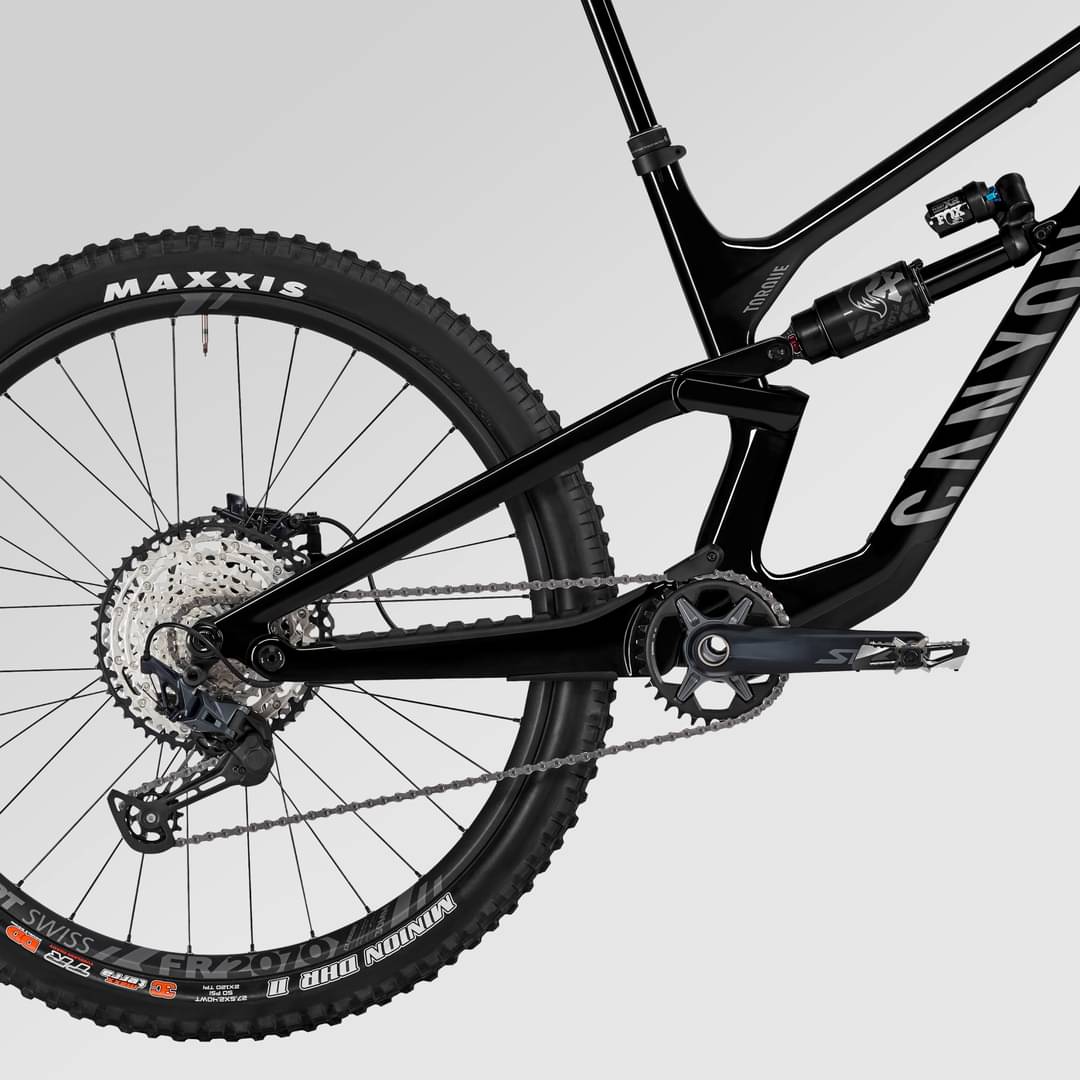

Drivetrain
Rear Derailleur
Shimano Deore SLX M7100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore SLX M7100, Weight: 143 g
Cassette
Shimano Deore SLX CS-M7100, Number of sprockets: 12, Range: 10-51
Crank
Shimano Deore SLX M7120, Number of chainrings: 1
Bottom Bracket
Shimano BSA BB52, Bottom bracket standard: BSA HT2 68/73, Weight: 98 g
Chain
Shimano Deore M6100
Chain Guide
Canyon EP1266-01 ISCG05 Plate | Canyon GP0293-02
Pedals
None included
Wheels
Rims
DT Swiss FR2070 370LN, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 1,048 g | DT Swiss FR2070 370LN, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Weight: 992 g
Tires
Maxxis Minion DHR II 3C MaxxTerra, Width: 2.4", Weight: 900 g | Maxxis Assegai 3C MaxxGrip, Width: 2,5", Weight: 1,160 g
Brakes
Brakes
Shimano SLX M7120
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm, Material: Aluminium (AL)
Handlebar
Canyon G5, Highly robust carbon handlebar. G5 stands for gravity and category 5., Rise: 30 mm., Clamping diameter: 31.8 mm.
Grips
Canyon G5
Seat
Saddle
Ergon SM10 Enduro Comp, Gender: Unisex, Weight: 300 g
Seatpost
Canyon G5, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 534 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.418 mm | 1.353 mm | 1.302 mm | 1.256 mm |
| Front Center | 787 mm | 815 mm | 844 mm | 874 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 136 mm | 136 mm | 136 mm | 136 mm |
| Stack | 624 mm | 629 mm | 638 mm | 647 mm |
| Reach | 440 mm | 465 mm | 490 mm | 515 mm |
| Top Tube Length | 578 mm | 604 mm | 631 mm | 658 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 395 mm | 430 mm | 445 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1220 mm | 1248 mm | 1277 mm | 1307 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 761 mm | 771 mm | 773 mm | 778 mm |
| Front Travel | 170 mm | 170 mm | 170 mm | 170 mm |
| Rear Travel | 175 mm | 175 mm | 175 mm | 175 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 177 cm | 185 cm | 194 cm | cm |
