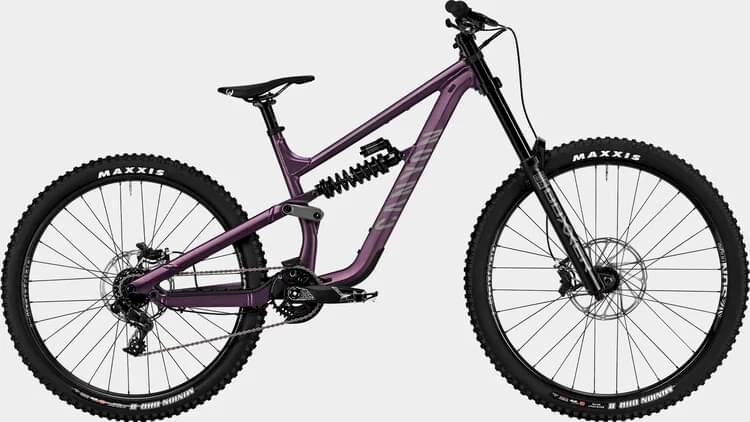

Canyon Torque DH CLLCTV 2024
2024 Mountain
Estimate price |
3,440$
Weight | 17.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 190mm -
Travel Rear 175mm -
Fork RockShox BoXXer
-
Groupset Truvativ Descendant, GX -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
172cm - 185cm
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Torque AL, Aluminium long-travel freeride frame built for seasons-long hard riding at the bike park and in the big mountains. Frame category 5., Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
RockShox Boxxer Base, Axle dimension: 20x110 mm, Travel: 190 mm, Fork steer tube diameter: 1 1/8"
Rear Shock
RockShox SuperDeluxe Select, Spring: 350
Drivetrain
Rear Derailleur
SRAM GX DH 7s, Cage length: medium, Weight: 273 g
Shift Levers
SRAM GX DH Trigger 7s, Weight: 125 g
Cassette
SRAM PG-720 DH 11-25 7s, Number of sprockets: 7, Range: 11-25
Crank
Descendant 6K, Number of chainrings: 1
Bottom Bracket
SRAM DUB BSA, Bottom bracket standard: BSA 73, Weight: 5 g
Chain Guide
e13 Vario Compact Slider DMB
Pedals
None included
Wheels
Rims
Sun Ringle Duroc SH11, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Rim material: Aluminium, Weight: 1.15 kg | Sun Ringle Duroc, Axle dimension: 20x110 mm, Rotor mount: IS 6-bolt, Rim material: Aluminium, Weight: 1.06 kg
Tires
Maxxis Minion DHR II 2.4", Width: 2.4", Weight: 900 g | Maxxis Minion DHR II 2.4" Wide Trail, Width: 2.4", Weight: 950 g
Brakes
Brakes
SRAM Code R
Cockpit
Stem
Canyon G5, G5 aluminium stem for double-crown forks. Developed with Canyon downhill pros, proven on the world’s toughest stages. Length: 45 mm., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm, Material: Aluminium (AL)
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5
Seat
Saddle
Ergon SMD20, Weight: 315 g
Seatpost
Canyon G5, Canyon G5 aluminium seatpost. Length: 300 mm., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 270 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.423 mm | 1.365 mm | 1.313 mm | 1.267 mm |
| Front Center | 780 mm | 809 mm | 839 mm | 868 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 136 mm | 136 mm | 136 mm | 136 mm |
| Stack | 619 mm | 628 mm | 637 mm | 646 mm |
| Reach | 435 mm | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 567 mm | 594 mm | 620 mm | 647 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 395 mm | 430 mm | 430 mm | 435 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1202 mm | 1231 mm | 1261 mm | 1290 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 758 mm | 764 mm | 766 mm | 773 mm |
| Front Travel | 190 mm | 190 mm | 190 mm | 190 mm |
| Rear Travel | 175 mm | 175 mm | 175 mm | 175 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 177 cm | 185 cm | 194 cm | cm |
