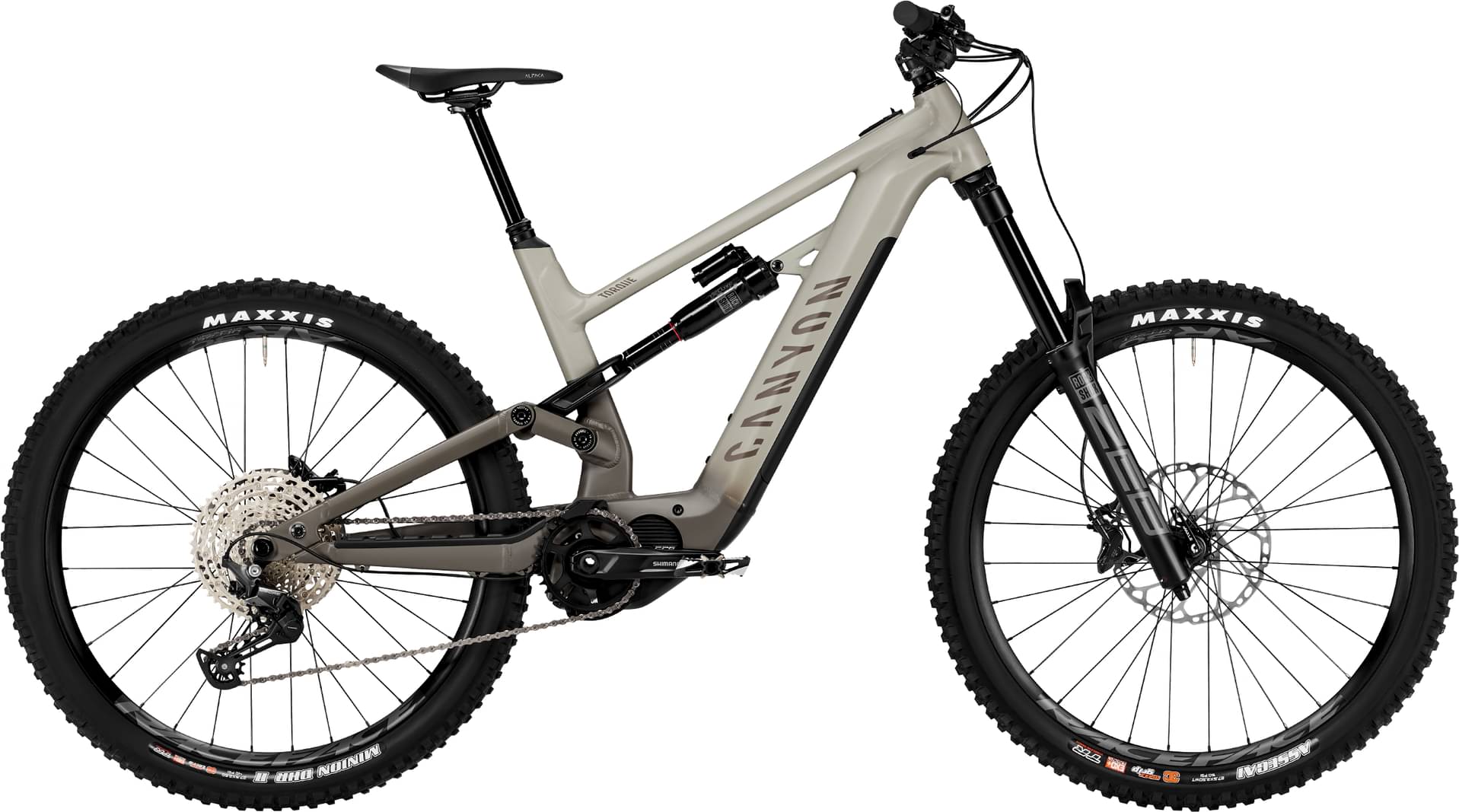

Canyon Torque:ON 7 2024
2024 E-bike
Estimate price |
4,999$
Weight | 24.09 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 175mm -
Fork RockShox ZEB
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E805 504Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Torque:ON, A progressive, hugely capable freeride e-MTB engineered to crush challenging trails with ease and power., Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
RockShox ZEB R, Travel: 180 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 7.36 lbs
Rear Shock
RockShox Super Deluxe Select R, Weight: 0.65 lbs
Drivetrain
Rear Derailleur
Shimano Deore M6100, Cage length: long, Weight: 0.70 lbs
Shift Levers
Shimano Deore M6100, Weight: 0.30 lbs
Cassette
Shimano Deore M6100, Number of sprockets: 12
Crank
Shimano STEPS
Bottom Bracket
STEPS, press-fit
Chain
Shimano M6100, SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Wheels
Rims
RaceFace AR30, Rotor mount: Center Lock, Weight: 1.81 lbs | RaceFace AR30 | Shimano MT510 SH12, Rotor mount: Center Lock, Weight: 2.19 lbs
Tires
Maxxis Minion DHR II 27,5" x 2.60 WT, Width: 2.6", Weight: 1.98 lbs | Maxxis Assegai 3C MaxxGrip, Width: 2,5"
Brakes
Brakes
Shimano Deore M6120

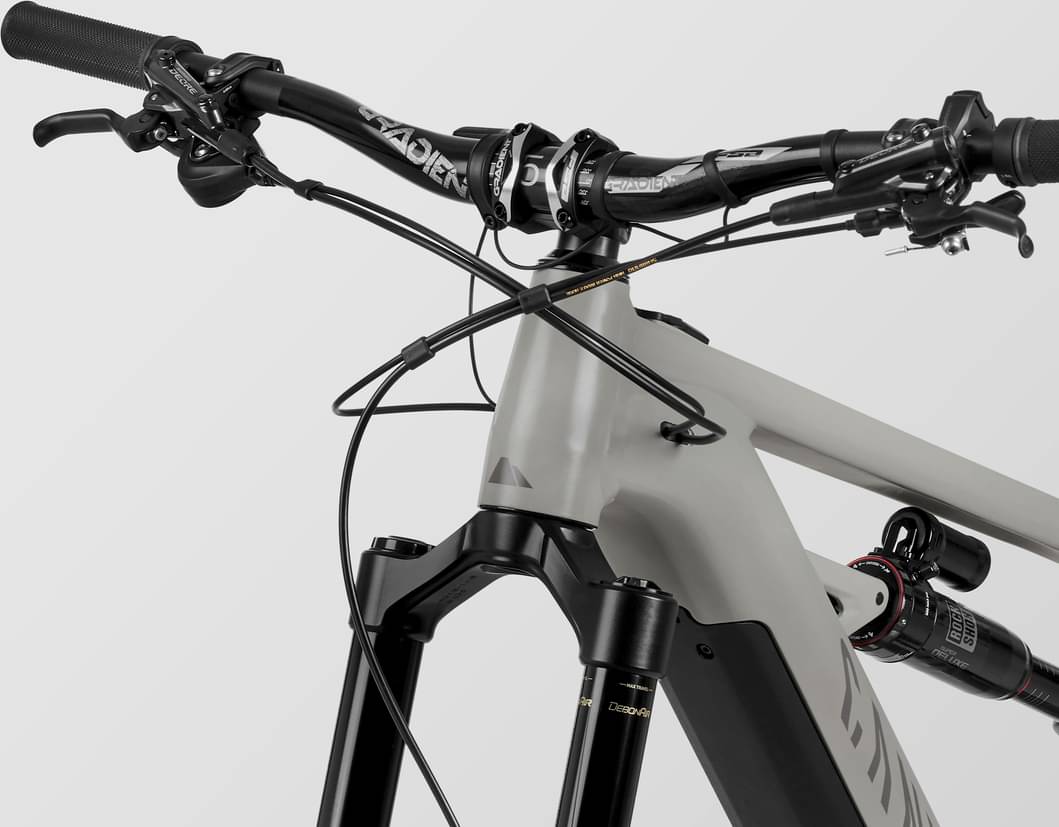

Cockpit
Stem
FSA Gradient Vorbau, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm
Handlebar
FSA Gradient Riser 25 Lenker, Width: 780 mm, Rise: 25 mm
Grips
Canyon Lock-On
Seat
Saddle
Fizik Gravita Alpaca X5, Gender: Unisex, Weight: 0.49 lbs
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 1.28 lbs
Motor & Battery

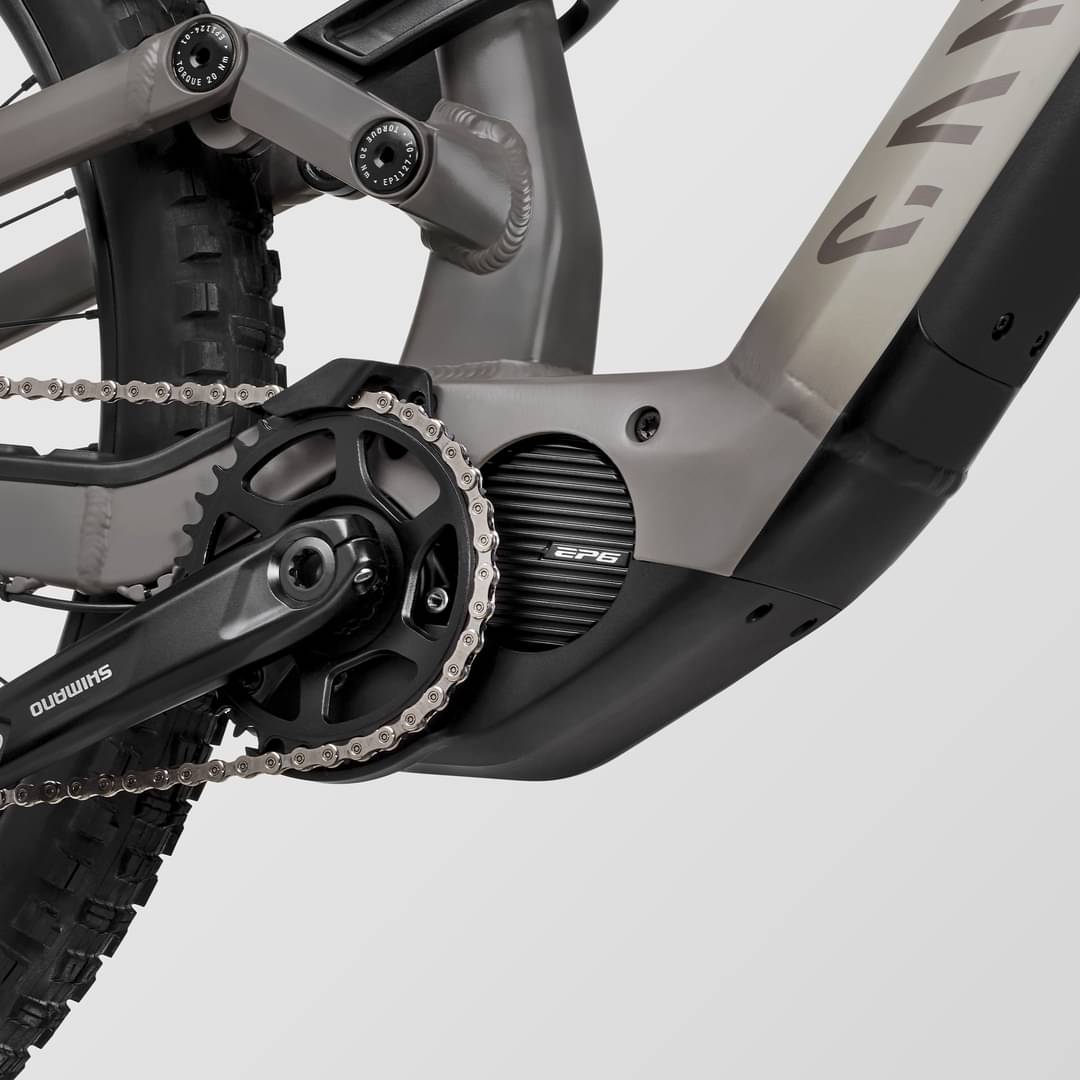

Motor
Shimano EP600
Battery
Shimano BT-E805 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.416 mm | 1.359 mm | 1.307 mm | 1.261 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 784 mm | 814 mm | 843 mm | 872 mm |
| Rake | 44 mm | 45 mm | 44 mm | 44 mm |
| Trail | 128 mm | 127 mm | 128 mm | 128 mm |
| Stack | 616 mm | 625 mm | 634 mm | 643 mm |
| Reach | 435 mm | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 612 mm | 639 mm | 667 mm | 694 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 440 mm | 460 mm | 500 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1214 mm | 1244 mm | 1273 mm | 1302 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 777 mm | 780 mm | 786 mm | 790 mm |
| Front Travel | 180 mm | 180 mm | 180 mm | 180 mm |
| Rear Travel | 175 mm | 175 mm | 175 mm | 175 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
