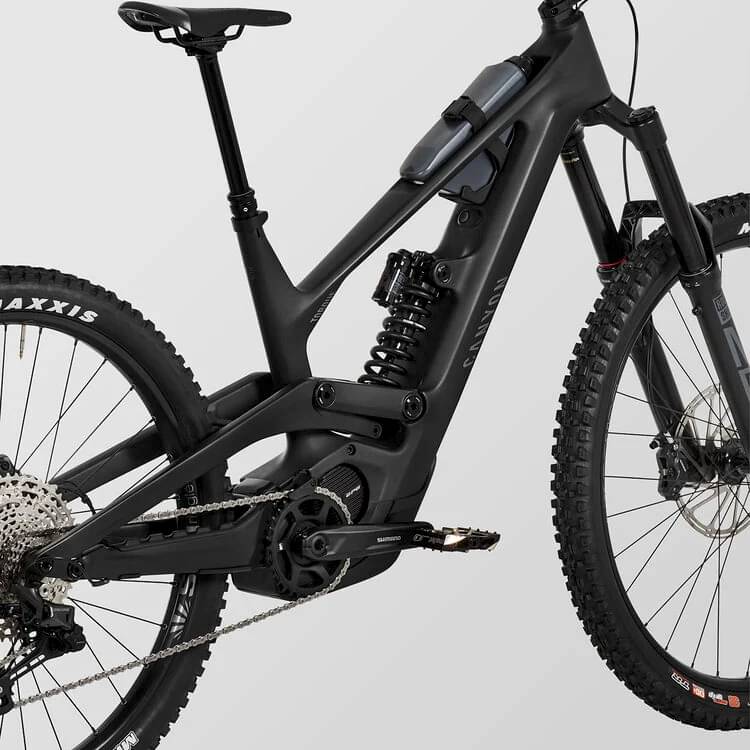

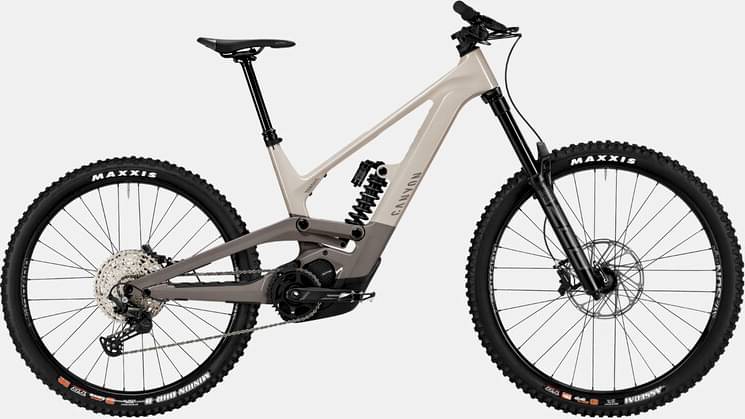

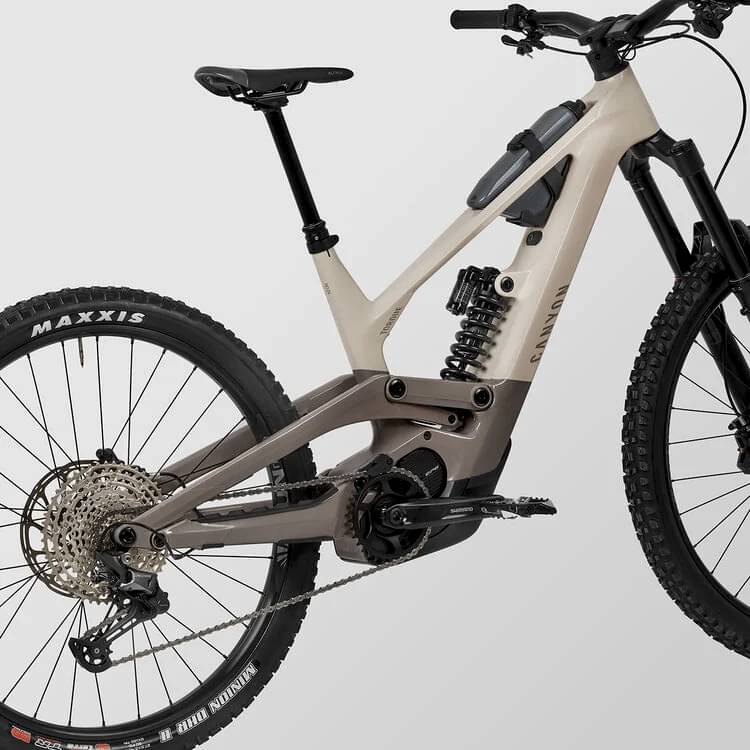

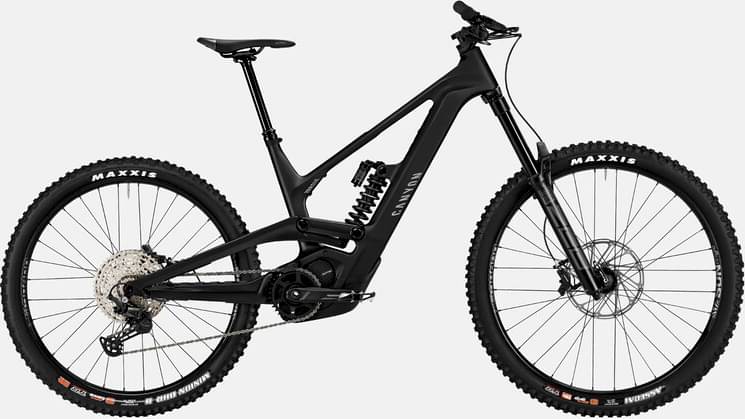

Canyon Torque:ON CF 7 2024
2024 E-bike
Estimate price |
5,963$
Weight | 25.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 180mm -
Travel Rear 175mm -
Fork RockShox ZEB
-
Groupset Deore -
Suspension Full -

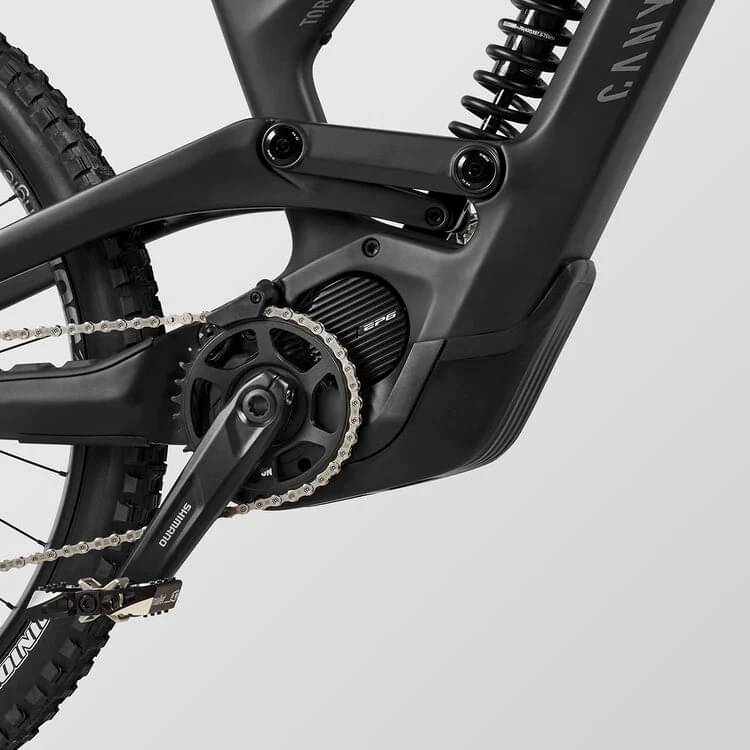

Motor Shimano 600W 85Nm mid-drive -
Battery Canyon BT0004-01 900Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
172cm - 185cm
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Torque:ON CF, A progressive, hugely capable carbon freeride e-MTB engineered to crush challenging trails with ease and power., Axle dimension: 12x148 mm, Material: Carbon (CF), Weight: 3.35 kg

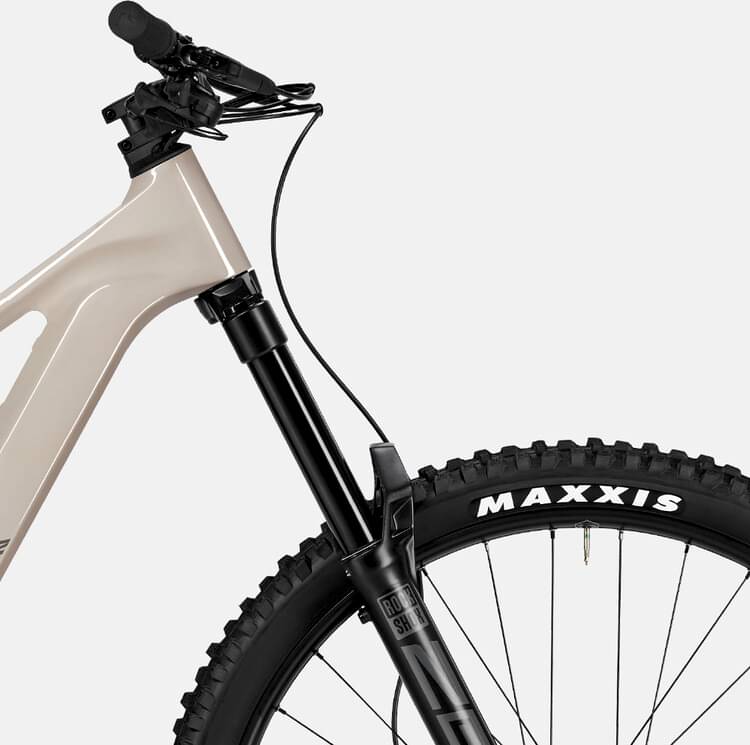

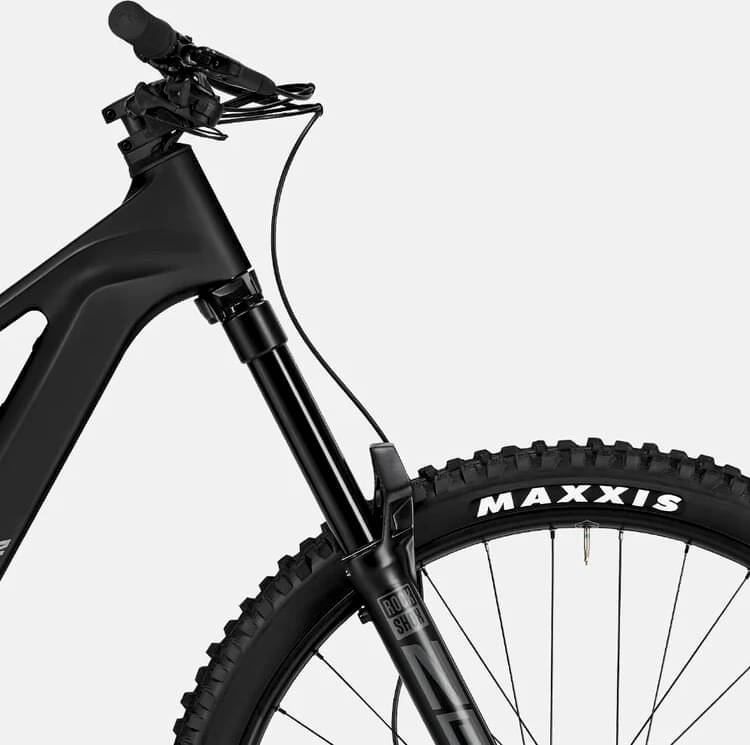

Suspension Fork
RockShox ZEB, Axle dimension: 15x110 mm, Stanchion Diameter: 38 mm, Travel: 180 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 3.34 kg
Rear Shock
RockShox Super Deluxe Coil Select, Spring: 400
Drivetrain
Rear Derailleur
Shimano Deore M6100, Cage length: long, Weight: 317 g
Shift Levers
Shimano Deore M6100, Weight: 136 g
Cassette
Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S
Crank
Shimano Steps
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-M6100
Chain Guide
Canyon EP1189-01 Chain Guide Nut | Canyon GP0397-01 Chainguide | Canyon EP1539-01 Chain Guide
Wheels
Rims
SUNringlé Düroc SD37 Comp 29", Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 1.06 kg | SUNringlé Düroc SD37 Comp 27.5", Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Weight: 1.15 kg
Tires
Maxxis Minion DHR II 3C MaxxTerra, Width: 2.4", Weight: 900 g | Maxxis Assegai 3C MaxxGrip, Width: 2,5", Weight: 1.16 kg
Brakes
Brakes
SRAM Code R
Cockpit
Stem
Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm
Handlebar
Handlebar HB0057, Clamping diameter: 35,0 mm, Width: 800 mm, Rise: 30 mm
Grips
Canyon Lock-On
Seat
Saddle
Fizik Gravita Alpaca X5, Gender: Unisex, Weight: 220 g
Seatpost
Iridium Dropper, The Iridium dropper post offers 150-200mm of on-the-fly seat height adjustability., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 600 g
Motor & Battery
Motor

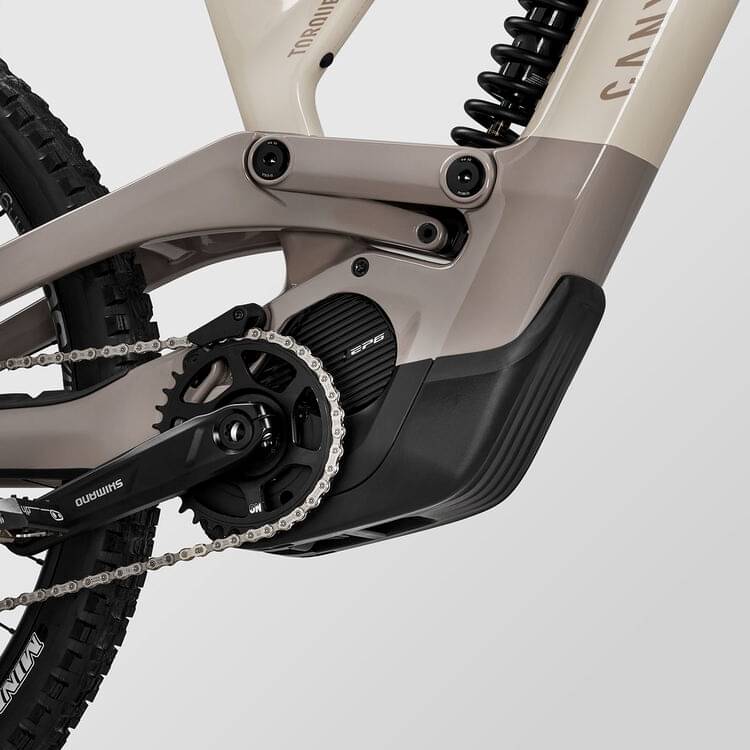

Shimano EP600

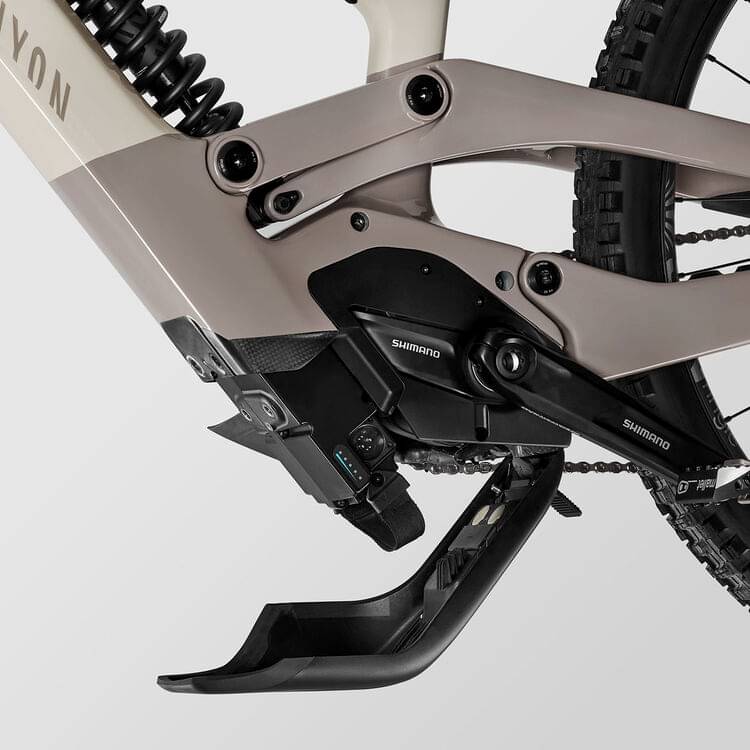

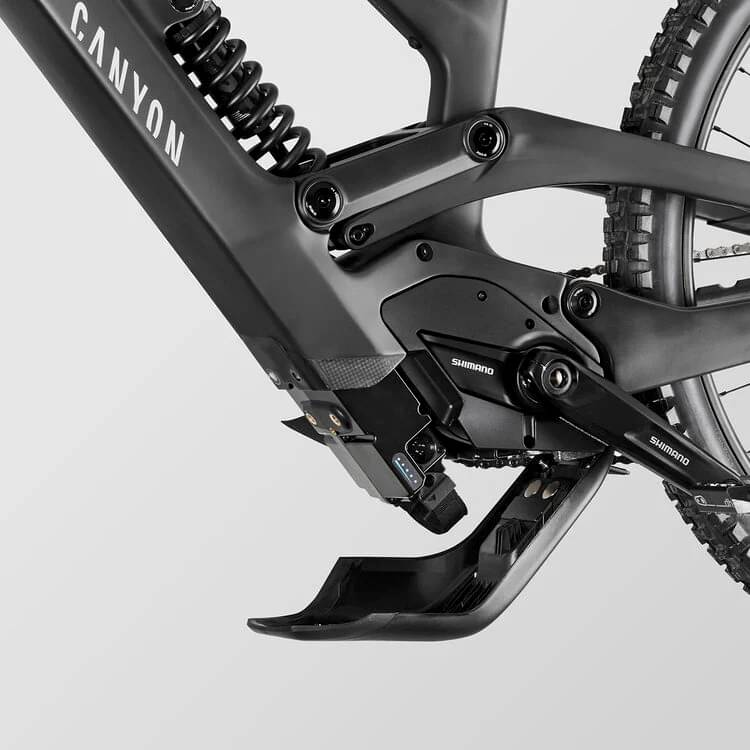

Battery
Canyon BT0004-01 900Wh
Charger
Canyon BC001
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.364 mm | 1.314 mm | 1.269 mm |
| Front Center | 804 mm | 833 mm | 863 mm | 892 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 136 mm | 136 mm | 136 mm | 136 mm |
| Stack | 639 mm | 648 mm | 657 mm | 666 mm |
| Reach | 450 mm | 475 mm | 500 mm | 525 mm |
| Top Tube Length | 592 mm | 619 mm | 646 mm | 673 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 395 mm | 420 mm | 435 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1247 mm | 1276 mm | 1306 mm | 1335 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 738 mm | 745 mm | 765 mm | 777 mm |
| Front Travel | 180 mm | 180 mm | 180 mm | 180 mm |
| Rear Travel | 175 mm | 175 mm | 175 mm | 175 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 177 cm | 185 cm | 194 cm | cm |
