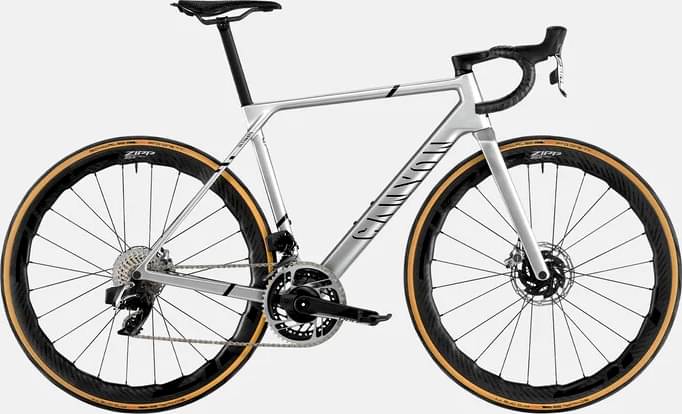

Canyon Ultimate CFR eTap 2024
2024 Road
Estimate price |
12,042$
Weight | 6.66 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS -
Suspension Rigid -
Battery SRAM Powerpack -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

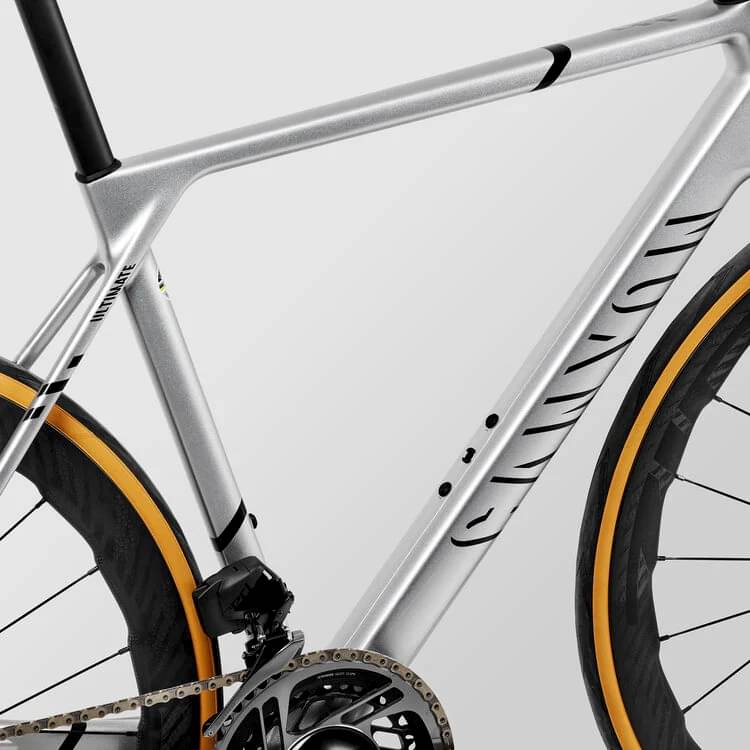

Canyon Ultimate CFR Disc, Pro-level build of our latest 5th-generation Ultimate frame., Axle dimension: 12x142 mm, Tyre clearance: 33 mm, Material: Carbon (CFR)
Suspension Fork

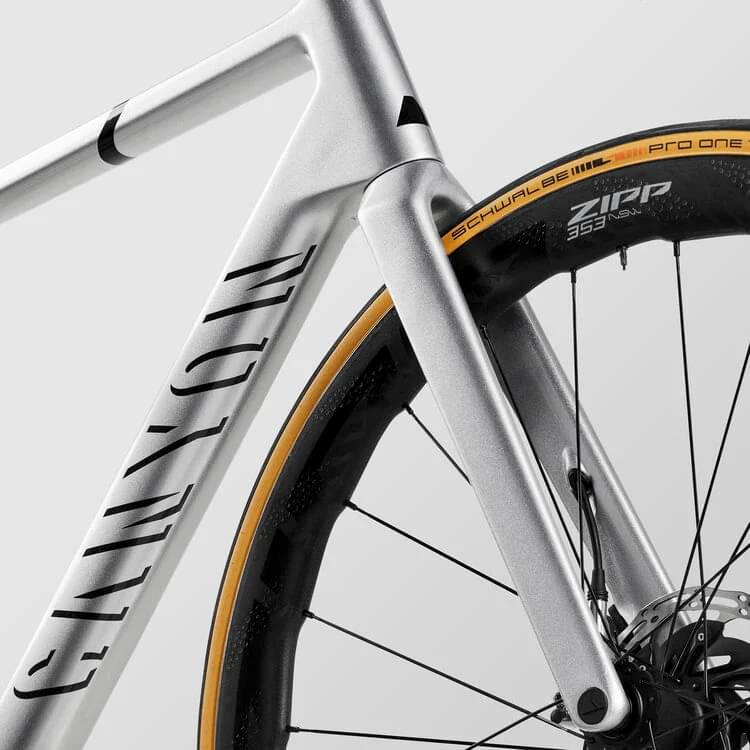

Canyon FK0108 CF Disc, Carbon fork optimised for lightness, stiffness, and strength., Axle dimension: 12x100 mm, Tyre clearance: 33 mm, Material: Carbon (CF)
Drivetrain
Rear Derailleur
SRAM RED eTap AXS 12s, Weight: 0.62 lbs
Front Derailleur
SRAM RED eTap AXS, Weight: 0.37 lbs
Shift Levers
SRAM RED eTap AXS HRD 12s, Weight: 0.99 lbs | SRAM RED eTap AXS HRD, Weight: 1.33 lbs
Cassette
SRAM RED XG-1290 10-33 12s, Number of sprockets: 12, Range: 10-33
Crank
SRAM RED Powermeter, Number of chainrings: 2
Bottom Bracket
SRAM DUB Pressfit, Bottom bracket standard: PF 86,5, Weight: 0.17 lbs
Chain
SRAM RED D1, With signature flat-top design for quieter operation and increased strength and durability. And hard chrome plated inner link plates and rollers for reduced wear.
Pedals
None included
Wheels
Rims
ZIPP 353 NSW Hookless, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 45 mm, Rim material: Carbon, Weight: 1.47 lbs | ZIPP 353 NSW Hookless, XDR, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 45 mm, Rim material: Carbon, Weight: 1.74 lbs
Tires
Schwalbe Pro One TT, 28mmm, Wheelsize: 28", Weight: 0.47 lbs
Brakes
Brakes
SRAM RED eTap AXS HRD 12s, Weight: 0.99 lbs | SRAM RED eTap AXS HRD, Weight: 1.33 lbs
Brake Levers
SRAM RED eTap AXS HRD 12s, Weight: 0.99 lbs | SRAM RED eTap AXS HRD, Weight: 1.33 lbs
Seat
Saddle

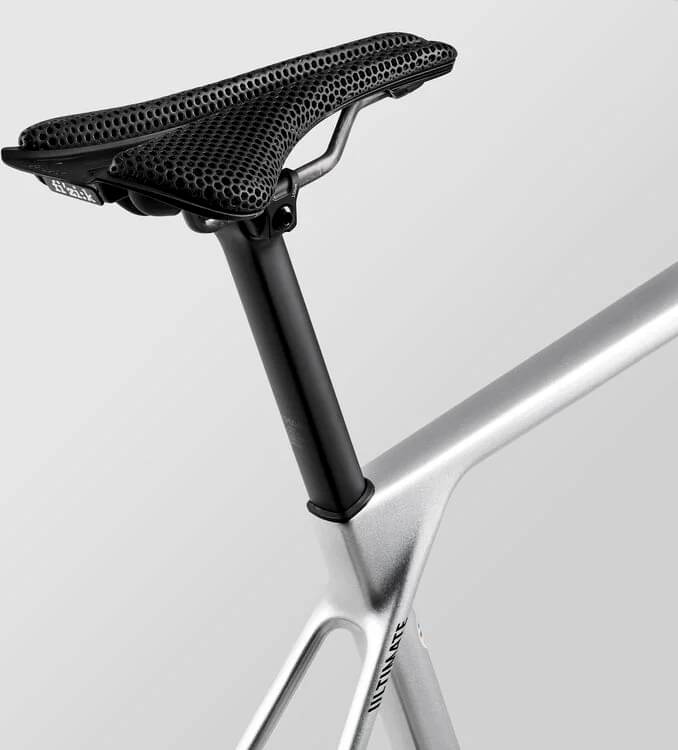

Fizik Antares Versus R1, Weight: 0.38 lbs
Seatpost
Canyon SP0064, Superlight custom carbon seatpost with aerodynamic D-shape profile., Setback: 0 mm, Weight: 70 g, Material: Carbon (CF)
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.339 mm | 1.376 mm | 1.382 mm | 1.425 mm | 1.446 mm | 1.446 mm | 1.455 mm |
| Bottom Bracket Height | 276 mm | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 568 mm | 580 mm | 583 mm | 589 mm | 601 mm | 625 mm | 638 mm |
| Rake | 44 mm | 43 mm | 42 mm | 44 mm | 42 mm | 42 mm | 43 mm |
| Trail | 66 mm | 69 mm | 60 mm | 55 mm | 57 mm | 56 mm | 53 mm |
| Stack | 498 mm | 520 mm | 539 mm | 560 mm | 580 mm | 606 mm | 624 mm |
| Reach | 372 mm | 378 mm | 390 mm | 393 mm | 401 mm | 419 mm | 429 mm |
| Top Tube Length | 516 mm | 529 mm | 546 mm | 555 mm | 569 mm | 594 mm | 610 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 71.5 ° | 71.2 ° | 72.8 ° | 73.3 ° | 73.3 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 88 mm | 107 mm | 121 mm | 142 mm | 162 mm | 188 mm | 206 mm |
| Chainstay Length | 405 mm | 410 mm | 410 mm | 410 mm | 413 mm | 415 mm | 415 mm |
| Wheelbase | 965 mm | 979 mm | 982 mm | 988 mm | 1003 mm | 1029 mm | 1042 mm |
| Bottom Bracket Drop | 60 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 720 mm | 748 mm | 775 mm | 801 mm | 828 mm | 851 mm | 874 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
