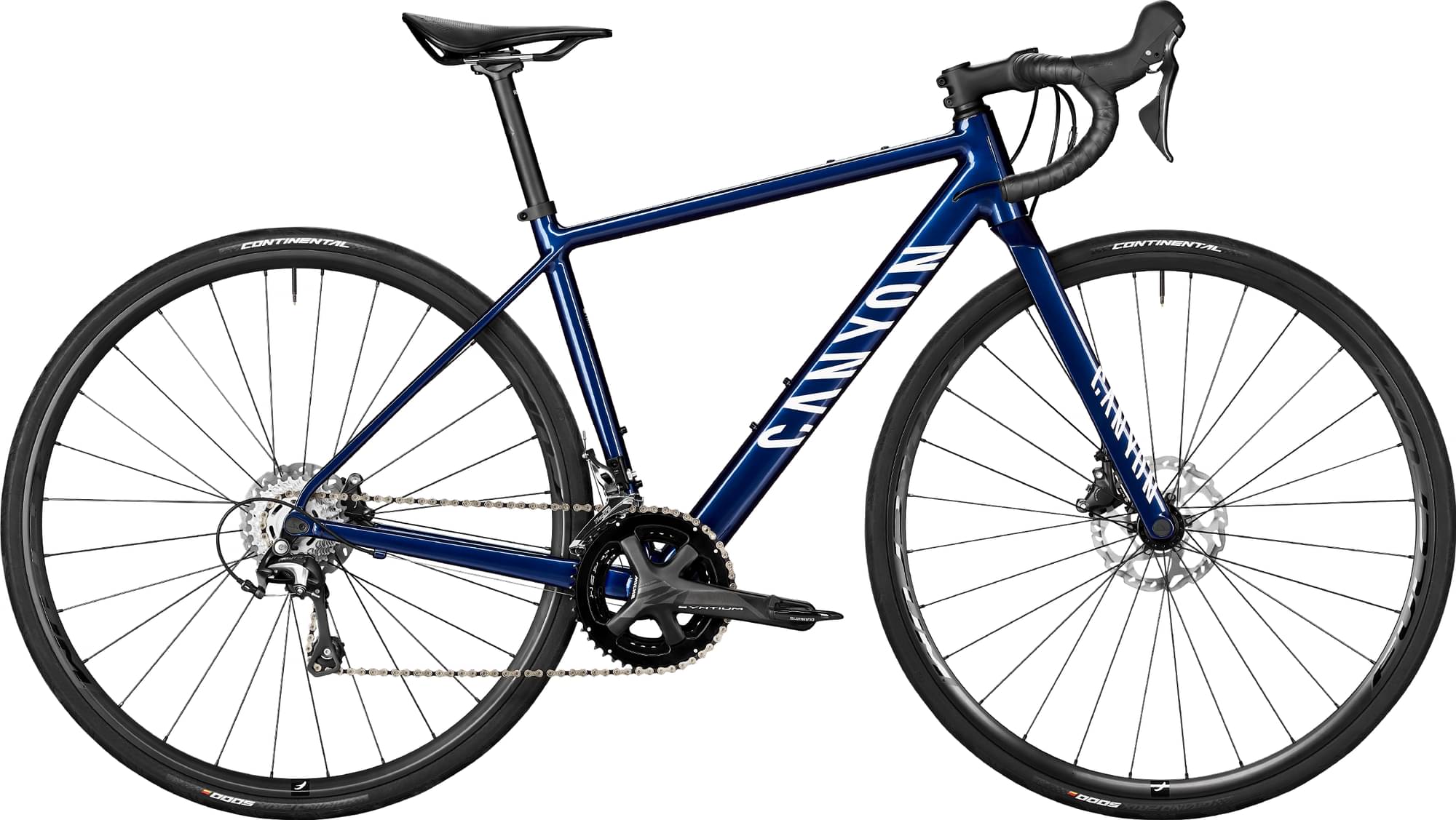

Canyon Ultimate Disc Young Hero 2022
2022 Youth
Estimate price |
1,395$
Weight | 8.99 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Groupset Tiagra, Miche -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XXXS
151cm - 159cm
XS
157cm - 164cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Ultimate Young Hero, Axle dimension: 12x142 mm, Material: Aluminium (AL)
Suspension Fork
Canyon FK0090 CF Disc, Material: carbon, Steerer: 1 1/4”, Axle dimension: 12 x 100 mm, Brake mount: flat mount, Wheelsize: 650B | Canyon FK0089 CF Disc, Material: carbon, Steerer tube diameter: 1 1/4'', Axle dimension: 12 x 100 mm, Brake mount: flat mount, Wheelsize: 700C
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 GS, Rear derailleur for 10-speed shifting systems. Maximum cassette size: 34T.
Front Derailleur
Shimano Tiagra 4700, Braze-on front derailleur for 2x10 shifting systems.
Shift Levers
Shimano Tiagra R4725 2s, Ergonomic shift and brake levers, optimised for riders with smaller hands. With reach adjust and optical gear display. | Shimano Tiagra R4725 11s, Ergonomic shift and brake levers, optimised for riders with smaller hands. With reach adjust and optical gear display.
Cassette
Miche, 10-speed, 18-30
Crank
Miche Syntium | Miche Syntium, Number of chainrings: 2
Bottom Bracket
Miche EVO MAX PF, Durable, robust bottom bracket with technology, materials and seals constructed for long-term performance. BB interface: Pressfit. Axle diameter: 24 mm.
Chain
KMC X10-93 10s, Durable half nickel plated chain.
Pedals
None included
Wheels
Rims
Fulcrum Racing 900 DB, Rotor Mount: Center Lock | Fulcrum Racing 900 DB SH11, Rotor Mount: Center Lock | Fulcrum Racing 900 DB, Rotor Mount: Center Lock | Fulcrum Racing 900 DB SH11, Rotor Mount: Center Lock
Tires
Continental Grand Prix 5000 S II 28 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable, Continental 25 mm | Continental Grand Prix 5000, 28 mm, High-performance foldable clincher tyre made from high-grade BlackChili compound, with Vectran breaker for enhanced puncture protection. TPI: 330, weight: 240 g | Continental Grand Prix 5000 27.5" & 28" Road Tyre | Continental Grand Prix 5000 27.5" & 28" Road Tyre
Brakes
Brakes
mechanicalDisc
Brake Levers
Shimano Tiagra R4725 2s, Ergonomic shift and brake levers, optimised for riders with smaller hands. With reach adjust and optical gear display. | Shimano Tiagra R4725 11s, Ergonomic shift and brake levers, optimised for riders with smaller hands. With reach adjust and optical gear display.
Disk Rotors
Shimano RT70, Disc Mount: Centerlock | Shimano SM-RT70 Brake Rotor
Cockpit
Stem
Canyon V13, High-quality aluminium stem with square cross-sectional profile. A new handlebar clamp design increases torsional stiffness by up to 40%. Handlebar clamp diameter: 31.8 mm. Head tube diameter: 1 1/4". | Canyon V13, High-grade aluminium stem. With new handlebar clamp design for up to 40% more torsional stiffness., Clamp diameter: 31.8 mm, Head tube diameter: 1 1/4” | Canyon V13 | Canyon V13 | Canyon V13
Handlebar
Canyon H17 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 128 mm | Canyon H17 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm | Canyon H17 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Selle Italia Model X, Saddle with central cut-out and flexible wings for maximum comfort. Featuring durable Soft-Tek cover for maximum durability and scratch resistance. Rail material: manganese.
Seatpost
Iridium, Diameter: 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXXS | XS |
|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.49 mm |
| Front Center | 560 mm | 561 mm |
| Rake | 70 mm | 62 mm |
| Stack | 512 mm | 531 mm |
| Reach | 352 mm | 356 mm |
| Top Tube Length | 503 mm | 513 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 402 mm | 432 mm |
| Head Tube Angle | 73.5 ° | 73.5 ° |
| Head Tube Length | 122 mm | 139 mm |
| Chainstay Length | 407 mm | 407 mm |
| Wheelbase | 959 mm | 960 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Standover Height | 682 mm | 693 mm |
| Wheels | 27" | 700 |
| Rider Min Height | 151 cm | 157 cm |
| Rider Max Height | 159 cm | 164 cm |
Model Overview
Ultimate Disc Young Hero is part of the Canyon Ultimate Disc Young Hero model. Canyon released 1 bike variation of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Road bikes
Our math shows that the average cost of a dependable Road bike is 365$. However, this doesn’t mean that if you spend less money on a Road bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Ultimate Disc Young Hero price was 1273$. In conclusion, this bike price is 248.77% more expensive than the price of the average Road bike.
Average weight for Road bikes
If we make a quick analysis of the average weight of a Road bike, we get 11.29 kg (24.89 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Ultimate Disc Young Hero weighs 8.99 kg (19.82 lbs) and is much lighter than the average. To sum up, it’s 25.58% lighter than the average weight of Road bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Ultimate Disc Young Hero model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Ultimate Disc Young Hero is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 2 sizes. They vary from 151 cm – 164 cm (4.95 ft – 5.38 ft). In short, it won’t be difficult to find the right one for you.
