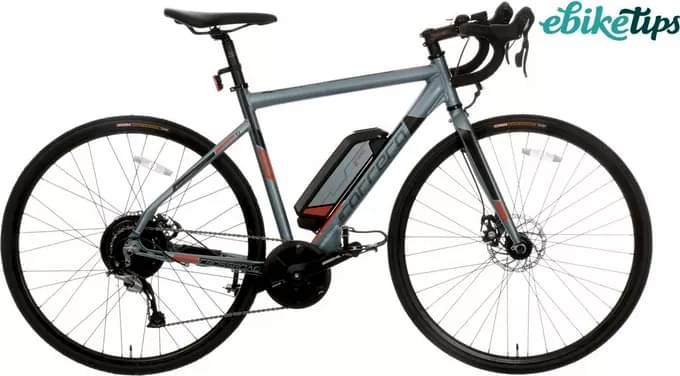

Carrera Crossroad Electric Road Bike 2024
2024 E-bike
Weight | 19 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT, Suntour -
Suspension Rigid -
Motor 60Nm hub-drive -
Drivetrain 1 × 9 -
Brakes Tektro Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Road
Suspension Fork
Alloy fork
Drivetrain
Shift Levers
Microshift SB-R490-R, 9SPD
Cassette
Shimano CS-HG200-9, 9-SPD, 11-32T
Crank
Suntour - Double Chain Guard - 42T - Alloy
Bottom Bracket
Suntour BB8-XCT-SQS122E-73-CBT
Chain
KMC X9
Pedals
9/16 Black Resin w/toe clips
Wheels
Front Hub
Formula DC-20 Alloy - Quick Release - 36H
Rear Hub
Suntour Rear Performance Motor - 60nm Torque - 36H
Tires
700 x 32
Brakes
Brakes
Front: Tektro Mechanical Disc - 180mm Rotor, Rear: Tektro, Mechanical Disc Brake
Cockpit
Stem
Clamp 31.8mm, Reach - 90mm (Small), 100mm (Medium), 110mm (Large / Xlarge)
Handlebar
Alloy - Width- 400mm (Small Model), 420mm (Medium Model), 440mm (Large / XL Model), Drop: 120mm, Reach: 75mm, Bore: 31.8mm
Grips
Velo Black Comfort Cork Grip
Headset
1/18 Ahead - Steel Black
Seat
Saddle
Velo High Density Foam
Seatpost
31.6mm x 350mm
Motor & Battery
Motor
Suntour Rear Performance Motor - 60nm Torque - 36H
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.394 mm | 1.394 mm | 1.465 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Stack | 548 mm | 548 mm | 586 mm |
| Reach | 393 mm | 393 mm | 400 mm |
| Top Tube Length | 535 mm | 555 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 510 mm | 540 mm | 580 mm |
| Head Tube Angle | 72.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 125 mm | 145 mm | 185 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
