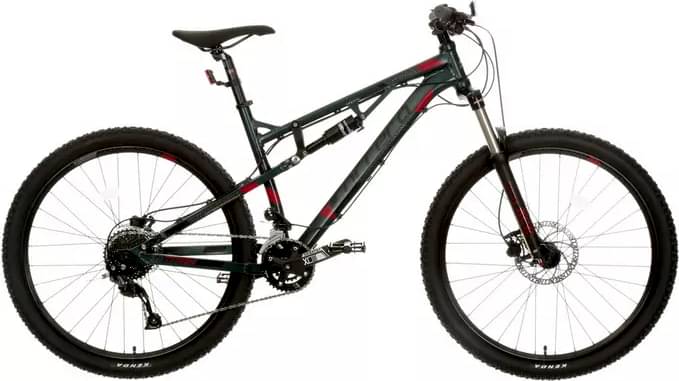

Carrera Titan Mens Full Suspension Mountain Bike 2024
2024 Mountain
Estimate price |
928$
Weight | 15.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset Alivio -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New Carrera 2019 FS
Suspension Fork
Suntour XCR 32
Rear Shock
Suntour Raidon LO-R Air, 190x51mm
Drivetrain
Rear Derailleur
Shimano Alivio 7/8 speed, M310
Front Derailleur
Shimano Alivio, 9 speed direct mount, M2000
Shift Levers
Shimano Alivio M3000, 2x9
Cassette
Shimano HG200 9 speed 11-36T
Crank
Suntour XCM, Square Taper, 36/22T (S - 170mm, M/L - 175mm)
Bottom Bracket
Sealed bearing, 73x127
Chain
KMC X9
Pedals
Alloy Black MTB, 9/16"
Wheels
Front Hub
Alloy, 9x100m quick release
Rear Hub
Alloy, 10x135mm quick release, 8/9/10 speed freehub body
Rims
Carrera double-wall alloy, 32H
Tires
Kenda Kadre tyre with Carrera Puncture Protect
Brakes
Brakes
Front: Tektro, Hydraulic Disc, 180mm Rotor, Rear: Tektro, Hydraulic Disc, 160mm Rotor
Cockpit
Stem
Carrera alloy, 45mm, 31.8mm clamp
Handlebar
Carrera Alloy, 31.8mm clamp, 12mm rise (Width: all sizes - 720mm)
Grips
Carrera by Velo
Headset
Semi-Integrated, 1 1/8" (44/44mm)
Seat
Saddle
Carrera Memory Foam Saddle
Seatpost
Carrera Alloy, 31.6 x 350mm, 34.9mm seat clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.457 mm | 1.399 mm | 1.373 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Stack | 593 mm | 600 mm | 607 mm |
| Reach | 407 mm | 429 mm | 442 mm |
| Top Tube Length | 561 mm | 584 mm | 603 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 460 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 120 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
