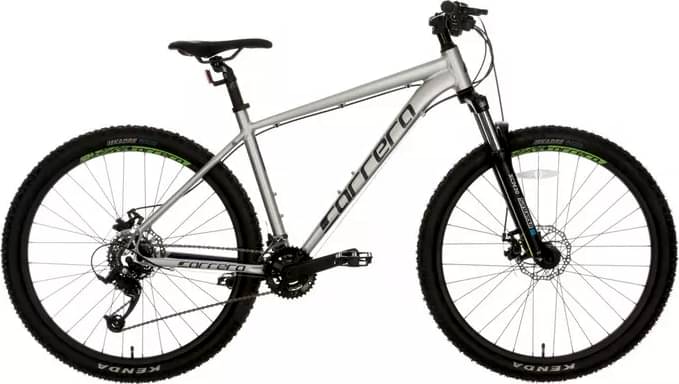

Carrera Valour Disc Mens Mountain Bike 2024
2024 Mountain
Estimate price |
488$
Weight | 14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset microSHIFT Mezzo -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
Suntour XCM, 100mm travel
Drivetrain
Rear Derailleur
Microshift RD-M25L
Front Derailleur
Microshift FD-M282, 34.9mm clamp
Shift Levers
Microshift TS39-28, 2x10
Cassette
Microshift CS-H081, 8-Speed, 11-34T
Crank
Prowheel 36x22, square taper (XS - 165mm, S - 170mm, M/L/XL - 175mm)
Bottom Bracket
Sealed Bearing 73x119mm
Chain
KMC 8-speed
Pedals
Alloy MTB pedal, 9/16"
Wheels
Front Hub
Black, alloy, Quick release 9x100mm
Rear Hub
Black, alloy, Quick release 10x135mm
Rims
Carrera double-wall alloy, 32H
Tires
Carrera Puncture Protect by Kenda, MTB
Brakes
Brakes
Rear: Mechanical disc brake, 160mm rotor
Cockpit
Stem
Carrera alloy, 45mm, 3 degree rise, 31.8mm clamp
Handlebar
Carrera Riser Bar, 20mm rise, 31.8mm clamp, Width XS/S - 720mm M/L/XL - 740mm
Grips
Carrera MTB
Headset
Semi-integrated, 1 1/8"
Seat
Saddle
Carrera MTB
Seatpost
Carrera Alloy, 31.6mm, 34.9mm clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Top Tube Length | 560 mm | 582 mm | 605 mm | 625 mm | 645 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 410 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
