Bike details
Overview
Key information split into simple groups.

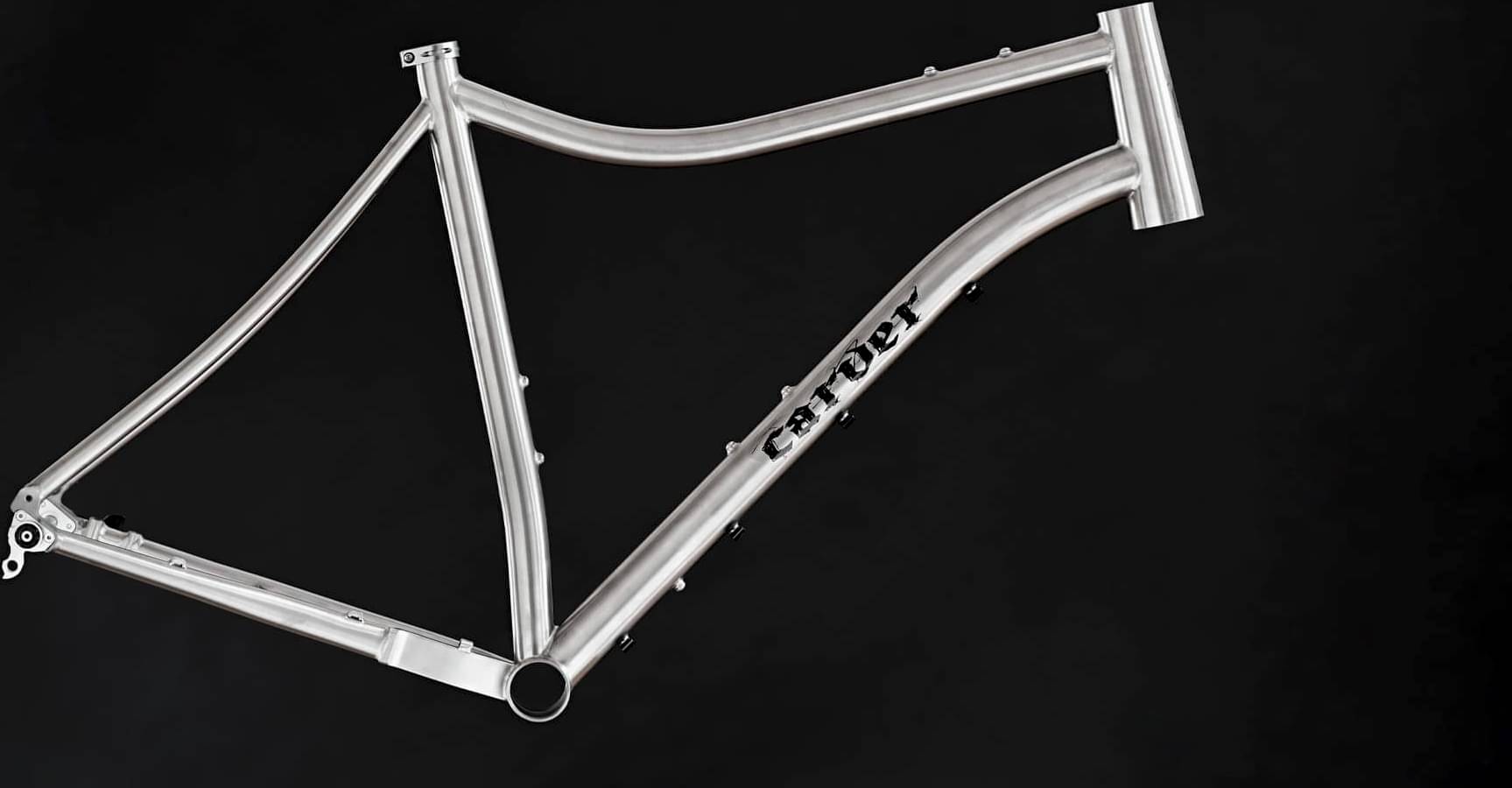

Frame summary
-
-

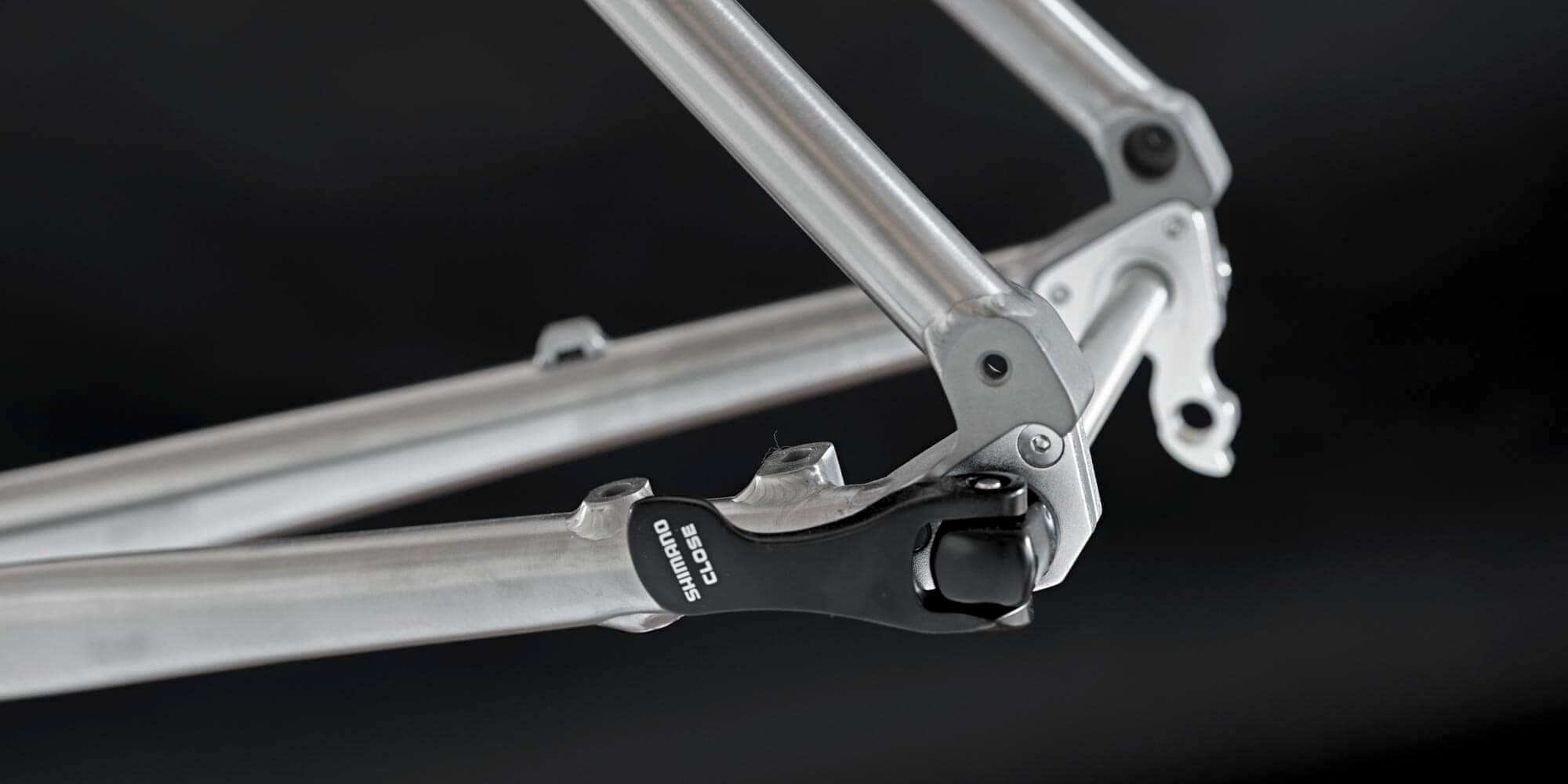

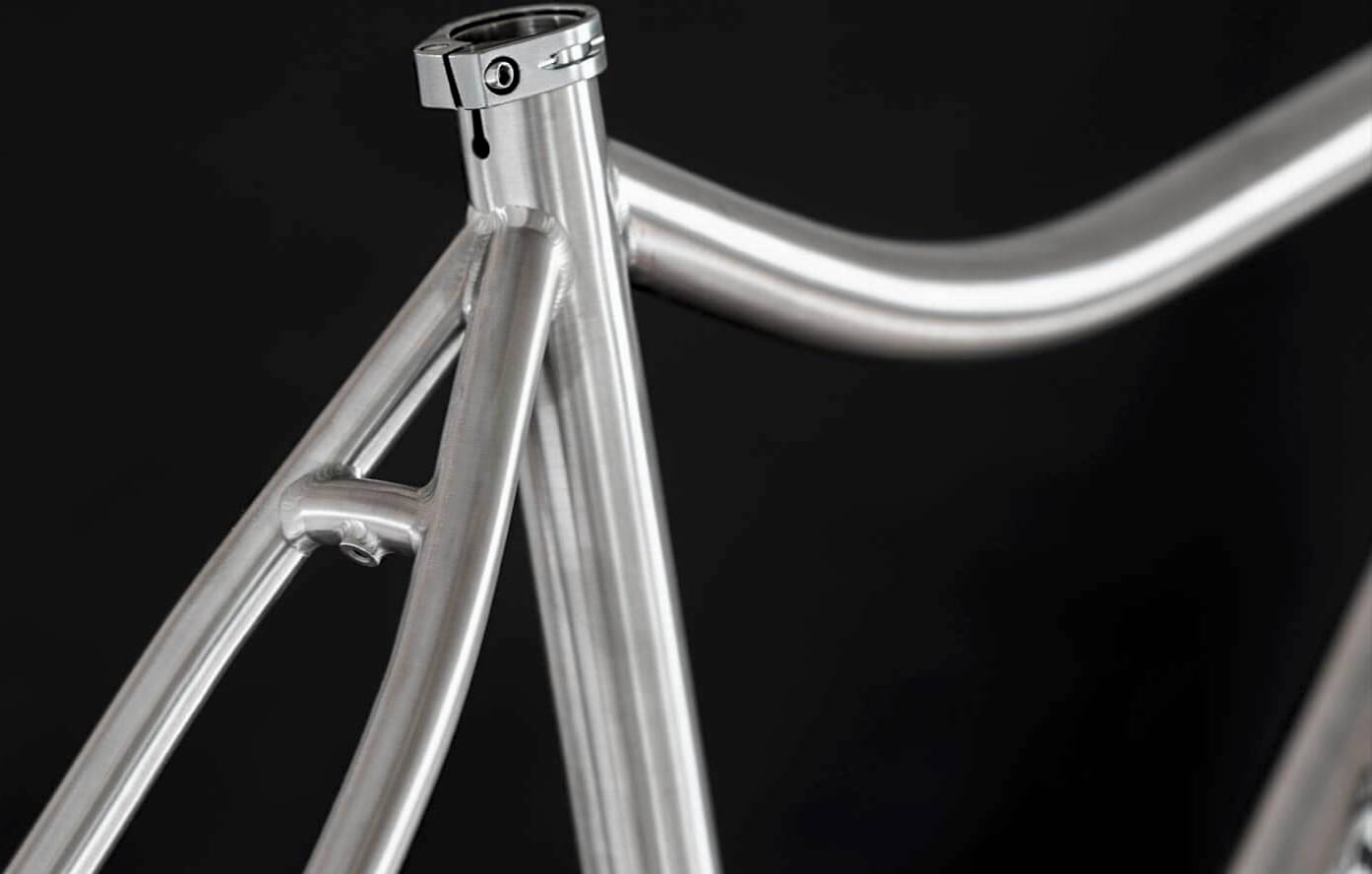

Frame Titanium -
Suspension Rigid
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Wheels
Tires
Clearance for 700 x 45 and 650b x 50 tires
Seat
Seatpost
31.6mm seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.408 mm | 1.395 mm | 1.409 mm | 1.466 mm | 1.509 mm | 1.583 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm |
| Stack | 531 mm | 537 mm | 555 mm | 585 mm | 614 mm | 652 mm |
| Reach | 377 mm | 385 mm | 394 mm | 399 mm | 407 mm | 412 mm |
| Top Tube Length | 529 mm | 542 mm | 558 mm | 573 mm | 589 mm | 603 mm |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 105 mm | 120 mm | 150 mm | 180 mm | 220 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
