carver Titanium Gnarvester 2024

2024 Mountain

Estimate price | 1,499$

Open compare Use advisor

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Mountain
- |
- Trail

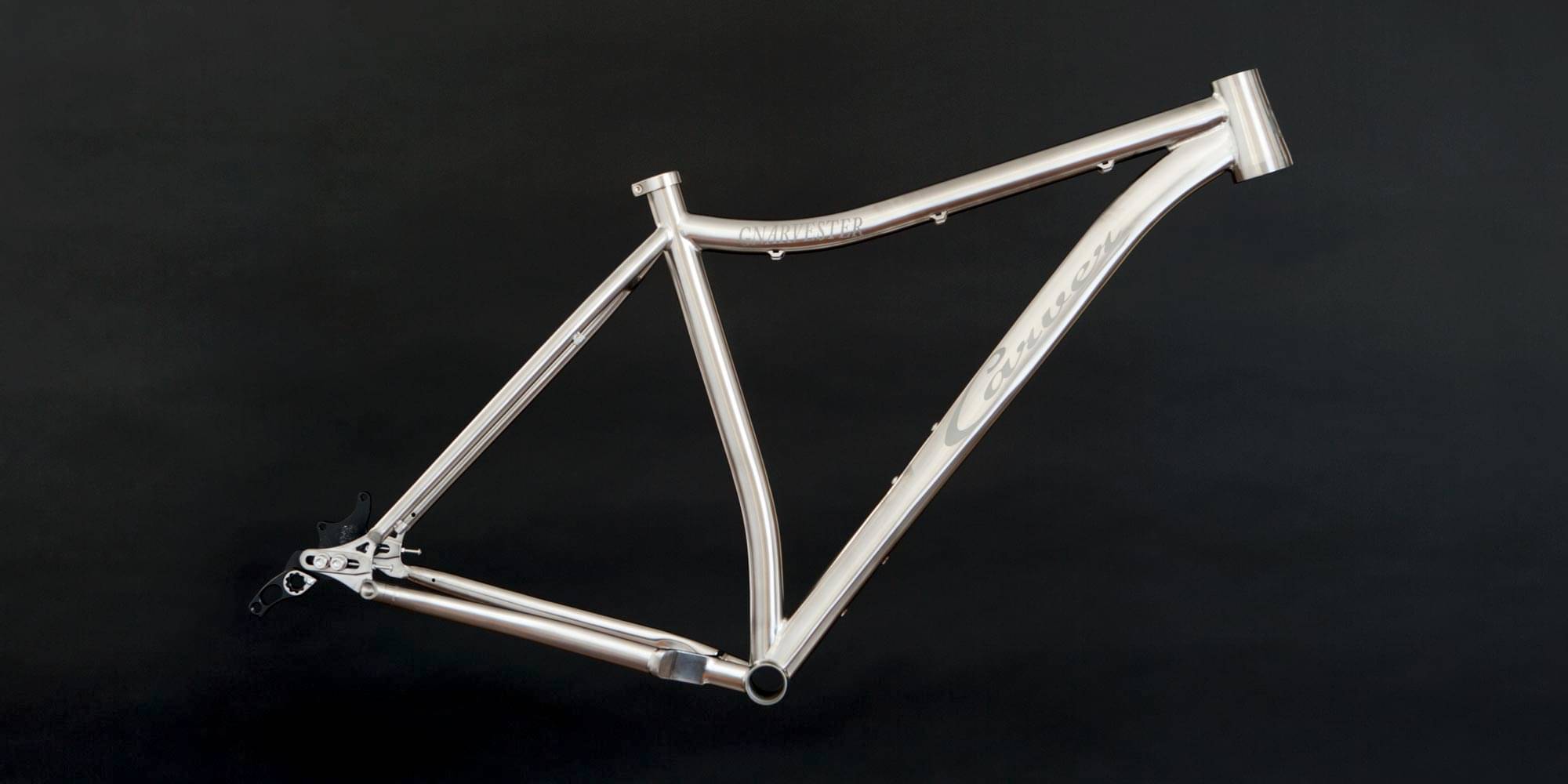

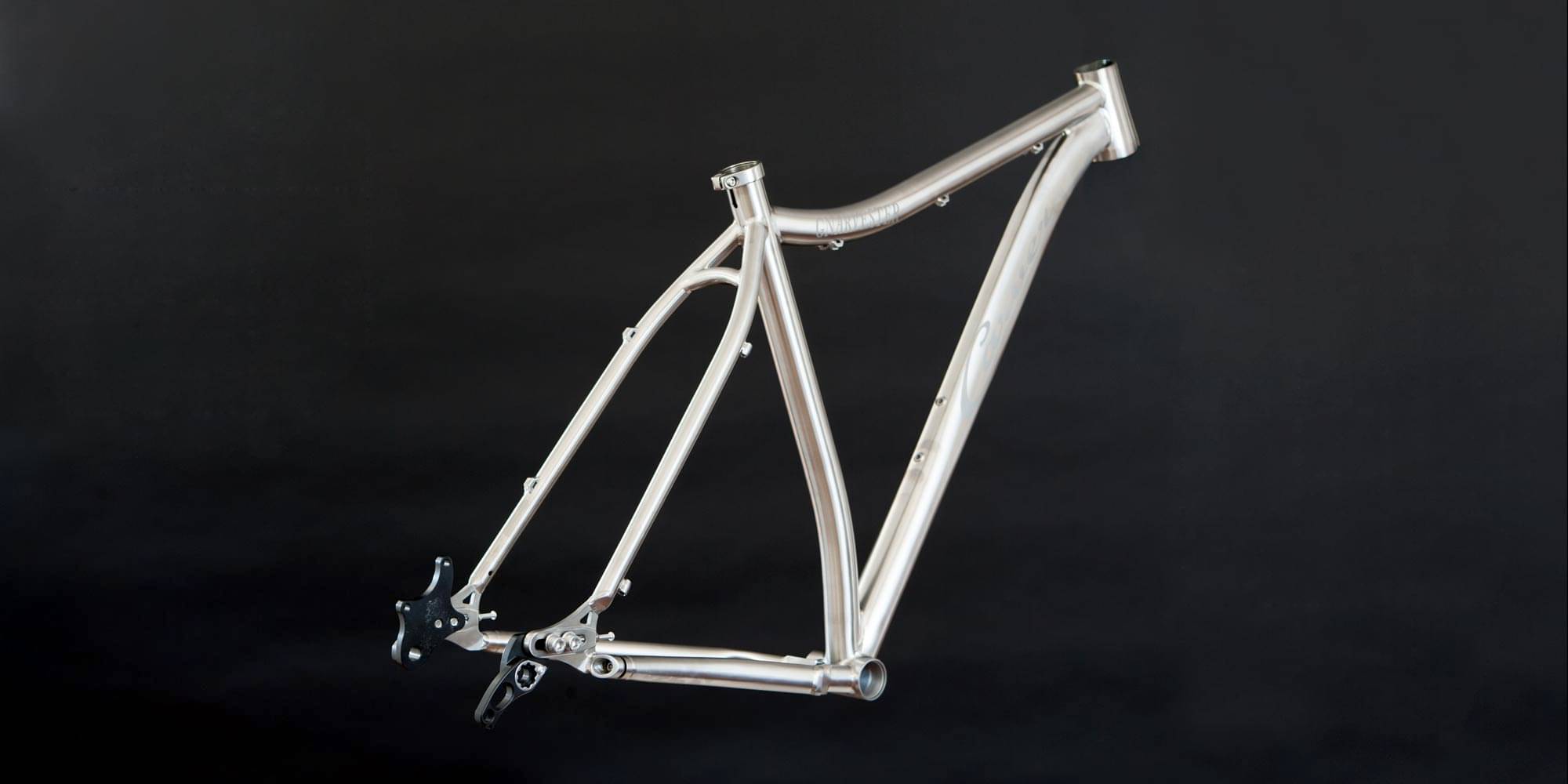

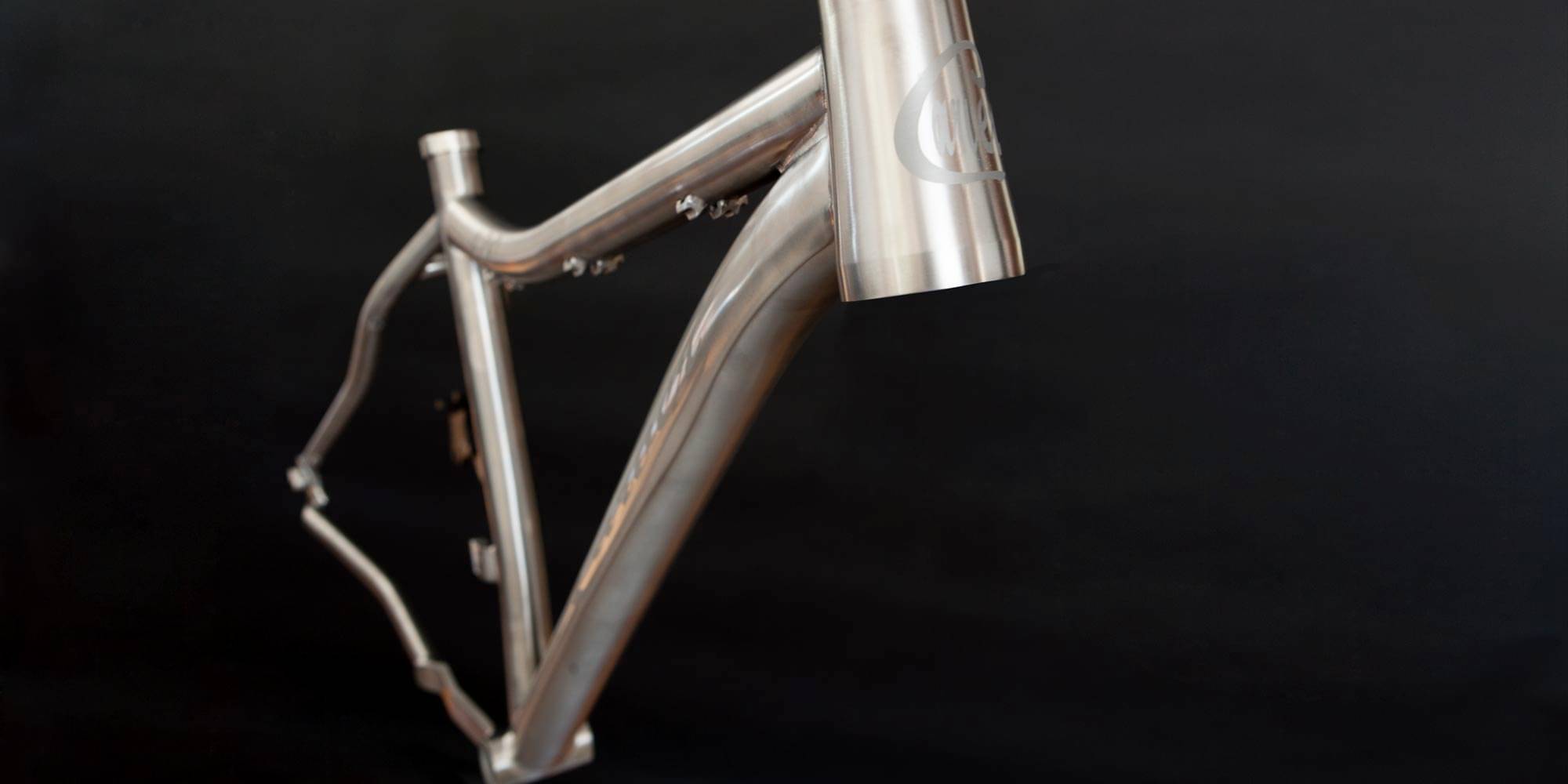

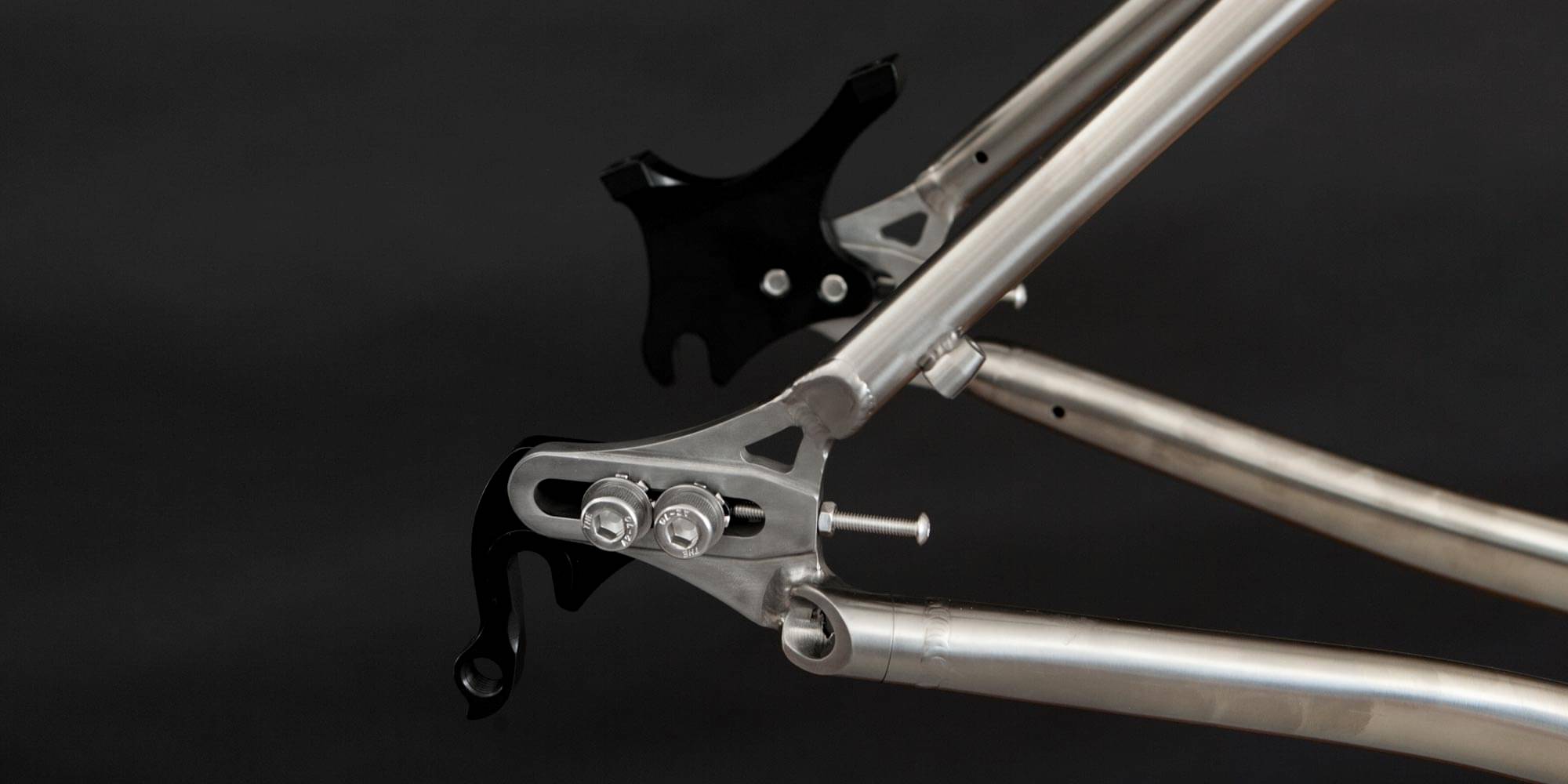

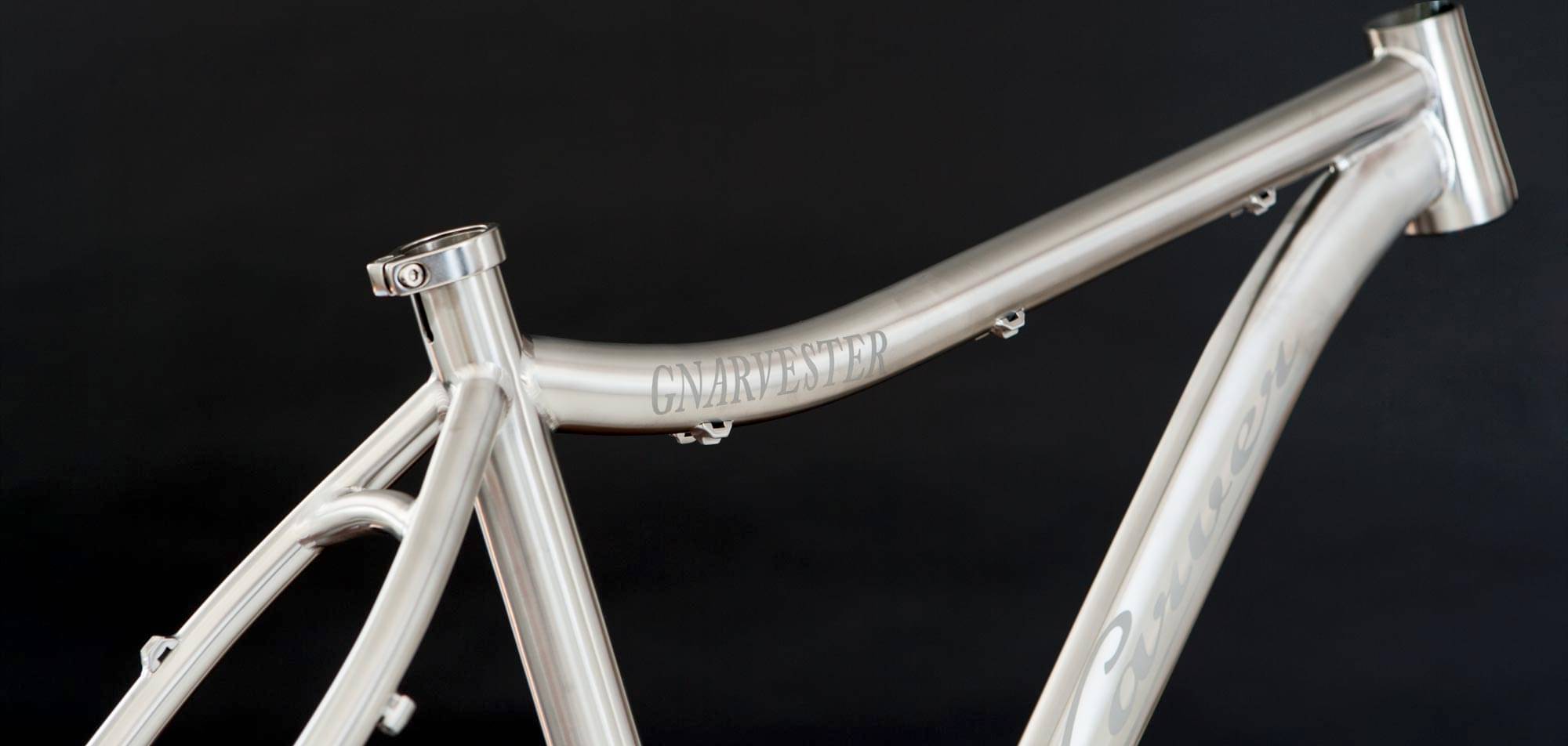

Frame Titanium

Parts list

Components

Main components, grouped by system.

Bike components

Drivetrain

Bottom Bracket

73mm BB shell

Seat

Seatpost

31.6mm seatpost

Fit data

Geometry

Numbers for sizing and ride feel.

Size	15"	16"	17"	18"	19"	20"	21"	22"	23"	24"
Stack Reach Ratio	1.657 mm	1.606 mm	1.554 mm	1.506 mm	1.46 mm	1.451 mm	1.498 mm	1.455 mm	1.415 mm	1.38 mm
Bottom Bracket Height	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm
Stack	628 mm	628 mm	628 mm	628 mm	628 mm	637 mm	665 mm	665 mm	665 mm	665 mm
Reach	379 mm	391 mm	404 mm	417 mm	430 mm	439 mm	444 mm	457 mm	470 mm	482 mm
Top Tube Length	559 mm	572 mm	584 mm	597 mm	610 mm	622 mm	635 mm	648 mm	660 mm	673 mm
Seat Tube Angle	74 °	74 °	74 °	74 °	74 °	74 °	74 °	74 °	74 °	74 °
Seat Tube Length	381 mm	406 mm	432 mm	457 mm	483 mm	508 mm	533 mm	559 mm	584 mm	610 mm
Head Tube Angle	67 °	67 °	67 °	67 °	67 °	67 °	67 °	67 °	67 °	67 °
Head Tube Length	100 mm	100 mm	100 mm	100 mm	100 mm	110 mm	140 mm	140 mm	140 mm	140 mm
Chainstay Length	440 mm	440 mm	440 mm	440 mm	440 mm	440 mm	440 mm	440 mm	440 mm	440 mm
Bottom Bracket Drop	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm
Wheels	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"
