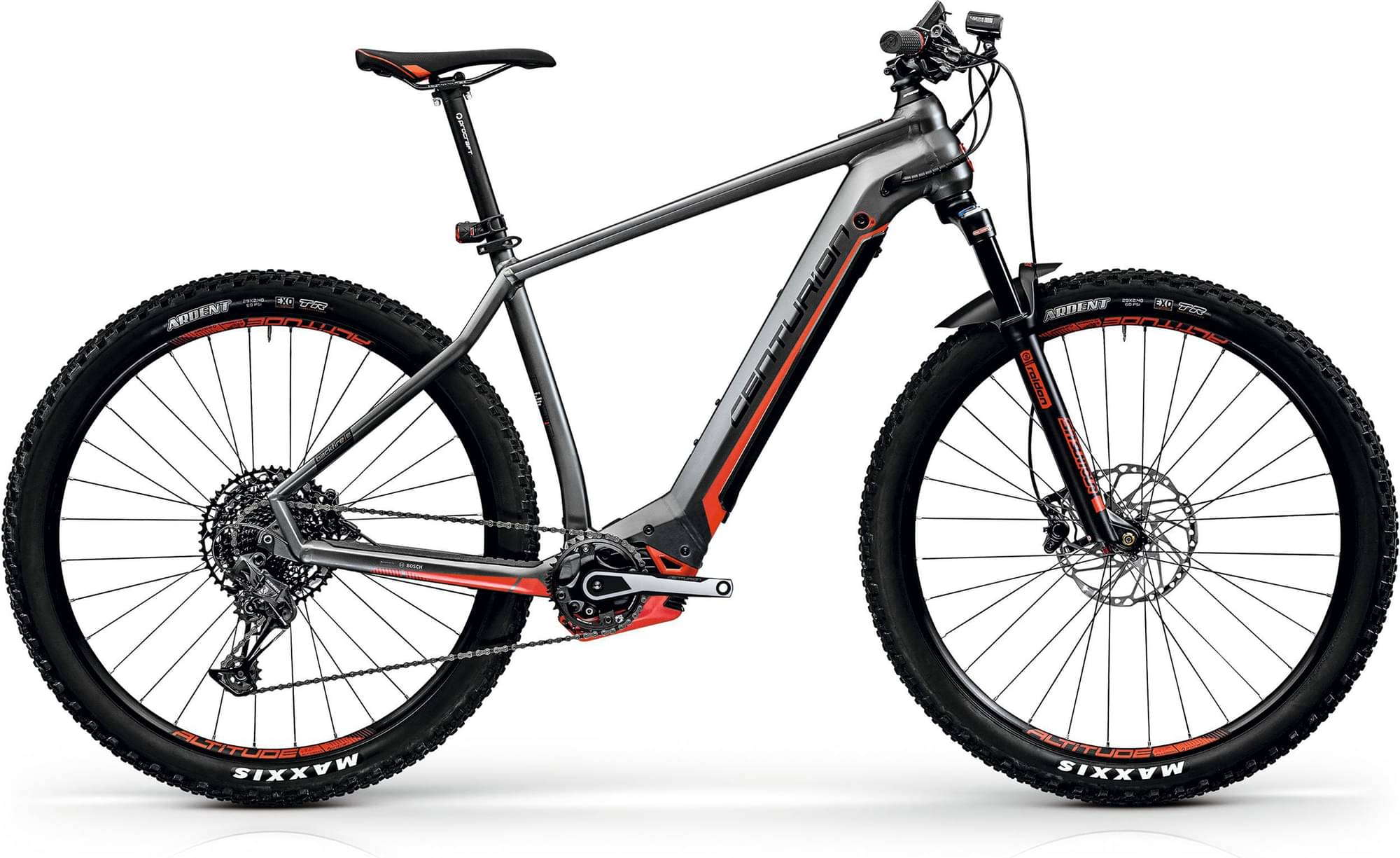

centurion Backfire E R860i 2024
2024 E-bike
Weight | 22.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour RAIDON
-
Groupset NX Eagle, SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Backfire R intube, Material: Aluminium, 29", Steuerrohr: 1.5" straight, Ausfallende: 12x148 mm, Bremsaufnahme: Postmount 180 mm, Rahmenkennung: TBP033A
Suspension Fork
SR Suntour Raidon 34 Boost LOR, Federweg: 100 mm, 1.5" tapered
Drivetrain
Rear Derailleur
SRAM SX Eagle, 1x12
Shift Levers
SRAM NX Eagle single click
Cassette
SRAM SX Eagle, CS PG-1210 Eagle, 11-50T
Crank
CENTURION R Pro II Gen4, mattschwarz/Alu gebürstet, Länge: 170 mm (XS), 175 mm (S/M, M/L, XL), CK-790
Chain
SRAM SX Eagle, CN SX Eagle-12, Kettenlänge: 120 Links
Chain Guide
CENTURION Trail R, passend für Bosch Performance Line CX Gen4
Pedals
VP-537
Wheels
Front Hub
Shimano HB-MT400-B / Shimano FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rear Hub
Shimano HB-MT400-B / Shimano FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rims
PROCRAFT Altitude MD30, IW 30 mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
Maxxis Ardent, 29x2.4", tubeless ready, EXO
Brakes
Brakes
Shimano Deore, BR-M6100, resin pad
Brake Levers
Shimano Deore, BL-M6100
Cockpit
Stem
PROCRAFT Comp II, Winkel: 7°, Länge: 50 mm (XS), 60 mm (S/M), 60 mm (M/L), 70 mm (XL)
Handlebar
PROCRAFT Riser Pro, Durchmesser: 31.8 mm, Breite: 720 mm, Rise: 22 mm
Seat
Saddle
PROCRAFT Race
Seatpost
PROCRAFT Pro II, Durchmesser: 30.9 mm, Länge: 350 mm (XS, S/M), 400 mm (M/L, XL)
Motor & Battery
Motor
Bosch Performance Line CX, max. 85 Nm, 250 W
Battery
Bosch PowerTube 625 Wh
Charger
Bosch Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM/MD | MD/LG | XL |
|---|---|---|---|---|
| Stack | 630 mm | 648 mm | 667 mm | 686 mm |
| Top Tube Length | 595 mm | 621 mm | 646 mm | 672 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1145 mm | 1173 mm | 1200 mm | 1228 mm |
| Wheels | 29" | 29" | 29" | 29" |
