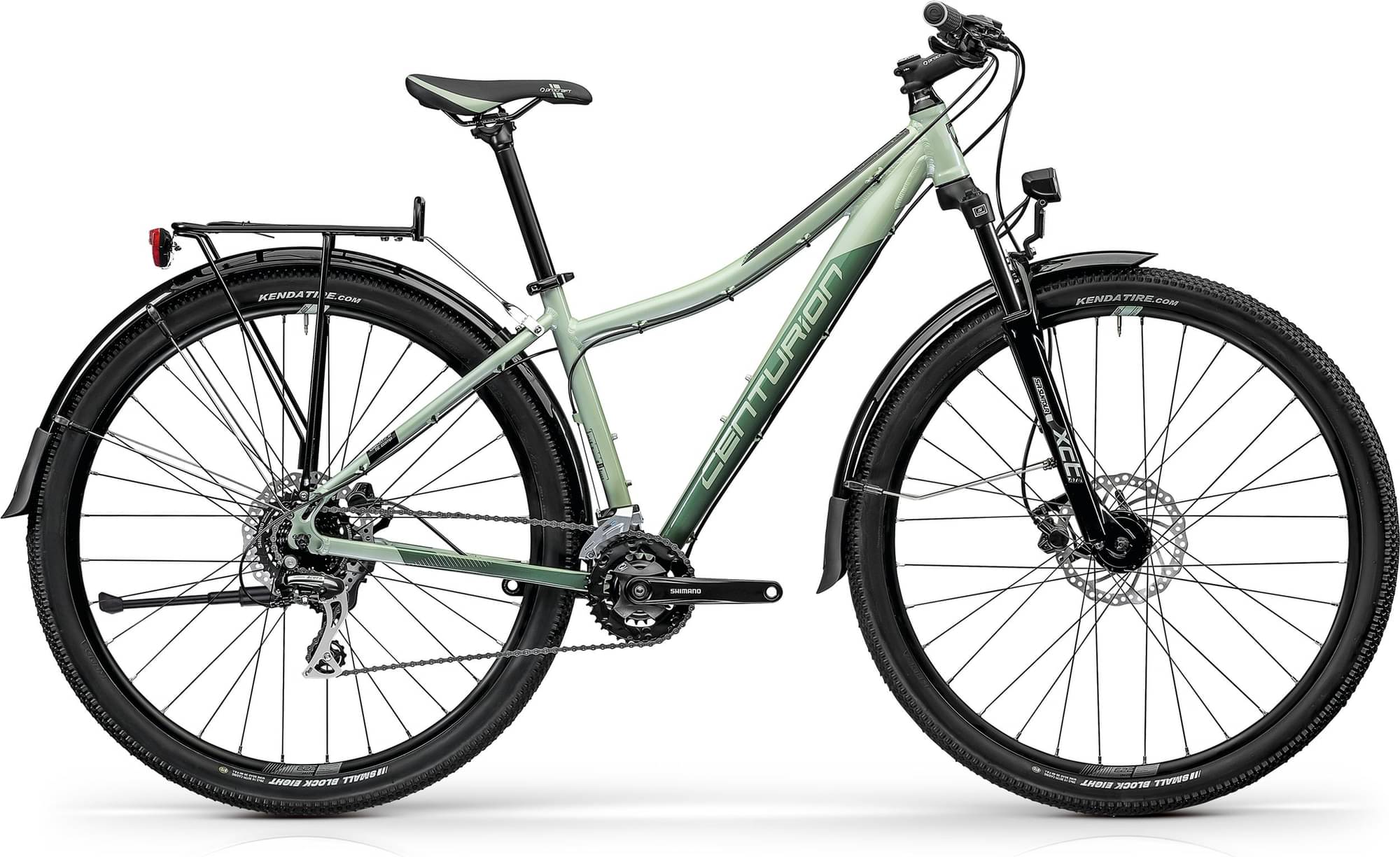

centurion Backfire Fit Comp 50 EQ 2024
2024 Mountain
Weight | 16.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Acera -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
145cm - 159cm
XS
157cm - 168cm
SM
165cm - 176cm
SM
165cm - 176cm
MD
174cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Backfire Fit Comp, Material: Aluminium, Steuerrohr: 1 1/8" straight, Ausfallende: 10x135mm, Bremsaufnahme: IS/Postmount
Suspension Fork
SR SUNTOUR XCT ATB, Federweg: 100mm, pre load adjuster, 1 1/8" straight
Drivetrain
Rear Derailleur
SHIMANO Acera, RD-M3020-8, 2x8
Front Derailleur
SHIMANO FD-M315 TS, Durchmesser: 34.9mm, top-swing
Shift Levers
SHIMANO SL-M315-2L / SHIMANO SL-M315-8R, mit Ganganzeige
Cassette
SHIMANO HG31, 11-34T
Crank
SHIMANO FC-M315-2 36-22T, Länge: 175mm (29"), 170mm (27.5")
Chain
KMC Z8.3
Pedals
VP VPE-899
Wheels
Front Hub
SHIMANO DH-3D32-QR / SHIMANO FH-TX506, HUB DYNAMO, 6V, 3W, 9x100mm, 32H, 10x135mm, 32H
Rear Hub
SHIMANO DH-3D32-QR / SHIMANO FH-TX506, HUB DYNAMO, 6V, 3W, 9x100mm, 32H, 10x135mm, 32H
Rims
PROCRAFT JD 200, IW 20mm
Spokes
PROCRAFT stainless 2.0
Tires
KENDA Small Block Eight 27.5/29x2.10"
Brakes
Brakes
TEKTRO HD-M275, organic pads
Brake Levers
TEKTRO HD-M276
Cockpit
Stem
PROCRAFT Comp II, Winkel: 7°, Länge: 60mm (XXS), 70mm (XS), 80mm (S), 90mm (M), 100mm (L)
Handlebar
PROCRAFT Riser Comp, Durchmesser: 31.8mm, Breite: 680mm (27.5"), 720mm (29"), Rise: 25mm
Seat
Saddle
PROCRAFT Sport Comfort
Seatpost
PROCRAFT Comp II, Durchmesser: 27.2mm, 27.5": Länge: 350mm, 29": Länge: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM | MD |
|---|---|---|---|---|---|
| Stack | 599 mm | 618 mm | 637 mm | 637 mm | 656 mm |
| Top Tube Length | 545 mm | 562 mm | 579 mm | 579 mm | 595 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 380 mm | 430 mm | 430 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 100 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 440 mm | 440 mm |
| Wheelbase | 1047 mm | 1066 mm | 1084 mm | 1083 mm | 1101 mm |
| Wheels | 27" | 27" | 27" | 29" | 29" |
| Rider Min Height | 145 cm | 157 cm | 165 cm | 165 cm | 174 cm |
| Rider Max Height | 159 cm | 168 cm | 176 cm | 176 cm | 183 cm |
