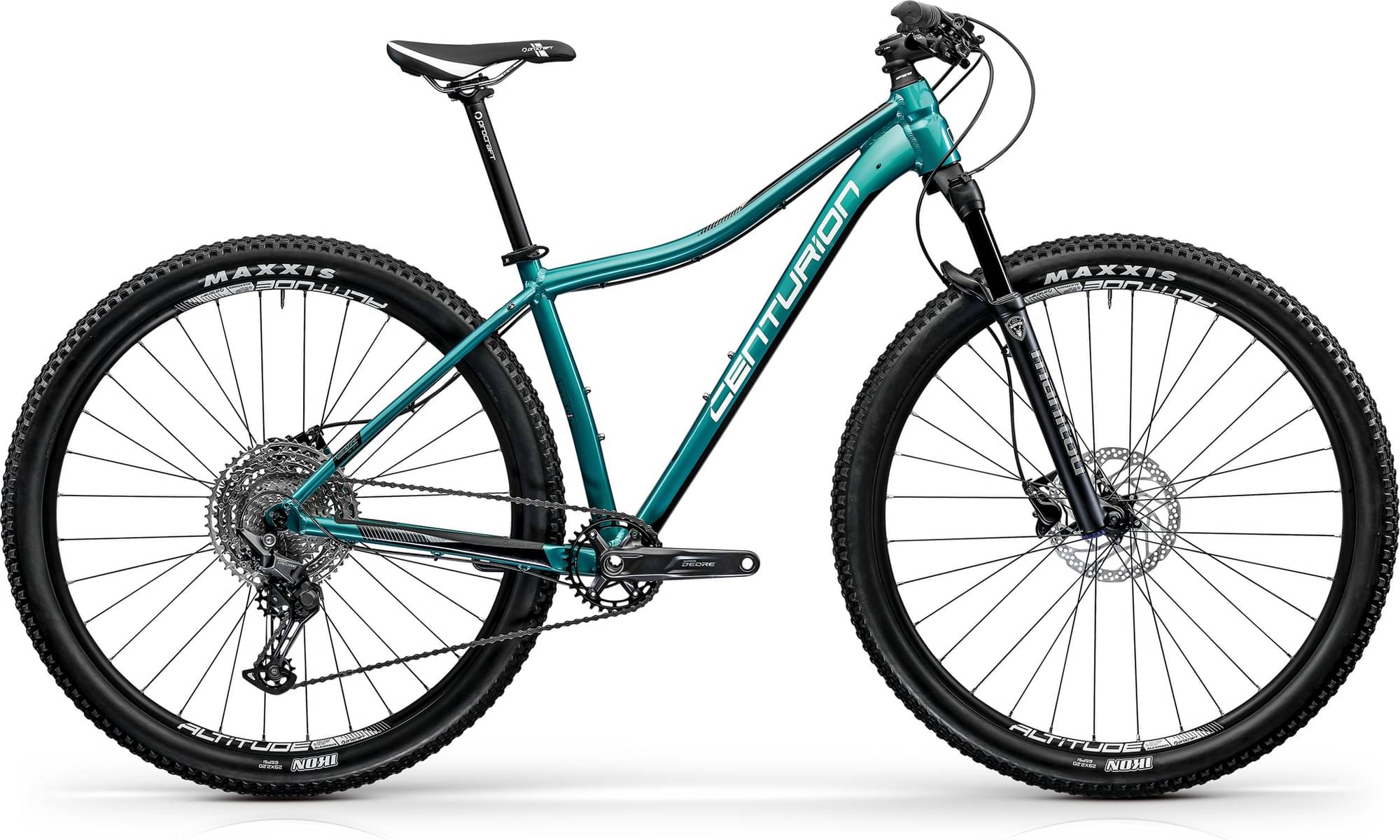

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour EPIXON
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
145cm - 159cm
XS
157cm - 168cm
SM
165cm - 176cm
SM
165cm - 176cm
MD
174cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Backfire Fit Pro, Material: Aluminium, Steuerrohr: 1 1/8"-1.5", Ausfallende: 10x135mm, Bremsaufnahme: Postmount 160mm
Suspension Fork
SR Suntour Epixon 9 RLR, Federweg: 100mm, 2-Pos Remote Lockout, 1.5" tapered
Drivetrain
Rear Derailleur
SHIMANO CUES, RD-U6000, 1x11
Shift Levers
SHIMANO CUES, SL-U6000-11R, mit Ganganzeige
Cassette
SHIMANO CUES, CS-LG400-11, 11-50T
Crank
SHIMANO CUES 32T, FC-U6000-1, narrow-wide, Länge: 175mm, 170mm (27.5")
Chain
SHIMANO CN-LG500
Pedals
VP VPE-899
Wheels
Front Hub
SHIMANO HB-QC300 / SHIMANO FH-QC300-HM, 9x100mm, 32H, 10x135mm, 32H
Rear Hub
SHIMANO HB-QC300 / SHIMANO FH-QC300-HM, 9x100mm, 32H, 10x135mm, 32H
Rims
PROCRAFT Altitude MD23, IW 23mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
MAXXIS Ikon 27.5/29x2.20"
Brakes
Brakes
SHIMANO BR-MT410, resin pad
Brake Levers
SHIMANO BL-M4100
Cockpit
Stem
PROCRAFT Comp II, Winkel: 7°, Länge: 60mm (XXS), 70mm (XS), 80mm (S), 90mm (M)
Handlebar
PROCRAFT Riser Pro, Durchmesser: 31.8mm, Breite: 680mm (27.5"), 720mm (29"), Rise: 22mm
Seat
Saddle
PROCRAFT Sport Comfort
Seatpost
PROCRAFT Pro III, Durchmesser: 27.2mm, 27.5": Länge: 350mm, 29": Länge: 350mm (S), 400mm (M)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM | MD |
|---|---|---|---|---|---|
| Stack | 588 mm | 607 mm | 626 mm | 626 mm | 645 mm |
| Top Tube Length | 543 mm | 561 mm | 578 mm | 578 mm | 596 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 380 mm | 430 mm | 430 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 115 mm | 135 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 440 mm | 440 mm |
| Wheelbase | 1044 mm | 1064 mm | 1082 mm | 1093 mm | 1112 mm |
| Wheels | 27" | 27" | 27" | 29" | 29" |
| Rider Min Height | 145 cm | 157 cm | 165 cm | 165 cm | 174 cm |
| Rider Max Height | 159 cm | 168 cm | 176 cm | 176 cm | 183 cm |
