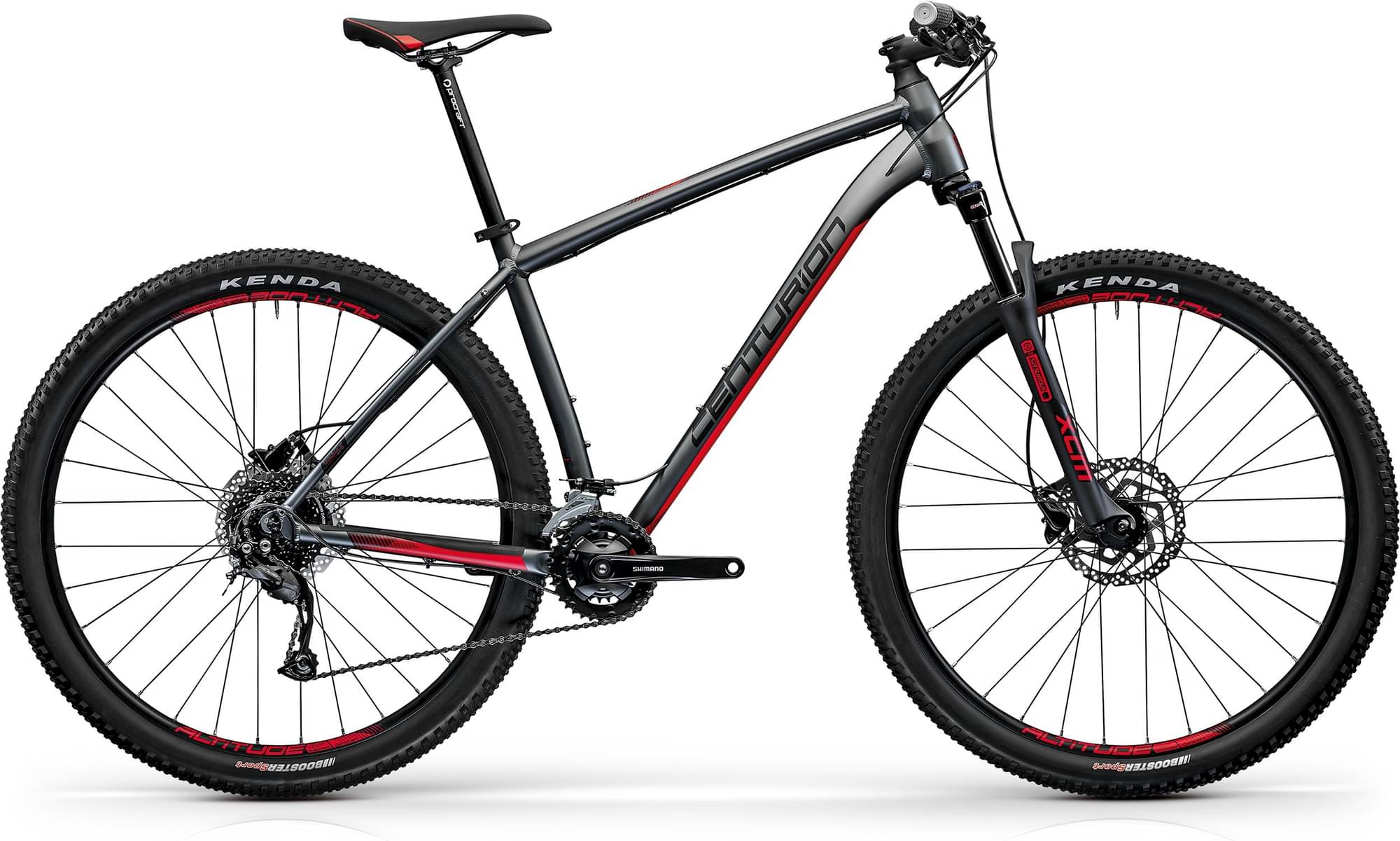

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Backfire Pro, Material: Aluminium, 29", Steuerrohr: 1 1/8"-1.5", Ausfallende: 10x135mm, Bremsaufnahme: Postmount 160mm
Suspension Fork
SR SUNTOUR XCM HLO, Federweg: 100mm, Lockout, 1 1/8" straight
Drivetrain
Rear Derailleur
SHIMANO CUES, RD-U3020, 2x9
Front Derailleur
SHIMANO CUES, FD-U4000-M, Durchmesser: 34.9mm, side-swing
Shift Levers
SHIMANO CUES, SL-U4000-L, mit Ganganzeige, SL-U4000-9R, mit Ganganzeige
Cassette
SHIMANO CUES, CS-LG300-9, 11-36T
Crank
SHIMANO CUES 36-22T, FC-U4000-2, Länge: 170mm (XS), 175mm (S, M, L, XL)
Chain
SHIMANO CN-LG500
Pedals
VP VPE-899
Wheels
Front Hub
SHIMANO HB-M475 / SHIMANO FH-M475, 9x100mm, 32H, 10x135mm, 32H
Rear Hub
SHIMANO HB-M475 / SHIMANO FH-M475, 9x100mm, 32H, 10x135mm, 32H
Rims
PROCRAFT Altitude MD23, IW 23mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
MAXXIS Ikon 29x2.20"
Brakes
Brakes
TEKTRO HD-M275, organic pad
Brake Levers
TEKTRO HD-M275
Cockpit
Stem
PROCRAFT Comp II, Winkel: 7°, Länge: 70mm (XS), 80mm (S), 90mm (M), 100mm (L), 110mm (XL)
Handlebar
PROCRAFT Riser Race, Durchmesser: 31.8mm, Breite: 720mm, Rise: 15mm
Seat
Saddle
PROCRAFT Race
Seatpost
PROCRAFT Pro III, Durchmesser: 27.2mm, Länge: 350mm (XS, S), 400mm (M, L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack | 608 mm | 622 mm | 640 mm | 659 mm | 678 mm |
| Top Tube Length | 583 mm | 601 mm | 619 mm | 636 mm | 654 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 110 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1096 mm | 1115 mm | 1135 mm | 1153 mm | 1173 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
