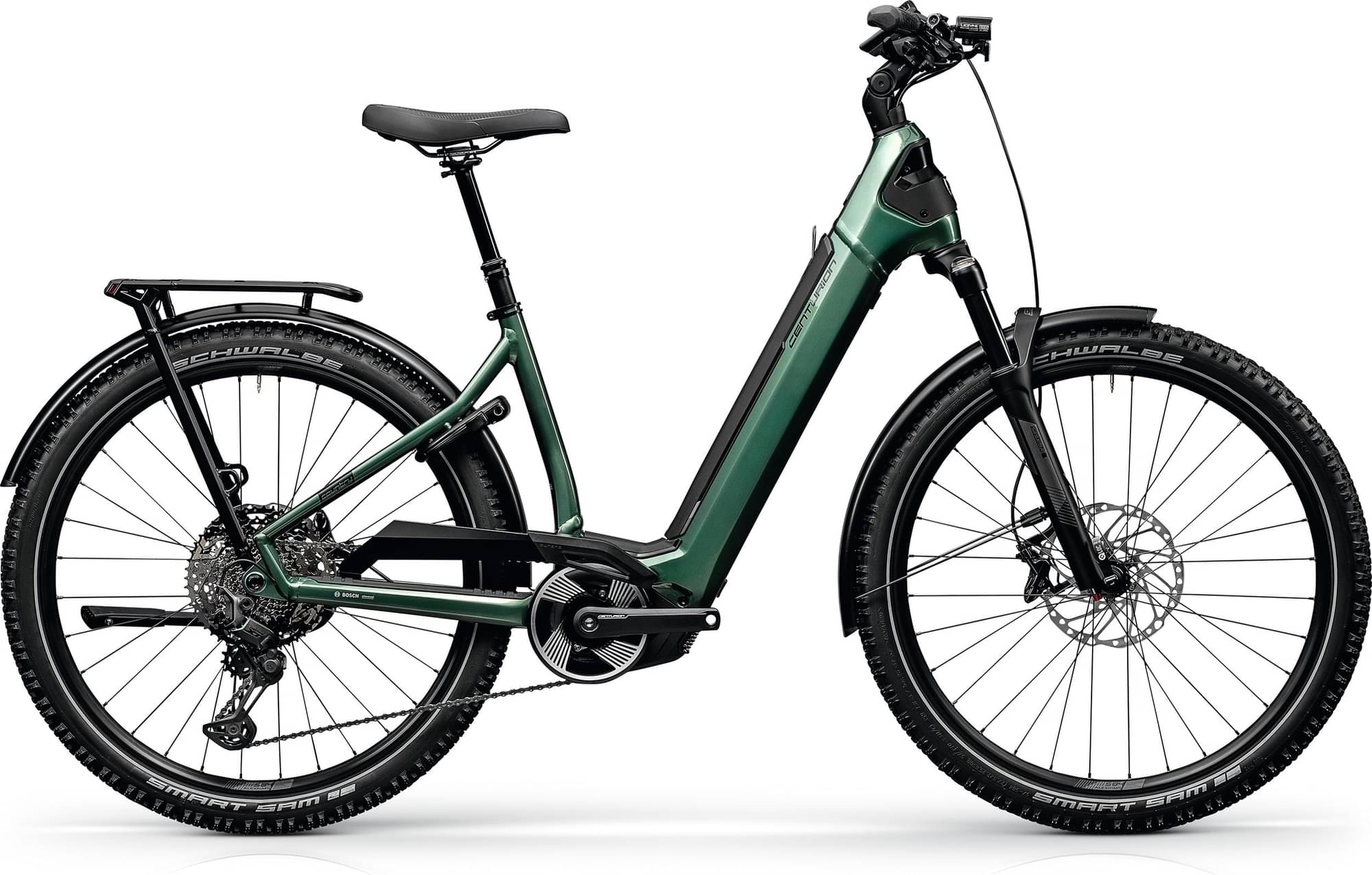

centurion Country R3000i L 2024
2024 E-bike
Weight | 28.3 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh, entnehmbar, vertikal -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Country R L G4 intube, Material: Aluminium, 27.5", Steuerrohr: 1.5" straight, Ausfallende: 12x148mm, Bremsaufnahme: Postmount 180mm, Rahmenkennung: ABP090A, max. Systemgewicht: 150kg
Suspension Fork
SR SUNTOUR MOBIE34 2CR, Federweg: 100mm, 1.5" tapered, Rake: 44mm
Drivetrain
Rear Derailleur
SHIMANO Deore XT, RD-M8130-11, 1x11, Linkglide
Shift Levers
SHIMANO Deore XT, SL-M8130-IR11, I-Spec EV, Linkglide
Cassette
SHIMANO Deore XT, CS-LG700-11, 11-50T, Linkglide
Crank
CENTURION R Comp Gen4, Länge: 165mm, TCK10
Chain
SHIMANO CN-LG500, Linkglide
Chain Guide
CURANA FLY
Pedals
VP VPE-461
Wheels
Front Hub
SHIMANO Deore XT, HB-M8010, 15x100, 32H, FH-M8010-B, 12x148, 32H
Rear Hub
SHIMANO Deore XT, HB-M8010, 15x100, 32H, FH-M8010-B, 12x148, 32H
Rims
PROCRAFT MD25, IW 25mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
SCHWALBE Smart Sam 27.5x2.25", Performance Line mit Reflex
Brakes
Brakes
SHIMANO Deore 4-Kolben, BR-M6120, resin pad
Brake Levers
SHIMANO Deore, BL-M6100
Cockpit
Stem
PROCRAFT Adjustable Deluxe AICR, Winkel: 0-70°, Länge: 90mm
Handlebar
PROCRAFT Riser Pro, Durchmesser: 31.8mm, Breite: 700mm, Rise: 20mm, backsweep: 9°
Seat
Saddle
PROCRAFT City II
Seatpost
PROCRAFT Drop-Suspension, Durchmesser: 30.9mm, Hub: 100mm (S), 120mm (M, L, XL), Remote: SHIMANO SL-MT500-L
Motor & Battery
Motor
BOSCH Performance Line CX, max. 85 Nm, 250 W
Battery
BOSCH PowerTube 625Wh, entnehmbar, vertikal
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack | 648 mm | 666 mm | 685 mm | 703 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm | 647 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1136 mm | 1158 mm | 1181 mm | 1203 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
