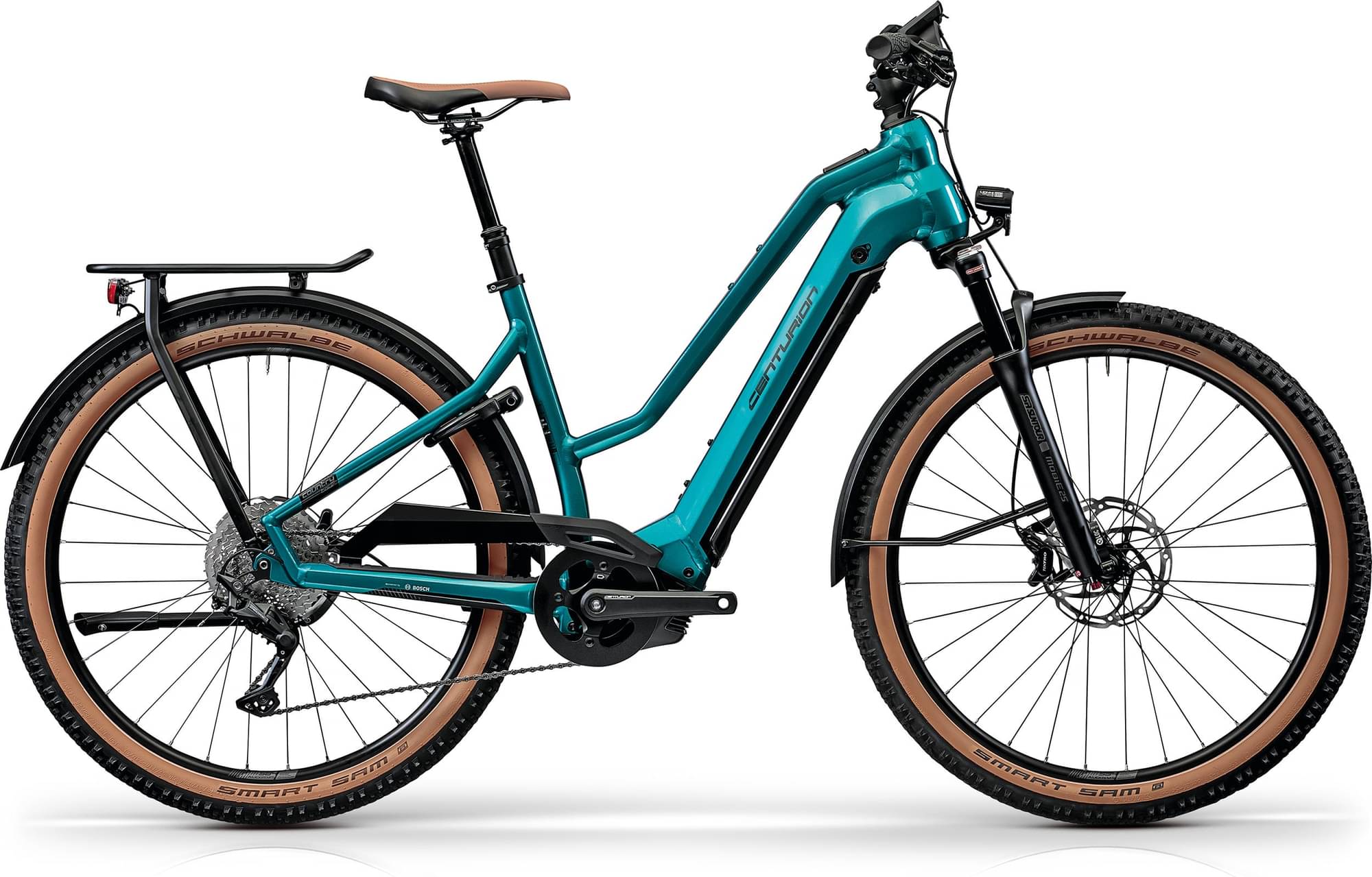

centurion Country Tour R960i 2024
2024 E-bike
Weight | 25.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Country Tour R intube, Material: Aluminium, 27.5", Steuerrohr: 1.5" straight, Ausfallende: 12x148mm, Bremsaufnahme: Postmount 180mm, Rahmenkennung: UBP053A
Suspension Fork
SR SUNTOUR MOBIE25 AIR LOR, Federweg: 75mm, 1.5" tapered
Drivetrain
Rear Derailleur
SHIMANO CUES, RD-U6000, 1x10
Shift Levers
SHIMANO CUES, SL-U6000-10R, mit Ganganzeige
Cassette
SHIMANO CS-LG400-10, 11-48T
Crank
CENTURION R Comp Gen4, mattschwarz, Länge: 165mm, TCK10
Chain
SHIMANO CN-LG500, Linkglide
Chain Guide
CURANA FLY
Pedals
VP VPE-461
Wheels
Front Hub
SHIMANO HB-TC500-15 / SHIMANO FH-TC500-HM-B, 15x100mm, 32H, 12x148mm, 32H
Rear Hub
SHIMANO HB-TC500-15 / SHIMANO FH-TC500-HM-B, 15x100mm, 32H, 12x148mm, 32H
Rims
PROCRAFT MD23, IW 23mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
SCHWALBE Smart Sam 27.5x2.25", Performance Line
Brakes
Brakes
TEKTRO HD-M535, organic pad
Brake Levers
TEKTRO HD-M535
Cockpit
Stem
PROCRAFT City Pro II, Winkel: 25°, Länge: 70mm
Handlebar
PROCRAFT Riser Pro, Durchmesser: 31.8mm, Breite: 700mm, Rise: 22mm
Seat
Saddle
PROCRAFT TOUR II
Seatpost
PROCRAFT Drop-Suspension, Durchmesser: 30.9mm, Hub: 100mm (S), 120mm (M, L, XL), Remote: SHIMANO SL-MT500-L
Motor & Battery
Motor
BOSCH Performance Line CX, max. 85 Nm, 250 W, Modi: Turbo / Sport / Tour / ECO, weitere Modi frei konfigurierbar
Battery
BOSCH PowerTube 625Wh
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack | 624 mm | 642 mm | 661 mm | 680 mm |
| Top Tube Length | 575 mm | 600 mm | 626 mm | 651 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1106 mm | 1133 mm | 1160 mm | 1187 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
