Bike details
Overview
Key information split into simple groups.

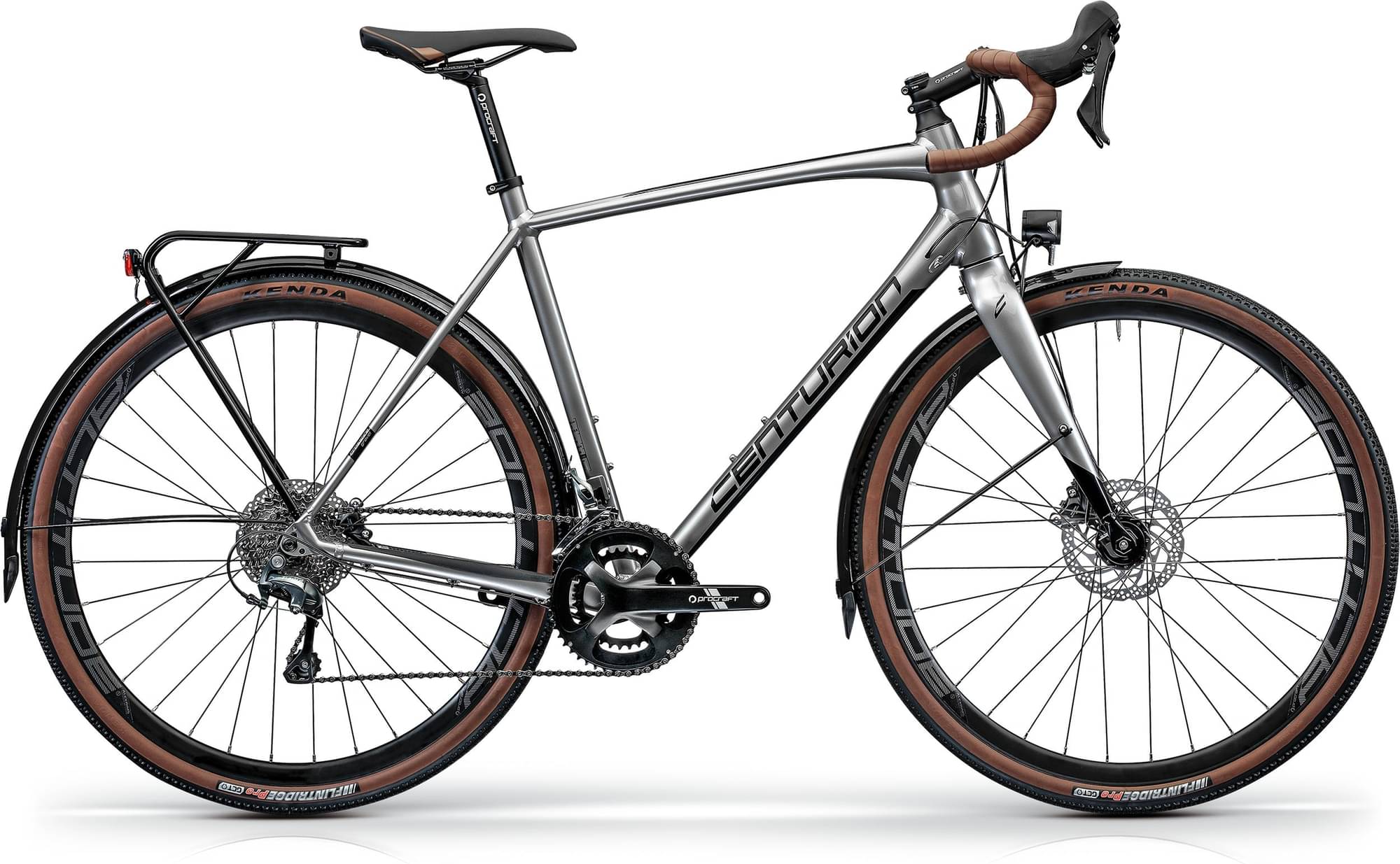

Bike summary
-
-
Frame Aluminum -
Groupset GRX 600, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Crossfire Gravel, Material: Aluminium, 28", Steuerrohr: 1 1/8"-1.5", Ausfallende: 12x142mm, Bremsaufnahme: Flatmount 160mm
Suspension Fork
CENTURION ALLOY TA road/gravel, 1.5" tapered
Drivetrain
Rear Derailleur
SHIMANO Tiagra, RD-4700-GS, 2x10
Front Derailleur
SHIMANO GRX 400, FD-RX400, brazed on type
Shift Levers
SHIMANO GRX 400, ST-RX400-L, ST-RX400-R
Cassette
SUNRACE CS-MS1, 11-34T
Crank
SHIMANO GRX 600 46-30T, Länge: 170mm (XXS, XS), 172.5mm (S/M), 175mm (M/L, XL, XXL)
Chain
KMC X10
Pedals
VP VPE-899
Wheels
Front Hub
SHIMANO DH-UR705-3D / SHIMANO FH-RS470, hub dynamo, 6V, 3W, 12x100mm, 32H, 12x142mm, 32H
Rear Hub
SHIMANO DH-UR705-3D / SHIMANO FH-RS470, hub dynamo, 6V, 3W, 12x100mm, 32H, 12x142mm, 32H
Rims
PROCRAFT Altitude GD30, IW 21mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
KENDA Flintridge 35-622
Brakes
Brakes
SHIMANO GRX 400, BR-RX400, resin pad
Cockpit
Stem
PROCRAFT Comp, Winkel: 7°, Länge: 60mm (XXS), 70mm (XS), 80mm (S/M), 90mm (M/L), 100mm (XL), 110mm (XXL)
Handlebar
PROCRAFT Gravel Pro II, Durchmesser: 31.8mm, Breite: 420mm (XXS, XS), 440mm (S/M, M/L, XL, XXL)
Seat
Saddle
PROCRAFT Race
Seatpost
PROCRAFT Pro Off. Light, Durchmesser: 27.2mm, Länge: 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM/MD | MD/LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack | 549 mm | 569 mm | 589 mm | 609 mm | 629 mm | 649 mm |
| Top Tube Length | 531 mm | 544 mm | 558 mm | 572 mm | 585 mm | 599 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm | 620 mm |
| Head Tube Angle | 70 ° | 70.25 ° | 70.5 ° | 70.75 ° | 71 ° | 71.25 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1023 mm | 1035 mm | 1048 mm | 1060 mm | 1072 mm | 1084 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
