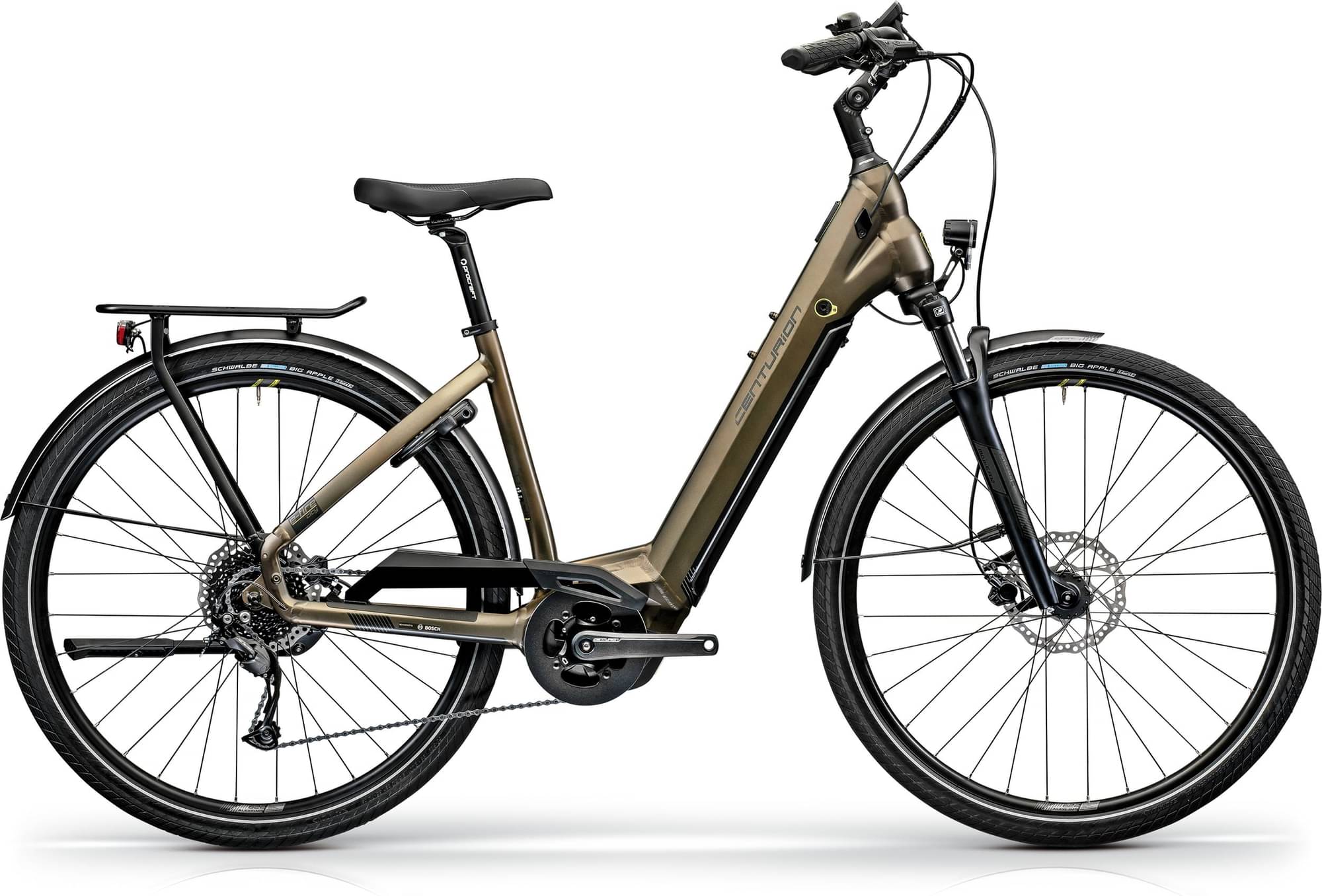

centurion E-Fire City R760i 2024
2024 E-bike
Weight | 27.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery BOSCH PowerTube 625Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Fire City R G3 intube, Material: Aluminium, 28", Steuerrohr: 1.5" straight, Ausfallende: 10x135mm, Bremsaufnahme: Postmount 180mm, Rahmenkennung: 27,5": UBP041B, 28": ABP077B
Suspension Fork
SR SUNTOUR MOBIEA32-COIL, Federweg: 63mm, 1.5" tapered
Drivetrain
Rear Derailleur
SHIMANO CUES, RD-U4000, 1x9
Shift Levers
SHIMANO CUES, SL-U4000-9R, mit Ganganzeige
Cassette
SHIMANO CS-LG300-9, 11-46T
Crank
CENTURION R Comp Gen3, mattschwarz, Länge: 170mm (S), 175mm (M, L), TCK10
Chain
SHIMANO CN-LG500, Linkglide
Chain Guide
CURANA FLY
Pedals
VP VPE-891
Wheels
Front Hub
PROCRAFT 6-Bolt 15 light / SHIMANO FH-TX506, 15x100mm, 32H, 10x135mm, 32H
Rear Hub
PROCRAFT 6-Bolt 15 light / SHIMANO FH-TX506, 15x100mm, 32H, 10x135mm, 32H
Rims
PROCRAFT MD23, IW 23mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
SCHWALBE Big Apple 28x2.0", Active Line mit Reflex
Brakes
Brakes
TEKTRO HD-T275, organic pad
Brake Levers
TEKTRO HD-T275
Cockpit
Stem
PROCRAFT Adjustable Pro, Winkel: -10-60°, Länge: 100 mm
Handlebar
PROCRAFT City Comp, Durchmesser: 31.8mm, Breite: 640mm, Backsweep 35°
Seat
Saddle
PROCRAFT City II
Seatpost
PROCRAFT Pro, Durchmesser: 30.9mm, Länge: 350mm
Motor & Battery
Motor
BOSCH Performance Line Gen3, max. 65 Nm, 250 W, Modi: Turbo / Sport / Tour / ECO
Battery
BOSCH PowerTube 625Wh
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack | 633 mm | 659 mm | 668 mm | 687 mm |
| Top Tube Length | 568 mm | 593 mm | 619 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 180 mm | 170 mm | 180 mm | 200 mm |
| Chainstay Length | 460 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1108 mm | 1129 mm | 1156 mm | 1183 mm |
| Wheels | 650 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
