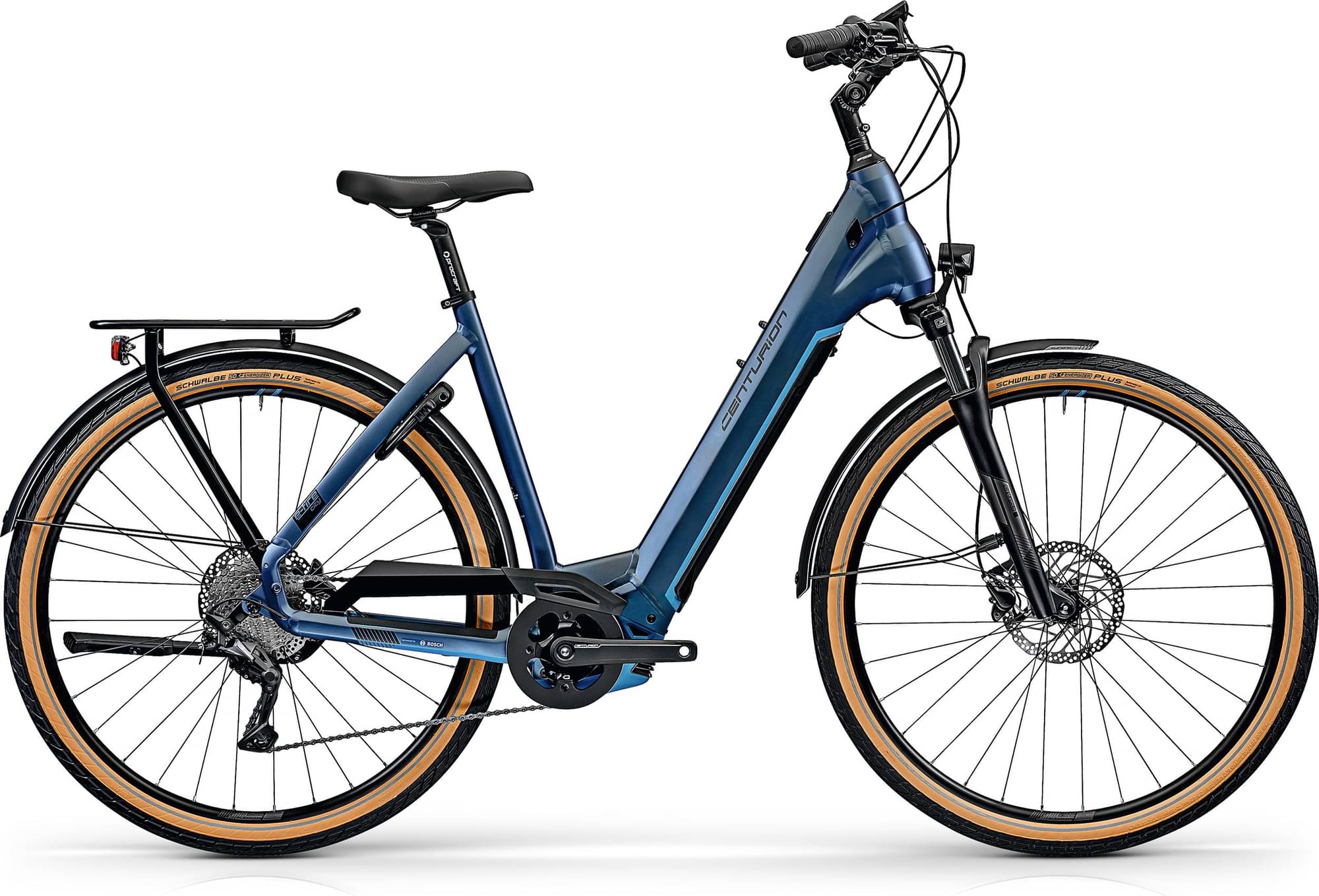

centurion E-Fire City R960i/R950i 2024
2024 E-bike
Weight | 26 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh [M-L] /500Wh [XS-L] -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Fire City R G4 intube, Material: Aluminium, Steuerrohr: 1.5" straight, Ausfallende: 10x135mm, Bremsaufnahme: Postmount 180mm, Rahmenkennung: 27,5": UBP040B, 28": ABP076B
Suspension Fork
SR SUNTOUR MOBIEA32-COIL, Federweg: 63mm, 1.5" tapered
Drivetrain
Rear Derailleur
SHIMANO CUES, RD-U6000, 1x10
Shift Levers
SHIMANO CUES, SL-U6000-10R, mit Ganganzeige
Cassette
SHIMANO CS-LG400-10, 11-48T
Crank
CENTURION R Comp Gen4, mattschwarz, Länge: 170mm (XS, S), 175mm (M, L), TCK10
Chain
SHIMANO CN-LG500, Linkglide
Chain Guide
CURANA FLY
Pedals
VP VPE-891
Wheels
Front Hub
SHIMANO HB-TC500-15 / SHIMANO FH-QC400, 15x100mm, 32H, 10x135mm, 32H
Rear Hub
SHIMANO HB-TC500-15 / SHIMANO FH-QC400, 15x100mm, 32H, 10x135mm, 32H
Rims
PROCRAFT MD23, IW 23mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
SCHWALBE Big Apple 27.5/28x2.0", Active Line mit Reflex
Brakes
Brakes
SHIMANO BR-MT200, resin pad
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
PROCRAFT Adjustable Pro, Winkel: -10-60°, Länge: 100 mm
Handlebar
PROCRAFT City Comp, Durchmesser: 31.8mm, Breite: 640mm, Backsweep 35°
Seat
Saddle
PROCRAFT City II
Seatpost
PROCRAFT Pro, Durchmesser: 30.9mm, Länge: 350mm
Motor & Battery
Motor
BOSCH Performance Line CX, max. 85 Nm, 250 W, Modi: Turbo / Sport / Tour / ECO
Battery
BOSCH PowerTube 625Wh [M-L] /500Wh [XS-L]
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM | MD | LG |
|---|---|---|---|---|---|
| Stack | 633 mm | 659 mm | 651 mm | 668 mm | 687 mm |
| Top Tube Length | 568 mm | 593 mm | 594 mm | 619 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 69.5 ° | 68.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 180 mm | 170 mm | 200 mm | 180 mm | 200 mm |
| Chainstay Length | 435 mm | 450 mm | 435 mm | 450 mm | 450 mm |
| Wheelbase | 1083 mm | 1104 mm | 1111 mm | 1130 mm | 1158 mm |
| Wheels | 650 | 700 | 650 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 170 cm | 177 cm | 184 cm |
