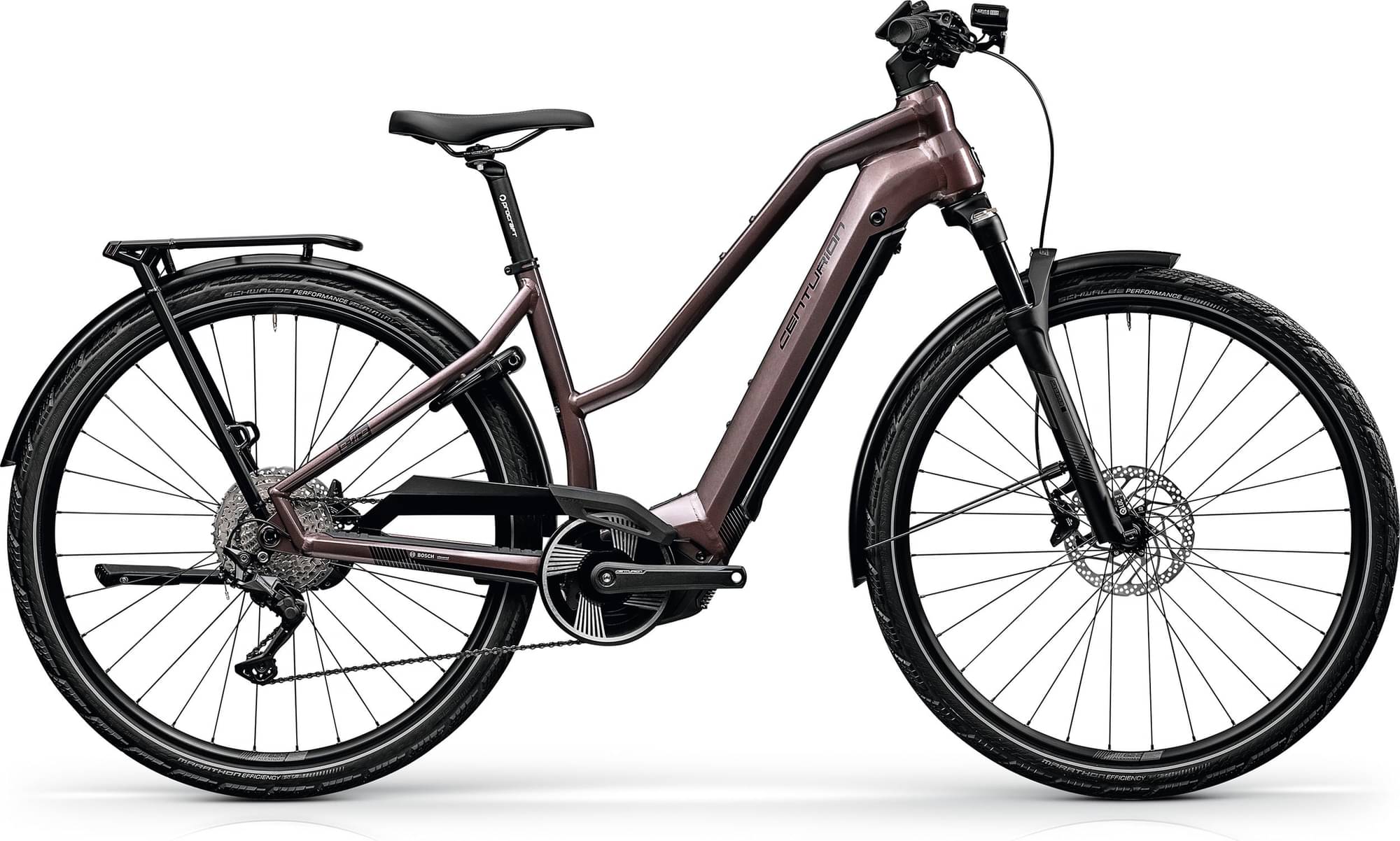

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Fork Suntour MOBIE -
Groupset CUES -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 750Wh; Größe M und S: 625Wh, entnehmbar, horizontal -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Fire R T intube, Material: Aluminium, 28", Steuerrohr: 1.5" straight, Ausfallende: 12x148mm, Bremsaufnahme: Postmount 180mm, Rahmenkennung: ABP092A, max. Systemgewicht: 150kg
Suspension Fork
SR SUNTOUR MOBIE34 2CR, Federweg: 80mm, 1.5" tapered, Rake: 44mm
Drivetrain
Rear Derailleur
SHIMANO CUES, RD-U6000, 1x11, Linkglide
Shift Levers
SHIMANO CUES, SL-U6000-11R, mit Ganganzeige
Cassette
SHIMANO CUES, CS-LG400-11, 11-50T, Linkglide
Crank
CENTURION R Comp Gen4, Länge: 170mm (S), 175mm (M,L,XL), TCK10
Chain
SHIMANO CN-LG500, Linkglide
Chain Guide
CURANA FLY
Pedals
VP VPE-899
Wheels
Front Hub
SHIMANO HB-TC500-15 / SHIMANO FH-TC500-HM-B, 15x100mm, 32H, 12x148mm, 32H
Rear Hub
SHIMANO HB-TC500-15 / SHIMANO FH-TC500-HM-B, 15x100mm, 32H, 12x148mm, 32H
Rims
PROCRAFT MD23R, IW 23mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
SCHWALBE Marathon Efficiency 28x2.0", Performance Line mit Reflex
Brakes
Brakes
SHIMANO MT410, BR-MT410, resin pad
Brake Levers
SHIMANO M4100, BL-M4100
Cockpit
Stem
PROCRAFT Tour Deluxe 35 AICR, Winkel: 20°, Länge: 70mm
Handlebar
PROCRAFT Riser Pro, Durchmesser: 31.8mm, Breite: 640mm (S), 680mm (M, L, XL), Rise: 20mm, backsweep: 9°
Seat
Saddle
PROCRAFT Tour II
Seatpost
PROCRAFT Pro, Durchmesser: 30.9mm, Länge: 350mm
Motor & Battery
Motor
BOSCH Performance Line CX, max. 85 Nm, 250 W
Battery
BOSCH PowerTube 750Wh; Größe M und S: 625Wh, entnehmbar, horizontal
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack | 636 mm | 659 mm | 682 mm | 706 mm |
| Top Tube Length | 585 mm | 610 mm | 635 mm | 660 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 132 mm | 157 mm | 182 mm | 207 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1154 mm | 1182 mm | 1209 mm | 1237 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
