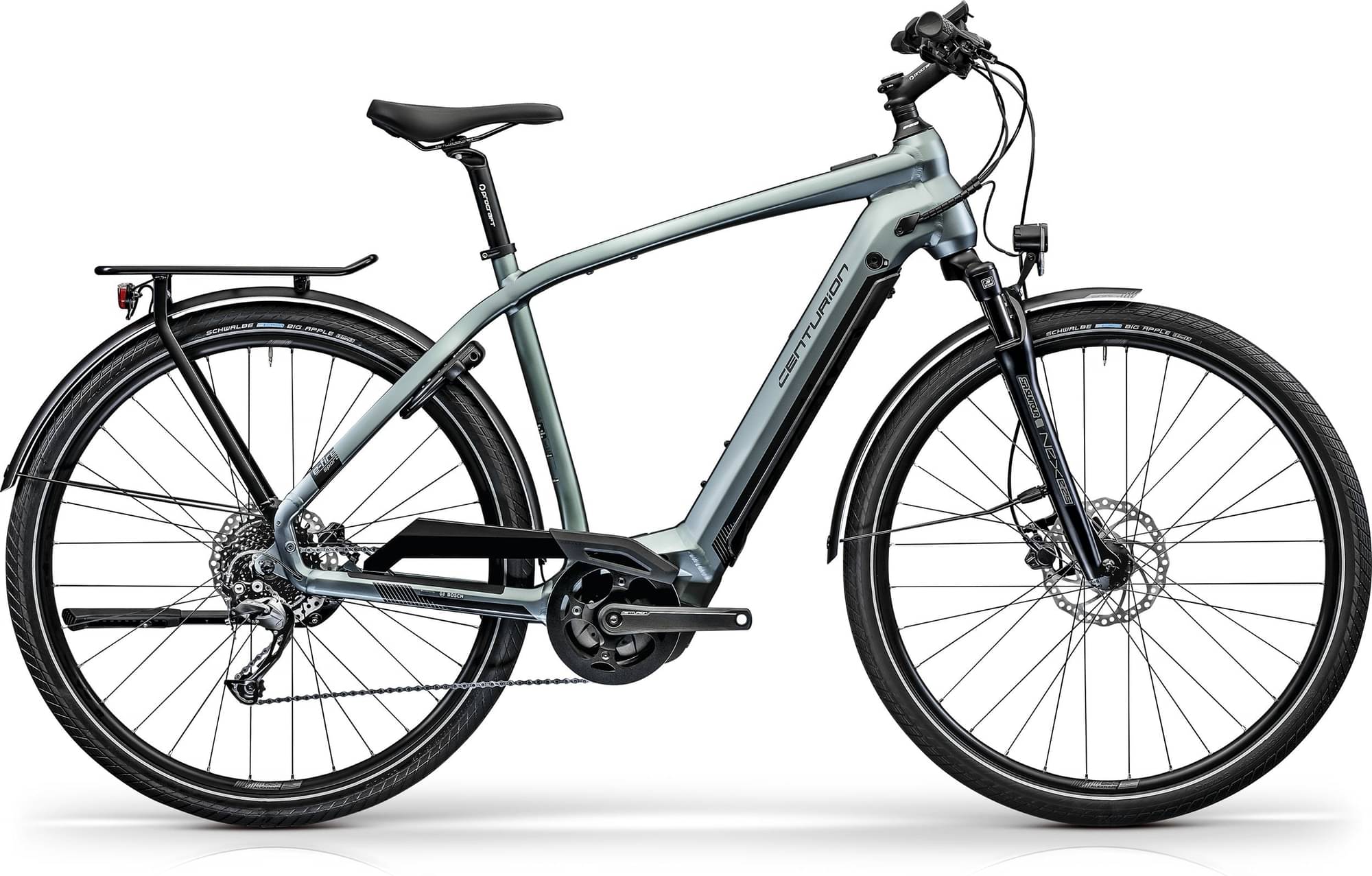

centurion E-Fire Sport R750i 2024
2024 E-bike
Weight | 25.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery BOSCH PowerTube 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Fire Sport R G3 intube, Material: Aluminium, 28", Steuerrohr: 1.5" straight, Ausfallende: 10x135mm, Bremsaufnahme: Postmount 180mm, Rahmenkennung: ABP068A
Suspension Fork
SR SUNTOUR NEX-E25, Federweg: 63mm, 1-1/8" straight
Drivetrain
Rear Derailleur
SHIMANO CUES, RD-U4000, 1x9
Shift Levers
SHIMANO CUES, SL-U4000-9R, mit Ganganzeige
Cassette
SHIMANO CS-LG300-9, 11-46T
Crank
CENTURION R Comp Gen3, mattschwarz, Länge: 170mm (S), 175mm (M, L, XL), TCK10
Chain
SHIMANO CN-LG500, Linkglide
Chain Guide
CURANA FLY
Pedals
VP VPE-899
Wheels
Front Hub
SHIMANO HB-TX506 / SHIMANO FH-TX506, 9x100mm, 32H, 10x135mm, 32H
Rear Hub
SHIMANO HB-TX506 / SHIMANO FH-TX506, 9x100mm, 32H, 10x135mm, 32H
Rims
PROCRAFT MD23, IW 23mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
SCHWALBE Big Apple 28x2.0", Active Line mit Reflex
Brakes
Brakes
TEKTRO HD-T275, organic pad
Brake Levers
TEKTRO HD-T275
Cockpit
Stem
PROCRAFT Comp II, Winkel: 17°, Länge: 70mm (S), 80mm (M), 90mm (L), 100mm (XL)
Handlebar
PROCRAFT Riser Pro, Durchmesser: 31.8mm, Breite: 640mm (S), 680mm (M, L, XL), Rise: 22mm
Seat
Saddle
PROCRAFT Cross Sport II
Seatpost
PROCRAFT Pro, Durchmesser: 30.9mm, Länge: 350mm
Motor & Battery
Motor
BOSCH Performance Line Gen3, max. 65 Nm, 250 W, Modi: Turbo / Sport / Tour / ECO
Battery
BOSCH PowerTube 500Wh
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack | 624 mm | 643 mm | 661 mm | 680 mm |
| Top Tube Length | 578 mm | 595 mm | 613 mm | 631 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1106 mm | 1124 mm | 1143 mm | 1162 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
