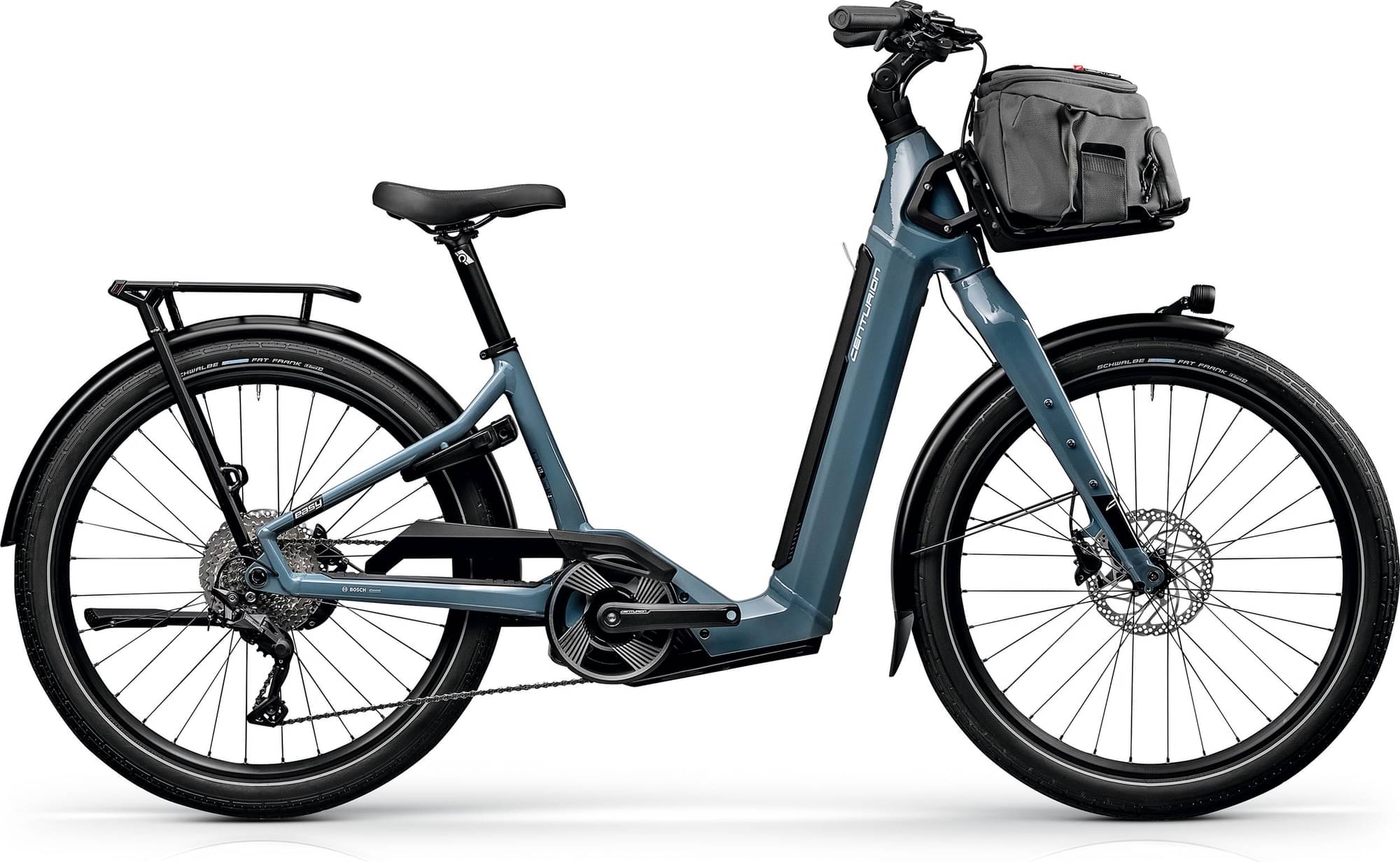

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh, entnehmbar, vertikal -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Easy R intube, Material: Aluminium, 26", Steuerrohr: 1.5" straight, Ausfallende: 12x148mm, Bremsaufnahme: Postmount 180mm, UDH Schaltauge, Rahmenkennung: CBP036A, max. Systemgewicht: 150kg
Suspension Fork
CENTURION Rigid
Drivetrain
Rear Derailleur
SHIMANO CUES, RD-U6000, 1x10, Linkglide
Shift Levers
SHIMANO CUES, SL-U6000-10R, mit Ganganzeige
Cassette
SHIMANO CUES, CS-LG400-10, 11-48T, Linkglide
Crank
CENTURION R Comp Gen4, Länge: 165mm, TCK10
Chain
SHIMANO CN-LG500, Linkglide
Chain Guide
CURANA FLY
Pedals
VP VPE-891
Wheels
Front Hub
SHIMANO HB-TC500-15-B / SHIMANO FH-TC500-HM-B, 15x110mm, 32H, 12x148mm, 32H
Rear Hub
SHIMANO HB-TC500-15-B / SHIMANO FH-TC500-HM-B, 15x110mm, 32H, 12x148mm, 32H
Rims
PROCRAFT MD25, IW 25mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
SCHWALBE Fat Frank 26x2.35", Active Line mit Reflex
Brakes
Brakes
SHIMANO BR-MT200, resin pad
Brake Levers
SHIMANO MT200, BL-MT200
Cockpit
Stem
PROCRAFT Adjustable Deluxe AICR, Winkel: 0-70°, Länge: 90mm
Handlebar
PROCRAFT City Comp, Durchmesser: 31.8mm, Breite: 640mm, backsweep 35°
Seat
Saddle
PROCRAFT Comfort II
Seatpost
PROCRAFT Pro III, Durchmesser: 34,9mm, Länge: 350mm (XS/S), 400 (L/XL)
Motor & Battery
Motor
BOSCH Performance Line CX, max. 85 Nm, 250 W
Battery
BOSCH PowerTube 625Wh, entnehmbar, vertikal
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
