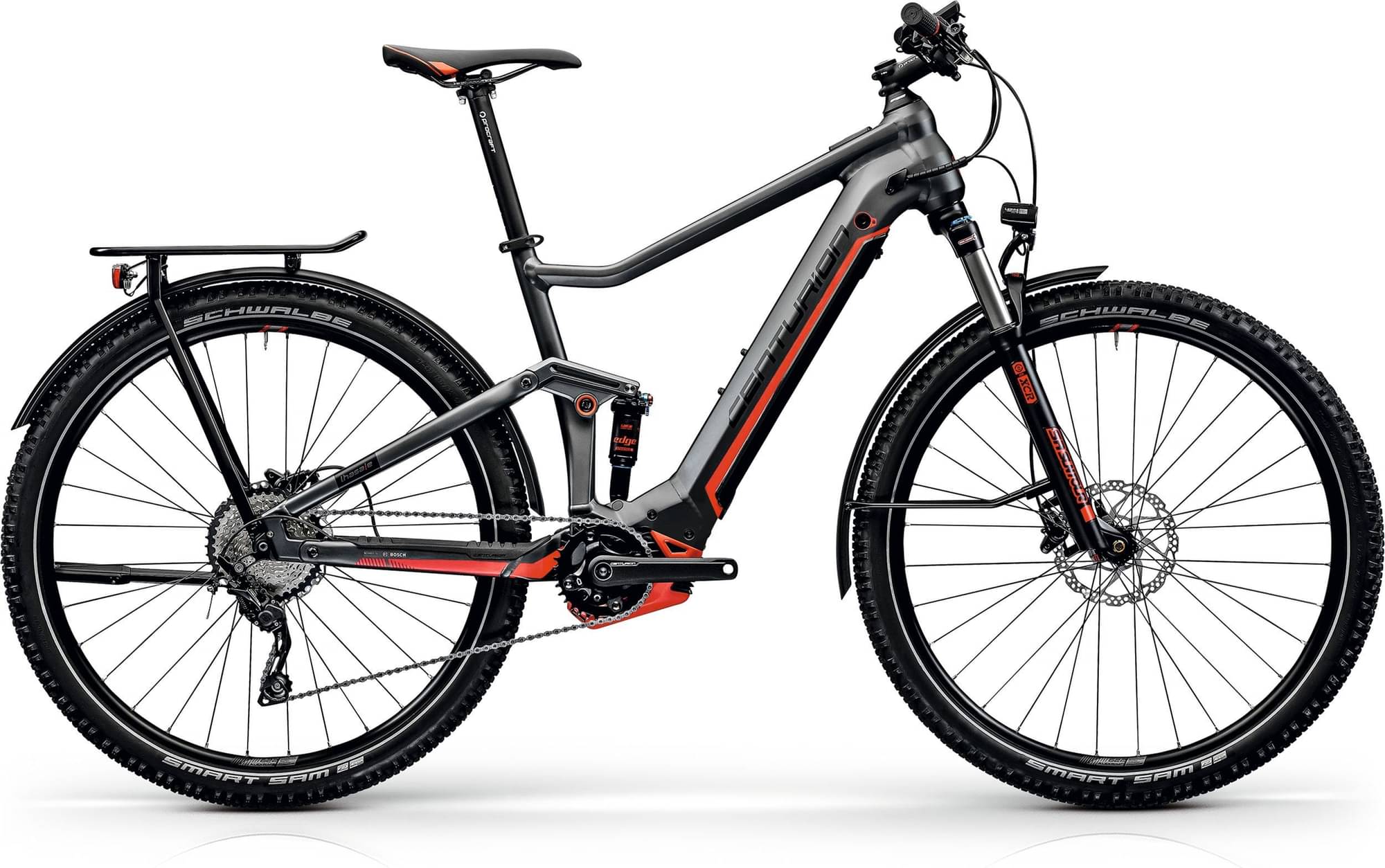

centurion Lhasa E R760i EQ 2024
2024 E-bike
Weight | 25.4 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 Wh (S, M, L, XL) -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lhasa R intube, Material: Aluminium, Steuerrohr: 1.5" straight, Ausfallende: 12x148 mm, Bremsaufnahme: Postmount 180 mm, Rahmenkennung: TBP034A
Suspension Fork
SR Suntour XCR34 AIR BOOST LOR, Federweg: 100 mm, 1.5" tapered
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120-DSGS, 1x10
Shift Levers
Shimano Deore, SL-M4100-R
Cassette
Shimano Deore, CS-M4100-10, 11-42T
Crank
CENTURION R Comp Gen4, mattschwarz, Länge: 170 mm (S), 175 mm (M, L, XL), TCK10
Chain
KMC E10 silber, Kettenlänge: 118 Links
Chain Guide
CENTURION Trail R, passend für Bosch Performance Line CX Gen4
Pedals
VP-537
Wheels
Front Hub
Shimano HB-MT400-B / Shimano FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rear Hub
Shimano HB-MT400-B / Shimano FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rims
PROCRAFT Altitude MD25, IW 25 mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
Schwalbe Smart Sam, 29x2.25", Performance Line mit Reflex
Brakes
Brakes
Shimano BR-MT410, resin pad
Brake Levers
Shimano BL-MT401
Cockpit
Stem
PROCRAFT Comp II, Winkel: 7°, Länge: 70 mm (S), 80 mm (M), 90 mm (L), 100 mm (XL)
Handlebar
PROCRAFT Riser Pro, Durchmesser: 31.8 mm, Breite: 720 mm (S, M, L, XL), Rise: 22 mm
Seat
Saddle
PROCRAFT Race
Seatpost
PROCRAFT Pro II, Durchmesser: 30.9 mm, Länge: 350 mm (S, M), 400 mm (L, XL)
Motor & Battery
Motor
Bosch Performance Line CX, max. 85 Nm, 250 W
Battery
Bosch PowerTube 625 Wh (S, M, L, XL)
Charger
Bosch Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack | 606 mm | 629 mm | 649 mm | 669 mm | 688 mm |
| Top Tube Length | 557 mm | 578 mm | 599 mm | 619 mm | 639 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 67.25 ° | 68.25 ° | 68.5 ° | 68.75 ° | 69 ° |
| Head Tube Length | 150 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 455 mm | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1143 mm | 1165 mm | 1186 mm | 1205 mm | 1224 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
