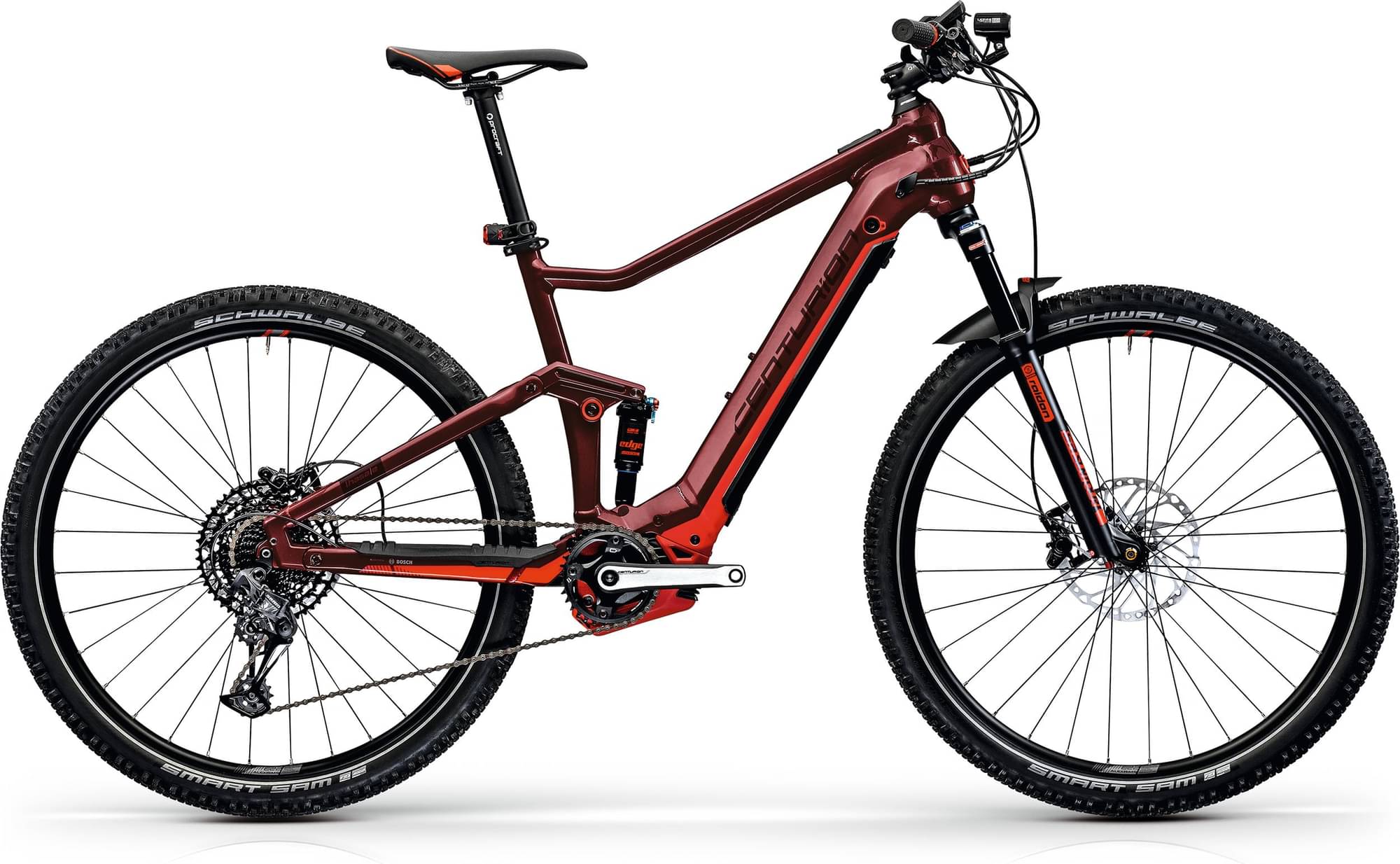

centurion Lhasa E R860i / R850i 2024
2024 E-bike
Weight | 23.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour RAIDON
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625 Wh [S-XL] / 500 Wh [XS] -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lhasa R intube, Material: Aluminium, Steuerrohr: 1.5" straight, Ausfallende: 12x148 mm, Bremsaufnahme: Postmount 180 mm
Suspension Fork
SR SUNTOUR RAIDON34 BOOST LOR, Federweg: 100 mm, 1.5" tapered, Download Setup-Empfehlung (PDF)
Drivetrain
Rear Derailleur
SRAM SX Eagle, 1x12
Shift Levers
SRAM SX Eagle single click
Cassette
SRAM SX Eagle, CS PG-1210 Eagle, 11-50T
Crank
CENTURION Pro Gen4, mattschwarz/Alu gebürstet, Länge: 170 mm [XS, S], 175 mm [M, L, XL]
Chain
SRAM SX Eagle, CN SX Eagle-12
Chain Guide
CENTURION Trail R, passend für BOSCH Performance Line CX Gen4
Pedals
VP-993
Wheels
Front Hub
SHIMANO HB-MT400-B / SHIMANO FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rear Hub
SHIMANO HB-MT400-B / SHIMANO FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rims
PROCRAFT Altitude MD27, IW27, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
SCHWALBE Smart Sam 27.5/29x2.25", Performance Line mit Reflex
Brakes
Brakes
SHIMANO Deore, BR-M6100, resin pad
Brake Levers
SHIMANO Deore, BL-M6100
Cockpit
Stem
PROCRAFT Comp II, 7°
Handlebar
PROCRAFT Riser Pro, dia: 31.8 mm, 680 mm [XS], 720 mm [S, M, L, XL], rise: 22 mm
Seat
Saddle
PROCRAFT Race
Seatpost
PROCRAFT Pro II, dia: 30.9 mm, 350 mm [XS, S, M], 400 mm [L, XL]
Motor & Battery
Motor
BOSCH Performance Line CX Gen4, 85 Nm, 250 W
Battery
BOSCH PowerTube 625 Wh [S-XL] / 500 Wh [XS]
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack | 606 mm | 629 mm | 649 mm | 669 mm | 688 mm |
| Top Tube Length | 557 mm | 578 mm | 599 mm | 619 mm | 639 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 67.25 ° | 68.25 ° | 68.5 ° | 68.75 ° | 69 ° |
| Head Tube Length | 150 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 455 mm | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1143 mm | 1165 mm | 1186 mm | 1205 mm | 1224 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
