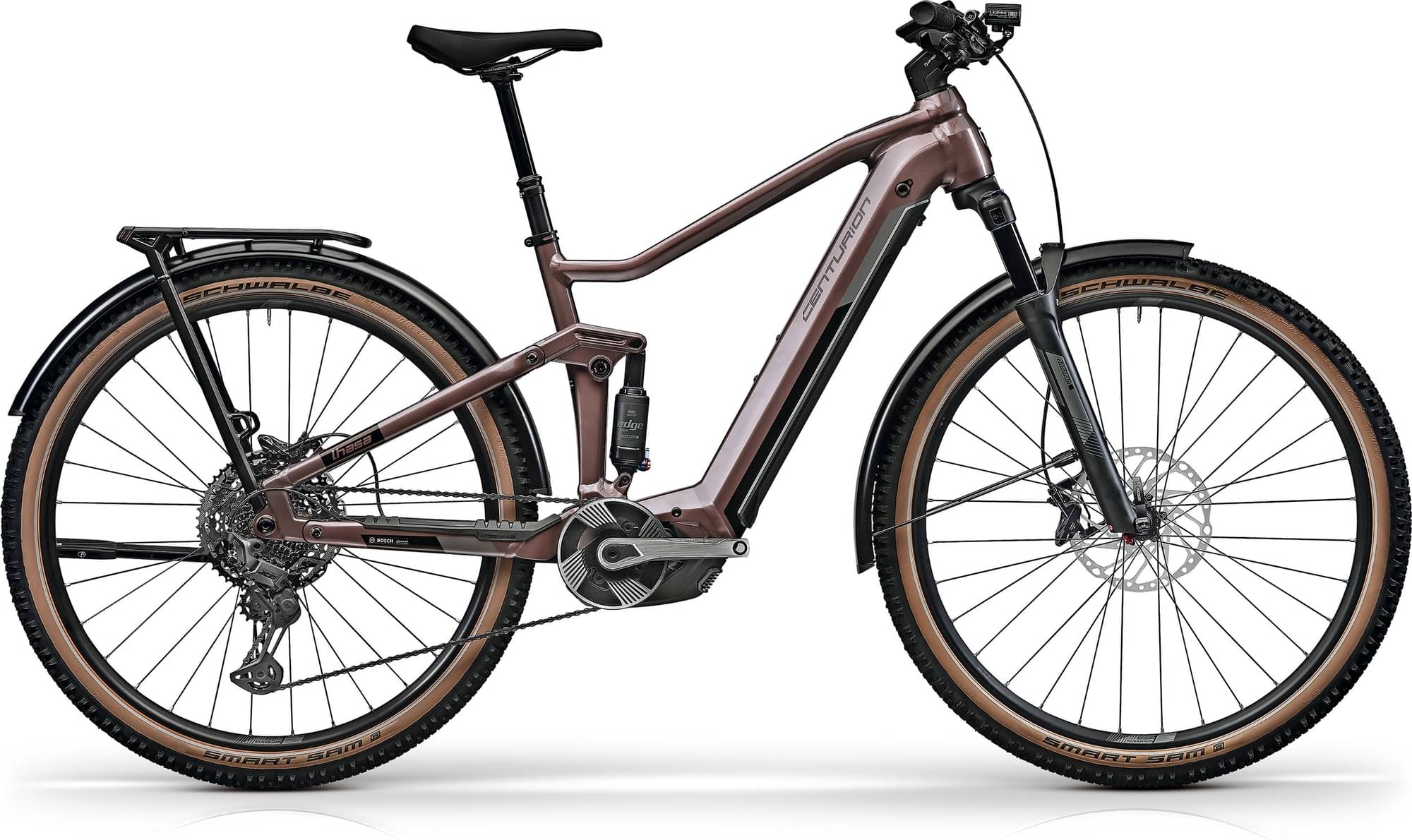

centurion Lhasa R2700i/R2600i EQ 2024
2024 E-bike
Weight | 28 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 750Wh; Größe S: 625Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lhasa R intube II, Material: Aluminium, 29", Steuerrohr: 1.5" - 1.8" tapered, Ausfallende: 12x148mm, Bremsaufnahme: Postmount 203mm, UDH Standard, Rahmenkennung: TBP053A
Suspension Fork
SR SUNTOUR Mobie35 BOOST 2CR, Federweg: 100mm, 1.5" tapered, Rake: 44mm
Drivetrain
Rear Derailleur
SHIMANO Deore XT, RD-M8130-11, 1x11, Linkglide
Shift Levers
SHIMANO Deore XT, SL-M8130-IR11, I-Spec EV, Linkglide
Cassette
SHIMANO Deore XT, CS-LG700-11, 11-50T, Linkglide
Crank
CENTURION R Pro II Gen4, mattschwarz/Alu gebürstet, Länge: 170mm (S), 175mm (M, L, XL), CK-790
Bottom Bracket
BSA, 73mm, threaded
Chain
SHIMANO CN-LG500, Linkglide
Pedals
VP VPE-527
Wheels
Front Hub
SHIMANO HB-TC500-15-B / SHIMANO FH-TC500-HM-B, 15x110mm, 32H, 12x148mm, 32H
Rear Hub
SHIMANO HB-TC500-15-B / SHIMANO FH-TC500-HM-B, 15x110mm, 32H, 12x148mm, 32H
Rims
PROCRAFT MD25, IW 25mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
SCHWALBE Smart Sam 29x2.25", Performance Line mit Reflex
Brakes
Brakes
SHIMANO Deore 4-Kolben, BR-M6120, resin pad
Brake Levers
SHIMANO Deore, BL-M6100
Cockpit
Stem
PROCRAFT Tour Deluxe 35 AICR, Winkel: 20°, Länge: 70mm
Handlebar
PROCRAFT Trail Pro 35, Durchmesser: 35mm, Breite: 720mm, Rise: 20mm
Seat
Saddle
PROCRAFT Cross Sport II
Seatpost
PROCRAFT DROP Pro, Durchmesser: 30.9mm, Hub: 100mm (S), 125 mm (M, L, XL), Remote: SHIMANO SL-MT500-IL, I-Spec EV
Motor & Battery
Motor
BOSCH Performance Line CX, max. 85 Nm, 250 W, Modi: Turbo / E-MTB / Tour+ / ECO, weitere Modi frei konfigurierbar
Battery
BOSCH PowerTube 750Wh; Größe S: 625Wh
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack | 614 mm | 633 mm | 651 mm | 670 mm |
| Top Tube Length | 573 mm | 598 mm | 622 mm | 647 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1180 mm | 1208 mm | 1235 mm | 1264 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
