Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Fork Suntour AION
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
No Pogo R intube, Material: Aluminium, 27.5" * Steuerrohr: 1.5" straight, Ausfallende: 12x148 mm, Bremsaufnahme: Postmount 180 mm
Suspension Fork
SR SUNTOUR AION35 EVO BOOST LOR-PCS, Federweg: 160 mm, 1.5" tapered, rake: 44 mm, Download Setup-Empfehlung (PDF)
Drivetrain
Rear Derailleur
SRAM SX Eagle, 1x12
Shift Levers
SRAM SX Eagle single click
Cassette
SRAM SX Eagle, CS PG-1210 Eagle, 11-50T
Crank
CENTURION Pro Gen4, mattschwarz/Alu gebürstet, Länge: 165 mm
Chain
SRAM SX Eagle, CN SX Eagle-12
Chain Guide
CENTURION Trail R, passend für BOSCH Performance Line CX Gen4
Pedals
VP-993
Wheels
Front Hub
SHIMANO HB-MT400-B / SHIMANO FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rear Hub
SHIMANO HB-MT400-B / SHIMANO FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rims
PROCRAFT Altitude MD30, IW30, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
MAXXIS Minion DHF / DHR II. 27.5x2.6", tubeless ready, 60TPI, EXO
Brakes
Brakes
TEKTRO HD-M745, organic pad
Brake Levers
TEKTRO HD-M745-1
Cockpit
Stem
PROCRAFT Trail Expert 35 AICR, 0°
Handlebar
PROCRAFT Trail Pro 35, 780 mm, rise: 20 mm
Seat
Saddle
PROCRAFT Race
Seatpost
PROCRAFT Drop Pro, dia: 30.9 mm, 100 mm [S], 150 mm [M], 170 mm [L], 200 mm [XL], remote: PROCRAFT I-Spec II
Motor & Battery
Motor
BOSCH Performance Line CX Gen4, 85 Nm, 250 W
Battery
BOSCH PowerTube 625 Wh
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.411 mm | 1.383 mm | 1.313 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 729 mm | 764 mm | 800 mm | 825 mm |
| Rake | 37 mm | 36 mm | 37 mm | 37 mm |
| Trail | 121 mm | 122 mm | 121 mm | 121 mm |
| Stack | 605 mm | 628 mm | 650 | 650 |
| Reach | 420 mm | 445 mm | 470 mm | 495 mm |
| Top Tube Length | 576 mm | 607 mm | 638 mm | 663 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 135 mm | 160 mm | 160 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1174 mm | 1209 mm | 1245 mm | 1270 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

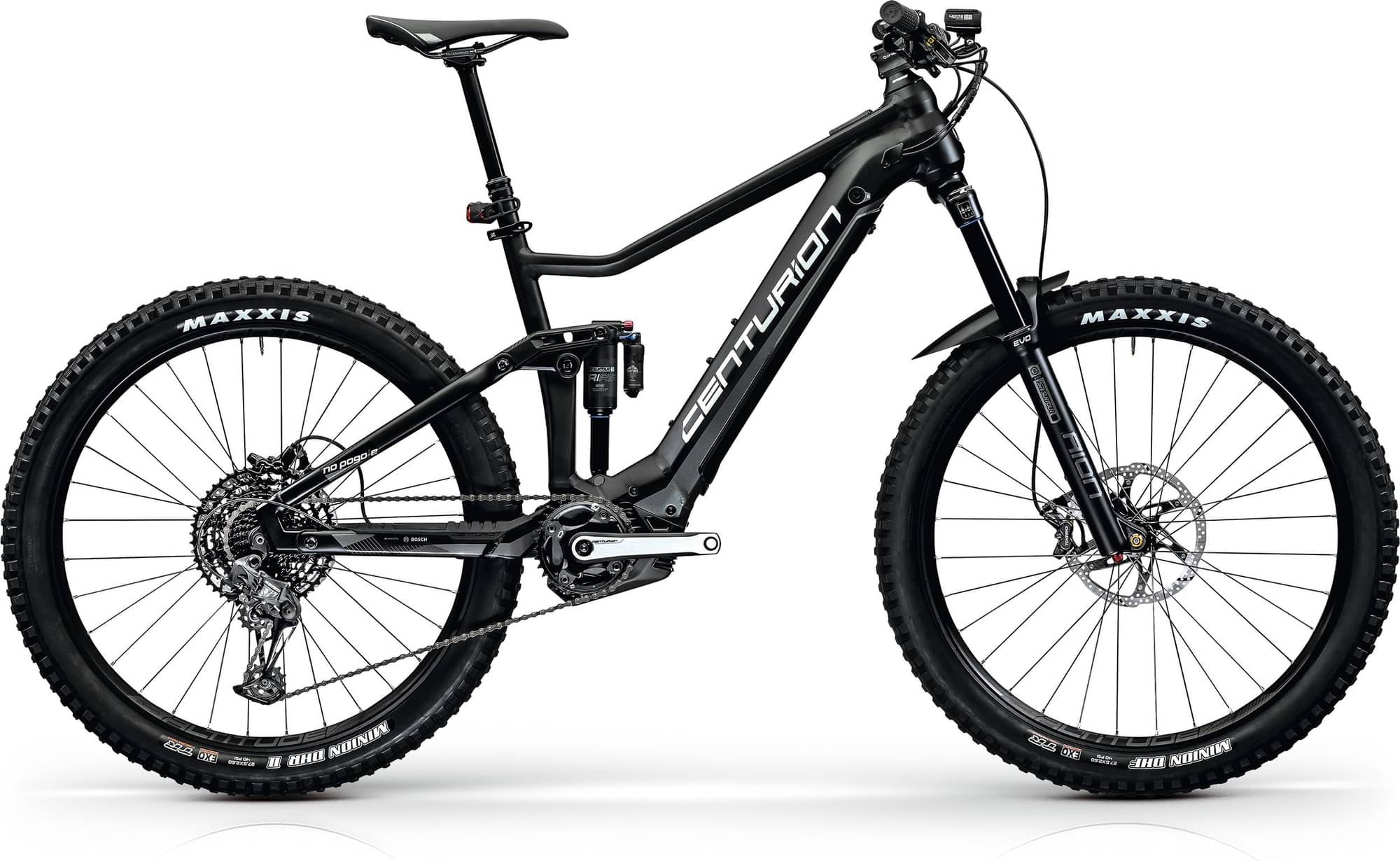

No Pogo E R860i is a Centurion E No model. Centurion launched 25 e-bikes of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Enduro e-bikes average weight
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
No Pogo E R860i weighs 25 kg (55.12 lbs) and is a bit heavier than the average. In other words, this model is 6.75% heavier than the average Enduro e-bike.
No Pogo E R860i components
Fork
The Suntour AION is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the No Pogo E R860i model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Centurion No Pogo E R860i includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
