Bike details
Overview
Key information split into simple groups.

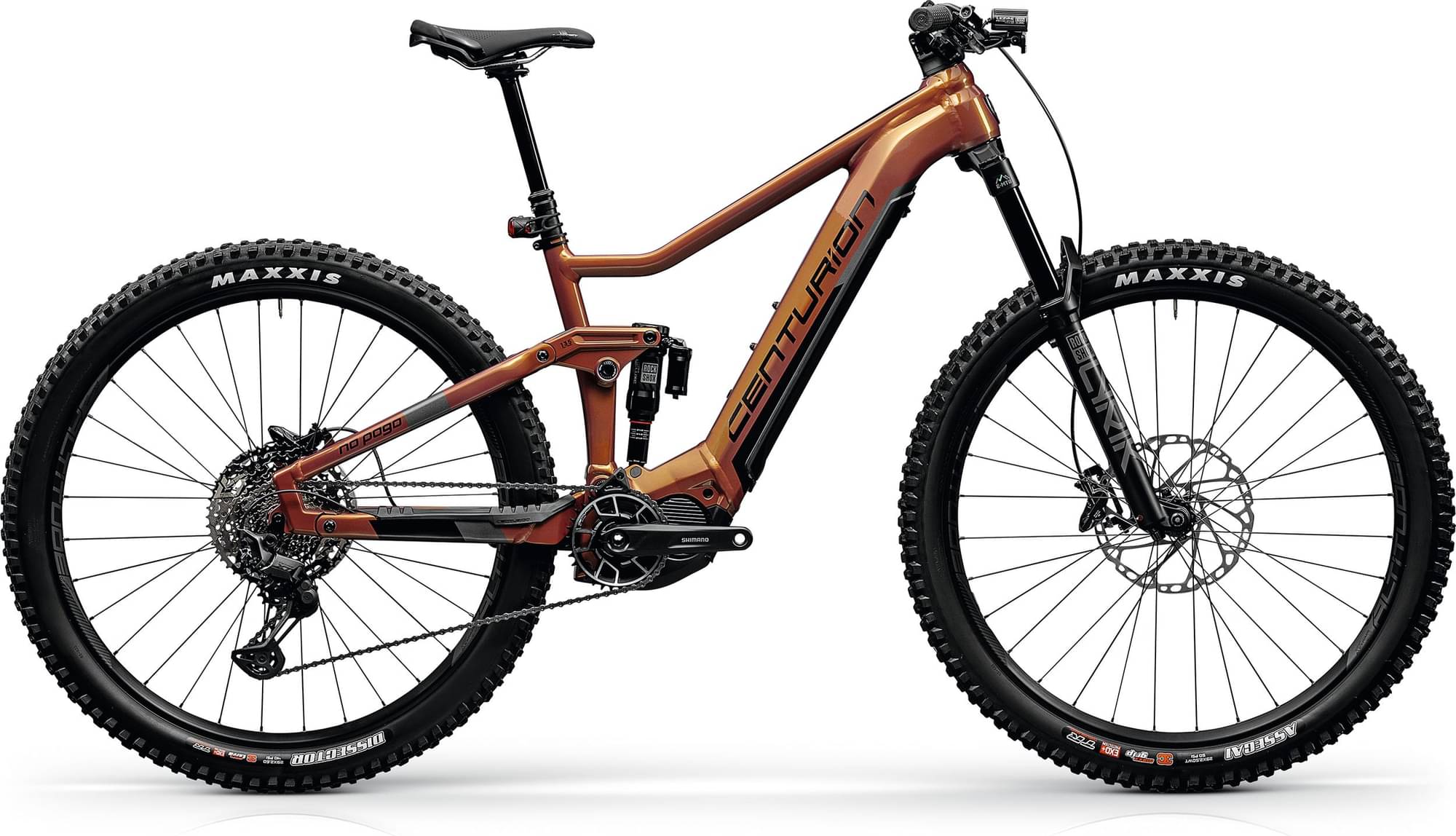

Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Fork RockShox Lyrik
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO BT-EN806 630Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
No Pogo F intube, Material: Aluminium, 29", Steuerrohr: 1.5" - 1.8" tapered, Ausfallende: 12x148mm, Bremsaufnahme: Postmount 203mm, Rahmenkennung: TBP041D
Suspension Fork
ROCK SHOX Lyrik, Federweg: 150mm, Rush RC Damper, 1.8" tapered, Rake: 44mm
Drivetrain
Rear Derailleur
SHIMANO Deore XT, RD-M8130-11, 1x11, Linkglide
Shift Levers
SHIMANO Deore XT, SL-M8130-IR11, I-Spec EV, Linkglide
Cassette
SHIMANO Deore XT, CS-LG700-11, 11-50T, Linkglide
Crank
SHIMANO FC-EM600, Länge: 165mm
Chain
SHIMANO CN-LG500, Linkglide
Chain Guide
CENTURION Trail F, passend für Shimano EP801/EP6/EP800
Pedals
VP VPE-527
Wheels
Front Hub
SHIMANO HB-TC500-15-B / SHIMANO FH-TC500-HM-B, 15x110mm, 32H, 12x148mm, 32H
Rear Hub
SHIMANO HB-TC500-15-B / SHIMANO FH-TC500-HM-B, 15x110mm, 32H, 12x148mm, 32H
Rims
PROCRAFT Altitude MD30, IW 30mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
MAXXIS Assegai, 29x2.5" WT, tubless ready, 60 TPI, 3C MaxxGrip, EXO+
Brakes
Brakes
SHIMANO Deore 4-Kolben, BR-M6120, resin pad
Brake Levers
SHIMANO Deore, BL-M6100
Cockpit
Stem
PROCRAFT Trail Expert 35 AICR, Winkel: 0°, Länge: 50mm
Handlebar
PROCRAFT Trail Pro 35 ICR, Durchmesser: 35mm, Breite: 780mm, Rise: 20mm
Seat
Saddle
PROCRAFT E-Pro
Seatpost
PROCRAFT Drop Pro, Durchmesser: 30.9mm, Hub: 125mm (XS/S), 150mm (M), 170mm (L, XL), Remote: SHIMANO SL-MT500-IL, I-Spec EV
Motor & Battery
Motor
SHIMANO EP801, max. 85 Nm, 250 W, Modi frei konfigurierbar
Battery
SHIMANO BT-EN806 630Wh
Charger
SHIMANO EC-E8004, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | MD | LG | XL |
|---|---|---|---|---|
| Stack | 622 mm | 629 mm | 643 mm | 657 mm |
| Top Tube Length | 569 mm | 601 mm | 629 mm | 658 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 102.5 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1188 mm | 1221 mm | 1252 mm | 1284 mm |
| Wheels | 29" | 29" | 29" | 29" |
