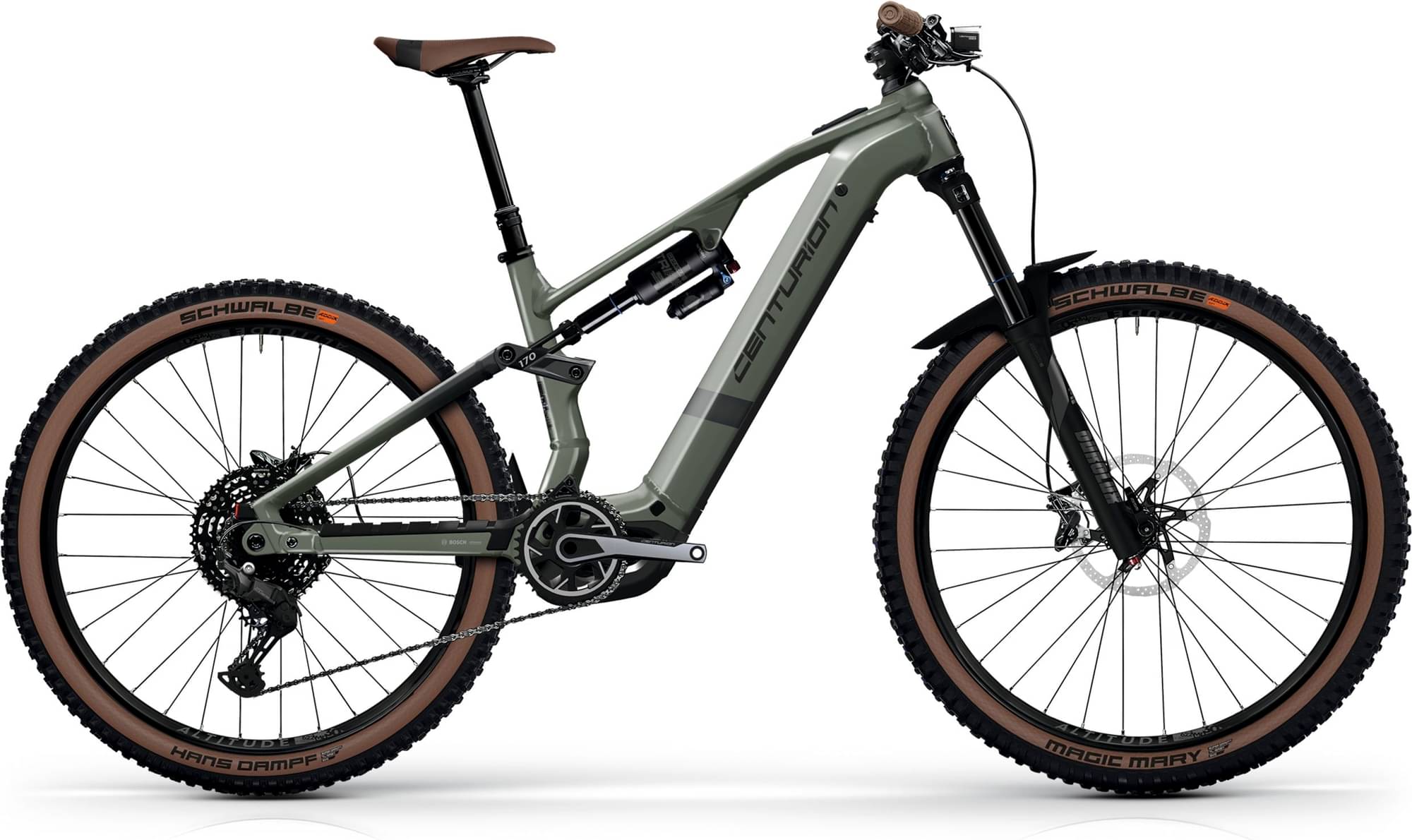

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Fork Suntour DUROLUX
-
Groupset CUES -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 800Wh, entnehmbar, horizontal -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
No Pogo R intube III, Material: Aluminium, 29"/27.5", Steuerrohr: 1.5" - 1.8" tapered, Ausfallende: 12x148mm, Bremsaufnahme: Postmount 203mm, UDH Schaltauge, Rahmenkennung: TBN001A
Suspension Fork
SR SUNTOUR Durolux38, Federweg: 170mm, 1.5" tapered, Rake: 44mm
Drivetrain
Rear Derailleur
SHIMANO CUES, RD-U6000, 1x11, Linkglide
Shift Levers
SHIMANO CUES, SL-U6000-11R
Cassette
SHIMANO CUES, CS-LG400-11, 11-50T, Linkglide
Crank
CENTURION R Pro II Gen4, Länge: 165mm, CK-790
Chain
SHIMANO CN-LG500, Linkglide
Chain Guide
CENTURION Trail R, passend für Bosch Performance Line CX Gen5
Pedals
VP VPE-527
Wheels
Front Hub
SHIMANO HB-TC500-15-B / SHIMANO FH-TC500-HM-B, 15x110mm, 32H, 12x148mm, 32H
Rear Hub
SHIMANO HB-TC500-15-B / SHIMANO FH-TC500-HM-B, 15x110mm, 32H, 12x148mm, 32H
Rims
PROCRAFT Altitude MD30, IW 30mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
Schwalbe Magic Mary 29x2.4", tubeless ready, Evolution Line, Soft, Super Trail
Brakes
Brakes
TRP Slate EVO, HD-M807, resin pad
Brake Levers
TRP Slate EVO, HD-M807
Cockpit
Stem
PROCRAFT Trail Pro 35, Winkel: 0°, Länge: 40 mm
Handlebar
PROCRAFT Trail Pro 35, Durchmesser: 35mm, Breite: 780mm, Rise: 20mm, backsweep: 9°
Seat
Saddle
PROCRAFT E-Pro II
Seatpost
PROCRAFT Drop Pro, Durchmesser: 34.9mm, Hub: 125mm (S), 150mm (M), 170mm (L), 200 (XL), Remote: SHIMANO SL-MT500-IL, I-Spec EV
Motor & Battery
Motor
BOSCH Performance Line CX, max. 85 Nm, 250 W
Battery
BOSCH PowerTube 800Wh, entnehmbar, horizontal
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack | 637 mm | 641 mm | 651 mm | 660 mm |
| Top Tube Length | 571 mm | 597 mm | 624 mm | 651 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1209 mm | 1236 mm | 1265 mm | 1294 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
