Bike details
Overview
Key information split into simple groups.

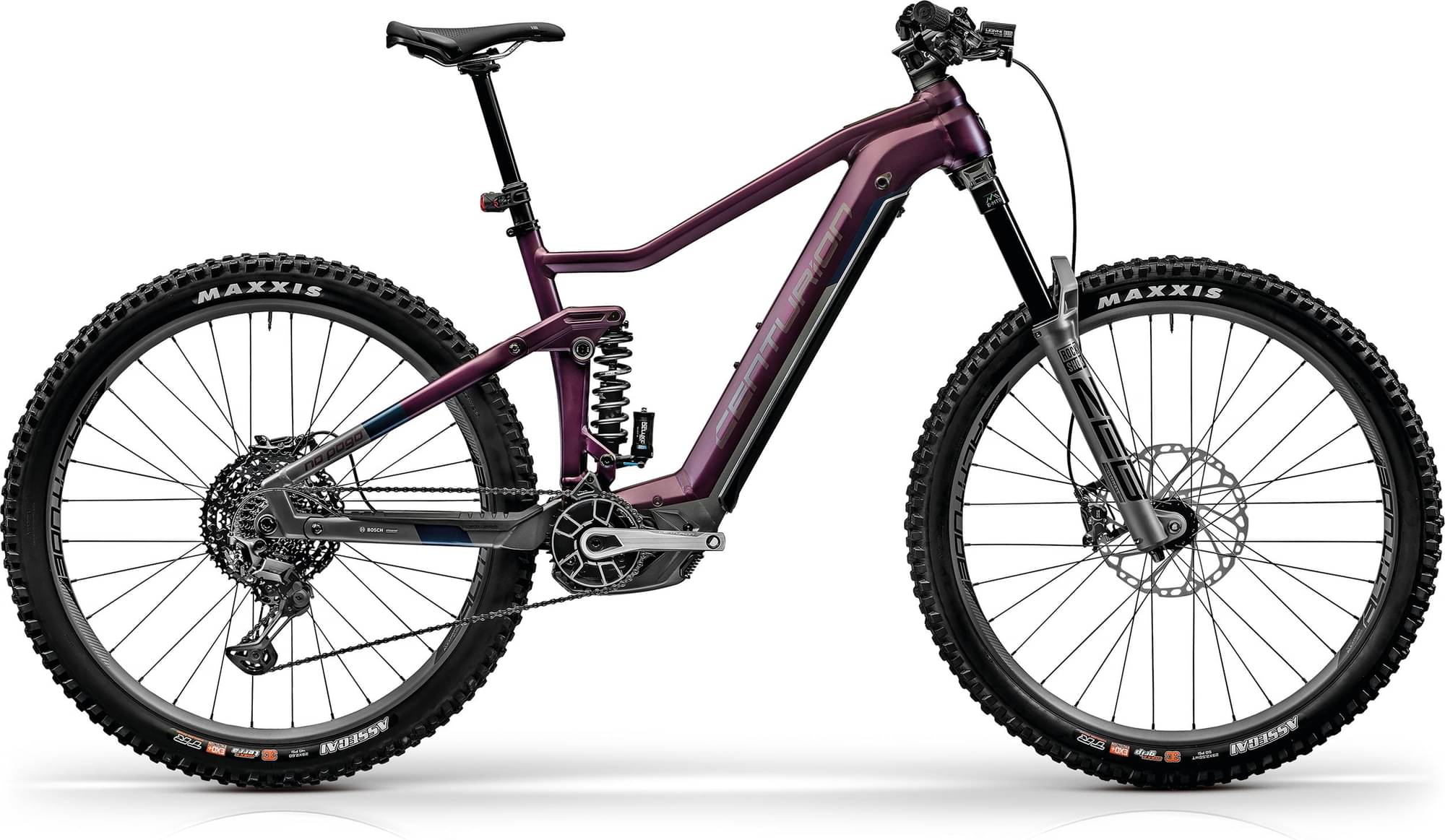

Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Fork RockShox ZEB Ultimate
-
Groupset XT -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 750Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
No Pogo R intube II, Material: Aluminium, 29", Steuerrohr: 1.5" - 1.8" tapered, Ausfallende: 12x148mm, Bremsaufnahme: Postmount 203mm, UDH Standard, Rahmenkennung: TBP051A
Suspension Fork
ROCK SHOX ZEB Ultimate, Federweg: 160mm, Charger 3 RC2 Damper w/ButterCups, 1.8" tapered, Rake: 44mm
Drivetrain
Rear Derailleur
SHIMANO Deore XT, RD-M8130-11, 1x11, Linkglide
Shift Levers
SHIMANO Deore XT, SL-M8130-IR11, I-Spec EV, Linkglide
Cassette
SHIMANO Deore XT, CS-LG700-11, 11-50T, Linkglide
Crank
CENTURION R Pro II Gen4, mattschwarz/Alu gebürstet, Länge: 165mm, CK-790
Bottom Bracket
BSA, 73mm, threaded
Chain
SHIMANO CN-LG500, Linkglide
Chain Guide
CENTURION Trail R, passend für Bosch Performance Line CX Gen4
Pedals
VP VPE-527
Wheels
Front Hub
DT Swiss 370 Hybrid, 15x110mm, 32H, 12x148mm, 32H
Rear Hub
DT Swiss 370 Hybrid, 15x110mm, 32H, 12x148mm, 32H
Rims
PROCRAFT Altitude MD30, IW 30mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
MAXXIS Assegai 29x2.5" WT, tubeless ready, 60 TPI, 3C Maxxgrip, EXO+
Brakes
Brakes
SHIMANO Deore XT 4-Kolben, BR-M8120, resin pad, w/ fin
Brake Levers
SHIMANO Deore XT, BL-M8100
Cockpit
Stem
PROCRAFT Trail Expert 35 AICR, Winkel: 0°, Länge: 50 mm
Handlebar
PROCRAFT Trail Pro 35, Durchmesser: 35mm, Breite: 780mm, Rise: 20mm
Seat
Saddle
PROCRAFT E-Pro
Seatpost
PROCRAFT DROP Pro, Durchmesser: 30.9mm, Hub: 125mm (S), 150mm (M), 170mm (L, XL), Remote: SHIMANO SL-MT500-IL, I-Spec EV
Motor & Battery
Motor
BOSCH Performance Line CX, max. 85 Nm, 250 W, Modi: Turbo / E-MTB / Tour+ / ECO, weitere Modi frei konfigurierbar
Battery
BOSCH PowerTube 750Wh
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack | 633 mm | 633 mm | 642 mm | 651 mm |
| Top Tube Length | 582 mm | 607 mm | 634 mm | 661 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1220 mm | 1245 mm | 1274 mm | 1303 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
