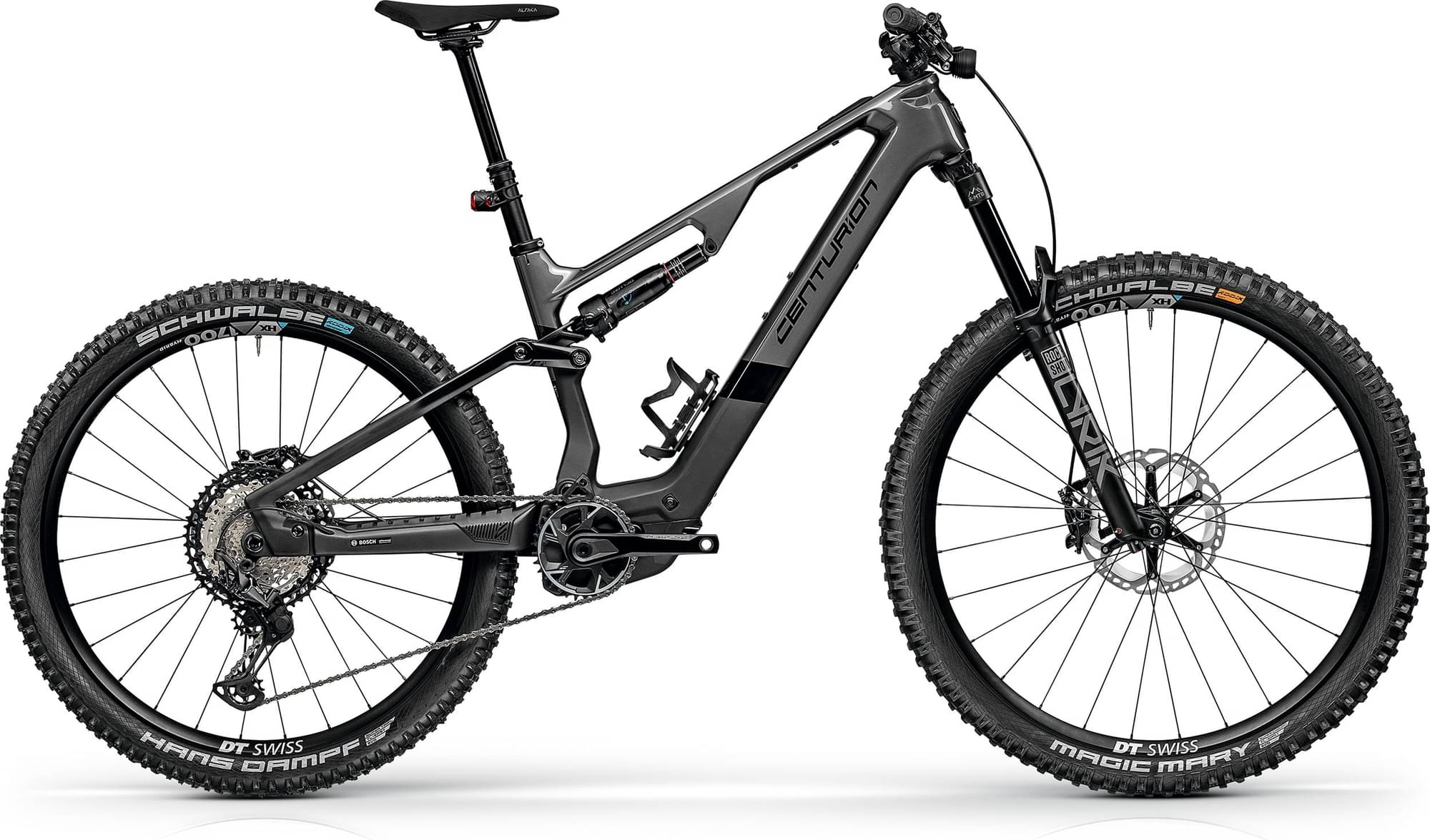

centurion No Pogo SL R6000i 2024
2024 E-bike
Weight | 18.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Fork RockShox Lyrik Select+
-
Groupset XT -
Suspension Full -
Motor Bosch 250W 55Nm hub-drive -
Battery BOSCH Compact PowerTube 400Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
No Pogo SL R intube, Material: Carbon, 29"/27,5", Steuerrohr: 1.5" straight, Ausfallende: 12x148mm, Bremsaufnahme: Postmount 200mm, UDH Standard, Rahmenkennung: MRB - 09
Suspension Fork
Rock Shox Lyrik Select+, Federweg: 150mm, 1.5" tapered, Rake: 44mm
Drivetrain
Rear Derailleur
SHIMANO Deore XT, RD-M8100-12, 1x12, Hyperglide+
Shift Levers
SHIMANO Deore XT, SL-M8100-IR12, I-Spec EV, Hyperglide+
Cassette
SHIMANO Deore XT, CS-M8100-12, 10-51T, Hyperglide+
Crank
CENTURION R Pro II Gen4, mattschwarz/glanz schwarz gebürstet, Länge: 165mm, CK-790
Bottom Bracket
BSA, 73mm, threaded
Chain
SHIMANO Deore XT, CN-M8100, 118 Links
Chain Guide
CENTURION Trail R, passend für Bosch SX Gen4
Pedals
VP VPE-527
Wheels
Front Hub
attached
Rear Hub
attached
Rims
DT Swiss HX 1700 Spline, front: 29", rear: 27,5", 15x110, 12x148, IW 30mm, Centerlock, tubeless ready
Tires
Schwalbe Magic Mary 29x2.4", tubeless ready, Addix Soft, Super Ground
Brakes
Brakes
SHIMANO Deore XT 4-Kolben, BR-M8120, resin pad, w/ fin
Brake Levers
SHIMANO Deore XT, BL-M8100
Cockpit
Stem
PROCRAFT Trail Pro 35, Winkel: 0°, Länge: 40 mm
Handlebar
PROCRAFT EDR Ultimate 35, Durchmesser: 35mm, Breite: 780mm, Rise: 20mm
Seat
Saddle
Fizik Terra Alpaca X5, mit Toolmount Option (Toolkit nicht im Lieferumfang enthalten)
Seatpost
PROCRAFT DROP Pro Adjust, Durchmesser: 30.9mm, Hub: 125mm (S), 150mm (M), 175mm (L) 200mm (XL), Remote: SHIMANO SL-MT500-IL, I-Spec EV
Motor & Battery
Motor
BOSCH SX, max. 55 Nm, 250 W, Modi: Turbo / E-MTB / Tour+ / ECO, weitere Modi frei konfigurierbar
Battery
BOSCH Compact PowerTube 400Wh
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack | 616 mm | 625 mm | 639 mm | 652 mm |
| Top Tube Length | 573 mm | 596 mm | 625 mm | 654 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1186 mm | 1209 mm | 1241 mm | 1272 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
