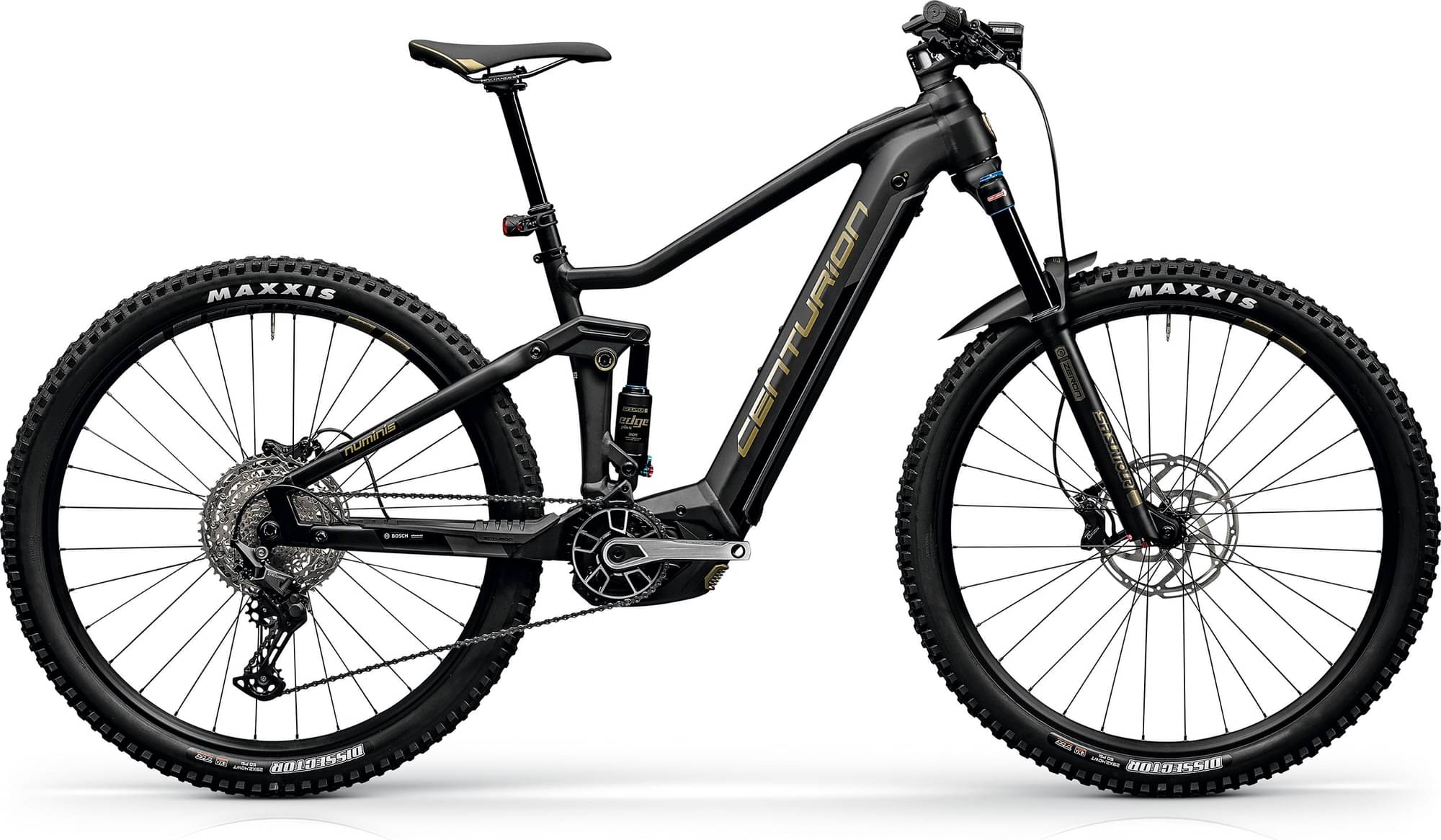

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork Suntour Zeron
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 750Wh; Größe S: 625Wh, entnehmbar, horizontal -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Numinis R intube, Material: Aluminium, 29", Steuerrohr: 1.5" - 1.8" tapered, Ausfallende: 12x148mm, Bremsaufnahme: Postmount 203mm, UDH Schaltauge, Rahmenkennung: TBP052A, max. Systemgewicht: 150kg
Suspension Fork
SR Suntour Zeron36X EQ Air 2CR, Federweg: 140mm, 1.5" tapered, Rake: 44mm
Drivetrain
Rear Derailleur
SHIMANO CUES, RD-U6000, 1x11, Linkglide
Shift Levers
SHIMANO CUES, SL-U8000-11R
Cassette
SHIMANO CUES, CS-LG400-11, 11-50T, Linkglide
Crank
CENTURION R Pro II Gen4, Länge: 165mm, CK-790
Chain
SHIMANO CN-LG500, Linkglide
Chain Guide
CENTURION Trail R, passend für Bosch Performance Line CX Gen4
Pedals
VP VPE-527
Wheels
Front Hub
SHIMANO HB-TC500-15-B / SHIMANO FH-TC500-HM-B, 15x110mm, 32H, 12x148mm, 32H
Rear Hub
SHIMANO HB-TC500-15-B / SHIMANO FH-TC500-HM-B, 15x110mm, 32H, 12x148mm, 32H
Rims
PROCRAFT Altitude MD30, IW 30mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
MAXXIS Dissector 29x2.4" WT, tubeless ready, 60 TPI, EXO
Brakes
Brakes
TEKTRO ORION 4-Kolben, HD-M750, organic pad
Brake Levers
TEKTRO ORION, HD-M750
Cockpit
Stem
PROCRAFT Trail Expert 35 AICR, Winkel: 0°, Länge: 50 mm
Handlebar
PROCRAFT Trail Pro 35, Durchmesser: 35mm, Breite: 760mm, Rise: 20mm, backsweep: 9°
Seat
Saddle
PROCRAFT Race
Seatpost
PROCRAFT DROP Pro, Durchmesser: 30.9mm, Hub: 125mm (S), 150mm (M), 170mm (L, XL), Remote: PROCRAFT I-Spec-II
Motor & Battery
Motor
BOSCH Performance Line CX, max. 85 Nm, 250 W
Battery
BOSCH PowerTube 750Wh; Größe S: 625Wh, entnehmbar, horizontal
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack | 632 mm | 636 mm | 650 | 664 mm |
| Top Tube Length | 577 mm | 598 mm | 621 mm | 644 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 405 mm | 425 mm | 460 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1208 mm | 1230 mm | 1255 mm | 1281 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
